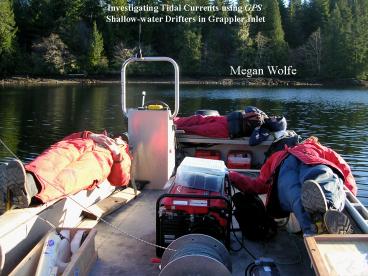

Investigating Tidal Currents using GPS
Shallow-water Drifters in Grappler Inlet
Megan Wolfe
Megan Wolfe
2
Table of Contents

• The Question
• The Question Revised
• Design and makings of the drifters
• Problems encountered
• Analysis and Discussion up to Date

3
The Question

• Team Bs layer of Ice
• Very thin layer of fresh water distributed
  throughout Grappler Inlet
• Wanted to determine how the tidal currents
  effected the distribution of the fresh water
  layer in Grappler Inlet

4
Revising the Question

• Problem!
• Thin fresh water layer was too thin!!
• - Fresh layer was only 3-10cm
• Could not design a drifter that would rest in the
  top 3-10cm which would not be influenced by the
  wind.
• Investigating the tidal currents throughout
  Grappler Inlet at 3 different depths Surface,
  1m, and 2m.

5
Design of the Drifters
Two parts of a Drifter -The drifter -And
the drogue

• Three Drifters built using everyday materials
• -Duct Tape
• -Styrofoam
• -plastic bags
• -rocks used to balance drogue
• New and improved tracking GPS units

2m
Surface
1m
6
1m
2m
Surface
7
Experimental Problems

• Bulky design of drifters
• Shore encounters
• Low tide
• -shallow waters
• -change in tide during experiment

8
Analysis and Discussion

• A look at all three of the drifter paths
• CTD temperature and salinity readings
• Separate out and focus on individual drifters
  paths
• GPS accuracy

9
Big map
Grappler Inlet with Drifter Destination
Big map
48.836
48.835
48.834
48.833
Latitude N
48.832
48.831
48.83
1m Drifter
Surface Drifter
2m Drifter Colored Dots Represents areas where
CTD readings were taken
48.829
-125.13
-125.125
-125.12
-125.115
-125.11
Longitude E
10
CTD Temperature and Salinity

• Temperature at surface is cooler due to fresh
  water layer/ice layer, peaks around 1m and
  decreases with depth
• Comparing Salinity and Temperature, Salinity
  seems to increase with depth, opposite to what
  the temperature is doing

11
Surface
Surface Drifter Latitudinal Distance Traveled
over Time
300
250
200
150
Distance traveled Latitudinally (meters)
100
50
0
-50
-100
-150
0
50
100
150
Time (min)

• Comments
• During outgoing tide, not much movement Ice
  hindrance
• Incoming tide Lots of movement, traveled
  farthest, but wind present

12
1m Drifter
Distance Traveled Latitudinally by 1m Drifter
vrs. Time
200
100
0
-100
Distance Traveled Latitudinally (meters)
-200
-300
-400
0
50
100
150
Time Traveled (mins)
Zoomed in on White Box
Zoomed in on Black Box Standard Deviation
1.347m
13
2m Drifter
Distance Traveled Latitudinally by 2m Drifter
vrs. Time
150
100
50
0
Distance Traveled Latitudinally (meters)
2m
-50
-100
-150
0
20
40
60
80
100
120
140
160
Time Traveled (mins)
Zoomed in white box
Zoomed in Black box Standard Deviation
2.6832m
14
GPS Error

• Six classes of GPS Error
• Ephemeris data Transmitted location errors of
  the satellite
• Satellite clock Errors in the transmitted clock,

• Ionoshpere Errors due to the corrections of
  pseudorange caused by ionospheric effects
• Troposphere Errors due to the corrections of
  pseudorange caused by tropospheric effects
• Multipath Errors caused by reflected signals
  entering receiver antenna
• Receiver Errors in the receivers measurements
  of range caused by thermal noise, software
  accuracy, and inter-channel biases

15
Comparing GPS Accuracy

• Determining GPS accuracy
• 2m drifter low tide coming to the rescue
• Comparison with other GPS accuracy tests
• Compact, low-cost GPS near shore drifterCenter
  for Water Research, U. of Western Australia

Power Spectra of the residuals Difference
between the recorded position from the mean
time- averaged position. The standard deviation
of the position from the mean was 1.3m in
Easting direction and 1.6m in the Northing
direction
16
Determining GPS Accuracy

• 2m Drifter ran a ground became stationary for
  40mins.
• A good estimation of GPS accuracy
• Standard Deviation 1.8864m

17
Drifter Improvements

• Effects due to wind stress
• - Less surface area exposed
• Lack of materials and resources
• Design of a smaller, compact
• GPS drifter that contains off the shelf
  components

Design of a smaller, compact GPS drifter that
contains off the shelf components Costs350
plus an estimated 8hrs of preparation
18
References

• A Compact, Low-Cost GPS Drifter for Use in the
  Oceanic Nearshore Zone, Lakes, and
  Estuaries,Journal of atmospheric and oceanic
  technology 0739-0572 Johnson yr 2003 vol 20
  iss 12 pg 1880
• A GPS-Tracked Surf Zone Drifter,Journal of
  atmospheric and oceanic technology 0739-0572
  Schmidt yr 2003 vol 20 iss 7 pg 1069
