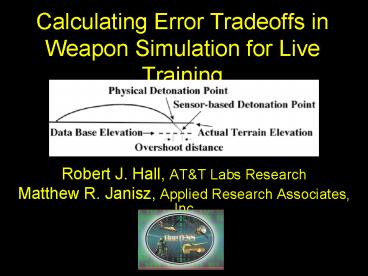

Calculating Error Tradeoffs in Weapon Simulation for Live Training

1
Calculating Error Tradeoffs in Weapon Simulation
for Live Training

• Robert J. Hall, ATT Labs Research
• Matthew R. Janisz, Applied Research Associates,
  Inc

2
OneTESS Live Training
Intro and Problem

• One Tactical Engagement Simulation System
• Instrumentation system for live training
• Goal is to replace MILES laser-based technology
  with wireless communications and highly accurate
  position and orientation sensors
• Instrumented weapons fire electronic bullets
  via mobile ad hoc networking
• Most engagements (shots) are simulated using
  geometric pairing

3
Geometric Pairing
Intro and Problem

• Key Idea use Analytic Geometry to compute who is
  hit by a shot, based on sensor inputs
• Positions (GPS) of shooter and possible targets
• Point angle (PAS) of weapon
• Terrain representation database (Terrain DB)
• Munition characteristics
• BUT, if sensors (GPS, PAS, Terrain DB) are
  imperfect, errors lead to inaccuracy in simulation

4
Sensor Error Tradeoffs
Intro and Problem

• Key Question How accurate must sensors be?
• Must be accurate enough for positive training
  value sensor-based weapons must be as accurate
  as physical weapons
• However, accuracy comes at cost
• Sensor errors can be traded off with one another
• Less accurate point-angle sensor (PAS) can be
  compensated (to some degree) by a more accurate
  position sensor (GPS) and vice versa
• Terrain DB inaccuracies can also be compensated
  by increased accuracy in other sensors, and vice
  versa
• Goal of this study explore these tradeoffs to
  aid system engineering decision making

5
Outline
?

• Introduction and Problem
• Computational Tools and Method
• Direct Fire Geometry and Results
• Indirect Fire Geometry and Results
• Terrain Database Geometry and Results

6
Computational Tools
Tools and Method

• Model sensors using Normal Distributions
• GPS error in each dimension is normal
• PAS error is normally distributed as well
• Terrain database does not vary during use, so we
  look at effects of particular error values
• Iterate over discretized normal distributions to
  compute tradeoff diagrams

7
Discretized Normal Distributions
Tools and Method
8
Tradeoff Diagrams
Tools and Method
9
Method
Tools and Method

• For a given physical situation and set of 3-sigma
  error radii for involved sensors
• Using nested iterations over discretized normal
  distributions for given 3-sigma radii,
  systematically choose all combinations of
  discrete values for sensor error (e.g. each of
  the 12 mesh values in previous figure)
• Given these choices, compute geometric result of
  shot
• Assign probability to this result as product of
  probabilities of the discrete values selected at
  this iteration
• (Conceptually) do the above for all values of
  error radii in range of interest
• (Actually) do for discrete grid of such radii
  choices
• and follow curve denoting boundary of acceptable
  region

10
Direct Fire
Direct Fire
Geometry
Results

• Curves show max PAS for given
•  GPS that achieve 99.5 acc.
• Results shown for target
• width 1.0m
• To compute graph for width w,
• scale this graph by multiplying
• each axis by w

11
Indirect Fire Geometry
Indirect Fire
Physical Shot
Sensor-based Shot
Accuracy score Area(CH) / Area(IH ? CH ? IM)
12
Indirect Fire Results (sample)
Indirect Fire

• Curves show maximum PAS error for given GPS
  error that
• still achieves physical weapons accuracy
  score
• Each curve is for a particular engagement range
• (Measurement units obfuscated for security
  reasons)

13
Terrain Database Errors
Terrain DB Errors
Foxhole Problem What is the probability that the
system will correctly judge on which side of a
terrain edge the player is standing (e.g. inside
or outside of foxhole), given a terrain error
offset?
14
Results on Foxhole Problem
Terrain DB Errors

• Generally impossible to achieve 100 with
  imperfect GPS
• For small terrain errors, improved GPS
  compensates, but
• For errors larger than about 1.1m, improved GPS
  hurts!

15
Terrain Database Errors (cont)
Terrain DB Errors
Elevation Uncertainty Problem What is the effect
on IF accuracy of terrain DB elevation errors?
How do terrain DB errors interact with (trade
off against) sensor errors?
16
Results on Elevation Uncertainty
Terrain DB Errors

• Typically, elevation errors lower the tradeoff
  curves
• Paradoxically this does not seem always to be
  the case
• (see paper)

17
Summary and Conclusions

• Geopairing can be used for engagement simulation
  in live training, but sensor errors lead to
  inaccurate engagement adjudication
• To study how accurate sensors must be, we use
  discretized normal distributions and compute
  tradeoff diagrams showing which combinations are
  accurate enough
• Each physical situation requires geometric
  modeling and nested iterations over distributions
• Initial studies are complete and demonstrate
  techniques, but further work must investigate
  more situations

18
Acknowledgement
The authors gratefully acknowlege the support
of the U.S. Armys OneTESS Program
