Augmented Reality: Object Tracking and Active Appearance Model

1

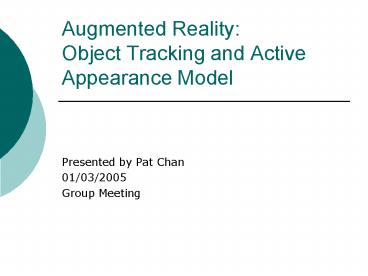

Augmented RealityObject Tracking and Active
Appearance Model

• Presented by Pat Chan
• 01/03/2005
• Group Meeting

2
Outline

• Introduction to Augmented Reality
• Object Tracking
• Active Appearance Model (AAM)
• Object Tracking with AAM
• Future Direction
• Conclusion

3
Introduction

• An Augmented Reality system supplements the real
  world with virtual objects that appear to coexist
  in the same space as the real world
• Properties
• Combine real and virtual objects in a real
  environment
• Runs interactively, and in real time
• Registers(aligns) real and virtual objects with
  each other

4
Introduction

• Display
• Presenting virtual objects on real environment
• Tracking
• Following users and virtual objects movements
  by means of a special device or techniques
• 3D Modeling
• Forming virtual object
• Registration
• Blending real and virtual objects

5
Object Tracking

• Visual content can be modeled as a hierarchy of
  abstractions.
• At the first level are the raw pixels with color
  or brightness information.
• Further processing yields features such as edges,
  corners, lines, curves, and color regions.
• A higher abstraction layer may combine and
  interpret these features as objects and their
  attributes.

6
Object Tracking

• Accurately tracking the users position is
  crucial for AR registration
• The objective is to obtain an accurate estimate
  of the position (x,y) of the object tracked
• Tracking correspondence constraints
  estimation
• Tracking objects is a sequence of video frames is
  composed of two main stages
• Isolation of objects from background in each
  frames
• Association of objects in successive frames in
  order to trace them

7
Object Tracking

• Object Tracking in image processing is usually
  based on reference image of the object, or
  properties of the objects.
• Tracking techniques
• Kalman filtering
• Correlation-based tracking,
• Change-based tracking
• 2D layer tracking
• tracking of articulated objects

8
Object Tracking

• Object Tracking can be briefly divides into
  following stages
• Input (object and camera)
• Finding correspondence
• Motion Estimation
• Corrective Feedback
• Occlusion Detection

9
Input

• Tracking algorithms can be classified into
• Single object Single Camera
• Single object Multiple Cameras
• Multiple object Single Camera
• Multiple objects Multiple Cameras

10
Single Object Single Camera

• Accurate camera calibration and scene model
• Suffers from Occlusions
• Not robust and object dependant

11
Single Object Multiple Camera

• Accurate point correspondence between scenes
• Occlusions can be minimized or even avoided
• Redundant information for better estimation
• Multiple camera Communication problem

12
Possible Solution
13
Static Point Correspondence

• The output of the tracking stage is
• A simple scene model is used to get real
  estimation of coordinates
• Both Affine and Perspective models were used for
  the scene modeling
• Static corresponding points were used for
  parameter estimation
• Least mean squares was used to improve parameter
  estimation

14
Dynamic Point Correspondence
15
Block-Based Motion Estimation

• Typically, in object tracking precise sub-pixel
  optical flow estimation is not needed.
• Motion can be in the order of several pixels,
  thereby precluding use of gradient methods.
• A simple sum of squared differences error
  criterion coupled with full search in a limited
  region around the tracking window can be applied.

16
Adaptive Window Sizing

• Although simple block-based motion estimation may
  work reasonably well when motion is purely
  translational
• It can lose the object if its relative size
  changes.
• If the objects camera field of view shrinks, the
  SSD error is strongly influenced by the
  background.
• If the objects camera field of view grows, the
  window fails to make use of entire object
  information and can slip away.

17
Four Corner Method

• This technique divides the rectangular object
  window into 4 basic regions - each one quadrant.
• Motion vectors are calculated for each subregion
  and each controls one of four corners.
• Translational motion is captured by all four
  moving equally, while window size is modulated
  when motion is differential.
• Resultant tracking window can be non-rectangular,
  i.e., any quadrilateral approximated by four
  rectangles with a shared center corner.

18
Example Four Corner Method
Synthetically generated test sequences
19
Correlative Method

• Four corner method is strongly subject to error
  accumulation which can result in drift of one or
  more of the tracking window quadrants.
• Once drift occurs, sizing of window is highly
  inaccurate.
• Need a method that has some corrective feedback
  so window can converge to correct size even after
  some errors.
• Correlation of current object features to some
  template view is one solution.

20
Correlative Method (cont)

• Basic form of technique involves storing initial
  view of object as a reference image.
• Block matching is performed through a combined
  interframe and correlative MSE
• where sc(x0,y0,0) is the resized stored template
  image.
• Furthermore, minimum correlative MSE is used to
  direct resizing of current window.

21
Example Correlative Method
22
Occlusion Detection

• Each camera must possess an ability to assess the
  validity of its tracking (e.g. to detect
  occlusion).
• Comparing the minimum error at each point to some
  absolute threshold is problematic since error can
  grow even when tracking is still valid.
• Threshold must be adaptive to current conditions.
• One solution is to use a threshold of k (constant
  gt 1) times the moving average of the MSE.
• Thus, only steep changes in error trigger
  indication of possibly wrong tracking.

23
Improvements

• Things can be improved
• Good filtering algorithms
• Adequate dynamical models
• Shape/appearance models need work

24
Active Appearance Models (AAMs)

• Active Appearance Models are generative models
  commonly used to model faces
• Can also be useful for other phenomena
• Matching object classes
• Deformable appearance models

25
Active Appearance Models (AAMs)

• 2D linear shape is defined by 2D triangulated
  mesh and in particular the vertex locations of
  the mesh.
• Shape s can be expressed as a base shape s0.
• pi are the shape parameter.
• s0 is the mean shape and the matrices si are the
  eigenvectors corresponding to the m largest
  eigenvalues

26
Active Appearance Models (AAMs)

• The appearance of an independent AAM is defined
  within the base mesh s0. A(u) defined over the
  pixels u ? s0
• A(u) can be expressed as a base appearance A0(u)
  plus a linear combination of l appearance
• Coefficients ?i are the appearance parameters.

27
Active Appearance Models (AAMs)

• The AAM model instance with shape parameters p
  and appearance parameters ? is then created by
  warping the appearance A from the base mesh s0 to
  the model shape s.

Piecewise affine warp W(u p) (1) for any pixel
u in s0 find out which triangle it lies in, (2)
warp u with the affine warp for that triangle.
M(W(up))
28
Fitting AAMs

• Minimize the error between I (u) and M(W(u p))
  A(u).
• If u is a pixel in s0, then the corresponding
  pixel in the input image I is W(u p).
• At pixel u the AAM has the appearance
• At pixel W(u p), the input image has the
  intensity I (W(u p)).
• Minimize the sum of squares of the difference
  between these two quantities

29
Object Tracking with AAM

• Objects can be tracked with the trained AAM
• 3-D face tracking with AAM search
• Pose estimation with AAM

30
Example

• The training set consisted of five images of a
  DAT tape cassette
• DAT cassette was annotated using 12 landmarks
• Upon the five training images, a two-level
  multi-scale AAM was built.

aam_tracking_mpeg4.avi
31
Future Direction

• Propose a general object tracking algorithm with
  the help of AAM
• Improve the accuracy of the object tracking
  algorithm
• Improve the fitting speed of the AAM

32
Conclusion

• Introduction on Augmented Reality
• Survey on Object Tracking
• Introduction Active Appearance Model
• Improve the accuracy of object tracking by AAM
• Proposed our future research direction
