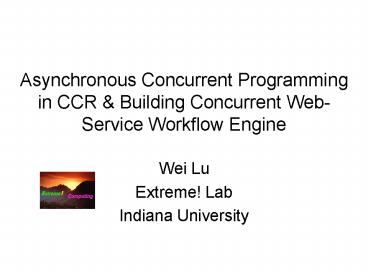

Asynchronous Concurrent Programming in CCR
Building Concurrent Web-Service Workflow Engine

• Wei Lu
• Extreme! Lab
• Indiana University

2
Asynchronous Concurrent Programming

• Where could the simultaneity come from?
• Parallel execution on multiply cores
• Overlapping computation and I/O
• How to efficiently leverage ?

stack
callback
A
C
A
B
C
A
B
B
B
C
CPU
CPU
Thread based model
Event driven model
3
Thread vs. Event

• Good programmability
• Maintaining the state in the stack
• Intuitive sequential model
• Easy to read, debug
• Heavy weight
• Kernel resource, stack
• Preemptive
• Need the lock
• error-prone (deadlock, live-lock)
• Support multicore directly

• Poor programmability
• State is ripped into callbacks
• Not intuitive
• Hard to read, debug
• Light weight
• Just callback
• Cooperative
• Lock is unnecessary
• Robust, callback is supposed to never block
• Multicore support is not direct

4
Server Performance
PR
server
IR
OR
poorly perform
Well perform
The increased concurrency should only increase
the system load linearly
5
C Supports for Asynchronous Programming

• Anonymous Delegation
• Closure, lambda function, or Continuation?

Uri responseUri null WebRequest request
WebRequest.Create("http//foo/bar.htm") request.
BeginGetResponse( delegate(IAsyncResult
ar) WebResponse
response request.EndGetResponse(ar)
responseUiri response.ResponseUri
, null) return
6
C Supports for Asynchronous Programming

• Yield return

IEnumeratorltstringgt Foo() //do
some here... 1 yield return "New
York" //do some here... 2
yield return "Paris" //do some
here... 3 yield return "London"
IEnumeratorltstringgt result Foo() while
(result.MoveNext())
Console.Write(result.Current)
7
IEnumeratorltintgt enumerator
enumerator Run() IEnumeratorltintgt
Run() WebRequest requestA
WebRequest.Create("http//foo")
requestA.BeginGetResponse(
delegate(IAsyncResult ar)
WebResponse respone
requestA.EndGetResponse(ar)
enumerator.MoveNext() )
yield return 1 WebRequest
requestB WebRequest.Create("http//bar")
requestB.BeginGetResponse(
delegate(IAsyncResult ar)
WebResponse respone
requestB.EndGetResponse(ar)
enumerator.MoveNext() )
yield return 1 WebRequest
requestC WebRequest.Create("http//goo")
//. yield break
WebRequest requestA
WebRequest.Create("http//foo")
requestA.BeginGetResponse(
delegate(IAsyncResult ar)
WebResponse respone
requestA.EndGetResponse(ar)
WebRequest requestB WebRequest.Create("http//ba
r") requestA.BeginGetResponse
( delegate(IAsyncResult
ar) WebResponse
respone requestA.EndGetResponse(ar)
WebRequest requestC
WebRequest.Create("http//goo")
... )
)

8
CCR

• Concurrent Coordination Runtime
• belong to MS Robotic studio (.NET)
• designed for the real-time highly current
  scenario
• Yet another event-driven library?
• Yes and NO
• Abstraction layer
• Port Arbiter
• Join Pattern

ports
Arbiter
callbacks
9
Internal of the CCR
ports
Arbiter.JoinedReceive(portA, portB,
delegate(String sA, String sB)
do_some_thing() )
Arbiter
callbacks
DispatcherQueue
CPU
CPU
CPU
CPU
10
Internal of the CCR
portA.Post("StringA") portB.Post("StringB")
ports
delegate(String sA, String sB)
do_some_thing() )
Arbiter
callbacks
DispatcherQueue
CPU
CPU
CPU
CPU
11
Internal of the CCR
portA.Post("StringA") portB.Post("StringB")
ports
delegate(String sA, String sB)
do_some_thing() )
Arbiter
callbacks
DispatcherQueue
CPU
CPU
CPU
CPU
12
Internal of the CCR
portA.Post("StringA") portB.Post("StringB")
ports
delegate(String sA, String sB)
do_some_thing() )
Arbiter
callbacks
DispatcherQueue
CPU
CPU
CPU
CPU
13
Arbiters
Arbiter.Receive(bool, PortltTgt, delegate(T msg)
)
Arbiter.JoinedReceive(bool, PortltTgt ,
delegate(T responses) )
Arbiter.MultipleItemReceive(bool, PortltTgt, int,
delegate(T responses) )
Arbiter.FromIteratorHandler(foo)
IEnumeratorltITaskgt foo()
//do some here yield return
Arbiter.Receive(false, port1, delegate(bool r)
) //do some here yield
return Arbiter.Receive(false, port2,
delegate(bool r) )
yield break
14
Arbiter.Choice(
Arbiter.Receive(false, port1, delegate(Message
msg) ),
Arbiter.Receive(false, port2, delegate(bool b)
) )
Arbiter.Interleave( new
TeardownReceiverGroup( Arbiter.Receive(false,
disablePort, delegate() )),
new ExclusiveReceiverGroup( Arbiter.Receive(tru
e, managePort, delegate(Message msg) ) ),
new ConcurrentReceiverGroup(
Arbiter.Receive(true, event1Port,
delegate(Message msg) ),
Arbiter.Receive(true, event2Port,
delegate(Message msg) ) ) )
Writer/Reader Lock
15
WS-BPEL

• Business Process Execution Language
• Workflow language for the web services
  orchestration
• Standard way to compose the services in SOA
• Performance will surely be highly demanded
• Basic activity web service invocation
• Concurrent Control Activities
• ltsequencegt, ltforEachgt etc.

ltscopegt
ltsequencegt
ltforEachgt
ltflowgt
ltpickgt
ltifgt ltwhilegt
ltactivitygt

ltInvokegt
ltassigngt
16
Orchestration

• The job of the engine
• Orchestrating one single flow
• Handle concurrency, parallelism coordination
• Intra-flow concurrency
• Managing multiple independent instances
• It is a server !
• Inter-flow concurrency

• Conductor is the bottleneck
• Study the performance and scalability of the
  conductor in the orchestration paradigm.

17
mcBPEL

• mcBPEL
• Highly concurrent WS-BPEL engine
• Event-driven, built upon CCR
• Prototype
• study the server performance scalability on
  multicore CPUs
• Basic principles
• Each activity is a reactive entity
• implemented as a callback
• May generate more callbacks
• Each activity has three ports
• Completion Port
• Exception Port
• Abort Port
• Invocation of the activity is asynchronous
• Continuation is listening on the Completion Port

18
ltInvokegt
19
ltsequencegt    activity lt/sequencegt
void Execute() foreach (Activity act in
activities) act.Execute()
yield return Arbiter.Choice(
Arbiter.Receive(false,act.CompletionP
ort, delegate(bool b)),
Arbiter.Receive(false,this.AbortPo
rt, delegate( )abort
true) ) if
(abort) break this.ComletionPort.Post(!
abort) yield break
20
ltforEachgt    activity lt/forEachgt
21
ltflow standard-attributesgt    standard-elements
ltlinksgt?       ltlink name"NCName"gt
lt/linksgt    activity lt/flowgt
How the thread model handle it? One thread per
activity?
22
ltscope name"S1"gt    ltfaultHandlersgt
ltcatchAllgt          ltcompensateScope target"S2"
/gt       lt/catchAllgt    lt/faultHandlersgt
ltsequencegt       ltscope name"S2"gt
ltcompensationHandlergt             lt!-- undo work
--gt          lt/compensationHandlergt          lt!--
do some work --gt       lt/scopegt       lt!-- do
more work --gt       lt!-- a fault is thrown here
results of S2 must be undone --gt
lt/sequencegt lt/scopegt
23
ltscopegt semantic in Pi-calculus
24
ltscopegt semantic in Petri-net
Control transferring, execution aborting,etc,
Will the thread be a good model for those
requirements?
25
(No Transcript)
26
Experiments
27
Conclusion Future work

• Our experience with building BPEL in CCR shows
• Simple supports from PL (e.g., anonymous
  delegation and yield return) can substantially
  ease the asynchronous programming
• Higher level concurrency abstraction (e.g.,
  join-pattern) enables implementing the
  complicated concurrency semantic
• Performance is a big win !
• Need to be more intuitive
• How about Cw
• How abut Erlang, or Actor model?
• Exception handling?
• Need some thoughts from PL ppls
