AI1 Experimental Methodology: Lecture 89 Experimental Design and Statistics

1

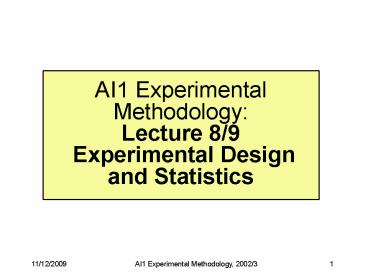

AI1 Experimental Methodology Lecture 8/9
Experimental Design and Statistics
2
Exp Methods Course

• 1. AI as Experimental Science
• 2. Experiments involving Humans
• 3. Data, visualisation and correlation
• 5. Introduction to Knowledge Based Systems
• 6. Knowledge Acquisition
• 7. Building and Evaluating Symbolic Systems
• 8/9. Experimental design and statistics
• 10. Experiments with other systems

3
1. Reminder
4
Tools for Analysing Data

• Data normally comes in sets - single experiment
  may involve repeating a test a number of times.
• Visualisation techniques used for exploratory
  data
• - display relationships between variables
  visually to make patterns in dataset apparent
• - tools for this
• MATLAB, a matrix manipulation system with
  excellent graphical display abilities.
• Statistical tests used for confirmatory
  experiments
• - to determine extent to which an anticipated
  effect is present in the data from the
  experiment
• - visualisation plays a much less significant
  role here

5
Class by degree and birth month
6
By degree and birth month
7
By degree and birth month
8
Scatter plots
9
Summary statistics

• Summary Statistics express a property of the data
  set in a single number or set of a few numbers.
• Most common mean, mode, median, variance and
  standard deviation
• Mean gives the centre of mass of the set
• _
• x ? x1,...xn
• -------------
• n
• So mean of 2, 3, 6, 1, 5, 1 18/6 3

10
Variance

• Variance ?2x is the mean deviation from the
  centre _ _
• ?2x ? (x1 - x)2,...(xn - x)2
• -------------
• n
• The Standard deviation ?x is the square root of
  the variance
• ___
• ?2x ??2x

11
Linear correlation

• Linear correlation measures how well the data fit
  the model of a straight line relationship.
• 1. Compute the means of the x and y data from the
  scatter plot separately.
• 2. For each point in the scatter plot (pair of
  data) calculate the deviation of each datum from
  its mean and multiply, that is
• compute (x - mean(x))(y - mean(y))
• 3. Sum these products for all the data pairs and
  divide by N-1 for N data.
• 4. Work out the standard deviation of x and y
  separately, and divide the sum from step 3. by
  the product of these standard deviations.

12
Pearson's Correlation Coefficient

• Measures how well the data fit the straight line
  model it assumes
• _ _
• correlation ? (x - x)(y - y)
• -------------------
• (N-1) ?x ?y
• Lies between -1 (low X means high Y)
• and 1 (high X means high Y)
• with 0 meaning no correlation

13
Study v exam performance
14
Study v exam performance
15
2. Hypothesis testing
16
Role of Experiment in Design

• Often experiments are used to guide new designs
  or help understand existing design.
• Programs are not themselves experiments. They
  are normally a part of the basis for conducting
  experiments (on an algorithm or a system or a
  group of people).
• Three types of activity
• Exploratory Where we are wondering what to
  design.
• Formative evaluation Where we experiment with a
  preliminary design with the aim of building a
  better one.
• Summative evaluation Where a final design is
  analysed definitively.

17
Hypothesis Formation

• Typical hypothesis Factor X affects behaviour Y.
• Typical null hypothesis No effect of X on Y.
• What will we measure about X and Y?
• Will our experiments aim to prove or disprove
  the (null) hypothesis?
• Observation v Manipulation
• - Observation experiments Look at population to
  see if X correlates with Y.
• - Manipulation experiments Change X and see
  what happens to Y.
• but we need to be sure that change in Y is due
  only to the differences in X.

18
Attempt to disprove hypothesis

• Formulate a precise experimental question or
  hypothesis
• Testing whether evidence supports our hypothesis
  or not.
• e.g. living near power cable increases likelihood
  of certain cancers
• or setting rate of mutation too high in a
  genetic algorithm results in slow convergence or
  poor solutions being found
• Design an experiment to disprove our hypothesis
• - a positive result could be caused by something
  we haven't thought of
• - but a single negative result disproves the
  hypothesis
• This means finding a way to answer the question
• Are measurements of X and Y related?

19
Observation v Manipulation

• Observation experiments
• necessary when cannot directly manipulate X
• group subjects based on measurement of X
• e.g. 2 groups, 1 of people close to power lines
• 1of those far from power lines
• see variation in incidence of cancers
• Manipulation experiments
• when factor of interest directly manipulable.
• e.g. genetic algorithm example - run the program
  with
• different values of the mutation rate
  parameter
• and see what happens

20
Influence of other factors?

• How do we know that effects we see (variations in
  measured behaviour) due only to changes in the
  factor of interest?
• other factors may influence behaviour of interest
  and may contaminate our experiments.
• Consider this during experimental design
• well-designed experiment allows us just one
  explanation for effects we see in data it
  produces
• while a poor design may allow many.
• When you look at data, and consider people's
  conclusions based on it, you need always to ask
  what else (apart from what they suggest) might
  account for the effects described.

21
Almonds are good for you.?

• Almonds It may sound pretty nutty, but even
  though almonds are very high in fat ... they may
  be good for your heart! A major study of 26,000
  members of the Seventh Day Adventist Church in
  the United States showed that those who ate
  almonds, peanuts and walnuts at least six times a
  week had an average lifespan of seven years
  longer than the general population, and a
  substantially lower rate of heart attack.
• (p. 77, The Food Medicine Bible,
• Earl Mindell and Carol Colman, 1994.)
• Can we conclude that almonds are good for you?
• Could be peanuts or walnuts, or combination
• Or maybe it only applies to 7th day Adventists
• Or something else is going on.

22
Control experiments

• To resolve these issues we would need to do more
  experiments (or do this one more carefully)
• to demonstrate that almonds accounted for
  healthier people and not the other nuts
• to demonstrate that Seventh day Adventists are
  typical of general population in relation to
  health
• Control experiments
• purpose is to eliminate alternative explanations
  of the data obtained from an experiment.
• They are vitally important many an interesting
  experiment rendered useless by poor controls.

23
Types of variables

• Other factors may affect behaviour we are
  investigating.
• factor we wish to study is independent variable
  (the thing we can vary as we choose)
• behaviour of interest is dependent variable
  (because it depends on the factor(s))
• other factors are extraneous variables (things
  that vary without our wanting them to)
• Control experiments try to eliminate the
  disturbances caused by extraneous variables by
  controlling them in some way.

24
Controlling for extraneous variation (1)

• Make the extraneous variable an independent one,
  and include it in the experiment (if we can)
• i.e. varying value of the extraneous variable
  together with that of the independent variable
• only possible if not too many extraneous
  variables
• 2. Partition the test cases such that the
  extraneous variable effects cancel out.
• e.g. effect of gender on measured intelligence
• - collect a large number of pairs of 1 male 1
  female
• such that each pair closely matched on age,
  socio-economic class, domestic situation,
  training, etc.
• so differences within each pair due solely to
  gender

25
Controlling for extraneous variation (2)

• 3. Random sample of the population of individuals
  with each of the values of the independent
  variable
• compare the behaviours of these samples.
• e.g. run 100 randomly different runs of a
  genetic algorithm for each chosen value of
  mutation rate
• Effects of other, extraneous, variables should
  appear as random variation in the dependent
  variable
• - effects of independent variable will not be
  random
• - a statistical test can distinguish them.
• Be careful that samples really are random with
  respect to the extraneous variables.
• - if there is some cause-effect relationship we
  don't know about, effects of extraneous variables
  may compound instead of cancelling out.
• Have to be very careful in selecting random
  samples.

26
Choosing test probelms

• How do we choose the set of tests that vary the
  factor X of interest and how do we make
  measurements of the behaviour Y we are studying.

• Make set of test problems to assess performance
  of system
• - what results of performance tell us depends
  what we are comparing our system against
• - test problems should fair not so hard that no
  comparator system could do well on, nor so easy
  that any system could do well.
• e.g.MYCIN can it perform as well as human
  experts?
• set of test problems for MYCIN and human experts
• - human novices were also included in comparator
  set
• If novices and experts both do well problems too
  easy - if both do badly too hard - fair test
  divides the two

27
Measurement procedure

• 2. Given our test set, what do we measure?
• - for MYCIN, test problem responses produced
  checked by human experts.
• - experts not told where solutions came from
• i.e. which generated by MYCIN and which were
  generated by the comparator set of humans.
• - possible biases controlled for by blinding
  judges to information which might bias their
  response.
• MYCIN was single blind trial, since only the
  judges were unaware whether a solution was human
  or machine generated.
• When knowledge available to subject (or
  experimenter) might cause a systematic variation
  in the measured effects, double blind trials also
  widely used
• e.g. in drug testing neither subjects or
  experimenters know who takes which drugs

28
Design

• Often

29
3. Statistical Tests for Confirmatory Experiments
30
4. Statistical Measures of IndependenceChi-squar
ed
31
Evaluating usability example

• We want to evaluate the usability of an
  interface, so we ask users to rate it as
• 1. easy to use
• 2. average
• 3. difficult to use
• We test it on different groups of users,
  recording how many users select each rating, for
  each of
• a. Children (under 12 years)
• b. Teenagers (13 - 18 years)
• c. Adults (over 18)
• If there is no consistency of usability then
  ratings will be equally spread across 1 - 3
• Is there a difference between different users?

32
Evaluating usability example
33
Alternative view of the data
34
Chi-squared statistical test

• Measuring similarity of distributions of data
• - one way is chi-squared (?2) statistical test
• - tells us how likely these data could arise by
  chance if no effect were present
• Suppose there is no effect present
• (i.e. data are independent)
• - would expect 130/3 to choose each rating.
• different numbers in each group, so calculate
  this proportional to number in each group
• Make table of expected and actual frequencies -
  expected value of each cell is
• row totals x column total
• overall total

35
Considering the ratings overall
Square differences, divide by expected and sum
?2 ? ( (O - E)2 ) E (36 - 43.3)2
(51 - 43.3)2 (43 - 43.3) 2 2.6 43.3
43.3 43.3 result ?2 2.6, df 2, p gt
0.05, NS i.e. no significant differences in
usability rating across the groups as a whole
36
Comparison between groups expected frequencies
37
Comparison between groups

• ?2 ? ( (O - E)2 )
• E
• (7 - 8.9)2 (20 -12.6)2 (5 - 10.6)2 (33
  -17.2)2
• 8.9 12.6 10.6 17.2
• 0.406 4.37 2.96 13.93 0.5 6.84

• 9.02 0.95 14.5 53.47
• Degrees freedom (r-1)(c-1) 2 x 2 4
• result ?2 53.47, df 4, p 0.01
• So we reject the null hypothesis

38
What might we infer from this?

• result ?2 53.47, df 4, p 0.01
• Look this up in statistical tables - the chance
  of obtaining the actual frequencies from an
  experiment with true frequencies equal to those
  expected is p lt 0.01
• So we reject the null hypothesis
• i.e. we do appear to have differing rating of
  usability between groups

39
4. Robotics example
40
Further example (from Cohen)

• Suppose we have a robot
• it works in a difficult (windy) environment
• it has to tackle problems for which it may or may
  not have time to work out a best'' plan of work
  to suit the conditions.
• Given different levels of wind speed (W)
• and different allowed thinking times (T)
• how do changes in these influence success result
  (R)?
• Hypothesis wind speed and outcome are
  independent when there is plenty of thinking
  time, but not when there is inadequate thinking
  time
• Run observational experiments and see what
  happens
• Compare - when T thinking time is adequate
• - when thinking time is not adequate

41
When thinking time is adequate
42
Expected values (adequate)
43
Expected values (adequate)

• ?2 ? ( (O - E)2 )
• E
• For T adequate this is
• ((30-27.95)2/27.95) ((5-7.05)2/7.05)
• ((32-31.94)2/31.94) ((8-8.06)2/8.06)
• ((53-55.1)2/55.1) ((16-13.9)2/13.9)
• 1.145
• A low value, so a small difference.
• Probability of independence is 0.56
• (not significant)

44
When thinking time is inadequate
45
Expected values (inadequate)
46
Expected values (inadequate)

• ?2 ? ( (O - E)2 )
• E
• For T inadequate this is
• ((55-42.71)2/42.71) ((30-42.29)42.29)
• ((35-38.69)2/38.69) ((42-38.31)2/38.31)
• ((10-18.59)2/18.59) ((27-18.41)2/18.41)
• 15.79
• A high value, so a big difference.
• Probability of independence is 0.0004
• (significant at lt 0.01 level)

47
Conclusions r.e. hypotheses

• When thinking time is adequate, probability of
  independence is 0.56 (not significant)
• When thinking time is inadequate, probability of
  independence is 0.0004
• (significant at lt 0.01 level)
• So, reject null hypothesis
• Support for hypothesis
• Wind speed and outcome are independent when
  there is plenty of thinking time, but not when
  there is inadequate thinking time

48
Chi-squared - summary

• 1. Assume that the data are independent.
• 2. Calculate expected frequencies of each kind of
  result for a sample of the same size and
  composition as the one you have, given the
  independence assumption.
• Calculate the square deviation between actual and
  expected frequencies, divide each by the expected
  frequency, and sum over the whole table.
• 4. Work out the degrees of freedom
• 5. Consult tables giving chi2 distribution
  probabilities to find chance that data could
  generated by accident, given assumption of
  independence

49
Presenting Experimental Work

• 1. Give enough information so that conclusions
  and analysis can be checked by an interested
  reader.
• i.e. state sample sizes, sample variances and
  means, and other statistical information the
  reader may need.
• 2. Give enough information for reader to be able
  to replicate your work - make replication
  possible.
• i.e. give clear descriptions of methods used,
  parameters chosen, details of algorithms make
  training and test data sets available, and say
  where to get them from.
• In general, display data visually in informative
  ways.
• Use tools such as MATLAB to create clear and
  effective graphical presentations that convey
  information

50
5. Genetic algorithms example
51
Genetic algorithms example

• Still to do for Thursday

52
Genetic algorithms example

• Change

53
Gas

• Change

54
Gas

• Change

55
Gas

• Change

56
Gas - t-test

• Change

57
6. Statistical Measures of Independencet-test
58
Do another example
59
By whatever.
60
Further example

• Distributions
• Normal etc

61
Further example
62
Further example
63
Standard Error I
64
Standard Error II
