Title: Operation Sally 2008

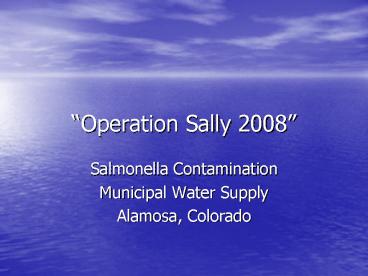

1
Operation Sally 2008
  • Salmonella Contamination
  • Municipal Water Supply
  • Alamosa, Colorado

2
Alamosa, Colorado
  • Resident Population
  • 11,000 people /-
  • Daytime Population
  • 30,000 people /-
  • Adams State College
  • Trinidad State Junior College
  • San Luis Valley Medical Center
  • Located in South Central Colorado
  • Elevation is 7,544 feet above sea level
  • Rio Grande bisects the community

3
(No Transcript)
4
(No Transcript)
5
(No Transcript)
6
Alamosa, Colorado Demographics
  • Home Rule Municipality
  • County Seat
  • 3,215 housing units
  • Median family household income
  • 33,017
  • 46 Hispanic population
  • Largest alpine mountain valley in the world. (San
    Luis Valley)

7
Alamosa, Colorado Water Source
  • Deep Earth Aquifer
  • 6 wells, with individual well heads
  • 600 to 2,000 feet deep Artesian wells
  • Range from 72 to 94 degrees in temperature
  • 22 psi Artesian, pumped up to 65 psi for
    distribution
  • No treatment of entire water system.
  • Great public confidence in the integrity of the
    public water system.

8
(No Transcript)
9
Initial Confusion of Illnesses
  • Reported Sickness for 5-7 days
  • Severe Abdominal Cramps
  • Severe Headaches
  • Vomiting and Nausea
  • Bloody Diarrhea
  • Public Health attempted to tie cases together
  • Initial reports and research by SLV RMC and
    Alamosa County Public Health Dept.
  • Initial lab confirmations of Coliform bacteria

10
(No Transcript)
11
Initial Origin Quest
  • First confirmed case of Salmonella was from a
    McDonalds worker.
  • Alamosa County Public Health Dept. responded to
    check their food processing protocols.
  • This lead to many accusations/rumors and much
    speculation.

12
EpiCurve On Set Map
13
Initial EOC panic
  • Agreement/Pact with all leaders
  • We slowed everything down.
  • 12 hour shifts for PD
  • The first order of business was to assure all
    citizens that everything was going to be fine and
    that we would provide enough water for everyones
    needs.

14
(No Transcript)
15
3 Types of Salmonella Enterica
  • Typhi (Most severe of the 3 types)
  • Causative agent of typhoid fever
  • Often fatal
  • Can only infect humans
  • From swallowing infected water
  • Typhimurium
  • Food poisoning, mainly with mice
  • Not normally fatal
  • Enteritidis (Smiliar to Typhimurium)
  • Single most common cause of food poisoning
  • Adept at spreading through chickens

16
From Birds called Coliiforms
  • Coliform bacteria are the commonly-used bacterial
    indicators of sanitary quality of foods and
    water.
  • Coliforms are abundant in the feces of
    warm-blooded animals, but can also be found in
    the aquatic environment.

17
This one scared me!
  • Salmonella infection can rapidly spread
    throughout the whole food chain. A chicken from
    a single farm may be distributed over many
    cities, and even states, and hence Salmonella can
    be rapidly dispersed through millions of people
  • www.salmonella.org

18
This one too!
  • Unfortunately, in immunocompromized people, that
    is the elderly, young, or people with depressed
    immune systems, Salmonella infections are often
    fatal if they are not treated with antibiotics
  • www.salmonella.org

19
Case Study/Research
  • 5 reported cases of waterborne salmonella since
    1985.
  • 2 involved cracked pipes in distribution system
  • 2 involved insufficient water treatment
  • 1 involved untreated groundwater
  • 1993 case of Salmonella Typhimurium in water
  • Gideon, Missouri
  • 1,100 population of the City
  • 650 people became ill
  • 7 people died

20
Gideon, Missouri Facts
  • 31 of the cities population drank unboiled
    water, after the boil order was issued.
  • Reasons given for non-compliance
  • Did not remember 44
  • Disbelieved the order 25

21
Timeline
  • Thursday, March 6 2008
  • First case of illness onset reported
  • Monday, March 17 2008
  • E.O.C. established by Alamosa County Health Dept.
  • Tuesday, March 18 2008
  • 52 total cases of Salmonella confirmed

22
Timeline
  • Wednesday, March 19 2008
  • Bottled water order issued by Colorado Department
    of Health and Environment
  • Full E.O.C. opened with County and City
  • COHELP Line activated
  • Denver Water Quality arrives
  • Held First Public Meeting with City Council

23
First Public Council Meeting
  • People who declared we were wrong
  • False accusations
  • Rabbit Trails
  • McDonalds and Cantaloupe
  • Legal issues/threats
  • From flyers to liars
  • Rumors and Innuendo
  • From Chicken Little to the Arm Chair Scientist

24
Timeline
  • Thursday, March 20 2008
  • American Red Cross arrives with 18 volunteers
  • Three public water distribution sites established
    and opened
  • K-Mart
  • Boyd Park
  • San Luis Valley Regional Medical Center

25
Recognition
  • More than we could sustain/handle as a City for
    the initial time periods of being without water.
  • 3 weeks with NO use of the public water system.

26
Water Distribution
  • Avoid Citizen Panic
  • Water availability had to be immediate
  • Delivery to home bound patients, and
    infra-structure locations, first
  • This would hopefully engender community trust
  • Infrastructure Maintenance
  • SLV Regional Medical Center, Adams State College,
    Alamosa County Jail
  • We delivered water the next day to our citizens!
  • Delivery Schedules
  • Altered nature
  • 3 sites, 1 for the walking population
  • Resource Management
  • Staging area(s)
  • Security
  • Cleanliness of tanks and sites

27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
(No Transcript)
31
Water Distribution Site
32
(No Transcript)
33
(No Transcript)
34
(No Transcript)
35
(No Transcript)
36
(No Transcript)
37
(No Transcript)
38
(No Transcript)
39
(No Transcript)
40
(No Transcript)
41
(No Transcript)
42
Water Distribution In Gallons
43
Water Distribution by Site
44
Water Distribution by Time
45
(No Transcript)
46
Timeline
  • Friday, March 21 2008
  • Governor Ritter issues an emergency order
  • Colorado National Guard Advance Team arrives, (3
    members)

47
Emergency Declaration by Colorado Governor Bill
Ritter
  • National Guard
  • Allocation of 300,000
  • National Incident Management Team
  • 3 Separate Colorado Teams
  • The transition challenge/shuffle

48
(No Transcript)
49
National Guard
  • 3 Advanced Team Members
  • 15 soldiers
  • 1 water tanker
  • 3,000 gallons of potable water
  • 2 vans
  • Soldier transport

50
(No Transcript)
51
(No Transcript)
52
(No Transcript)
53
One of the best things the Colorado National
Guard helped us with.
  • Creating a consistent media message plan that was
    structured in a manner that was easily understood
    by everyone.
  • They stressed consistency in both message and
    delivery, and it paid off.

54
National Guard and NIMS Team Associated Costs
  • Approximately 34,000 per day
  • Approximate total cost through 4/11/08
  • 600,000

55
Water Distribution Site Security
  • The integrity of the water supply points was
    critical.
  • We never left unattended water supplies
  • The cleanliness of the bulk water supply points
    was critical.
  • Procedures for dispensing

56
Timeline
  • Saturday, March 22 2008
  • Governor Bill Ritter arrives
  • U.S. Senator Ken Salazar arrives
  • U.S. Congressman John Salazar arrives
  • They did a press release, met with community
    members and handed out water.

57
Timeline
  • Sunday, March 23 2008
  • Delegation of authority to first National
    Incident Management Team from Colorado
  • More than 170 volunteers distribute Stage 1/Red
    Flyers
  • Main focus of flyer was to announce impending
    restrictions and notify of the Flush

58
National Incident Management Team
  • 1 Incident Commander
  • 1 Logistics Chief
  • 1 Planning Chief
  • 1 Operations Chief
  • 1 Finance Officer
  • 1 Safety Officer
  • 2-3 Media Officers
  • Key!

59
(No Transcript)
60
Flyer Distribution
  • 900 Volunteers
  • More than 4,000 hours
  • Water Distribution Sites
  • House to House flyer distribution
  • Stage1/Red and Stage 2/Yellow
  • Stage 3/Green was delivered in stores and via our
    local newspaper.

61
(No Transcript)
62
(No Transcript)
63
Timeline
  • Monday, March 24 2008
  • Colorado Department of Public Health and
    Environment announces laboratory confirmation of
    Salmonella in the City of Alamosa public water
    supply.
  • CDC confirmed 5 positive tests on 5 tested
    samples
  • 18 Additional Colorado National Guard arrive
  • Governor Ritter asked for 9 federal
    specialists/experts to come to Alamosa, CO

64
Timeline
  • Monday, March 25 2008 - Continuation
  • Alamosa Public Schools cancelled classes
  • Adams State College cancelled classes
  • Loaded with water - Readiness
  • Parents and kids then stayed home
  • Water had been staged into schools and work
    places as secondary supply points

65
Timeline
  • Tuesday, March 25 2008
  • 0900 hours system flushing begins
  • 5,500 newspaper inserts
  • Arrival of Health and Human Services staff
  • The first day was less dramatic than we thought

66
The Flush
  • 25 ppm of Chlorine for 24-48 hours
  • Maintain 10 ppm of Chlorine for 3 days
  • 6-7 ppm Chlorine is the chlorination of an
    average swimming pool
  • Minimum of 2 ppm of Chlorine for drinking
  • Less than 1 ppm of Chlorine forward

67
Stage 1, Red Phase
  • Stated Flyer Instructions
  • Do not drink city water
  • Do not use city water for food preparation
  • including all baby formula
  • Do not use city water to bathe or shower
  • Do not use city water to brush your teeth
  • Do not use city water for any pets
  • Do not use your dishwasher
  • Do not use your clothes washing machine

68
Stage 1, Red Phase
  • We could flush our toilets, and that was it!
  • It is amazing how the little things in life can
    make you so happy.

69
(No Transcript)
70
(No Transcript)
71
Kill Time - Chlorine to Salmonella
  • At 1 ppm Chlorine, Salmonella is killed in 34
    minutes
  • At 10 ppm Chlorine, Salmonella is killed in 3.5
    minutes
  • At 25 ppm Chlorine, Salmonella is virtually
    instantly killed

72
Timeline
  • Wednesday, March 26 2008
  • Full system flush continued
  • City Council updated at meeting
  • Personnel from Centers for Disease Control arrive
  • Start of daily recorded messages from Mayor

73
Timeline
  • Thursday, March 27 2008
  • Comfort Inn opens for free public showers
  • This was 7 days after the bottled water order.
  • Everyone was getting stinky and irritable!

74
Timeline
  • Friday, March 28 2008
  • My first shower at Comfort Inn
  • 106 of 119 regulated food industries had been
    inspected and re-opened for business by the
    Consumer Protection Division of the Colorado
    Department of Public Health.
  • All areas in the City had received the super
    chlorination

75
Timeline
  • Saturday, March 29 2008
  • My wifes first shower at Comfort Inn
  • Water tests continued throughout the system
  • Stage 2/Yellow flyers were distributed through
    the City as tests confirmations allowed
  • National Guard personnel reduced by 11 with 9
    remaining for water distribution

76
Stage 2, Yellow Phase
  • Stated Flyer Instructions
  • All of the same restrictions of Stage 1/Red
    Phase except for
  • We could take Sponge bathes or brief showers
    only in luke-warm (not hot) water.

77
(No Transcript)
78
Hold on a minute!
  • We were supposed go to Stage 3/Green on
    Wednesday, 4/09/08.
  • The Colorado State Health Dept. advised us
  • Giradia and Cryptosporidium were also present
    in some earlier tests.

79
Timeline
  • Sunday, March 30 2008
  • 99 of the City went into Stage 2/Yellow phase
  • Only the 20 homes on the golf course were not in
    Stage 2.
  • Schools were to re-open on the next Monday

80
Timeline
  • Monday, March 31 2008
  • The entire City was in Stage 2/Yellow of the
    flush process.
  • Approval to use water to wash clothes was
    announced.

81
Stage 3, Green Phase
  • Stated Flyer Instructions
  • Friday, 4/11/08, at 1630 hours
  • Run all taps for at least 2 minutes
  • Sanitize any water filtration systems
  • Clean and sanitize kitchen sink
  • Run dishwasher empty 3 times
  • Run ice-makers 3 times, and discard all ice
  • Drain refrigerator water dispensers for 5 minutes
  • Brew 4 pots of hot water in coffee makers

82
Media Exposure
  • Print
  • Daily articles in the Valley Courier
  • Everything written/spoken in English and Spanish
  • This is very exciting Denver Post
  • Video
  • KENY TV (Channel 10)
  • Daily taped video messages from the Mayor
  • Radio
  • National
  • Good Morning America
  • CNN

83
Daily Police Business Continues
  • We received messages on impending looting in
    Alamosa from our State Intelligence/Analysis
    Center.
  • Calls for Service were relatively low, but
    steady.
  • There were many public inquires and questions.
  • We were completing the building of our new Police
    Department, with a timeline.

84
Colorado Citizen Help Line Calls
  • CO Help Line
  • 2,855 Total Calls
  • 1,420 talked to a live person
  • 1,435 listened to the voicemail
  • Setting up this resource was probably one of the
    better things that we did.

85
Potential Bacteria Origin/Causes
  • Cross Connections
  • 140 potential individual cross connections
  • No backflow prevention device at that onnection
  • Loss of system pressure causing a backflow into
    the water distribution system.
  • Storage tank contamination from small discovered
    cracks.
  • Intentional?

86
Potential Scams
  • Door to door collection of money to Help the
    City of Alamosa pay the State of Colorado for all
    the bottled water.
  • EPA personnel in town asking to enter homes and
    inspect water systems, then make
    recommendations on purchasing a water filtration
    system.

87
Overall Case Statistics
  • Reported Illnesses, as of 4.21.08
  • 411 Cases Reported
  • 112 Confirmed Cases of Salmonella
  • 18 Hospitalizations
  • 1 Death
  • Ages
  • 3 Weeks to 87 years
  • Median age of 11 years
  • Now being transmitted person to person
  • Over 270 water tests were conducted
  • Volunteers
  • 900 Volunteers, plus
  • 4,000 Hours, plus

88
Overall Water Statistics
  • Bottled Water Distributed
  • 53,528 Gallons
  • Bulk Water Distributed
  • 133,932 Gallons
  • Total Water Distributed
  • 187,460 Gallons

89
Contributing Agencies/Companies Intellect/Informat
ion
  • 36 Different Agencies
  • Municipalities, Counties, States
  • From Across the United States
  • Denver Water
  • Federal Agencies
  • DHS, FDA, Preparedness and Response, CDC
  • Red Cross

90
Contributing Donors Product
  • Safeway Grocery, King Sooper Grocery, Coors,
    Anheuser-Busch, Wal-Mart, Walgreen's, Nestles,
    McDonalds, Albertsons Grocery, Burger King,
    Costco, LDS Church
  • Comfort Inn

91
(No Transcript)
92
(No Transcript)
93
Current Situation
  • Stage 3/Green at 1630 hours on Friday 4/11/08
  • 2 ppm of Chlorine for a period of time
  • Will go down to .7 to 1 ppm Chlorine
  • Epidemiology continues
  • We are still seeking the origin of bacteria
    influx
  • We probably have the cleanest water in all of
    Colorado
  • City Manager Nathan Cherpeski

94
A Bad Headline Day
  • Death Linked to Salmonella
  • Friday, March 18 2008

95
(No Transcript)
96
NIMS importance
  • Go to, and Pay Attention to the Training
  • Develop and Institute a EOC plan
  • Inter and Intra Dept. Cooperation
  • Agreements and/or MOUs
  • Speak the same language
  • Cooperate with each other

97
Lessons Learned
  • Leaders must make critical decisions in the face
    of great scrutiny.
  • Remain calm with the public.
  • Make a plan, follow your plan, but be flexible.
  • Resources management is huge!
  • Staging Areas and Accountability
  • Press release information must be accurate and
    systematically done.

98
Questions
  • Alamosa Colorado Police Department
  • Chief John A. Jackson
  • 2431 Main Street
  • Alamosa, Colorado 81101
  • 719-589-2548
  • jjackson_at_cc.alamosa.co.us
About PowerShow.com
