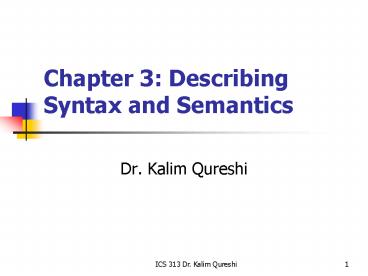

Chapter 3: Describing Syntax and Semantics

1
Chapter 3 Describing Syntax and Semantics

• Dr. Kalim Qureshi

2
Objective

• Introduction
• The General Problem of Describing Syntax
• Formal Methods of Describing Syntax
• Attribute Grammars
• Describing the Meanings of Programs Dynamic
  Semantics

3
3.1 Introduction

• Who must use language definitions?
• Other language designers
• Implementers
• Programmers (the users of the language)
• Syntax
• The form or structure of the expressions,
  statements and program units.
• Semantics
• The meaning of the expressions, statements, and
  program units.

4
3.2 Describing Syntax

• A sentence is a string of characters over some
  alphabet.
• A language is a set of sentences.
• A lexeme is the lowest level syntactic unit of a
  languages (e.g., , sum, begin).
• A token is a category of lexemes (e.g.,
  identifier).
• Formal approaches to describing syntax
• Recognizer ? used in compiler (see chapter 4).
• Generators ? what well study in this chapter.

5
3.3 Formal Methods of Describing Syntax

• Context-Free Grammars
• Developed by Noam Chomsky in the mid 1950s
• Language generators, meant to describe the syntax
  of natural languages
• Define a class of languages called context-free
  languages.

6
3.3 Formal Methods of Describing Syntax (cont.)

• Backus-Naur Form (1959).
• Invented by John Backus to describe Algol 58.
• BNF is equivalent to context-free grammars
• A meta language is a language used to describe
  another language.
• In BNF, abstractions are used to represent
  classes of syntactic structures. They act like
  syntactic variables (also called nonterminal
  symbols)
• ltwhile_stmtgt ? while ( ltlogic_exprgt ) ltstmtgt
• This is a rule it describes the structure of a
  while statement.

7
3.3 Formal Methods of Describing Syntax (cont.)

• A rule has a left-hand side (LHS) and a
  right-hand side (RHS), and consists of terminal
  and nonterminal symbols
• An abstraction (or nonterminal symbol) can have
  more than one RHS
• ltstmtgt -gt ltsingle_stmtgt
• begin ltstmr_listgt end
• Syntactic lists are described using recursion
• ltident_listgt -gt ident
• ident, ltident_listgt
• A derivation is a repeated application of rules,
  starting with the start symbol and ending with a
  sentence (all terminal symbols)

8
3.3 Formal Methods of Describing Syntax (cont.)

• An example grammar
• ltprogramgt -gt ltstmtsgt
• ltstmtsgt -gt ltstmtgt ltstmtgt ltstmtsgt
• ltstmtsgt -gt ltvargt ltexprgt
• ltvargt -gt a b c d
• ltexprgt -gt lttermgt lttermgt ltterm termgt
• lttermgt -gt ltvargt const
• An example derivation
• ltprogramgt gt ltstmtsgt gt ltstmtgt
• gt ltvargt ltexprgt gt a ltexprgt
• gt a lttermgt lttermgt
• gt a ltvargt lttermgt
• gt a b lttermgt
• gt a b const

9
3.3 Formal Methods of Describing Syntax (cont.)

• Every string of symbols in the derivation is a
  sentential
• A sentence is a sentential form that has only
  terminal symbols
• A leftmost derivation is one in which the
  leftmost nonterminal in each sentential form is
  the one that is expanded
• A derivation may be neither leftmost nor rightmost

10
3.3 Formal Methods of Describing Syntax (cont.)

• A parse tree is a hierarchical
• representation of a derivation
• A grammar is ambiguous iff it
• generates a sentential form that
• has two or more distinct parse trees

11
3.3 Formal Methods of Describing Syntax (cont.)

• A parse tree for the simple statement A B (A
  C)

12
3.3 Formal Methods of Describing Syntax (cont.)

• An ambiguous expression grammar
• ltexprgt -gt ltexprgt ltopgt ltexprgt const
• If we use the parse tree to indicate precedence
  level of the operators, we cannot have ambiguity

13
3.3 Formal Methods of Describing Syntax (cont.)

• Two distinct parse trees for the same sentence, A
  B C A

14
3.3 Formal Methods of Describing Syntax (cont.)

• An unambiguous expression grammar

15
3.3 Formal Methods of Describing Syntax (cont.)

• Operator associativity can also be indicated by
  grammar

16
3.3 Formal Methods of Describing Syntax (cont.)

• Extended BNF (just abbreviations)
• Optional parts are placed in brackets ()
• ltproc_callgt -gt ident ( ltexpr_listgt)
• Put alternative parts of RHSs in parentheses and
  separate them with vertical bars
• lttermgt -gt lttermgt ( -) const
• Put repetitions (0 or more) in braces ()
• ltidentgt -gt letter letter digit

17
3.3 Formal Methods of Describing Syntax (cont.)

• BNF
• EBNF

18
3.3 Formal Methods of Describing Syntax (cont.)

• Syntax Graphs
• put the terminals in circles or ellipses and put
  the nonterminals in rectangles connect with
  lines with arrowheads e.g., Pascal type
  declarations

19
(No Transcript)
20
Attribute Grammar

• CFGs cannot describe all of the syntax of
  programming languages.
• Attribute grammar describe more of the structure
  of a PL as compared to CFGs.
• It an extension of CFGs.
• The extension allows certain language rules to be
  described, such as type compatibility.

21
Static semantics

• Static semantics of a language are non syntactic
  rules which define legality of a program and can
  be analyzed at compile time.
• Consider a rule which states that a variable must
  be declared before it is referenced.
• Cannot be specified in a context-free grammar.
• Can be tested at compile time.
• Some rules can be specified in the grammar of a
  language, but will unnecessarily complicate the
  grammar.
• e.g. a rule in JAVA that states that a string
  literal cannot be assigned to a variable which
  was declared to be type int.

22
Basic Concepts

• Attribute grammars are grammars to which have
  been added attributes, attribute computation
  functions and predicate functions.
• Attributes ? associate with grammar symbols, are
  similar to variables in the sense that they can
  have values assigned to them.
• Attribute computation functions ? semantic
  functions, are associated with grammar rules.
  They are used to specify how attribute values are
  computed.
• Predicate function ? which state some of the
  syntax and static semantic rules of the language
  are associated with grammar rule.

23
Attribute grammars defined

• Def An attribute grammar is a CFG with the
  following additions
• For each grammar symbol x there is a set A(x) of
  attribute values.
• Each rule has a set of functions that define
  certain attributes of the nonterminals in the
  rule.
• Each rule has a set of predicates to check for
  attribute consistency.

24
Attribute Grammars (continued)

• Associate with each grammar symbol X is a set of
  attributes A(X).
• A(X) consists of two disjoint sets S(X) and I(X),
  called synthesized and inherited attributes
• Synthesized attributed are used to pass semantic
  information up a parse tree.
• Inherited attributes pass semantic information
  down a parse tree.
• Let X0 ? X1 Xn be a rule
• Function of the form I (Xn) f (A(X0), A (Xn))
  define synthesized attributes.
• Functions of the form I(Xj) f(A(X0), ... , A
  (Xn)), for i lt j lt n, define inherited
  attributes

25
Attribute Grammars (continued)

• Example expressions of the form id id
• id's can be either int_type or real_type
• types of the two id's must be the same
• type of the expression must match it's expected
  type
• BNF
• ltexprgt ? ltvargt ltvargt
• ltvargt ? id
• Attributes
• Actual_type A synthesized attribute associated
  with the nonterminals for ltvargt and ltexprgt
• Exceted_type An inherited attribute associated
  with the nonterminal ltexprgt

26
Example

• Syntax rule ltproc_defgt ? procedure
  ltproc_namegt1
• ltproc_bodygt end ltproc_namegt2
• Semantic rule ltproc_namegt1.string
  ltproc_namegt2.string
• ltassigngt ? ltvargt ltexprgt
• ltexprgt ? ltvargt ltvargt
• ltvargt
• ltvargt ? A B C

27
An attribute grammar for simple assignment
statements

• 1. Syntax rule ltassigngt ? ltvargt ltexprgt
• Semantic rule ltexprgt.expected_type ?
  ltvargt.actual_type
• 2. Syntax rule ltexprgt ? ltvargt2 ltvargt3
• Semantic rule ltexprgt.actual_type ?
• if (ltvargt2.actual_type int) and
• (ltvargt3.actual_type int)
• then int
• else real
• end if
• Predicate ltexprgt.actual_type
  ltexprgt.expected_type
• 3. Syntax rule ltexprgt ? ltvargt
• Semantic rule ltexprgt.actual_type ?
  ltvargt.actual_type
• Predicate ltexprgt.actual_type
  ltexprgt.expected_type
• 4. Syntax rule ltvargt ? A B C
• Semantic rule ltvargt.actual_type ? look-up
  (ltvargt.string)
• The look-up function looks up a given name in
  symbol table and returns the variables type.

28
Describing the meaning of Programs Dynamic
semantics

• There is no single widely acceptable notation or
  formalism for describing semantics
• The dynamic semantics of a program is the meaning
  of its expressions, statements, and program
  units.
• Accurately describing semantics is essential so
  that...
• ...users writing a program can precisely
  understand how the various language constructs
  work.
• ...compilers will be implemented consistently
  with respect to one another.
• Three methods that are used to describe semantics
  formally
• Operational semantics
• Axiomatic semantics
• Denotational semantics

29
Operational Semantics

• Describe the meaning of a program by executing
  its statements on a machine, either simulated or
  actual. The change in the state of the machine
  (memory, registers, etc.) defines the meaning of
  the statement
• The for loop in C...
• for (expr1 expr2 expr3) stmt
• ...might translate like this
• expr1LoopTop if expr2 0 goto LoopEnd
  stmt expr3 goto LoopTopLoopEnd

30
Operational Semantics (cont.)

• Evaluation of operational semantics
• Good if used informally (language manuals, etc.)
• Extremely complex if used formally (e.g., VDL)

31
2. Axiomatic Semantics

• Axiomatic semantics defined in conjunction with
  the development of a method to prove the
  correctness of a program.
• Axiomatic semantics is based on mathematical
  logic. The logical expressions are called
  predicated, or assertions.
• An assertion immediately following a statement
  describes a new constraints on those variables
  after execution of the statement.
• These assertions are called the precondition and
  post condition.
• Developing an axiomatic description or proof of a
  given program requires that every statement in
  the program have both a precondition and a post
  condition.

32
2. Axiomatic Semantics

• Based on formal logic (first order predicate
  calculus)
• Original purpose formal program verification
• Approach Define axioms or inference rules for
  each statement type in the language (to allow
  transformations of expressions to other
  expressions)
• The expressions are called assertions
• An assertion before a statement (a precondition)
  states the relationships and constraints among
  variables that are true at that point in
  execution
• An assertion following a statement is a
  postcondition
• A weakest precondition is the least restrictive
  precondition that will guarantee the
  postcondition
• Pre-post form P statement Q
• An example a b 1 a gt 1
• One possible precondition b gt 10
• Weakest precondition b gt 0

33
Program proof process

• The postcondition for the whole program is the
  desired results. Work back through the program
  to the first statement. If the precondition on
  the first statement is the same as the program
  spec, the program is correct.
• An axiom for assignment statements (x E)
• Qx-gtE x E Q
• The Rule of Consequence
• P S Q, P' gt P, Q gt Q'
• P' S Q'
• An inference rule for sequences
• For a sequence S1S2
• P1 S1 P2
• P2 S2 P3
• the inference rule is
• P1 S1 P2, P2 S2 P3
• P1 S1 S2 P3

34
3. Denotational Semantics

• Based on recursive function theory
• The most abstract semantics description method
• Originally developed by Scott and Strachey (1970)
• The process of building a denotational spec for a
  language (not necessarily easy)
• Define a mathematical object for each language
  entity
• Define a function that maps instances of the
  language entities onto instances of the
  corresponding mathematical objects
• The meaning of language constructs are defined by
  only the values of the program's variables
• The difference between denotational and
  operational semantics In operational semantics,
  the state changes are defined by coded
  algorithms in denotational semantics, they are
  defined by rigorous mathematical functions
• The state of a program is the values of all its
  current variables
• s lti1, v1gt, lti2, v2gt, , ltin, vngt
• Let VARMAP be a function that, when given a
  variable name and a state, returns the current
  value of the variable
• VARMAP(ij, s) vj
