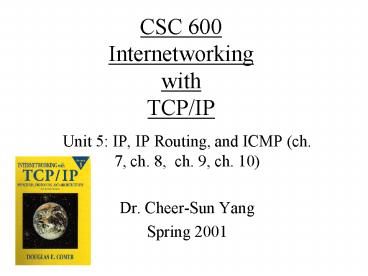

CSC 600 Internetworking with TCP/IP

1
CSC 600Internetworking withTCP/IP

• Unit 5 IP, IP Routing, and ICMP (ch. 7, ch. 8,
  ch. 9, ch. 10)
• Dr. Cheer-Sun Yang
• Spring 2001

2
Internet Protocol (IP)

• Part of TCP/IP
• Used by the Internet
• Specifies interface with higher layer
• e.g. TCP
• Specifies protocol format and mechanisms

3
IP Services

• Unreliable
• Connectionless
• Best-effort delivery

4
IP Protocol Specification

• IP datagram format
• Routing function
• Fragmentation and reassembly
• Internet control message protocol (ICMP) network
  level error message handling

5
(No Transcript)
6
(No Transcript)
7
Header Fields (1)

• Version
• Currently 4
• IP v6 - see later
• Internet header length
• In 32 bit words
• Including options
• Type of service(next slide)
• Total length
• Of datagram, in octets

8
(No Transcript)
9
Type of Service

• Precedence
• 8 levels
• Reliability
• Normal or high
• Delay
• Normal or low
• Throughput
• Normal or high

10
Type of Service

• In the late 1990s, the IETF redefiend the meaning
  of the 8-bit SERVICE TYPE field to accommodate a
  set of differential services (DS).

11
(No Transcript)
12
(No Transcript)
13
Header Fields (2)

• Total Length
• Identification
• Sequence number
• Used with addresses and user protocol to identify
  datagram uniquely
• Flags
• More bit
• Dont fragment

14
Header Fields (3)

• Dont fragment indicator
• Can IP fragment data
• If not, may not be possible to deliver
• Send only
• Time to Live
• Protocol
• next higher layer to receive data field at
  destination
• Header checksum
• Reverified and recomputed at each router
• 16 bit ones complement sum of all 16 bit words in
  header
• Set to zero during calculation

15
Header Fields (4)

• Source address
• Destination address
• Options(next slides)
• Padding
• To fill to multiple of 32 bits long

16
Options

• Security
• Source routing
• Route recording
• Stream identification
• Timestamping

17
Data Field

• Carries user data from next layer up
• Integer multiple of 8 bits long (octet)
• Max length of datagram (header plus data) 65,535
  octets

18
Design Issues

• Routing (later)
• Fragmentation and re-assembly
• Datagram lifetime
• Error control
• Flow control

19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
Reassembly of Fragments

• Maximum Transfer Unit (MTU)

23
Fragmentation Control

• Identification
• Flags
• Fragment Offset

24
Time to Live (TTL)

• TTL specifies how long, in seconds, a datagram
  is allowed to remain in the internet system.

25
Other Header Fields

• Protocol
• Header Checksum
• Source IP Address
• Destination IP Address
• Data

26
Internet Datagram Options

• Record Route Option
• Use ping -R on taz.cs.wcupa.edu
• Source Route Options
• Timestamp Option
• Processing Options During Fragmentation

27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
Record Route Option
31
Source Route Option
The strict source route option specifies an exact
route by giving a list of IP addresses the data
gram must follow.
32
Timestamp Option
33
(No Transcript)
34
Routing

• End systems and routers maintain routing tables
• Indicate next router to which datagram should be
  sent
• Static
• May contain alternative routes
• Dynamic
• Flexible response to congestion and errors
• Source routing
• Source specifies route as sequential list of
  routers to be followed
• Security
• Priority
• Route recording

35
Datagram Lifetime

• Datagrams could loop indefinitely
• Consumes resources
• Transport protocol may need upper bound on
  datagram life
• Datagram marked with lifetime
• Time To Live field in IP
• Once lifetime expires, datagram discarded (not
  forwarded)
• Hop count
• Decrement time to live on passing through a each
  router
• Time count
• Need to know how long since last router
• (Aside compare with Logans Run)

36
Fragmentation and Re-assembly

• Different packet sizes
• When to re-assemble
• At destination
• Results in packets getting smaller as data
  traverses internet
• Intermediate re-assembly
• Need large buffers at routers
• Buffers may fill with fragments
• All fragments must go through same router
• Inhibits dynamic routing

37
IP Fragmentation (1)

• IP re-assembles at destination only
• Uses fields in header
• Data Unit Identifier (ID)
• Identifies end system originated datagram
• Source and destination address
• Protocol layer generating data (e.g. TCP)
• Identification supplied by that layer
• Data length
• Length of user data in octets

38
IP Fragmentation (2)

• Offset
• Position of fragment of user data in original
  datagram
• In multiples of 64 bits (8 octets)
• More flag
• Indicates that this is not the last fragment

39
Fragmentation Example
40
Dealing with Failure

• Re-assembly may fail if some fragments get lost
• Need to detect failure
• Re-assembly time out
• Assigned to first fragment to arrive
• If timeout expires before all fragments arrive,
  discard partial data
• Use packet lifetime (time to live in IP)
• If time to live runs out, kill partial data

41
Error Control

• Not guaranteed delivery
• Router should attempt to inform source if packet
  discarded
• e.g. for time to live expiring
• Source may modify transmission strategy
• May inform high layer protocol
• Datagram identification needed
• (Look up ICMP)

42
Flow Control

• Allows routers and/or stations to limit rate of
  incoming data
• Limited in connectionless systems
• Send flow control packets
• Requesting reduced flow
• e.g. ICMP

43
Chapter 8 IP Routing Overview

• Router perform IP forwarding as its main
  function
• Host a multi-homed host also forward IP datagrams

44
Routing IP Datagrams

• Routing in an Internet
• Direct and Indirect Delivery
• Table-Driven IP Routing
• Next-Hop Routing
• Default Routers
• Host-Specific Routers
• The IP Routing Algorithms

45
(No Transcript)
46
Datagram Delivery Over a Single Network

• A machine can send a frame directly to another
  machine on the same network.

47
(No Transcript)
48
Datagram Delivery Over a Single Network

• How does a machine know if another machine is
  located in a directly-connected network?

49
(No Transcript)
50
Indirect Delivery

• How does a machine deliver a datagram indirectly
  to another host?
• It encapsulate the datagram
• sends it to the nearest router
• The IP software on the router selects the next
  router towards the destination
• How does a router know where to send next?

51
(No Transcript)
52
Indirect Delivery

• Table-Driven IP Routing
• Next-Hop Routing
• Default Routers
• Host-Specific Routes

53
(No Transcript)
54
(No Transcript)
55
(No Transcript)
56
Indirect Delivery

• We ignored the routing table initialization and
  maintenance as network changes.

57
Chapter 9ICMP

• Internet Control Message Protocol
• RFC 792 (get it and study it)
• Transfer of (control) messages from routers and
  hosts to hosts
• Feedback about problems
• e.g. time to live expired
• Encapsulated in IP datagram
• Not reliable

58
(No Transcript)
59
ICMP Message Formats
60
(No Transcript)
61
(No Transcript)
62
(No Transcript)
63
(No Transcript)
64
(No Transcript)
65
(No Transcript)
66
(No Transcript)
67
(No Transcript)
68
(No Transcript)
69
(No Transcript)
70
(No Transcript)
71
(No Transcript)
72
Chapter 10

• Subnetting and Routing

73
Subnetting
74
(No Transcript)
75
(No Transcript)
76
(No Transcript)
77
Routing in the Presence of Subnets

• The standard IP routing must be modified to work
  with subnet addresses.
• All hosts and routers that attach to the subnet
  must use the modified algorithms, called subnet
  routing.

78
(No Transcript)
79
Subnet Routing

• A conventional routing table contains entries of
  the form (network address, next hop address).
• A subnetting routing table consists of entries of
  the form (subnet mask, network address, next hop
  address).

80
(No Transcript)
81
(No Transcript)
82
(No Transcript)
