Title: What%20is%20Computer%20Architecture?


1

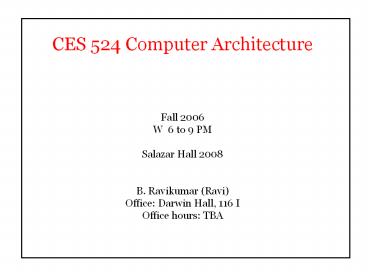

CES 524 Computer Architecture Fall 2006 W 6
to 9 PM Salazar Hall 2008 B. Ravikumar
(Ravi) Office Darwin Hall, 116 I Office hours
TBA
2
Text-book
Computer Architecture A quantitative approach
Hennessy and Patterson 3rd edition
3
  • Other references
  • Hennessy and Patterson, Computer Organization
    and Design, hardware-software interface.
    (undergraduate text by the same authors)
  • Jordan and Alaghband, Fundamentals of Parallel
    Processing.
  • Hwang, Advanced Computer Architecture.
    (excellent source on parallel and pipeline
    computing)
  • I. Koren, Computer Arithmetic Algorithms.
  • Survey articles, on-line lecture notes from
    several sources.
  • http//www.cs.utexas.edu/users/dburger/teaching/
    cs382m-f03/homework/papers.html
  • http//www.cs.wisc.edu/arch/www/

4
  • Class notes and lecture format
  • power-point slides, some times pdf, postscript
    etc.
  • Tablet PC will be used to
  • add comments
  • draw sketches
  • write code
  • make corrections etc.
  • lecture notes prepared with generous help
    provided through the web sites of many
    instructors
  • Patterson, Berkeley
  • Susan Eggers, University of Washington
  • Mark Hill, Wisconsin
  • Breecher, Clark U
  • DeHon, Caltech, etc.

5
  • Background expected
  • Logic Design
  • Combinational logic, sequential logic
  • logic design and minimization of circuits
  • finite state machines
  • Discrete Components-multiplexers, memory units,
    ALU
  • Basic Machine structure
  • processor (Data path, control), memory, I/O
  • Number representations, computer arithmetic
  • Assembly language programming
  • But if you have not studied some of these topics
    or dont remember, dont worry! These topics will
    be reviewed.

6
  • Coursework and grading
  • Home Work Sets (about 5 sets) 25 points
  • Most problems will be assigned from the text.
    Text has many problems marked with solutions at
    the back. These will be helpful in solving the HW
    problems.
  • Additional problems at similar level
  • Some implementation exercises (mostly C
    programming)
  • Policy on collaboration
  • Mid-semester Tests 25 points
  • One will be in-class, open book/notes, 75
    minutes long
  • The other can be take-home or in-class.
    (discussed later)
  • dates will be announced (at least) one week in
    advance
  • all topics discussed until the previous lecture
  • Project 15
    points
  • Semester-long work. Each one chooses one problem
    to work on.
  • Design, implementation, testing etc.
  • Report and a presentation
  • Final Exam 35
    points (take-home?)

7
  • Project Examples
  • hardware design
  • e.g. circuit design for dedicated application
    such as image processing
  • hardware testing
  • cache-efficient algorithm design and
    implementation
  • wireless sensor networks
  • embedded system design (for those who are doing
    CES 520)
  • Tablet PC hardware study

8
  • Overview of the course
  • Review of Computer Organization
  • Digital logic design
  • Computer Arithmetic
  • machine/assembly language
  • Data and control path design
  • Cost performance trade-offs
  • Instruction Set Design Principles
  • classification of instruction set architectures
  • addressing modes
  • encoding instructions
  • trade-offs/examples/historical overview
  • Instruction level parallelism
  • overview of pipelining

9
  • superscalar execution
  • branch prediction
  • dynamic scheduling
  • Cache Memory
  • cache performance modeling
  • main memory technology
  • virtual memory
  • cache-efficient algorithm design
  • external memory data structures, algorithms,
    applications
  • Shared-memory multiprocessor system
  • symmetric multiprocessors
  • distributed shared-memory machines
  • Storage systems
  • RAID architecture
  • I/O performance measures

10
  • Advanced Topics
  • Computer Arithmetic
  • alternatives to floating-point
  • Design to minimize size, delay etc.
  • circuit complexity trade-offs (area, time,
    energy etc.)
  • hardware testing
  • Fault-models, fault testing
  • model checking
  • external memory computation problems
  • external memory algorithms
  • data structures, applications
  • Cache-efficient algorithms
  • Nonstandard models
  • quantum computing
  • bio-computing and neural computing
  • Sensor networks

11
  • Overview of the course
  • Review of Computer Organization
  • Digital logic design

12
  • Overview of the course
  • Review of Computer Organization
  • Digital logic design

13
  • Overview of the course
  • Review of Computer Organization
  • Digital logic design sequential circuits

14
Example of sequential circuit design
15
  • Overview of the course
  • Review of Computer Organization
  • Computer Arithmetic

16
  • Overview of the course
  • Review of Computer Organization
  • machine/assembly language
  • MIPS instruction set

17
  • Overview of the course
  • Review of Computer Organization
  • Data and control path design

18
  • Overview of the course
  • Review of Computer Organization
  • Cost performance trade-offs
  • A processor spends 30 of its time on flp
    addition, 25 on flp mult,
  • and 10 on flp division. Evaluate the following
    enhancements, each
  • costing the same to implement
  • Redesign of the flp adder to make it twice as
    fast.
  • Redesign of the flp multiplier to make it three
    times as fast.
  • Redesign the flp divider to make it 10 times as
    fast.

19
  • Overview of the course
  • Instruction Set Design Principles
  • classification of instruction set architectures

20
  • Overview of the course
  • addressing modes

21
  • Overview of the course
  • Instruction level parallelism
  • overview of pipelining

22
  • Overview of the course
  • overview of pipelining

23
Hazards
  • When the same resource is required by two
    successive instructions executing different
    cycles, a hazard occurs.
  • read after write
  • x y z
  • w x t
  • The second instructions read x part of the
    cycle has to wait for the first instructions
    write x part of the cycle.

24
  • branch prediction
  • x y z
  • if (x gt 0)
  • y y 1
  • else z z 1
  • The instruction after x y z can only be
    determined after x has been computed.
  • x 1
  • while (x lt 100) do
  • sum sum x
  • x x 1
  • The instruction after x x 1 will be almost
    always sum sum x
  • (99 out of 100 times), so if we know that the
    instruction is in a loop, we predict that the
    loop is executed and we will be correct most of
    the time.

25
  • Cache Memory
  • cache performance modeling
  • main memory technology
  • virtual memory
  • cache-efficient algorithm design
  • external memory data structures, algorithms,
    applications

26
  • branch prediction
  • dynamic scheduling
  • Cache Memory
  • cache performance modeling
  • main memory technology
  • virtual memory
  • cache-efficient algorithm design
  • external memory data structures, algorithms,
    applications
  • Shared-memory multiprocessor system
  • symmetric multiprocessors
  • distributed shared-memory machines
  • Storage systems
  • RAID architecture
  • I/O performance measures

27
Hitting the Memory Wall
Fig. 17.8 Memory density and capacity have
grown along with the CPU power and complexity,
but memory speed has not kept pace.
28
  • branch prediction
  • dynamic scheduling
  • Cache Memory
  • cache performance modeling
  • main memory technology
  • virtual memory
  • cache-efficient algorithm design
  • external memory data structures, algorithms,
    applications
  • Shared-memory multiprocessor system
  • symmetric multiprocessors
  • distributed shared-memory machines
  • Storage systems
  • RAID architecture
  • I/O performance measures

29
  • branch prediction
  • dynamic scheduling
  • Cache Memory
  • cache performance modeling
  • main memory technology
  • virtual memory
  • cache-efficient algorithm design
  • external memory data structures, algorithms,
    applications
  • Shared-memory multiprocessor system
  • symmetric multiprocessors
  • distributed shared-memory machines
  • Storage systems
  • RAID architecture
  • I/O performance measures

30
  • Advanced Topics
  • Computer Arithmetic
  • alternatives to floating-point
  • Design to minimize size, delay etc.
  • circuit complexity trade-offs (area, time,
    energy etc.)
  • hardware testing
  • Fault-models, fault testing
  • model checking
  • external memory computation problems
  • external memory algorithms
  • data structures, applications
  • Cache-efficient algorithms
  • Nonstandard models
  • quantum computing
  • bio-computing and neural computing
  • Sensor networks

31
  • Focus areas
  • instruction set architecture, review of computer
    organization
  • instruction-level parallelism (chapters 3 and 4)
  • computer arithmetic (Appendix)
  • cache-performance analysis and modeling
    (chapter 5)
  • multiprocessor architecture (chapter 7)
  • interconnection networks (chapter 8)
  • cache-efficient algorithm design
  • code optimization and advanced compilation
    techniques
  • FPGA and reconfigurable computing

32
History of Computer Architecture
Abacus is probably more than 3000 years old.
The abacus is prepared for use by placing it flat
on a table or one's lap and pushing all the beads
on both the upper and lower decks away from the
beam. The beads are manipulated with either the
index finger or the thumb of one hand. The
abacus is still in use today by shopkeepers in
Asia. The use of the abacus is still taught in
Asian schools, and some schools in the West.
Visually impaired children are taught to use the
abacus where their sighted counterparts would be
taught to use paper and pencil to perform
calculations. One particular use for the abacus
is teaching children simple mathematics and
especially multiplication the abacus is an
excellent substitute for rote memorization of
multiplication tables, a particularly detestable
task for young children.
33
  • History of Computer Architecture
  • Mechanical devices for controlling complex
    operations have been in existence since at least
    1500's. (First ones were rotating pegged
    cylinders in musical boxes.)

The medieval development of camshafts has proven
to be of immense technological significance. It
allowed the budding medieval industry to
transform the rotating movement of waterwheels
and windmills into the movements that could be
used for the hammering of ore, the sawing of wood
and the manufacturing of paper.
34
  • Pascal developed a mechanical calculator to help
    in tax work.
  • Pascal's calculator contains eight dials that
    connect to a drum, with a linkage that causes a
    dial to rotate one notch when a carry is produced
    from a dial in a lower position.
  • Some of Pascal's adding machines which he
    started to build in 1642, still exist today.

Pascal began work on his calculator in 1642, when
he was only 19 years old. He had been assisting
his father, who worked as a tax commissioner, and
sought to produce a device which could reduce
some of his workload. By 1652 Pascal had produced
fifty prototypes and sold just over a dozen
machines, but the cost and complexity of the
Pascaline combined with the fact that it could
only add and subtract, and the latter with
difficulty was a barrier to further sales, and
production ceased in that year. By that time
Pascal had moved on to other pursuits, initially
the study of atmospheric pressure, and later
philosophy.
The Pascaline was a decimal machine. This proved
to be a liability, however, as the contemporary
French currency system was not decimal. It was
instead similar to the Imperial pounds
("livres"), shillings ("sols") and pence
("deniers") in use in Britain until the 1970s,
and necessitated that the user perform further
calculations if the Pascaline was to be used for
its intended purposes, as a currency
calculator. In 1799 France changed to a metric
system, by which time Pascal's basic design had
inspired other craftsmen, although with a similar
lack of commercial success. Child prodigy
Gottfried Wilhelm von Leibniz produced a
competing design, the Stepped Reckoner, in 1672
which could perform addition, subtraction,
multiplication and division, but calculating
machines did not become commercially viable until
the early 19th century, when Charles Xavier
Thomas de Colmar's Arithmometer, itself based on
Von Leibniz's design, was commercially
successful.
35
  • Babbage built in 1800's a computational device
    called difference engine.
  • This machine had features seen in modern
    computers- means for reading input data, storing
    data, performing calculations, producing output
    and automatically controlling the operations of
    the machine.

Difference engines were forgotten and then
rediscovered in 1822 by Charles Babbage, who
proposed it in a paper to the Royal Astronomical
Society entitled "Note on the application of
machinery to the computation of very big
mathematical tables." This machine used the
decimal number system and was powered by cranking
a handle. The British government initially
financed the project, but withdrew funding when
Babbage repeatedly asked for more money whilst
making no apparent progress on building the
machine. Babbage went on to design his much more
general analytical engine but later produced an
improved difference engine design (his
"Difference Engine No. 2") between 1847 and 1849.
Inspired by Babbage's difference engine plans,
Per Georg Scheutz built several difference
engines from 1855 onwards one was sold to the
British government in 1859. Martin Wiberg
improved Scheutz's construction but used his
device only for producing and publishing printed
logarithmic tables.
36
The principle of a difference engine is Newton's
method of differences, It may be illustrated with
a small example. Consider the quadratic
polynomial p(x) 2x2 - 3x 2
To calculate p(0.5) we use the values from the
lowest diagonal. We start with the rightmost
column value of 0.04. Then we continue the second
column by subtracting 0.04 from 0.16 to get 0.12.
Next we continue the first column by taking its
previous value, 1.12 and subtracting the 0.12
from the second column. Thus p(0.5) is 1.12-0.12
1.0. In order to compute p(0.6), we iterate the
same algorithm on the p(0.5) values take 0.04
from the third column, subtract that from the
second column's value 0.12 to get 0.08, then
subtract that from the first column's value 1.0
to get 0.92, which is p(0.6).
37
Babbages analytical engine
  • Babbage also designed a more sophisticated
    machine known as analytical engine which had a
    mechanism for branching and a means for
    programming using punched cards.

Portion of the mill of the Analytical Engine with
printing mechanism, under construction at the
time of Babbages death.
38
  • Analytical engine was never built because
    technology was not developed to meet the required
    standards.
  • Ada Lovelace (daughter of the poet Byron) worked
    with Babbage to write the earliest computer
    programs to solve problems on the analytical
    engine.
  • A version of Babbage's difference engine was
    actually built by the Science Museum in London in
    1991 and can still be viewed today.
  • It took over a century until the start of World
    War II, before the next major development in
    computing machinery took place.
  • In England, German U-boat submarines were
    causing heavy damage on allied shipping.
  • The U-boats received communications using a
    secret code which was implemented by a machine
    made by Siemens known as ENIGMA.

39
  • The process of encryption used by Enigma was
    known for a longtime. But decoding was a much
    harder task.
  • Alan Turing, a British Mathematician, and others
    in England, built an electromechanical machine to
    decode the message sent by ENIGMA.
  • The Colossus was a successful code breaking
    machine that came out of Turing's research.
  • Colossus had all the features of an electronic
    computers.
  • Vacuum tubes to store the contents of a paper
    tape that is fed into the machine.
  • Computations took place among the vacuum tubes
    and programming was performed with plug boards.

40
  • Around the same time as Turings efforts, Eckert
    and Mauchly set out to create a machine to
    compute tables of ballistic trajectories for the
    U. S. Army.
  • The result of their effort was the Electronic
    Numerical Integrator and Computer (ENIAC) at
    Moore School of Engineering at the University of
    Pennsylvania.
  • ENIAC consisted of 18000 vacuum tubes, which
    made up the computing section of the machines
    programming and data entry were performed by
    setting switches.
  • There was no concept of stored program, and
    there was no central memory unit.
  • But these were not serious limitations since
    ENIAC was intended to do special-purpose
    calculations.
  • ENIAC was not ready until the war was over, but
    it wa successfully use for nine years after the
    war (1946-1955).
  • After ENIAC was completed, von Neumann joined
    Ekert and Mauchly. Together, they worked on a
    model for stored program computer called EDVAC.

41
  • Eckert and Mauchley and von Neumann and
    Goldstein split up after disputes over credit and
    differences of opinion.
  • But the concept of stored program computer came
    out of this collaboration. The term von Neumann
    architecture is used to denote a stored program
    computer.
  • Wilkes in Cambridge University built a stored
    program computer (EDSAC) that was completed in
    1947.
  • Atanasoff at Iowa State built a small-scale
    electronic computer.
  • His work came to light as part of a lawsuit.
  • Another early machine that deserves credit is
    Konrad Zuses machine in Germany.
  • Historical papers (e.g. by Knuth) have been
    written on the earliest computer programs ever
    written on these machines
  • sorting
  • generate perfect squares, primes

42
Comparison of early computers
43
ENIAC - details
  • Decimal (not binary)
  • 20 accumulators of 10 digits
  • ENIAC used ten-position ring counters to store
  • digits each digit used 36 tubes, 10 of which
    were the
  • dual triodes making up the flip-flops of the ring
    counter.
  • Arithmetic was performed by "counting" pulses
    with the
  • ring counters and generating carry pulses if the
    counter
  • "wrapped around", the idea being to emulate in
  • electronics the operation of the digit wheels of
    a mechanical adding machine.
  • Programmed manually by switches
  • 18,000 vacuum tubes
  • 30 tons
  • 15,000 square feet
  • 140 kW power consumption
  • 5,000 additions per second

44
ENIAC ALU, Reliability
  • The basic clock cycle was 200 microseconds, or
    5,000 cycles per second for operations on the
    10-digit numbers. In one of these cycles, ENIAC
    could write a number to a register, read a number
    from a register, or add/subtract two numbers. A
    multiplication of a 10-digit number by a d-digit
    number (for d up to 10) took d4 cycles, so a 10-
    by 10-digit multiplication took 14 cycles, or
    2800 microsecondsa rate of 357 per second. If
    one of the numbers had fewer than 10 digits, the
    operation was faster. Division and square roots
    took 13(d1) cycles, where d is the number of
    digits in the result (quotient or square root).
    So a division or square root took up to 143
    cycles, or 28,600 microsecondsa rate of 35 per
    second. If the result had fewer than ten digits,
    it was obtained faster.
  • By the simple (if expensive) expedient of never
    turning the machine off, the engineers reduced
    ENIAC's tube failures to the acceptable rate of
    one tube every two days. According to a 1989
    interview with Eckert the continuously failing
    tubes story was therefore mostly a myth "We had
    a tube fail about every two days and we could
    locate the problem within 15 minutes."
  • In 1954, the longest continuous period of
    operation without a failure was 116 hours (close
    to five days). This failure rate was remarkably
    low, and stands as a tribute to the precise
    engineering of ENIAC.

45
von Neumann machine
  • Stored Program concept
  • Main memory storing programs and data
  • ALU operating on binary data
  • Control unit interpreting instructions from
    memory and executing
  • Input and output equipment operated by control
    unit
  • Princeton Institute for Advanced Studies
  • IAS
  • Completed 1952

46
Commercial Computers
  • 1947 - Eckert-Mauchly Computer Corporation
  • BINAC
  • UNIVAC I (Universal Automatic Computer)
  • Sold for 1 Million.
  • Totally 48 machines were built
  • US Bureau of Census 1950 calculations
  • Became part of Sperry-Rand Corporation
  • Late 1950s - UNIVAC II
  • Faster
  • More memory

47
IBM and DEC
  • Punched-card processing equipment
  • Office automation, electric type-writers etc.
  • 1953 - the 701
  • IBMs first stored program computer
  • Scientific calculations
  • 1955 - the 702
  • Business applications
  • Lead to 700/7000 series
  • In 1964, IBM invested 5 B to build IBM 360
    series of machines. (main-frame)
  • DEC developed PDP series (minicomputers)

48
Transistors
  • Replaced vacuum tubes
  • Smaller
  • Cheaper
  • Less heat dissipation
  • Solid State device
  • Made from Silicon (Sand)
  • Invented 1947 at Bell Labs
  • William Shockley, Bardeen and Brittain

49
Transistor Based Computers
  • Second generation machines
  • NCR RCA produced small transistor machines
  • IBM 7000
  • DEC - 1957
  • Produced PDP-1

50
Microelectronics
  • Literally - small electronics
  • A computer is made up of gates, memory cells and
    interconnections
  • These can be manufactured on a semiconductor
  • e.g. silicon wafer

51
Generations of Computers
  • Vacuum tube - 1946-1957
  • Transistor - 1958-1964
  • Small scale integration - 1965 on
  • Up to 100 devices on a chip
  • Medium scale integration - to 1971
  • 100-3,000 devices on a chip
  • Large scale integration - 1971-1977
  • 3,000 - 100,000 devices on a chip
  • Very large scale integration - 1978 to date
  • 100,000 - 100,000,000 devices on a chip
  • Ultra large scale integration
  • Over 100,000,000 devices on a chip

52
Introduction
  • 1.1 Introduction
  • 1.2 The Task of a Computer Designer
  • 1.3 Technology and Computer Usage Trends
  • 1.4 Cost and Trends in Cost
  • 1.5 Measuring and Reporting Performance
  • 1.6 Quantitative Principles of Computer Design
  • 1.7 Putting It All Together The Concept of
    Memory Hierarchy

53
Whats Computer Architecture?
  • The attributes of a computing system as seen by
    the programmer, i.e., the conceptual structure
    and functional behavior, as distinct from the
    organization of the data flows and controls the
    logic design, and the physical implementation.

  • Amdahl, Blaaw, and Brooks, 1964

SOFTWARE
54
Whats Computer Architecture?
  • 1950s to 1960s Computer Architecture Course
    Computer Arithmetic was the main focus.
  • 1970s to mid 1980s Computer Architecture Course
    Instruction Set Design, especially ISA
    appropriate for compilers. (covered in Chapter 2)
  • 1990s and later Computer Architecture
    CourseDesign of CPU, memory system, I/O system,
    Multiprocessors, instruction-level parallelism
    etc.

55
The Task of a Computer Designer
  • 1.1 Introduction
  • 1.2 The Task of a Computer Designer
  • 1.3 Technology and Computer Usage Trends
  • 1.4 Cost and Trends in Cost
  • 1.5 Measuring and Reporting Performance
  • 1.6 Quantitative Principles of Computer Design
  • 1.7 Putting It All Together The Concept of
    Memory Hierarchy

Evaluate Existing Systems for Bottlenecks
Implementation Complexity
Benchmarks
Technology Trends
Implement Next Generation System
Simulate New Designs and Organizations
Workloads
56
Technology and Computer Usage Trends
  • 1.1 Introduction
  • 1.2 The Task of a Computer Designer
  • 1.3 Technology and Computer Usage Trends
  • 1.4 Cost and Trends in Cost
  • 1.5 Measuring and Reporting Performance
  • 1.6 Quantitative Principles of Computer Design
  • 1.7 Putting It All Together The Concept of
    Memory Hierarchy
  • When building a Cathedral numerous very practical
    considerations need to be taken into account
  • available materials
  • worker skills
  • willingness of the client to pay the price.
  • Similarly, Computer Architecture is about working
    within constraints
  • What will the market buy?
  • Cost/Performance
  • Tradeoffs in materials and processes

57
Trends
  • Gordon Moore (Founder of Intel) observed in 1965
    that the number of transistors that could be
    crammed on a chip doubles every year.
  • This has CONTINUED to be true since then.
    (Moores law)

58
Trends
  • Processor performance, as measured by the SPEC
    benchmark has also risen dramatically.

59
Trends
  • Memory Capacity (and Cost) have changed
    dramatically in the last 20 years.

year size(Mb) cyc time 1980 0.0625 250
ns 1983 0.25 220 ns 1986 1 190 ns 1989 4 165
ns 1992 16 145 ns 1996 64 120 ns 2000 256 100
ns
60
Trends
  • Based on SPEED, the CPU has increased
    dramatically, but memory and disk have increased
    only a little. This has led to dramatic changes
    in architecture, Operating Systems, and
    Programming practices.

Capacity Speed (latency) Logic 2x in 3
years 2x in 3 years DRAM 4x in 3 years 2x in
10 years Disk 4x in 3 years 2x in 10 years
61
(No Transcript)
62
Growth in Microprocessor performance
  • Growth in microprocessor performance since the
    mid-1980s has been substantially higher than
    before 1980s.
  • Figure 1.1 shows this trend. Processor
    performance has increased by a factor of about
    1600 in 16 years.
  • There are two graphs in this figure. The graph
    showing growth rate of about 1.58 per year in the
    real one the other one showing a rate of 1.35
    per year is an extrapolation from the time prior
    to 1980.
  • Prior to 1980s performance growth was largely
    technology driven.
  • Growth increases since 1980 is attributable to
    architectural and organizational ideas.

63
Performance Trends

64
Current taxonomy of computer systems
  • The early computers were just main-frame systems.
  • Current classification of computer systems is
    broadly
  • Desktop computing
  • Low-end PCs
  • High-end work-stations
  • Servers
  • High throughput
  • Greater reliability (with back-up)
  • Embedded computers
  • Hand-held devices (video-games, PDA, cell-phones)
  • Sensor networks
  • appliances

65
Summary of the three computing classes
66
  • Cost of IC
  • wafer is manufactured (typically circular) and
    the dies are cut.
  • tested, packaged and shipped. (all dies are
    identical.)

67
  • Cost of IC
  • wafer is manufactured (typically circular). (See
    Figure 1.8) and the dies are cut.
  • tested, packaged and shipped. (all dies are
    identical.)
  • Cost of die testing
    packaging and final test
  • Cost of IC

  • Final test yield
  • Cost of wafer
  • Cost of Die
  • Dies per wafer
    Die yield
  • Dies per wafer p (wafer radius)2 p
    Wafer diameter
  • ------------------- -
    ---------------------
  • Die area
    (2 Die area)0.5
  • Can you explain the correction factor?

68
(No Transcript)
69
(No Transcript)
70
(No Transcript)
71
Distribution of cost in a system
72
Measuring And Reporting Performance
  • 1.1 Introduction
  • 1.2 The Task of a Computer Designer
  • 1.3 Technology and Computer Usage Trends
  • 1.4 Cost and Trends in Cost
  • 1.5 Measuring and Reporting Performance
  • 1.6 Quantitative Principles of Computer Design
  • 1.7 Putting It All Together The Concept of
    Memory Hierarchy
  • This section talks about
  • Metrics how do we describe in a numerical way
    the performance of a computer?
  • What tools do we use to find those metrics?

73
Metrics
  • Time to run the task (Exec Time)
  • Execution time, response time, latency
  • Tasks per day, hour, week, sec, ns
    (Performance)
  • Throughput, bandwidth

74
Metrics - Comparisons
  • "X is n times faster than Y" means
  • ExTime(Y) Performance(X)
  • --------- --------------- n
  • ExTime(X) Performance(Y)
  • Speed of Concorde vs. Boeing 747
  • Throughput of Boeing 747 vs. Concorde

75
Metrics - Comparisons
  • Pat has developed a new product, "rabbit" about
    which she wishes to determine performance. There
    is special interest in comparing the new product,
    rabbit to the old product, turtle, since the
    product was rewritten for performance reasons.
    (Pat had used Performance Engineering techniques
    and thus knew that rabbit was "about twice as
    fast" as turtle.) The measurements showed
  •
  • Performance Comparisons
  •
  • Product Transactions / second Seconds/
    transaction Seconds to process transaction
  • Turtle 30 0.0333 3
  • Rabbit 60 0.0166 1
  • Which of the following statements reflect the
    performance comparison of rabbit and turtle?
  •

o Rabbit is 100 faster than turtle. o Rabbit is
twice as fast as turtle. o Rabbit takes 1/2 as
long as turtle. o Rabbit takes 1/3 as long as
turtle. o Rabbit takes 100 less time than turtle.
o Rabbit takes 200 less time than turtle. o
Turtle is 50 as fast as rabbit. o Turtle is 50
slower than rabbit. o Turtle takes 200 longer
than rabbit. o Turtle takes 300 longer than
rabbit.
76
Metrics - Throughput
77
Methods For Predicting Performance
  • Benchmarks
  • Hardware Cost, delay, area, power estimation
  • Simulation (many levels)
  • ISA, RT, Gate, Circuit
  • Queuing Theory
  • Rules of Thumb
  • Fundamental Laws/Principles
  • Trade-offs

78
  • Execution time
  • Execution time can be defined in different ways
  • wall-clock time, response time or elapsed time
    latency to complete the task. (includes disk
    accesses, memory accesses, input/output
    activities etc.), including all possible
    overheads.
  • CPU time does not include the I/O, and other
    overheads.
  • user CPU time execution of application tasks
  • system CPU time execution of system tasks
  • Throughput vs. efficiency

79
Benchmarks
SPEC System Performance Evaluation Cooperative
  • First Round 1989
  • 10 programs yielding a single number
    (SPECmarks)
  • Second Round 1992
  • SPECInt92 (6 integer programs) and SPECfp92 (14
    floating point programs)
  • Compiler Flags unlimited. March 93 of DEC 4000
    Model 610
  • spice unix.c/def(sysv,has_bcopy,bcopy(a,b,c)
    memcpy(b,a,c)
  • wave5 /ali(all,dcomnat)/aga/ur4/ur200
  • nasa7 /norecu/aga/ur4/ur2200/lcblas
  • Third Round 1995
  • new set of programs SPECint95 (8 integer
    programs) and SPECfp95 (10 floating point)
  • benchmarks useful for 3 years
  • Single flag setting for all programs
    SPECint_base95, SPECfp_base95

80
Benchmarks
CINT2000 (Integer Component of SPEC CPU2000)
  • Program Language What Is It
  • 164.gzip C Compression
  • 175.vpr C FPGA Circuit Placement and Routing
  • 176.gcc C C Programming Language Compiler
  • 181.mcf C Combinatorial Optimization
  • 186.crafty C Game Playing Chess
  • 197.parser C Word Processing
  • 252.eon C Computer Visualization
  • 253.perlbmk C PERL Programming Language
  • 254.gap C Group Theory, Interpreter
  • 255.vortex C Object-oriented Database
  • 256.bzip2 C Compression
  • 300.twolf C Place and Route
    Simulator

http//www.spec.org/osg/cpu2000/CINT2000/
81
Benchmarks
CFP2000 (Floating Point Component of SPEC
CPU2000)
  • Program Language What Is It
  • 168.wupwise Fortran 77 Physics / Quantum
    Chromodynamics
  • 171.swim Fortran 77 Shallow Water Modeling
  • 172.mgrid Fortran 77 Multi-grid Solver 3D
    Potential Field
  • 173.applu Fortran 77 Parabolic / Elliptic
    Differential Equations
  • 177.mesa C 3-D Graphics Library
  • 178.galgel Fortran 90 Computational Fluid
    Dynamics
  • 179.art C Image Recognition / Neural Networks
  • 183.equake C Seismic Wave Propagation Simulation
  • 187.facerec Fortran 90 Image Processing Face
    Recognition
  • 188.ammp C Computational Chemistry
  • 189.lucas Fortran 90 Number Theory / Primality
    Testing
  • 191.fma3d Fortran 90 Finite-element Crash
    Simulation
  • 200.sixtrack Fortran 77 High Energy Physics
    Accelerator Design
  • 301.apsi Fortran 77 Meteorology Pollutant
    Distribution

82
Benchmarks
Sample Results For SpecINT2000
http//www.spec.org/osg/cpu2000/results/res2000q3/
cpu2000-20000718-00168.asc
Base Base
Base Peak Peak Peak Benchmarks
Ref Time Run Time Ratio Ref
Time Run Time Ratio 164.gzip 1400
277 505 1400 270
518 175.vpr 1400 419 334
1400 417 336 176.gcc
1100 275 399 1100 272
405 181.mcf 1800 621
290 1800 619 291 186.crafty
1000 191 522 1000 191
523 197.parser 1800 500
360 1800 499 361 252.eon
1300 267 486 1300 267
486 253.perlbmk 1800 302
596 1800 302 596 254.gap
1100 249 442 1100 248
443 255.vortex 1900 268
710 1900 264 719 256.bzip2
1500 389 386 1500 375
400 300.twolf 3000 784
382 3000 776 387 SPECint_base200
0 438 SPECint2000

442

Intel OR840(1 GHz Pentium III processor)
83
Benchmarks
Performance Evaluation
  • For better or worse, benchmarks shape a field
  • Good products created when have
  • Good benchmarks
  • Good ways to summarize performance
  • Given sales is a function in part of performance
    relative to competition, investment in improving
    product as reported by performance summary
  • If benchmarks/summary inadequate, then choose
    between improving product for real programs vs.
    improving product to get more salesSales almost
    always wins!
  • Execution time is the measure of computer
    performance!

84
Benchmarks
How to Summarize Performance
  • Management would like to have one number.
  • Technical people want more
  • They want to have evidence of reproducibility
    there should be enough information so that you or
    someone else can repeat the experiment.
  • There should be consistency when doing the
    measurements multiple times.

How would you report these results?
Computer A Computer B Computer C
Program P1 (secs) 1 10 20
Program P2 (secs) 1000 100 20
Total Time (secs) 1001 110 40
85
Quantitative Principles of Computer Design
  • 1.1 Introduction
  • 1.2 The Task of a Computer Designer
  • 1.3 Technology and Computer Usage Trends
  • 1.4 Cost and Trends in Cost
  • 1.5 Measuring and Reporting Performance
  • 1.6 Quantitative Principles of Computer Design
  • 1.7 Putting It All Together The Concept of
    Memory Hierarchy

Make the common case fast. Amdahls Law Relates
total speedup of a system to the speedup of some
portion of that system.
86
Amdahl's Law
Quantitative Design
Speedup due to enhancement E
This fraction enhanced
  • Suppose that enhancement E accelerates a fraction
    F of the task by a factor S, and the remainder of
    the task is unaffected

87
Quantitative Design - Amdahls law
This fraction enhanced
ExTimeold
ExTimenew
88

Quantitative Design -Amdahl's Law
  • Floating point instructions improved to run 2X
    but only 10 of actual instructions are FP

89
Quantitative Design

Cycles Per Instruction
CPI (CPU Time Clock Rate) / Instruction Count
Cycles / Instruction Count
Number of instructions of type I.
Instruction Frequency
where
  • Invest Resources where time is Spent!

90
Quantitative Design

Suppose we have a machine where we can count the
frequency with which instructions are executed.
We also know how many cycles it takes for each
instruction type.
  • Base Machine (Reg / Reg)
  • Op Freq Cycles CPI(i) (
    Time)
  • ALU 50 1 .5 (33)
  • Load 20 2 .4 (27)
  • Store 10 2 .2 (13)
  • Branch 20 2 .4 (27)
  • Total CPI 1.5

How do we get CPI(I)? How do we get time?
91
Quantitative Design
  • Locality of Reference
  • Programs access a relatively small portion of the
    address space at any instant of time.
  • There are two different types of locality
  • Temporal Locality (locality in time) If an item
    is referenced, it will tend to be referenced
    again soon (loops, reuse, etc.)
  • Spatial Locality (locality in space/location)
    If an item is referenced, items whose addresses
    are close by tend to be referenced soon (straight
    line code, array access, etc.)

92
The Concept of Memory Hierarchy
  • 1.1 Introduction
  • 1.2 The Task of a Computer Designer
  • 1.3 Technology and Computer Usage Trends
  • 1.4 Cost and Trends in Cost
  • 1.5 Measuring and Reporting Performance
  • 1.6 Quantitative Principles of Computer Design
  • 1.7 Putting It All Together The Concept of
    Memory Hierarchy

Fast memory is expensive. Slow memory is
cheap. The goal is to minimize the
price/performance for a particular price point.
93
Memory Hierarchy
Registers
Level 1 cache
Level 2 Cache
Memory
Disk
Typical Size 4 - 64 lt16K bytes lt2 Mbytes lt16 Gigabytes gt 5 Gigabytes
Access Time 1 nsec 3 nsec 15 nsec 150 nsec 5,000,000 nsec
Bandwidth (in MB/sec) 10,000 50,000 2000 - 5000 500 - 1000 500 - 1000 100
Managed By Compiler Hardware Hardware OS OS/User
94
Memory Hierarchy
  • Hit data appears in some block in the upper
    level (example Block X)
  • Hit Rate the fraction of memory access found in
    the upper level
  • Hit Time Time to access the upper level which
    consists of
  • RAM access time Time to determine hit/miss
  • Miss data needs to be retrieved from a block in
    the lower level (Block Y)
  • Miss Rate 1 - (Hit Rate)
  • Miss Penalty Time to replace a block in the
    upper level
  • Time to deliver the block to the processor
  • Hit Time ltlt Miss Penalty (500 instructions on
    21264!)

95
Memory Hierarchy
Registers
Level 1 cache
Level 2 Cache
Memory
Disk
  • What is the cost of executing a program if
  • Stores are free (theres a write pipe)
  • Loads are 20 of all instructions
  • 80 of loads hit (are found) in the Level 1 cache
  • 97 of loads hit in the Level 2 cache.

96
Wrap Up
  • 1.1 Introduction
  • 1.2 The Task of a Computer Designer
  • 1.3 Technology and Computer Usage Trends
  • 1.4 Cost and Trends in Cost
  • 1.5 Measuring and Reporting Performance
  • 1.6 Quantitative Principles of Computer Design
  • 1.7 Putting It All Together The Concept of
    Memory Hierarchy
About PowerShow.com
