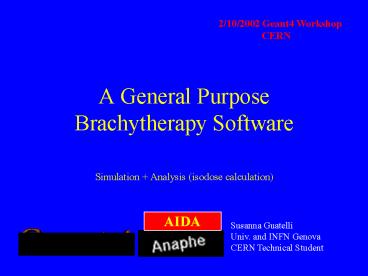

A General Purpose Brachytherapy Software

1

2/10/2002 Geant4 Workshop CERN

• A General Purpose Brachytherapy Software
• Simulation Analysis (isodose calculation)

AIDA
Susanna Guatelli Univ. and INFN Genova CERN
Technical Student
2

Brachytherapy application

• Brachytherapy is a medical therapy used for
  cancer
• treatment.
• Radioactive sources are used to deposit
  therapeutic doses
• near tumors, while preserving surrounding
  healthy tissue.

Br a medical therapy used for cancer treatment

• brachytherapy is an advanced example of Geant4.
• Its aim is to calculate the dose delivered to
  tissue
• surrounding the sources.

3

• Endocavitary brachytherapy
• Uterus,vagina, lung

Ir-192

• Superficial brachytherapy
• Skin

Leipzig Applicator Ir-192
I-125

• Interstistial brachytherapy
• Prostate

The brachytherapy example calculates dose in the
phantom for all these techniques
4
Validation of the software

• Simulation of the dose distribution of the
  interstitial source
• Isoseed I-125
• Comparison with experimental data
• measurements of the distribution of dose
  with films
• (performed at the Institute of Medical
  Physics of
• San Paolo Hospital, Savona, Italy)
• Comparison with the actual protocol about
  interstitial
• seeds (TG43)

5
User Requirements

• Model of a simple geometry
• Physical processes for e-,e, gamma
• Primary particles
• Track of the particles
• Visualization of the experimental setup
• Calculation of the energy deposit in the plane
• containing the source
• Analysis and store of the results (histograms)

6
Design of the validation test
7
Implementation

• The spectrum of primary particles is implemented
• The phantom is a box filled with water
• The geometry of the source is implemented
• Low Energy processes are implemented for gamma
• Standard processes for e
• Low Energy or Standard for e-
• Cut in range 0.1 mm
• Detector is the phantom divided in voxels
  (dimension 1mm)
• Visualization of the geometry involved
• 1D histogram filled with the initial energy of
  the gamma (check!)
• 2D histogram filled with the energy deposit in
  the plane containing
• the source in relation to the position (voxel)
  in the plane itself

8
Results
Distribution of dose
dose distribution
Spectrum of the gammas delivered by the source

• Standard and Low Energy
• Packages for e-give the same results
• No agreement with the protocol
• Agreement with experimental
• measurements

Energy delivered in the plane containing the
source
More Studies are required !
9
Dose distribution TG 43 protocol, experimental
data (S. Paolo Hospital, Savona), G4-LowE
? Protocol ? Data (SV) ? G4-LowE
G4 Standard and LowE agree
10
User requirementsof brachytherapy example

• The aim of the software is to calculate the
  distribution of dose of brachytherapeutic sources
  in 3D in the phantom and the
• isodose curves in planes.
• The user shall be able to define the type of the
  brachytherapic
• source
• The user shall be able to define the materials of
  the phantom
• The software can be interfaced with CT images
  (its possible
• to define the materials of the real geometry
  involved)
• Visualisation of the experimental environment
• Store of the data
• Software for all the kinds of brachytherapy

11
Design
12
(No Transcript)
13
Mainfeaturesof the implementationof the
brachytheapyexample
14

• Definition of the brachytherapic source

Abstract Factory
15

• Geometry
• 1) the user can choose the
  absorber material
• of the phantom
• 2)thanks to the
  parameterisation of the phantom
• it is possible to
  define different materials
• for each elementary
  volume (voxels)
• 3) thanks to the
  parameterisation and the introduction
• of a map associating
  geometry and materials
• its possible to
  interface the software to CT
• Physical Processes
• Low Energy for gamma
• Standard for e
• Low Energy/Standard for
  e-

16

• Primary particles
• 1)spectrum of the
  gamma
• delivered by the
  radioactive core
• 2)the direction of
  emission is random
• Detector
• phantom divided in
  voxels
• ( box,
  dimension 1mm)

• Particles
• 1)all the particles (
  primary and secondary) are tracked
• 2)cut in range 0.1 mm
• Visualization of the experimental environment
• Ntuple store of the energy deposit in all the
  phantom
• 1D histogram spectrum of gamma delivered by the
  radioactive core
• Calculation of the isodose lines

17
Results
Bebig Isoseed I-125
Interstitial brachytherapy
Superficial brachytherapy
Leipzig applicator
Endocavitary brachytherapy
microSelectron-HDR
18
Leipzig applicator
Dose in a phantom of soft tissue
Work in Progress!
Isodose voxels
50 MeV
100 50 10
19
Collaborations
nt4 INFN Genova M.G. Pia CERN A.
Pfeiffer San Paolo Hospital, Savona G.
Ghiso National Institute for Cancer Research
IST, Genova A. Agostinelli, F. Foppiano, S.
Garelli, M. Tropeano , R.aaanMarti
And Geant4 collaboration, AIDA/Anaphe
group
