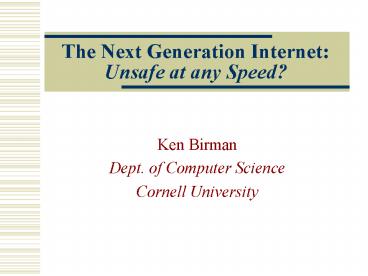

The Next Generation Internet Unsafe at any Speed?
  • Ken Birman
  • Dept. of Computer Science
  • Cornell University

2
Convergent Trends
  • Existing Internet exhibiting brownouts, security
    and quality-of-service problems
  • Talk of a next generation Internet offering 10
    to 100-fold performance improvements
  • A new generation of networked applications
    includes large numbers of critical ones

3
Typical Critical Applications
  • Medical monitoring and clinical databases.
    Community health information networks. Remote
    home care and Remote telesurgery
  • Integrated modular avionics systems. Air traffic
    control. Free flight, 4-D navigation

4
Medical Networks
  • Contacted a number of technical and business
    people in this field (HP Careview, EMTEK,
    Hospital for Sick Children)
  • Asked
  • What are the trends?
  • How are networks changing healthcare?
  • How are these systems made secure reliable?
  • Got any good stories for me?

5
An ICU Computer System
Doctorsoffice
Bedside
LaboratoriesPharmacy
Clinical data serverDigital library and online
PDR
6
a field in transition
  • During 1980s, hospitals used largely dedicated
    systems
  • Client-server architectures now becoming
    dominant, but trend is a recent one
  • Systems ran in physical isolation and had
    limited, mission-specific functionality

7
Important distinction
  • Medical monitoring equipment, computer controlled
    devices
  • These practice medicine
  • FDA regulated, like a drug
  • Software subjected to extreme verification
    methods, safety certification is costly and hard
  • Extends to the IEEE medical information bus for
    connecting bedside devices

8
Important distinction
  • Medical monitoring equipment, computer controlled
    devices
  • Clinical data systems
  • By definition, not considered safety critical
  • Maintain the legally binding patient record
  • Think of a database system. Human checks all
    entries, even data obtained directly from devices
    or lab reports.

9
Traditional Approach
  • Each runs as a separate network
  • Developed completely independently
  • No interconnection of any kind

10
Networking technology?
  • Monitoring network is increasingly a dedicated
    real-time LAN, this permits configuration
    flexibility, remote telemetry, even adjustment of
    monitoring devices
  • Clinical database system increasingly connected
    to laboratories, community health information
    networks (CHINs), physicians office, insurance
    and HMOs

11
Platform choices?
  • Overwhelming trend is to introduce standard PCs
    and workstations, standard Internet technologies
  • Forced migration from dedicated platforms to
    shared, standard network platforms
  • Web access now common from PCs that run clinical
    database software

12
bluring the distinction
  • Increasingly, see monitoring network
    cross-connected to the clinical data network
  • Some physical isolation not yet common to see an
    IV perfusion drip controllable over an internet
    within a hospital
  • Perimeter security using passwords, firewalls.
    But medical security needs are unusual
    mismatched to standard solutions.

13
Creep of critical role
  • Technically, clinical data system is non-critical
  • But increasingly, the system actually is
    critical doctors and nurses depend upon the
  • Accuracy and timeliness of reporting
  • Correct data for lab results, vitals, medications
  • FDA is simply late to catch up with trends
  • Moreover, already seeing Windows 95 and MS Access
    as basis for such systems

14
Consumer / society pull
  • Intensive and growing cost pressures
  • Desire for freedom from medical system, home care
  • Consolidation of hospitals
  • HMOs want to control care plan
  • create trend towards remote telemedicine, even
    robot telesurgery, CHINs

15
Vision A Virtual Private Network
Application shares the network with untrusted
agents but is isolated from them.
16
Reality?
  • Current VPN support approximates this, but
    configuration potentially awkward, slow
  • Many CHINs wont use VPNs
  • By running over the Internet, CHINs are exposed
    to bandwidth fluctuations and denial of service
    from many causes

17
Good stories?
  • Many cases of security or privacy violations
    (EMTEK has a good one).
  • HP told me that some hackers accidently disrupted
    a cardiac monitor in the Boston area a few years
    ago (trying to track this down)
  • Nutty nursing aide in Britain changed orders,
    discharged patients, scheduled tests
  • HP Careview, starved for bandwidth, flickers on
    and offline in some critical care units...

18
Broad picture?
  • Application trends outstripping technology
  • Decision making is by societal consensus, cost
    pressures, reflects HMO needs.
  • Hospital executives insisting on standards
  • Hospital network of future PCs, off-the-shelf
    Internet software, standard Web stuff. Critical
    or not, like it or not, its happening!

19
What about aviation?
  • Much use of computer technologies
  • Flight management system (controls airplane)
  • Flaps, engine controls (critical subsystems)
  • Navigational systems
  • TCAS (collision avoidance system)
  • Air traffic control system on ground
  • In-flight, approach, international hand-off
  • Airport ground system (runways, gates, etc)

20
What about aviation?
  • Much use of computer technologies
  • Flight management system (controls airplane)
  • Flaps, engine controls (critical subsystems)
  • Navigational systems
  • TCAS (collision avoidance system)
  • Air traffic control system on ground
  • In-flight, approach, international hand-off
  • Airport ground system (runways, gates, etc)

21
ATC system components
Onboard
Radar
Controllers
X.500 Directory
Air Traffic Database(flight plans, etc)
22
similar turmoil
  • On-board systems moving to COTS, integrated
    modular avionics
  • Boeing 777 SafeBus a success story
  • Unlikely it could be replicated with standard O/S
    and standard ATM or LAN hardware
  • Emergence of 4-D navigation (free flight)
    systems ground network penetrates level-A
    critical cockpit components.

23
Free flight
Transponder and GPS
On-board conflict alert and resolution system
Ground system
24
Future avionics systems
  • Ground systems rely increasingly on automation,
    have form of a highly available, highly critical
    network. Built using standard PCs, software
    tools
  • Ground network becomes critical to flight safety
  • On-board avionics are basically a dedicated
    real-time LAN built with standard PCs but
    perhaps non-standard O/S. One platform, many
    apps.
  • Safety validation of components replaces current
    validation of system. Think plug n play

25
The list goes on
  • Disaster warning and response coordination
  • Power management (grid control)
  • Banking, stock markets, trading systems
  • Computer-controlled vehicles
  • Military intelligence, command and control
  • Critical business applications

26
Commercial Off The Shelf
  • Build using COTS
  • Standard components
  • Buy off the shelf, then harden them
  • Intended to be cheaper, easier to maintain
  • As a practical matter, there is nothing else on
    the shelf!
  • Roll-your-own solutions abandon powerful tools
    that make modern computing great!

27
Technology Mountain
COTS
28
Reliable Technology Mountain
COTS
29
Next Generation Internet
  • Current Internet looks frail
  • Only government investment can address security,
    reliability, scalability and performance problems
    of the Internet
  • Expectation is that well build it quickly, hence
    that we basically know how today

30
Next Generation Internet
  • Concrete details?
  • Seeks 10 to 100-fold performance improvement
  • Originally expected to provide IP-v6 interface
  • Originally expected to implement
  • Long IP addresses
  • IPSec, DNSec
  • Quality of Service options over some form of
    Diffsrv (or RSVP) mechanism

31
Reality check
  • Both IPv6 and RSVP now uncertain due to
    resistance from mainstream IPv4 crowd
  • RSVP resource use on routers grows as O(n2)
  • IPv6 would outmode a huge existing investment
  • How likely is it that the NGI will solve the
    practical problems identified earlier?
  • How does one build a secure, reliable, scalable,
    high performance network application, anyhow?
  • Do we in fact know how to do this?

32
Glimpse of the IPv4 crowd
  • They gave us TCP/IP, core internet services,
    stuff on which we run email, web
  • They elevate the end-to-end argument to a
    religion (basically packets, not circuits)
  • Little experience with critical applications

33
What about QoS?
  • Best scheme Diffsrv
  • Uses an edge-classification of packets routers
    look at just a byte or two
  • But routers distort flow dynamics
  • You send 50 packets per second
  • but within the network, a router might see a
    burst of 100, then a second of silence
  • Consequence is that Diffsrv will be at best
    stochastic (and it also cant handle routing
    changes)

34
a troubling implication
  • It seems unlikely that the NGI will easily
    support isolation of critical subsystems with the
    range of properties required
  • More likely a tool for building virtual circuits
    (one-one connections) that run at very high
    speeds
  • Missing connection is the step from the network
    to the robust application

35
What do we need?
  • Isolation of functions
  • Critical functionality compartmentalized
  • Components only interact through well-defined
    interfaces with well-defined semantics
  • Developer proves that implementation respects
    interface definition and semantics
  • On the other hand, adequate performance is
    fundamental to providing robustness

36
Evidence for these claims?
  • This is how modern avionics modules are built
    (wing flap and engine control, flight management
    system, inertial navigation)
  • Process is extremely costly and works only for
    very small pieces of software
  • SafeBus on Boeing 777 allows such software to
    share platform by creating very strong firewalls
    between components

37
Agenda emerges
  • Find ways to divide and conquer
  • Transform big nasty system into smaller
    independent modules
  • Run them in an environment that has strong
    properties, which the modules exploit
  • Resulting system has strong properties too
  • Can we apply this to familiar distributed
    computing problems?

38
Philosophy
  • Imagine a network as an abstract data type
  • An Overlay Network or ON
  • We can instantiate it multiple times, condition
    each copy with desired quality properties
  • A Virtual Overlay Network or VON
  • How to introduce properties?
  • Mixture of resource reservation at routers, on a
    per-ON basis, and management actions at edges

39
A VON
  • Looks like a dedicated Internet, although hosted
    on a shared infrastructure
  • Supports guarantees of properties such as
  • Bandwidth
  • Noise level
  • Security and freedom from denial of service
  • Treated as an aggregate, not a set of pt-to-pt
    connections!

40
Making Vision a Reality
  • 1) NGI needs to give us the ON mechanism
  • 2) We need to implement VONs using fairly
    standard protocols over the base ONs
  • 3) Must be able to produce specialized solutions
    for reliability/security needs
  • 4) Solutions amenable to selective use of formal
    tools

41
NGI hooks?
  • Diffsrv and RSVP wont do it
  • Creates an O(n2) resource reservation problem
  • Problem is that both schemes are fundamentally
    connection oriented, and VON concept is
    fundamentally multipoint in nature
  • Hence these point-to-point QoS mechanisms are not
    suitable for supporting VONs
  • Any other options?

42
Switches supporting flows already exist
  • MCI, Sprint, ATT already sell each other
    dedicated bandwidth with isolation
  • This is on a scale of perhaps 10s of flows and
    hence classification is easy
  • VONs might mean that a switch would see
    thousands, but such scaling seems well within
    technical feasibility

43
Router understands flows
Looks likethis
44
Router understands flows
Flow 1 Flow 2 Flow 3 Everything else
Looks likethis
Looks likethis
Looks likethis
Acts likethis
45
Things to notice
  • A flow in this sense aggregates all the traffic
    for one ON the identifier is for the ON not the
    endpoints
  • Classification task is thus much smaller and
    resources needed to support this are linear in
    number of ONs that pass through the switch, not
    the number of potential connections
  • Each ON is like a dedicated network

46
An ON has
  • A bandwidth guarantee (router sets resources
    aside on its behalf)
  • Perhaps latency guarantees
  • Can offer isolation between flows
  • But not much else

47
NGI part of the picture
  • NGI needs to give us raw ONs but also
  • Robust routing infrastructure
  • Naming
  • Ability to build an ON tolerant of one link or
    router failure
  • Many building blocks are already in place
  • But the core Internet community is balking on all
    forms of QoS isolation or other guarantees seen
    as inconsistent with end-to-end philosophy

48
But suppose we get our wish
  • Next President declares moral equivalent of war
    after continuing Internet siege shuts down his
    web site during election
  • Let there be Overlay Networks!
  • Then what?

49
Our new goal?
  • Create VONs by adding properties to Ons
  • User sees VON as a set of end-points with minimum
    guarantees, like isolation, between them
  • We need a way to strengthen these properties
  • E.g. manage security keys, manage RSVP
    parameters, routing, network name space
  • We may also need ways to reliably communicate
    (1-1, 1-n patterns)

50
VONs as abstract data types
51
VONs as abstract data types
  • Focus on the processes and network

52
VONs as abstract data types
  • Think of the ON interface as an abstract type

ON
ON
ON
53
VONs as abstract data types
  • Add encryption by substituting a module that
    looks the same but encrypts messages

encrypt
encrypt
encrypt
54
Layered Microprotocols
Interface to Horus is extremely flexible
Horus manages group abstraction
group semantics (membership, actions, events)
defined by stack of modules
ftol
vsync
Horus stacks plug-and-play modules to give design
flexibility to developer
filter
encrypt
sign
55
Layered Microprotocols in Horus
Interface to Horus is extremely flexible
Horus manages group abstraction
group semantics (membership, actions, events)
defined by stack of modules
ftol
vsync
Ensemble stacks plug-and-play modules to
give design flexibility to developer
filter
encrypt
sign
56
Layered Microprotocols in Horus
Interface to Horus is extremely flexible
Horus manages group abstraction
group semantics (membership, actions, events)
defined by stack of modules
ftol
Ensemble stacks plug-and-play modules to
give design flexibility to developer
vsync
filter
encrypt
sign
57
Same stack under each endpoint
58
Multiple VONs in single application
Yellow group for video communication
Green for control and coordination
ftol
ftol
ftol
vsync
vsync
vsync
encrypt
encrypt
encrypt
59
Examples of reliability models
  • Virtual synchrony model emerged from our work on
    Isis, now widely accepted
  • Bimodal multicast model probabilistic and has
    neat performance properties but weaker logical
    consistency guarantees
  • Secure group communication
  • Multimedia channels

60
Virtual Synchrony Model
G0p,q G1p,q,r,s
G2q,r,s
G3q,r,s,t
crash
p q r s t
r, s request to join
p fails
r,s added state xfer
t requests to join
t added, state xfer
61
Virtual Synchrony Tools
  • Various forms of replication
  • Replicated data, replicate an object, state
    transfer for starting new replicas...
  • 1-many event streams (network news)
  • Load-balanced and fault-tolerant request
    execution
  • Management of groups of nodes or machines in a
    network setting

62
Stock Exchange Problem Vsync. multicast is too
fragile
Most members are healthy. but one is slow
63
Measured Impact of Perturbation
Throughput (msgs/sec)
Amount Perturbed
64
The problem gets worse as the system scales up
Virtually synchronous Ensemble multicast protocols
250
group size 32
group size 64
group size 96
200
150
average throughput on nonperturbed members
100
50
0
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
perturb rate
65
Why does stability matter?
  • Swiss Stock Exchange
  • Exchange is fully electronic FTCS-27 paper
  • Uses Isis SDK to distribute all bids/offers and
    all trades. Every node has the picture
  • But this means that entire trading history
    available to 50 member banks firms and hundreds
    or thousands of traders!
  • Unstable node could bring exchange to its knees.
  • Similar issues seen in many other settings

66
Pbcast has a probabilistic reliability model
  • Either almost all destinations receive the
    message or almost none do so
  • This is strong enough to use in applications with
    critical reliability needs (but not necessary for
    all their communication purposes -- put side by
    side with virtual synchrony)

67
(No Transcript)
68
(No Transcript)
69
Pbcast has stable throughput
  • Gets this from a mixture of gossip-style local
    repair with several innovations to avoid overload
    when some process fails
  • We implemented the protocol and experimentally
    confirmed this

70
(No Transcript)
71
(No Transcript)
72
(No Transcript)
73
Now we have several styles...
  • Each style or model yields a VON with different
    properties
  • Application might not see the multicast stack
  • Instead, the environment in which the application
    runs could see the stack and use it on behalf of
    the application
  • For example, a library could use stack to
    maintain the keys with which it authenticates
    actions

74
Formal methods
  • With so much riding on VON, we need strong
    guarantees that the stack works!
  • If protocols can be formally proved correct,
    confidence will be far stronger
  • Can we use formal tools on network protocols
    built in this compositional manner?

75
Exploiting formal methods
  • Van Renesse and Hayden code stack with language
    having strong semantics
  • They used OCaml dialect of ML
  • Now we can bring formal tools to bear on issues
    of correctness
  • Using Nuprl system for this
  • Basically, it automates proofs and program
    transformations

76
Initial Progress?
  • Presented in 1999 ACM SOSP paper
  • Have formalized the transformations used to
    optimize stacks for high performance
  • We show that from one initial stack, we can
    produce multiple optimized stacks for common
    cases. Yields big speedups!

77
Steps
  • Transform Ensemble stack into a single function
    in a functional style
  • Use partial evaluation to produce optimized
    version for common cases
  • Use theorem proving to establish that stacks
    provide desired properties
  • Transform back to imperative style
  • Resulting code is optimized yet retains
    properties of original stack

78
Optimization Example
? Common case?
ftol
ftol
vsync
vsync
encrypt
encrypt
Original code is simple but inefficient
Optimized code for common case is provably
equivalent yet inefficiencies are eliminated
79
Optimization Example
? Common case?
ftol
ftol
vsync
vsync
encrypt
encrypt
We do nearly as well as hand-optimization and can
automatically handle much bigger stacks!
? Common case?
80
Wrapping things up
  • By building better networks, and isolating
    protocol components and system components
  • and adopting a modular architecture
  • and selectively using formal methods
  • we make it more and more practical to gain both
    high performance and other desired properties,
    such as reliability, security, stability, etc.

81
Potential NGI lets critical applications share
network with untrusted ones
VONs
82
But will it happen?
  • Current political agenda focuses on speed and
    e-commerce transactions
  • End-to-end community resists giving any
    guarantees no matter how simple
  • And NGI focus is exclusively on point-to-point
    QoS, which seems unscalable
  • denying us the one primitive building block on
    which the whole concept depends!

83
Conclusions?
  • The world needs better networks!
  • Improve them by improved opportunity for
    modularity, isolation, guarantees of security and
    quality of service VONs and layers built over
    them
  • Lacking this, we face very serious problems
    simply going forward in directions to which
    society is already committed.

84
More info
  • http//www.cs.cornell.edu/ken/unsafe.ps
About PowerShow.com
