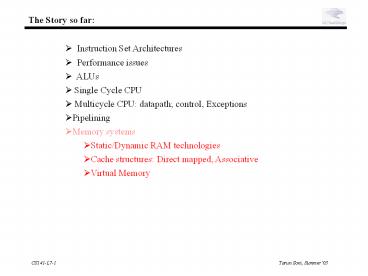

The Story so far
  • Instruction Set Architectures
  • Performance issues
  • ALUs
  • Single Cycle CPU
  • Multicycle CPU datapath control, Exceptions
  • Pipelining
  • Memory systems
  • Static/Dynamic RAM technologies
  • Cache structures Direct mapped, Associative
  • Virtual Memory

2
Memory
Memory systems
3
Memory Systems
Computer
Control
Input
Memory
Output
Datapath
4
Technology Trends (from 1st lecture)
Capacity Speed (latency) Logic 2x
in 3 years 2x in 3 years DRAM 4x in 3
years 2x in 10 years Disk 4x in 3 years 2x
in 10 years
DRAM Year Size Cycle
Time 1980 64 Kb 250 ns 1983 256 Kb 220 ns 1986 1
Mb 190 ns 1989 4 Mb 165 ns 1992 16 Mb 145
ns 1995 64 Mb 120 ns
10001!
21!
5
Who Cares About the Memory Hierarchy?
Processor-DRAM Memory Gap (latency)
µProc 60/yr. (2X/1.5yr)
1000
CPU
Moores Law
100
Processor-Memory Performance Gap(grows 50 /
year)
Performance
10
DRAM 9/yr. (2X/10 yrs)
DRAM
1
1980
1981
1983
1984
1985
1986
1987
1988
1989
1990
1991
1992
1993
1994
1995
1996
1997
1998
1999
2000
1982
Time
6
Todays Situation Microprocessor
  • Processor Speeds
  • Intel Pentium III 4GHz
  • Memory Speeds
  • Mac/PC/Workstation DRAM 50 ns
  • Disks are even slower....
  • How can we span this access time gap?
  • 1 instruction fetch per instruction
  • 15/100 instructions also do a data read or write
    (load or store)
  • Rely on caches to bridge gap
  • Microprocessor-DRAM performance gap
  • time of a full cache miss in instructions
    executed
  • 1st Alpha (7000) 340 ns/5.0 ns  68 clks x 2
    or 136 instructions
  • 2nd Alpha (8400) 266 ns/3.3 ns  80 clks x 4
    or 320 instructions
  • 3rd Alpha (t.b.d.) 180 ns/1.7 ns 108 clks x 6
    or 648 instructions
  • 1/2X latency x 3X clock rate x 3X Instr/clock ?
    5X

7
Impact on Performance
  • Suppose a processor executes at
  • Clock Rate 200 MHz (5 ns per cycle)
  • CPI 1.1
  • 50 arith/logic, 30 ld/st, 20 control
  • Suppose that 10 of memory ops get 50 cycle miss
    penalty
  • CPI ideal CPI average stalls per
    instruction 1.1(cyc) ( 0.30 (datamops/ins)
    x 0.10 (miss/datamop) x 50 (cycle/miss) ) 1.1
    cycle 1.5 cycle 2. 6
  • 58 of the time the processor is stalled
    waiting for memory!
  • a 1 instruction miss rate would add an
    additional 0.5 cycles to the CPI!

8
Memory system-hierarchical
Processor
Control
Memory
Memory
Memory
Datapath
Memory
Memory
Slowest
Fastest
Speed
Biggest
Smallest
Size
Lowest
Highest
Cost
9
Why hierarchy works
  • The Principle of Locality
  • Program access a relatively small portion of the
    address space at any instant of time.

10
Locality
  • Property of memory references in typical
    programs
  • Tendency to favor a portion of their address
    space at any given time
  • Temporal
  • Tendency to reference locations recently
    referenced
  • Spatial
  • Tendency to reference locations near those
    recently referenced

11
Memory Hierarchy How Does it Work?
  • Temporal Locality (Locality in Time)
  • gt Keep most recently accessed data items closer
    to the processor
  • Spatial Locality (Locality in Space)
  • gt Move blocks consisting of contiguous words to
    the upper levels

12
Memory Hierarchy How Does it Work?
  • Memory hierarchies exploit locality by cacheing
    (keeping close to the processor) data likely to
    be used again.
  • This is done because we can build large, slow
    memories and small, fast memories, but we cant
    build large, fast memories.
  • If it works, we get the illusion of SRAM access
    time with disk capacity
  • SRAM access times are 2 - 25ns at cost of 100 to
    250 per Mbyte.
  • DRAM access times are 60-120ns at cost of 5 to
    10 per Mbyte.
  • Disk access times are 10 to 20 million ns at cost
    of .10 to .20 per Mbyte.

13
Memory Hierarchy Terminology
  • Hit data appears in some block in the upper
    level (example Block X)
  • Hit Rate the fraction of memory access found in
    the upper level
  • Hit Time Time to access the upper level which
    consists of
  • RAM access time Time to determine hit/miss
  • Miss data needs to be retrieve from a block in
    the lower level (Block Y)
  • Miss Rate 1 - (Hit Rate)
  • Miss Penalty Time to replace a block in the
    upper level
  • Time to deliver the block the processor
  • Hit Time ltlt Miss Penalty

Lower Level Memory
Upper Level Memory
To Processor
Blk X
From Processor
Blk Y
14
Memory Hierarchy of a Modern Computer System
  • By taking advantage of the principle of locality
  • Present the user with as much memory as is
    available in the cheapest technology.
  • Provide access at the speed offered by the
    fastest technology.

Processor
Control
Tertiary Storage (Disk)
Secondary Storage (Disk)
Main Memory (DRAM)
Second Level Cache (SRAM)
On-Chip Cache
Datapath
Registers
1s
10,000,000s (10s ms)
Speed (ns)
10s
100s
10,000,000,000s (10s sec)
100s
Size (bytes)
Ks
Ms
Gs
Ts
15
Main Memory Background
  • Performance of Main Memory
  • Latency Cache Miss Penalty
  • Access Time time between request and word
    arrives
  • Cycle Time time between requests
  • Bandwidth I/O Large Block Miss Penalty (L2)
  • Main Memory is DRAM Dynamic Random Access Memory
  • Dynamic since needs to be refreshed periodically
    (8 ms)
  • Addresses divided into 2 halves (Memory as a 2D
    matrix)
  • RAS or Row Access Strobe
  • CAS or Column Access Strobe
  • Cache uses SRAM Static Random Access Memory
  • No refresh (6 transistors/bit vs. 1 transistor
    /bit)
  • Address not divided
  • Size DRAM/SRAM 4-8, Cost/Cycle time SRAM/DRAM
    8-16

16
Static RAM Cell
6-Transistor SRAM Cell
word
word (row select)
0
1
1
0
bit
bit
  • Write
  • 1. Drive bit lines (bit1, bit0)
  • 2.. Select row
  • Read
  • 1. Precharge bit and bit to Vdd
  • 2.. Select row
  • 3. Cell pulls one line low
  • 4. Sense amp on column detects difference between
    bit and bit

bit
bit
replaced with pullup to save area
17
Typical SRAM Organization 16-word x 4-bit
Din 0
Din 1
Din 2
Din 3
WrEn
Precharge
A0
Word 0
SRAM Cell
SRAM Cell
SRAM Cell
SRAM Cell
A1
A2
Word 1
Address Decoder
SRAM Cell
SRAM Cell
SRAM Cell
SRAM Cell
A3




Word 15
SRAM Cell
SRAM Cell
SRAM Cell
SRAM Cell
Dout 0
Dout 1
Dout 2
Dout 3
18
Problems with SRAM
Select 1
P1
P2
Off
On
On
On
On
Off
N1
N2
bit 1
bit 0
  • Six transistors use up a lot of area
  • Consider a Zero is stored in the cell
  • Transistor N1 will try to pull bit to 0
  • Transistor P2 will try to pull bit bar to 1
  • But bit lines are precharged to high Are P1 and
    P2 necessary?

19
Logic Diagram of a Typical SRAM
  • Write Enable is usually active low (WE_L)
  • Din and Dout combined to save pins
  • output enable (OE_L) (new signal)
  • WE_L asserted , OE_L deasserted
  • D gt data input pin
  • WE_L deasserted , OE_L asserted
  • D gt data output pin

Read Timing
Write Timing
High Z
D
Data In
Data Out
Data Out
Junk
A
Write Address
Read Address
Read Address
OE_L
WE_L
Write Hold Time
Read Access Time
Read Access Time
Write Setup Time
20
1-Transistor Memory Cell (DRAM)
row select
  • Write
  • 1. Drive bit line
  • 2.. Select row
  • Read
  • 1. Precharge bit line to Vdd
  • 2.. Select row
  • 3. Cell and bit line share charges
  • Very small voltage changes on the bit line
  • 4. Sense (fancy sense amp)
  • Can detect changes of 1 million electrons
  • 5. Write restore the value
  • Refresh
  • 1. Just do a dummy read to every cell.

bit
21
Classical DRAM Organization (square)
bit (data) lines
r o w d e c o d e r
Each intersection represents a 1-T DRAM Cell
RAM Cell Array
word (row) select
Column Selector I/O Circuits
Column Address
row address
  • Row and Column Address together
  • Select 1 bit a time

data
22
Logic Diagram of a Typical DRAM
OE_L
WE_L
CAS_L
RAS_L
A
256K x 8 DRAM
D
9
8
  • Control Signals (RAS_L, CAS_L, WE_L, OE_L) are
    all active low
  • Din and Dout are combined (D)
  • WE_L is asserted (Low), OE_L is deasserted (High)
  • D serves as the data input pin
  • WE_L is deasserted (High), OE_L is asserted (Low)
  • D is the data output pin
  • Row and column addresses share the same pins (A)
  • RAS_L goes low Pins A are latched in as row
    address
  • CAS_L goes low Pins A are latched in as column
    address
  • RAS/CAS edge-sensitive

23
Key DRAM Timing Parameters
  • tRAC minimum time from RAS line falling to the
    valid data output.
  • Quoted as the speed of a DRAM
  • A fast 4Mb DRAM tRAC 60 ns
  • tRC minimum time from the start of one row
    access to the start of the next.
  • tRC 110 ns for a 4Mbit DRAM with a tRAC of 60
    ns
  • tCAC minimum time from CAS line falling to valid
    data output.
  • 15 ns for a 4Mbit DRAM with a tRAC of 60 ns
  • tPC minimum time from the start of one column
    access to the start of the next.
  • 35 ns for a 4Mbit DRAM with a tRAC of 60 ns

24
DRAM Performance
  • A 60 ns (tRAC) DRAM can
  • perform a row access only every 110 ns (tRC)
  • perform column access (tCAC) in 15 ns, but time
    between column accesses is at least 35 ns (tPC).
  • In practice, external address delays and turning
    around buses make it 40 to 50 ns
  • These times do not include the time to drive the
    addresses off the microprocessor nor the memory
    controller overhead.
  • Drive parallel DRAMs, external memory controller,
    bus to turn around, SIMM module, pins
  • 180 ns to 250 ns latency from processor to memory
    is good for a 60 ns (tRAC) DRAM

25
DRAM Write Timing
OE_L
WE_L
CAS_L
RAS_L
  • Every DRAM access begins at
  • The assertion of the RAS_L
  • 2 ways to write early or late v. CAS

A
256K x 8 DRAM
D
9
8
DRAM WR Cycle Time
CAS_L
A
Row Address
Junk
Col Address
Row Address
Junk
Col Address
OE_L
WE_L
D
Junk
Junk
Data In
Data In
Junk
WR Access Time
WR Access Time
Early Wr Cycle WE_L asserted before CAS_L
Late Wr Cycle WE_L asserted after CAS_L
26
DRAM Read Timing
  • Every DRAM access begins at
  • The assertion of the RAS_L
  • 2 ways to read early or late v. CAS

DRAM Read Cycle Time
CAS_L
A
Row Address
Junk
Col Address
Row Address
Junk
Col Address
WE_L
OE_L
D
High Z
Data Out
Junk
Data Out
High Z
Read Access Time
Output Enable Delay
Early Read Cycle OE_L asserted before CAS_L
Late Read Cycle OE_L asserted after CAS_L
27
Cycle Time versus Access Time
Cycle Time
Access Time
Time
  • DRAM (Read/Write) Cycle Time gtgt DRAM
    (Read/Write) Access Time
  • 21 why?
  • DRAM (Read/Write) Cycle Time
  • How frequent can you initiate an access?
  • Analogy A little kid can only ask his father for
    money on Saturday
  • DRAM (Read/Write) Access Time
  • How quickly will you get what you want once you
    initiate an access?
  • Analogy As soon as he asks, his father will give
    him the money
  • DRAM Bandwidth Limitation analogy
  • What happens if he runs out of money on Wednesday?

28
Increasing Bandwidth - Interleaving
Access Pattern without Interleaving
CPU
Memory
D1 available
Start Access for D1
Start Access for D2
Memory Bank 0
Access Pattern with 4-way Interleaving
Memory Bank 1
CPU
Memory Bank 2
Memory Bank 3
Access Bank 1
Access Bank 0
Access Bank 2
Access Bank 3
We can Access Bank 0 again
29
Fewer DRAMs/System over Time
DRAM Generation
86 89 92 96 99 02 1 Mb 4 Mb 16 Mb 64
Mb 256 Mb 1 Gb
Memory per DRAM growth _at_ 60 / year
4 MB 8 MB 16 MB 32 MB 64 MB 128 MB 256 MB
16
4
Memory per System growth _at_ 25-30 / year
Minimum PC Memory Size
  • Increasing DRAM gt fewer chips gt harder to have
    banks

30
Page Mode DRAM Motivation
Column Address
  • Regular DRAM Organization
  • N rows x N column x M-bit
  • Read Write M-bit at a time
  • Each M-bit access requiresa RAS / CAS cycle
  • Fast Page Mode DRAM
  • N x M register to save a row

DRAM
Row Address
N rows
M bits
M-bit Output
1st M-bit Access
2nd M-bit Access
CAS_L
A
Row Address
Junk
Col Address
Row Address
Junk
Col Address
31
Fast Page Mode Operation
Column Address
  • Fast Page Mode DRAM
  • N x M SRAM to save a row
  • After a row is read into the register
  • Only CAS is needed to access other M-bit blocks
    on that row
  • RAS_L remains asserted while CAS_L is toggled

DRAM
Row Address
N rows
N x M SRAM
M bits
M-bit Output
1st M-bit Access
2nd M-bit
3rd M-bit
4th M-bit
RAS_L
CAS_L
A
Row Address
Col Address
Col Address
Col Address
Col Address
32
DRAMs over Time
DRAM Generation
84 87 90 93 96 99 1 Mb 4 Mb 16 Mb
64 Mb 256 Mb 1 Gb 55 85 130 200 300 450 30 47 7
2 110 165 250 28.84 11.1 4.26 1.64 0.61 0.23
1st Gen. Sample Memory Size Die Size (mm2) Memory
Area (mm2) Memory Cell Area (µm2)
33
Memory - Summary
  • Two Different Types of Locality
  • Temporal Locality (Locality in Time) If an item
    is referenced, it will tend to be referenced
    again soon.
  • Spatial Locality (Locality in Space) If an item
    is referenced, items whose addresses are close by
    tend to be referenced soon.
  • By taking advantage of the principle of locality
  • Present the user with as much memory as is
    available in the cheapest technology.
  • Provide access at the speed offered by the
    fastest technology.
  • DRAM is slow but cheap and dense
  • Good choice for presenting the user with a BIG
    memory system
  • SRAM is fast but expensive and not very dense
  • Good choice for providing the user FAST access
    time.

34
Cache Fundamentals
  • cache hit -- an access where the data
  • is found in the cache.
  • cache miss -- an access which isnt
  • hit time -- time to access the cache
  • miss penalty -- time to move data from
  • further level to closer, then to cpu
  • hit ratio -- percentage of time the data is found
    in the
  • cache
  • miss ratio -- (1 - hit ratio)

cpu
lowest-level cache
next-level memory/cache
  • cache block size or cache line size-- the
  • amount of data that gets transferred on a
  • cache miss.
  • instruction cache -- cache that only holds
  • instructions.
  • data cache -- cache that only caches data.
  • unified cache -- cache that holds both.

35
Cacheing Issues
cpu
access
lowest-level cache
  • On a memory access -
  • How do I know if this is a hit or miss?
  • On a cache miss -
  • where to put the new data?
  • what data to throw out?
  • how to remember what data this is?

miss
next-level memory/cache
36
A simple cache similar to the branch prediction
table in pipelining ?
an index is used to determine which line an
address might be found in
address string 4 00000100 8 00001000 12 00001100
4 00000100 8 00001000 20 00010100 4 00000100 8 000
01000 20 00010100 24 00011000 12 00001100 8 000010
00 4 00000100
00000100
tag
data
4 entries, each block holds one word, each word
in memory maps to exactly one cache location.
  • A cache that can put a line of data in exactly
    one place is called direct-mapped
  • Conflict Misses are misses caused by
  • Different memory locations mapped to the same
    cache index
  • Solution 1 make the cache size bigger
  • Solution 2 Multiple entries for the same Cache
    Index
  • Conflict misses 0 by definition, for fully
    associative caches.

37
Fully associative cache
the tag identifies the address of the cached data
address string 4 00000100 8 00001000 12 00001100
4 00000100 8 00001000 20 00010100 4 00000100 8 000
01000 20 00010100 24 00011000 12 00001100 8 000010
00 4 00000100
tag
data
4 entries, each block holds one word, any block
can hold any word.
  • A cache that can put a line of data anywhere is
    called fully associative
  • The most popular replacement strategy is LRU
    (least recently used).
  • How do you find the data ?

38
Fully associative cache
  • Fully Associative Cache
  • Forget about the Cache Index
  • Compare the Cache Tags of all cache entries in
    parallel
  • Example Block Size 2 B blocks, we need N
    27-bit comparators
  • By definition Conflict Miss 0 for a fully
    associative cache

0
4
31
Cache Tag (27 bits long)
Byte Select
Ex 0x01
Cache Data
Valid Bit
Cache Tag

Byte 0
Byte 1
Byte 31
X

Byte 32
Byte 33
Byte 63
X
X
X



X
39
A n-way set associative cache
address string 4 00000100 8 00001000 12 00001100
4 00000100 8 00001000 20 00010100 4 00000100 8 000
01000 20 00010100 24 00011000 12 00001100 8 000010
00 4 00000100
00000100
tag
data
tag
data
4 entries, each block holds one word, each
word in memory maps to one of a set of n cache
lines
  • A cache that can put a line of data in exactly n
    places is called n-way set-associative.
  • The cache lines that share the same index are a
    cache set.

40
A n-way set associative cache
  • N-way set associative N entries for each Cache
    Index
  • N direct mapped caches operates in parallel
  • Example Two-way set associative cache
  • Cache Index selects a set from the cache
  • The two tags in the set are compared in parallel
  • Data is selected based on the tag result

Cache Index
Cache Data
Cache Tag
Valid
Cache Block 0



Adr Tag
Compare
0
1
Mux
Sel1
Sel0
OR
Cache Block
Hit
41
Direct vs. Set Associative Caches
  • N-way Set Associative Cache versus Direct Mapped
    Cache
  • N comparators vs. 1
  • Extra MUX delay for the data
  • Data comes AFTER Hit/Miss decision and set
    selection
  • In a direct mapped cache, Cache Block is
    available BEFORE Hit/Miss
  • Possible to assume a hit and continue. Recover
    later if miss.

42
Longer cache-blocks
address string 4 00000100 8 00001000 12 00001100
4 00000100 8 00001000 20 00010100 4 00000100 8 000
01000 20 00010100 24 00011000 12 00001100 8 000010
00 4 00000100
00000100
tag
data
4 entries, each block holds two words, each
word in memory maps to exactly one cache location
(this cache is twice the total size of the prior
caches).
  • Large cache blocks take advantage of spatial
    locality.
  • Too large of a block size can waste cache space.
  • Longer cache blocks require less tag space

43
Increasing block size
  • In general, larger block size take advantage of
    spatial locality BUT
  • Larger block size means larger miss penalty
  • Takes longer time to fill up the block
  • If block size is too big relative to cache size,
    miss rate will go up
  • Too few cache blocks
  • In general, Average Access Time
  • Hit Time x (1 - Miss Rate) Miss Penalty x
    Miss Rate

44
Sources of Cache Misses
  • Compulsory (cold start or process migration,
    first reference) first access to a block
  • Cold fact of life not a whole lot you can do
    about it
  • Note If you are going to run billions of
    instruction, Compulsory Misses are insignificant
  • Conflict (collision)
  • Multiple memory locations mappedto the same
    cache location
  • Solution 1 increase cache size
  • Solution 2 increase associativity
  • Capacity
  • Cache cannot contain all blocks access by the
    program
  • Solution increase cache size
  • Invalidation other process (e.g., I/O) updates
    memory

45
Sources of Cache Misses
Direct Mapped
N-way Set Associative
Fully Associative
Cache Size
Big
Medium
Small
Compulsory Miss
Same
Same
Same
Conflict Miss
High
Medium
Zero
Capacity Miss
Low
Medium
High
Invalidation Miss
Same
Same
Same
46
Accessing a cache
1. Use index and tag to access cache and
determine hit/miss. 2. If hit, return requested
data. 3. If miss, select a cache block to be
replaced, and access memory or next lower cache
(possibly stalling the processor). -load entire
missed cache line into cache -return requested
data to CPU (or higher cache) 4. If next lower
memory is a cache, goto step 1 for that cache.
IF ID EX MEM WB
47
Accessing a cache
  • 64 KB cache, direct-mapped, 32 byte cache block
    size

31 30 29 28 27 ........... 17 16 15 14 13 12 11
10 9 8 7 6 5 4 3 2 1 0
tag
index
word offset
3
11
16
tag
data
valid
0 1 2 ... ... ... ... 2045 2046 2047
64 KB / 32 bytes 2 K cache blocks/sets
256

32
hit/miss
48
Accessing a cache
  • 32 KB cache, 2-way set-associative, 16-byte block
    size (cache lines)

31 30 29 28 27 ........... 17 16 15 14 13 12 11
10 9 8 7 6 5 4 3 2 1 0
tag
index
word offset
10
18
tag
data
tag
data
valid
valid
0 1 2 ... ... ... ... 1021 1022 1023
32 KB / 16 bytes / 2 1 K cache sets


hit/miss
49
Cache Alignment
memory address
tag index block offset
Memory
  • The data that gets moved into the cache on a miss
    are all data whose addresses share the same tag
    and index (regardless of which data gets accessed
    first).
  • This results in
  • no overlap of cache lines
  • easy mapping of addresses to cache lines (no
    additions)
  • data at address X always being present in the
    same location in the cache block (at byte X mod
    blocksize) if it is there at all.
  • Think of memory as organized into cache-line
    sized pieces (because in reality, it is!).
  • Recall DRAM page mode architecture !!

0 1 2 3 4 5 6 7 8 9 10 . . .
. . .
50
Basic Memory Hierarchy questions
  • Q1 Where can a block be placed in the upper
    level? (Block placement)
  • Q2 How is a block found if it is in the upper
    level? (Block identification)
  • Q3 Which block should be replaced on a miss?
    (Block replacement)
  • Q4 What happens on a write? (Write strategy)
  • Placement Cache structure determines the where
    ?
  • Fully associative, direct mapped, 2-way set
    associative
  • S.A. Mapping Block Number Modulo Number Sets
  • Identification Tag on each block
  • No need to check index or block offset
  • Replacement Easy for Direct Mapped
  • Set Associative or Fully Associative
  • Random
  • LRU (Least Recently Used)

51
What about writes?
  • Stores must be handled differently than loads,
    because...
  • they dont necessarily require the CPU to stall.
  • they change the content of cache/memory (creating
    memory consistency issues)
  • may require a load and a store to complete

52
What about writes?
  • Keep memory and cache identical?
  • write-through gt all writes go to both cache and
    main memory
  • write-back gt writes go only to cache. Modified
    cache lines are written back to memory when the
    line is replaced.
  • Make room in cache for store miss?
  • write-allocate gt on a store miss, bring written
    line into the cache
  • write-around gt on a store miss, ignore cache
  • On a store hit, write the new data to cache. In a
    write-through cache, write the data immediately
    to memory. In a write-back cache, mark the line
    as dirty.
  • On a store miss, initiate a cache block load from
    memory for a write-allocate cache. Write
    directly to memory for a write-around cache.
  • On any kind of cache miss in a write-back cache,
    if the line to be replaced in the cache is dirty,
    write it back to memory.

53
Cache Performance
  • TCPI BCPI MCPI
  • where TCPI Total CPI
  • BCPI base CPI, which means the CPI assuming
    perfect memory
  • MCPI the memory CPI, the number of cycles (per
    instruction) the processor is stalled waiting for
    memory.
  • MCPI accesses/instruction miss rate miss
    penalty
  • this assumes we stall the pipeline on both read
    and write misses, that the miss penalty is the
    same for both, that cache hits require no stalls.

54
Dec Alpha
Example -- DEC Alpha 21164 Caches
Instruction Cache
Unified L2 Cache
Off-Chip L3 Cache
21164 CPU core
Data Cache
  • ICache and DCache -- 8 KB, DM, 32-byte lines
  • L2 cache -- 96 KB, 3-way SA, 32-byte lines
  • L3 cache -- 1 MB, DM, 32-byte lines

55
memory address
tag index offset
DEC Alpha 21164s L2 cache 96 KB, 3-way set
associative, 32-Byte lines 64 bit addresses How
many offset bits? How many index bits? How
many tag bits? Draw cache picture how do you
tell if its a hit?
56
  • 8 KB cache, direct-mapped, 32 byte lines

31 30 29 28 27 ........... 17 16 15 14 13 12 11
10 9 8 7 6 5 4 3 2 1 0
tag
index
word offset
3
8
19
tag
data
valid
0 1 2 ... ... ... ... 2045 2046 2047
8 KB / 32 bytes 256 cache blocks/sets
256

32
hit/miss
57
  • 96 KB cache, 3-way set-associative, 32-byte block
    size (cache lines)
  • gt Each set has 32 bytes,
  • gt 3 bits per set to locate the right 32 bits
    (word)
  • gt each index has 3 sets (3-way) (in effect
    three places one could place the data in)
  • gt 96 bytes per row
  • gt 96KB/96B 1K rows
  • gt index 10 bits
  • gt Tag 32 (1032) 17bits

58
Pentium 4 Trace Cache and Instruction Decode
Remember Micro-Instructions??
59
Power4
L3 128M 512 Byte-lines, 8-way SA Write Back
60
Real Caches
  • Often DM at highest level (closest to CPU),
    associative further away
  • split I and D close to the processor, unified
    further away (for throughput rather than miss
    rate).
  • write-through and write-back both common, but
    never write-through all the way to memory.
  • 32-byte cache lines very common
  • Non-blocking
  • processor doesnt stall on a miss, but only on
    the use of a miss (if even then)
  • this means the cache must be able to handle
    multiple outstanding accesses.

61
Recall Levels of the Memory Hierarchy
Upper Level
Capacity Access Time Cost
Staging Xfer Unit
faster
CPU Registers 100s Bytes lt10s ns
Registers
prog./compiler 1-8 bytes
Instr. Operands
Cache K Bytes 10-100 ns .01-.001/bit
Cache
cache cntl 8-128 bytes
Blocks
Main Memory M Bytes 100ns-1us .01-.001
Memory
OS 512-4K bytes
Pages
Disk G Bytes ms 10 - 10 cents
Disk
-4
-3
user/operator Mbytes
Files
Larger
Tape infinite sec-min 10
Tape
Lower Level
-6
62
Virtual Memory
  • Main memory can act as a cache for the secondary
    storage (disk)
  • Advantages
  • illusion of having more physical memory
  • program relocation
  • protection

63
Virtual Memory
  • is just cacheing, but uses different terminology
  • cache VM
  • block page
  • cache miss page fault
  • address virtual address
  • index physical address (sort of)
  • What happens if another program in the processor
    uses the same addresses that yours does?
  • What happens if your program uses addresses that
    dont exist in the machine?
  • What happens to holes in the address space your
    program uses?
  • So, virtual memory provides
  • performance (through the cacheing effect)
  • protection
  • ease of programming/compilation
  • efficient use of memory

64
Virtual Memory
  • is just a mapping function from virtual memory
    addresses to physical memory locations, which
    allows cacheing of virtual pages in physical
    memory.
  • Why is it different ?
  • MUCH higher miss penalty (millions of cycles)!
  • Therefore
  • large pages equivalent of cache line (4 KB to
    MBs)
  • associative mapping of pages (typically fully
    associative)
  • software handling of misses (but not hits!!)
  • write-through not an option, only write-back

65
Page Tables
  • Page table maps virtual memory addresses to
    physical memory locations
  • Page may be in main memory or may be on disk.
  • Valid bit says
    which.

Virtual page number (high order bits of virtual
address)
66
Page Tables
page offset
virtual page number
virtual address
physical page number
valid
page table reg
page table
This hardware register tells VM system where
to find the page table.
physical page number
page offset
physical address
  • Why dont we need a tag field?
  • How does operating system switch to new
    process???

67
Virtual Address and a Cache
miss
VA
PA
Trans- lation
Cache
Main Memory
CPU
hit
data
It takes an extra memory access to translate VA
to PA This makes cache access very expensive,
and this is the "innermost loop" that you
want to go as fast as possible ASIDE Why
access cache with PA at all? VA caches have a
problem! synonym / alias problem two
different virtual addresses map to same
physical address gt two different cache entries
holding data for the same physical address!
for update must update all cache
entries with same physical address or
memory becomes inconsistent determining
this requires significant hardware, essentially
an associative lookup on the physical
address tags to see if you have multiple
hits or software enforced alias boundary
same lsb of VA PA gt cache size
68
TLBs
A way to speed up translation is to use a special
cache of recently used page table entries
-- this has many names, but the most
frequently used is Translation Lookaside Buffer
or TLB
Virtual Address Physical Address Dirty Ref
Valid Access
TLB access time comparable to cache access time
(much less than main memory access time)
69
Translation lookaside buffer (TLB) A hardware
cache for the page table Typical size 256
entries, 1- to 4-way set associative
70
Translation Look-Aside Buffers
Just like any other cache, the TLB can be
organized as fully associative, set
associative, or direct mapped TLBs are usually
small, typically not more than 128 - 256 entries
even on high end machines. This permits
fully associative lookup on these machines.
Most mid-range machines use small n-way
set associative organizations.
hit
miss
VA
PA
TLB Lookup
Cache
Main Memory
CPU
Translation with a TLB
hit
miss
Trans- lation
data
t
20 t
1/2 t
71
Translation Look-Aside Buffers
Machines with TLBs go one step further to reduce
cycles/cache access - overlap the cache access
with the TLB access Works because high order
bits of the VA are used to look in the TLB
while low order bits are used as index into cache
Overlapped access only works as long as the
address bits used to index into the cache
do not change as the result of VA
translation This usually limits things to small
caches, large page sizes, or high n-way set
associative caches if you want a large cache
72
All together!
73
  • Virtual memory provides
  • protection
  • sharing
  • performance
  • illusion of large main memory
  • Virtual Memory requires twice as many memory
    accesses, so we cache page table entries in the
    TLB.
  • Four things can go wrong on a memory access
    cache miss, TLB miss (but page table in cache),
    TLB miss and page table not in cache, page fault.

74
Summary
  • The Principle of Locality
  • Program likely to access a relatively small
    portion of the address space at any instant of
    time.
  • Temporal Locality Locality in Time
  • Spatial Locality Locality in Space
  • Three Major Categories of Cache Misses
  • Compulsory Misses sad facts of life. Example
    cold start misses.
  • Conflict Misses increase cache size and/or
    associativity. Nightmare Scenario ping pong
    effect!
  • Capacity Misses increase cache size
  • Cache Design Space
  • total size, block size, associativity
  • replacement policy
  • write-hit policy (write-through, write-back)
  • write-miss policy

75
Summary
  • Caches, TLBs, Virtual Memory all understood by
    examining how they deal with 4 questions 1)
    Where can block be placed? 2) How is block found?
    3) What block is repalced on miss? 4) How are
    writes handled?
  • Page tables map virtual address to physical
    address
  • TLBs are important for fast translation
  • TLB misses are significant in processor
    performance (funny times, as most systems cant
    access all of 2nd level cache without TLB misses!)
  • VIrtual memory was controversial at the time
    can SW automatically manage 64KB across many
    programs?
  • 1000X DRAM growth removed the controversy
  • Today VM allows many processes to share single
    memory without having to swap all processes to
    disk VM protection is more important than memory
    hierarchy
  • Today CPU time is a function of (ops, cache
    misses) vs. just f(ops)What does this mean to
    Compilers, Data structures, Algorithms?

76
(No Transcript)
Write a Comment
User Comments (0)
About PowerShow.com
