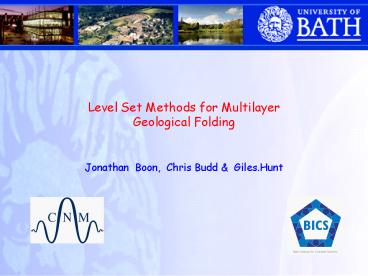

Level Set Methods for Multilayer Geological Folding

1

• Level Set Methods for Multilayer Geological
  Folding
• Jonathan Boon, Chris Budd Giles.Hunt

2
(No Transcript)
3
Motivating Examples
4
Experiments
5
Experiments on layers of paper (courtesy of
Ahmer Wadee, Rorie Edmunds, Jonathan Boon)
6
In-between States
7
Model 1

• Euler strut
• Energy
• Critical Load depends on length of strut.

8
Model 2

• Strut on a linear elastic foundation more
  realistic
• Critical load
• Wavelength

9
Model 3

• Viscous foundation
• Biot Dominant wavelength
• Valid for small deflections.
• Wavelength does not agree well with reality.

10
P
11
Multilayer models

• Two layer model developed (Budd et al. 2003).
• Addition of friction to elastic foundation model.
• Can not accurately extend to n layer model
  because outer layers become non-sinusoidal
• Use level set method to model the multilayer
  geometry.

12
Swallowtail
Lagrangian formulation
Eulerian formulation
Serial folding
13
LSM applied to parallel fold
14
Comparison of model with experiment

• Reformulate mechanical model in terms of the
  geometry

15
Conclusion

• Singularity formation in multilayers can be
  predicted by the geometry.
• Nonlinear bending energy provides a mechanism of
  restabilising a fold.
• Serial folds form most naturally from the
  reactive end.
• Further work needed to verify results and to
  check the effects of unmodelled behaviour
