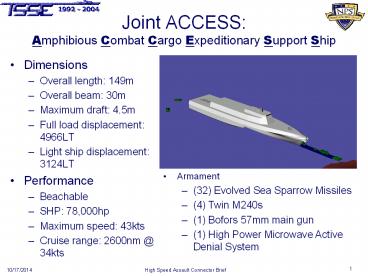

Joint ACCESS: Amphibious Combat Cargo Expeditionary Support Ship

1
Joint ACCESSAmphibious Combat Cargo
Expeditionary Support Ship

• Dimensions
• Overall length 149m
• Overall beam 30m
• Maximum draft 4.5m
• Full load displacement 4966LT
• Light ship displacement 3124LT
• Performance
• Beachable
• SHP 78,000hp
• Maximum speed 43kts
• Cruise range 2600nm _at_ 34kts

• Armament
• (32) Evolved Sea Sparrow Missiles
• (4) Twin M240s
• (1) Bofors 57mm main gun
• (1) High Power Microwave Active Denial System

2
Joint ACCESSAmphibious Combat Cargo
Expeditionary Support Ship

• Accommodations
• 66 ships company
• 260 embarked troops
• Cargo Capacity
• Maximum payload 800LT
• 260 Troops and gear
• 2040m2 of cargo area
• 47 vehicles in a typical BLT loadout
• 72 Humvees
• Flight deck
• CH-53X, MV-22, SH-60R
• 1 SH-60R hangar
• Onload time 4 hours
• Offload time 2 hours

• Cargo Interfaces
• Bow ramp
• Length 35m
• Launch/recovery rate .2 m/s
• Flight deck elevator
• Stern gate
• Upper lower cargo deck
