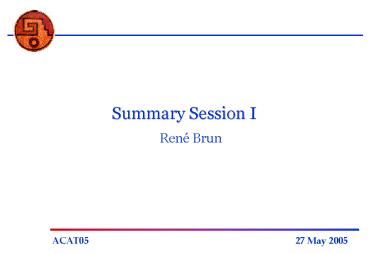

Summary Session I

1
Summary Session I

• René Brun

27 May 2005
ACAT05
2
Outline
19 presentations

• Data Analysis, Data Acquisition and Tools 6
• GRID Deployment 4
• Applications on the GRID 5
• High Speed Computing 4

3
Data Analysis, Acquisition, Tools

• Evolution of the Babar configuration data base
  design
• DAQ software for SND detector
• Interactive Analysis environment of unified
  accelerator libraries
• DaqProVis, a toolkit for acquisition, analysis,
  visualisation
• The Graphics Editor in ROOT
• Parallel interactive and batch HEP data analysis
  with PROOF

4
Evolution of the Configuration Database Design

• Andrei Salnikov, SLAC
• For BaBar Computing GroupACAT05 DESY, Zeuthen

5
BaBar database migration

• BaBar was using Objectivity/DB ODBMS for many of
  its databases
• About two years ago started migration from
  Objectivity to ROOT for event store, which was a
  success and improvement
• No reason to keep pricey Objectivity only because
  of secondary databases
• Migration effort started in 2004 for conditions,
  configuration, prompt reconstruction, and ambient
  databases

6
Configuration database API

• Main problem of the old database API exposed
  too much to the implementation technology
• Persistent objects, handles, class names, etc.
• API has to change but we dont want to make the
  same mistakes again (new mistakes are more
  interesting)
• Pure transient-level abstract API independent on
  any specific implementation technology
• Always make abstract APIs to avoid problems in
  the future (this may be hard and need few
  iterations)
• Client code should be free from any specific
  database implementation details
• Early prototyping could answer a lot of
  questions, but five years of experience count too
• Use different implementations for clients with
  different requirements
• Implementation would benefit from features
  currently missing in C reflection,
  introspection (or from completely new language)

7
DAQ software for SND detector

• Budker Institute of Nuclear Physics, Novosibirsk
• M. Achasov, A. Bogdanchikov, A. Kim, A. Korol

8
Main data flow
100 Hz 1 KB
1 kHz 4 KB
1 kHz 4 KB
1 kHz 1 KB
Readout and events building
Events packing
Events filtering

• Storage

• Expected rates
• Events fragments 4 ?B/s are read from IO
  processors over Ethernet
• Event building 4 MB/s
• Event packing 1 ?B/s
• Events filtering (90 screening) 100 KB/sec.

9
DAQ architecture
Detector
Off-line
Front-end electronics
Filtered events
Backup
X 12
X 16
Readout Event Building
Visualization
Buffer
Database
Calibration process
System support
10
(No Transcript)
11
Interactive Analysis Environment of Unified
Accelerator Libraries

• V. Fine, N. Malitsky, R.Talman

12
Abstract

• Unified Accelerator Libraries (UAL,http//www.ual
  .bnl.gov) software is an open accelerator
  simulation environment addressing a broad
  spectrum of accelerator tasks ranging from
  online-oriented efficient models to full-scale
  realistic beam dynamics studies. The paper
  introduces a new package integrating UAL
  simulation algorithms with the Qt-based Graphical
  User Interface and an open collection of analysis
  and visualization components. The primary user
  application is implemented as an interactive and
  configurable Accelerator Physics Player whose
  extensibility is provided by plug-in
  architecture. Its interface to data analysis and
  visualization modules is based on the Qt layer
  (http//root.bnl.gov) developed and supported by
  the Star experiment. The present version embodies
  the ROOT (http//root.cern.ch) data analysis
  framework and Coin 3D (http//www.coin3d.org)
  graphics library.

13
Accelerator Physics Player
UALUSPASBasicPlayer player new
UALUSPASBasicPlayer() player-gtsetShell(she
ll) qApp.setMainWidget(player)
player-gtshow() qApp.exec()
An open collection of viewers
An open collection of algorithms
14
Examples of the Accelerator-Specific Viewers
Turn-By-Turn BPM data (based on ROOT TH2F or
TGraph )
Twiss plots (based on ROOT TGraph)
Bunch 3D Distributions (based on COIN 3D)
15

• Parallel Interactive and Batch
• HEP-Data Analysis
• with PROOF
• Maarten Ballintijn, Marek Biskup,
• Rene Brun, Philippe Canal,
• Derek Feichtinger, Gerardo Ganis,
• Guenter Kickinger, Andreas Peters,
• Fons Rademakers

- MIT - CERN - FNAL
- PSI
16
ROOT Analysis Model
standard model

• Files analyzed on a local computer
• Remote data accessed via remote fileserver
  (rootd/xrootd)

Remote file (dcache, Castor, RFIO, Chirp)
Local file
Client
Rootd/xrootd server
17
PROOF Basic Architecture
Single-Cluster mode

• The Master divides the work among the slaves
• After the processing finishes, merges the results
  (histograms, scatter plots)
• And returns the result to the Client

Slaves
Master
Files
Client
Commands, scripts
Histograms, plots
18
PROOF and Selectors
The code is shipped to each slave and
SlaveBegin(), Init(), Process(), SlaveTerminate()
are executed there
Initialize each slave
Many Trees are being processed
No users control of the entries loop!
The same code works also without PROOF.
19
Analysis session snapshot
What we are implementing
AQ1 1s query produces a local histogram AQ2 a
10mn query submitted to PROOF1 AQ3-gtAQ7 short
queries AQ8 a 10h query submitted to PROOF2
Monday at 10h15 ROOT session On my laptop
BQ1 browse results of AQ2 BQ2 browse temporary
results of AQ8 BQ3-gtBQ6 submit 4 10mn queries
to PROOF1
Monday at 16h25 ROOT session On my laptop
Wednesday at 8h40 session on any web browser
CQ1 Browse results of AQ8, BQ3-gtBQ6
20
ROOT Graphics Editorby Ilka Antcheva

• ROOT graphics editor can be
• Embedded connected only with the canvas in the
  application window
• Global has own application window and can be
  connected to any created canvas in a ROOT session.

21
Focus on Users

• Novices (for a short time)
• Theoretical understanding, no practical
  experience with ROOT
• Impatient with learning concepts patient with
  performing tasks
• Advanced beginners (many people remain at this
  level)
• Focus on a few tasks and learn more on a
  need-to-do basis
• Perform several given tasks well
• Competent performers (fewer then previous class)
• Know and perform complex tasks that require
  coordinated actions
• Interested in solving problems and tracking down
  errors
• Experts (identified by others)
• Ability to find solution in complex functionality
• Interested in theories behind the design
• Interested in interacting with other expert
  systems

22
DaqProVisM.Morhac

• DaqProVis, a toolkit for acquisition, interactive
  analysis, processing and visualization of
  multidimensional data
• Basic features
• DaqProVis is well suited for interactive analysis
  of multiparameter data from small and medium
  sized experiments in nuclear physics.
• data acquisition part of the system allows one to
  acquire multiparameter events either directly
  from the experiment or from a list file, i.e.,
  the system can work either in on-line or off-line
  acquisition mode.
• in on-line acquisition mode, events can be taken
  directly from CAMAC crates or from VME system
  that cooperates with DaqProVis in the
  client-server working mode.
• in off-line acquisition mode the system can
  analyze event data even from big experiments,
  e.g. from Gammasphere.
• the event data can be read also from another
  DaqProVis system. The capability of DaqProVis to
  work simultaneously in both the client and the
  server working mode enables us to realize remote
  as well as distributed nuclear data acquisition,
  processing and visualization systems and thus to
  create multilevel configurations

23
DaqProVis (Visualisation)
24
DaqProVis (suite)

• DaqProVis and ROOT teams are already cooperating.
• Agreement during the workshop to extend this
  cooperation

25
GRID deployment

• Towards the operation of the Italian Tier-1 for
  CMS Lessons learned from the CMS Data Challenge
• GRID technology in production at DESY
• Grid middleware Configuration at the KIPT CMS
  Linux Cluster
• Storage resources management and access at Tier1
  CNAF

26
Towards the operations ofthe Italian Tier-1 for
CMSlessons learned from the CMS Data Challenge

• D. Bonacorsi
• (on behalf of INFN-CNAF Tier-1 staff and the CMS
  experiment)

ACAT 2005 X Int. Work. on Advanced Computing
Analysis Techniques in Physics Research May
22nd-27th, 2005 - DESY, Zeuthen, Germany
27
DC04 outcome (grand-summary focus on INFN T1)

• reconstruction/data-transfer/analysis may run at
  25 Hz
• automatic registration and distribution of data,
  key role of the TMDB
• was the embrional PhEDEx!
• support a (reasonable) variety of different data
  transfer tools and set-up
• Tier-1s different performances, related to
  operational choices
• SRB, LCG Replica Manager and SRM investigated
  see CHEP04 talk
• INFN T1 good performance of LCG-2 chain (PIC T1
  also)
• register all data and metadata (POOL) to a
  world-readable catalogue
• RLS good as a global file catalogue, bad as a
  global metadata catalogue
• analyze the reconstructed data at the Tier-1s as
  data arrive
• LCG components dedicated bdIIRB UIs, CEsWNs
  at CNAF and PIC
• real-time analysis at Tier-2s was demonstrated
  to be possible
• 15k jobs submitted
• time window between reco data availability -
  start of analysis jobs can be reasonably low
  (i.e. 20 mins)
• reduce number of files (i.e. increase
  lteventsgt/ltfilesgt)
• more efficient use of bandwidth
• reduce overhead of commands
• address scalability of MSS systems (!)

28
Learn from DC04 lessons

• Some general considerations may apply
• although a DC is experiment-specific, maybe its
  conclusions are not
• an experiment-specific problem is better
  addressed if conceived as a shared one in a
  shared Tier-1
• an experiment DC just provides hints, real work
  gives insight
• ? crucial role of the experiments at the Tier-1
• find weaknesses of CASTOR MSS system in
  particular operating conditions
• stress-test new LSF farm with official production
  jobs by CMS
• testing DNS-based load-balancing by serving data
  for production and/or analysis from CMS
  disk-servers
• test new components, newly installed/upgraded
  Grid tools, etc
• find bottleneck and scalability problems in DB
  services
• give feedback on monitoring and accounting
  activities

29
PhEDEx at INFN

• INFN-CNAF is a T1 node in PhEDEx
• CMS DC04 experience was crucial to start-up
  PhEDEX in INFN
• CNAF node operational since the beginning
• First phase (Q3/4 2004)
• Agent code development focus on operations
  T0?T1 transfers
• gt1 TB/day T0?T1 demonstrated feasible
• but the aim is not to achieve peaks, but to
  sustain them in normal operations
• Second phase (Q1 2005)
• PhEDEx deployment in INFN to Tier-n, ngt1
• distributed topology scenario
• Tier-n agents run at remote sites, not at the T1
  know-how required, T1 support
• already operational at Legnaro, Pisa, Bari,
  Bologna

An example data flow to T2s in daily operations
(here a test with 2000 files, 90 GB, with no
optimization)
450 Mbps CNAF T1 ? LNL-T2
205 Mbps CNAF T1 ? Pisa-T2

• Third phase (Qgt1 2005)
• Many issues.. e.g. stability of service, dynamic
  routing, coupling PhEDEx to CMS official
  production system, PhEDEx involvement in
  SC3-phaseII, etc

30
Storage resources management and access at TIER1
CNAF
Ricci Pier Paolo, Lore Giuseppe, Vagnoni Vincenzo
on behalf of INFN TIER1 Staff pierpaolo.ricci_at_cnaf
.infn.it

• ACAT 2005
• May 22-27 2005
• DESY Zeuthen, Germany

31
TIER1 INFN CNAF Storage
HSM (400 TB)
NAS (20TB)
STK180 with 100 LTO-1 (10Tbyte Native)
NAS1,NAS4 3ware IDE SAS 18003200 Gbyte
Linux SL 3.0 clients (100-1000 nodes)
W2003 Server with LEGATO Networker (Backup)
RFIO
NFS
PROCOM 3600 FC NAS3 4700 Gbyte
WAN or TIER1 LAN
CASTOR HSM servers
H.A.
PROCOM 3600 FC NAS2 9000 Gbyte
STK L5500 robot (5500 slots) 6 IBM LTO-2, 2 (4)
STK 9940B drives
NFS-RFIO-GridFTP oth...
SAN 1 (200TB)
SAN 2 (40TB)
Diskservers with Qlogic FC HBA 2340
Infortrend 4 x 3200 GByte SATA A16F-R1A2-M1
IBM FastT900 (DS 4500) 3/4 x 50000 GByte 4 FC
interfaces
2 Brocade Silkworm 3900 32 port FC Switch
2 Gadzoox Slingshot 4218 18 port FC Switch
AXUS BROWIE About 2200 GByte 2 FC interface
STK BladeStore About 25000 GByte 4 FC interfaces
Infortrend 5 x 6400 GByte SATA A16F-R1211-M2
JBOD
32
CASTOR HSM
Point to Point FC 2Gb/s connections
STK L5500 20003500 mixed slots 6 drives LTO2
(20-30 MB/s) 2 drives 9940B (25-30 MB/s) 1300
LTO2 (200 GB native) 650 9940B (200 GB native)
8 tapeserver Linux RH AS3.0 HBA Qlogic 2300
Sun Blade v100 with 2 internal ide disks with
software raid-0 running ACSLS 7.0 OS Solaris 9.0
1 CASTOR (CERN)Central Services server RH AS3.0
1 ORACLE 9i rel 2 DB server RH AS 3.0
EXPERIMENT Staging area (TB) Tape pool (TB native)
ALICE 8 12
ATLAS 6 20
CMS 2 15
LHCb 18 30
BABAR,AMSoth 2 4
WAN or TIER1 LAN
6 stager with diskserver RH AS3.0 15 TB Local
staging area
8 or more rfio diskservers RH AS 3.0 min 20TB
staging area
Indicates Full rendundancy FC 2Gb/s connections
(dual controller HW and Qlogic SANsurfer Path
Failover SW)
SAN 1
SAN 2
33
DISK access (2)

• We have different protocols in production for
  accessing the disk storage. In our diskservers
  and Grid SE front-ends we corrently have
• NFS on local filesystem ADV. Easy client
  implementation and compatibility and possibility
  of failover (RH 3.0). DIS. Bad perfomance
  scalability for an high number of access (1
  client 30MB/s 100 client 15MB/s throughtput)
• RFIO on local filesystem ADV. Good performance
  and compatibility with Grid Tools and possibility
  of failover. DIS. No scalability of front-ends
  for the single filesystem, no possibility of
  load-balancing
• Grid SE Gridftp/rfio over GPFS (CMS,CDF) ADV
  Separation from GPFS servers (accessing the
  disks) and SE GPFS clients. Load balancing and HA
  on the GPFS servers and possibility to implement
  the same on the Grid SE services (see next
  slide). DIS. GPFS layer requirements on OS and
  Certified Hardware for support.
• Xrootd (BABAR) ADV Good performance DIS No
  possibility of load-balancing for the single
  filesystem backends, not grid compliant (at
  present...)
• NOTE The IBM GPFS 2.2 is a CLUSTERED FILESYSTEM
  so is possible from many front-ends (i.e. gridftp
  or rfio server) to access simultaneously the SAME
  filesystem. Also can use bigger filesystem size
  (we use 8-12TB).
• 1

34
Generic Benchmark(here shown for 1 GB files)
WRITE (MB/s) WRITE (MB/s) WRITE (MB/s) WRITE (MB/s) WRITE (MB/s) READ (MB/s) READ (MB/s) READ (MB/s) READ (MB/s) READ (MB/s)
of simultaneous client processes of simultaneous client processes 1 5 10 50 120 1 5 10 50 120
GPFS 2.3.0-1 native 114 160 151 147 147 85 301 301 305 305
GPFS 2.3.0-1 NFS 102 171 171 159 158 114 320 366 322 292
GPFS 2.3.0-1 RFIO 79 171 158 166 166 79 320 301 320 321
Lustre 1.4.1 native 102 512 512 488 478 73 366 640 453 403
Lustre 1.4.1 RFIO 93 301 320 284 281 68 269 269 314 349

• Numbers are reproducible with small fluctuations
• Lustre tests with NFS export not yet performed

35
Grid Technology in Production at DESY
Andreas Gellrich DESY ACAT 2005 24 May
2005 http//www.desy.de/gellrich/
36
Grid _at_ DESY

• With the HERA-II luminosity upgrade, the demand
  for MC production rapidly increased while the
  outside collaborators moved there computing
  resources towards LCG
• The ILC group plans the usage of Grids for their
  computing needs
• The LQCD group develops a Data Grid to exchange
  data
• DESY considers a participation in LHC experiments
• EGEE and D-GRID
• dCache is a DESY / FNAL development
• Since spring 2004 an LCG-2 Grid infrastructure in
  operation

37
Grid Infrastructure _at_ DESY

• DESY installed (SL3.04, Quattor, yaim) and
  operates a complete independent Grid
  infrastructure which provides generic (non-
  experiment specific) Grid services to all
  experiments and groups
• The DESY Production Grid is based on LCG-2_4_0
  and includes
• Resource Broker (RB), Information Index (BDII),
  Proxy (PXY)
• Replica Location Services (RLS)
• In total 24 17 WNs (48 34 82 CPUs)
• dCache-based SE with access to the entire DESY
  data space
• VO management for the HERA experiments (hone,
  herab, hermes, szeu), LQCD (ildg), ILC
  (ilc, calice), Astro-particle Physics
  (baikal, icecube)
• Certification services for DESY users in
  cooperation with GridKa

38
(No Transcript)
39
Grid Middleware Configuration at the KIPT CMS
Linux Cluster

• S. Zub, L. Levchuk, P. Sorokin, D. Soroka
• Kharkov Institute of Physics Technology, 61108
  Kharkov, Ukraine
• http//www.kipt.kharkov.ua/cmsstah_at_kipt.kharkov
  .ua

40
What is our specificity?

• Small PC-farm (KCC)
• Small scientific group of 4 physicists,
  combining their work with system administration
• CMS tasks orientation
• No commercial software installed
• Self-security providing
• Narrow bandwidth communication channel
• Limited traffic

41
Summary

• An enormous data flow expected in the LHC
  experiments forces the HEP community to resort to
  the Grid technology
• The KCC is a specialized PC farm constructed at
  the NSC KIPT for computer simulations within the
  CMS physics program and preparation to the CMS
  data analysis
• Further development of the KCC is planned with
  considerable increase of its capacities and
  deeper integration into the LHC Grid (LCG)
  structures
• Configuration of the LCG middleware can be
  troublesome (especially at small farms with poor
  internet connection), since this software is
  neither universal nor complete, and one has to
  resort to special tips
• Scripts are developed that facilitate the
  installation procedure at a small PC farm with a
  narrow internet bandwidth

42
Applications on the Grid

• The CMS analysis chain in a distributed
  environment
• Monte Carlo Mass production for ZEUS on the Grid
• Metadata services on the Grid
• Performance comparison of the LCG2 and gLite File
  Catalogues
• Data Grids for Lattice QCD

43
The CMS analysis chain in a distributed
environment
Nicola De Filippis
on behalf of the CMS collaboration
ACAT 2005 DESY, Zeuthen, Germany 22nd 27th
May, 2005
44
The CMS analysis tools

• Overview
• Data management
• Data Transfer service PHEDEX
• Data Validation stuff
  ValidationTools
• Data Publication service
  RefDB/PubDB
• Analysis Strategy
• Distributed Software installation XCMSI
• Analysis job submission tool CRAB
• Job Monitoring
• System monitoring BOSS
• application job monitoring JAM

45
The end-user analysis wokflow

• The user provides
• Dataset (runs,event,..)
• private code

DataSet Catalogue (PubDB/RefDB)
CRAB Job submission tool

• CRAB discovers data and sites hosting them by
  querying RefDB/ PubDB

• CRAB prepares, splits and submits jobs to the
  Resource Broker

Workload Management System
Resource Broker (RB)

• The RB sends jobs at sites hosting the data
  provided the CMS software was installed

XCMSI
Computing Element

• CRAB retrieves automatically the output files of
  the the job

Worker node
Storage Element
46

• CMS first working prototype for Distributed User
  Analysis is
• available and used by real users
• Phedex, PubDB, ValidationTools, XCMSI, CRAB,
  BOSS, JAM under development, deployment and in
  production in many sites
• CMS is using Grid infrastructure for physics
  analyses and Monte Carlo production
• tens of users, 10 million of analysed data,
  10000 jobs submitted
• CMS is designing a new architecture for the
  analysis workflow

47
(No Transcript)
48
(No Transcript)
49
Metadata Services on the GRID

• Nuno Santos
• ACAT05
• May 25th, 2005

50
Metadata on the GRID

• Metadata is data about data
• Metadata on the GRID
• Mainly information about files
• Other information necessary for running jobs
• Usually living on DBs
• Need simple interface for Metadata access
• Advantages
• Easier to use by clients - no SQL, only metadata
  concepts
• Common interface clients dont have to reinvent
  the wheel
• Must be integrated in the File Catalogue
• Also suitably for storing information about other
  resources

51
ARDA Implementation

• Backends
• Currently Oracle, PostgreSQL, SQLite
• Two frontends
• TCP Streaming
• Chosen for performance
• SOAP
• Formal requirement of EGEE
• Compare SOAP with TCP Streaming
• Also implemented as standalone Python library
• Data stored on filesystem

52
SOAP Toolkits performance

• Test communication performance
• No work done on the backend
• Switched 100Mbits LAN
• Language comparison
• TCP-S with similar performance in all languages
• SOAP performance varies strongly with toolkit
• Protocols comparison
• Keepalive improves performance significantly
• On Java and Python, SOAP is several times slower
  than TCP-S

1000 pings
53
(No Transcript)
54
(No Transcript)
55
(No Transcript)
56
(No Transcript)
57
(No Transcript)
58
(No Transcript)
59
High speed Computing

• Infiniband
• Analysis of SCTP and TCP based communication in
  high-speed cluster
• The apeNEXT Project
• Optimisation of Lattice QCD codes for the Opteron
  processor

60
InfiniBand Experiences at Forschungszentrum
Karlsruhe
Forschungszentrum Karlsruhein der
Helmholtz-Gemeinschaft

• A. Heiss, U. Schwickerath

• InfiniBand-Overview
• Hardware setup at IWR
• HPC applications
• MPI performance
• lattice QCD
• LM
• HTC applications
• rfio
• xrootd

Credits Inge Bischoff-Gauss Marc García
Martí Bruno Hoeft
Carsten Urbach
61
Lattice QCD Benchmark GE wrt/ InfiniBand

• Memory and communi- cation intensive
  application
• Benchmark by
• C. Urbach
• See also CHEP04 talk given by A. Heiss

Significant speedup by using InfiniBand
Thanks to Carsten Urbach FU Berlin and DESY
Zeuthen
62
RFIO/IB Point-to-Point file transfers (64bit)
PCI-X and PCI-Express throughput
Notes
best results with PCI-Express gt 800MB/s raw
transfer speed gt 400MB/s file transfer speed
RFIO/IB see ACAT03 NIM A 534(2004) 130-134
Disclaimer on PPC64 Not an official IBM
Product. Technology Prototype. (see also
slide 5 and 6)
solid file transfers cache-gt/dev/null dashed
networkprotocol only
63
Xrootd and InfiniBand
Notes
First preliminary results

• IPoIB notes
• Dual Opteron V20z
• Mellanox Gold drivers
• SM on InfiniCon 9100
• same nodes as for GE
• Native IB notes
• proof of concept version
• based on Mellanox VAPI
• using IB_SEND
• dedicated send/recv buffers
• same nodes as above
• 10GE notes
• IBM xseries 345 nodes
• Xeon 32bit, single CPU
• 1 and 2 GB RAM
• 2.66GHz clock speed
• Intel PRO/10GbE LR cards
• used for long distance tests

64
TCP vs. SCTP in high-speed cluster environment

• Miklos Kozlovszky
• Budapest University of Technology and Economics
• BUTE

65
TCP vs. SCTP

• Both
• IPv4 IPv6 compatible
• Reliable
• Connection oriented
• Offers acknowledged, error free, non-duplicated
  transfer
• Almost same Flow and Congestion Control

TCP SCTP
Byte stream oriented Message oriented
3 way handshake connection init 4 way handshake connection init (cookie)
Old (more than 20 years) Quite new (2000-)
Multihoming
Path-mtu discovery
66
Summary

• SCTP inherited all the good features of TCP
• SCTP want to behave like a next generation TCP
• It is more secure than TCP, and has many
  attractive feature (e.g.multihoming)
• Theoretically it can work better than TCP, but
  TCP is faster (yet poor implementations)
• Well standardized, and can be useful for cluster

67
(No Transcript)
68
(No Transcript)
69
(No Transcript)
70
(No Transcript)
71
(No Transcript)
72
(No Transcript)
73
(No Transcript)
74
(No Transcript)
75
My Impressions
76
Concerns

• Only a small fraction of the Session I talks
  correspond to the original spirit of the
  AIHEP/ACAT Session I talks.
• In particular, many of the GRID talks about
  deployment and infrastructure should be given to
  CHEP, not here.
• The large LHC collaborations have their own ACAT
  a few times/year.
• The huge experiment software frameworks do not
  encourage cross-experiments discussions or tools.
• For the next ACAT, the key people involved in the
  big experiments should work together to encourage
  more talks or reviews.

77
Positive aspects

• ACAT continues to be a good opportunity to meet
  with other cultures. Innovation may come from
  small groups or non HENP fields.
• Contacts (even sporadic) with Session III or
  plenary talks are very beneficial, in particular
  to young people.

78
The Captain of Kopenick

• Question to the audience ?
• Is Friedrich Wilhelm Voigt (Captain of Kopenick)
  an ancestor of Voigt, the father of the Voigt
  function ?
