Genetics of leftright asymmetry in the zebrafish brain

1

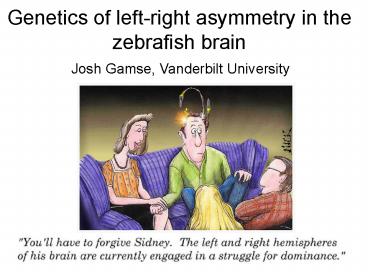

Genetics of left-right asymmetry in the zebrafish
brain
Josh Gamse, Vanderbilt University
2
Vertebrate brains differ in left versus right
neuroanatomy
adapted from Bear, Conners, and Paradiso, 2001
3
Anatomical asymmetries in the zebrafish dorsal
diencephalon
left habenula (lh) expresses more leftover than
the right (rh)
parapineal (pp) found on the left side of the
brain
4 day larva, dorsal view
4
The left-sided parapinealis revealed by gene
expression
otx5 expression
foxd3gfp expression
L R
L R
3 days old
4 days old
5
The leftover gene reveals asymmetry in the
habenular nuclei
L R
leftover gene expression
6
Left habenula fate does not develop if the
parapineal is destroyed
otx5/leftover
control n54 pp destroyed n62
4 d, dorsal views
7
Mutagenesis to generate brain asymmetry mutants
Adapted from Haffter et al, 1996
Look at leftover
WT
mutant
8
The pineal complex is symmetric in the from
beyond mutant
Wild type from beyond mutant
9
Why the gene was named from beyond
pineal
fby -/-
R L
From Beyond (1986), directed by Stuart Gordon,
adapted from an H.P. Lovecraft story
10
Parapineal-fated neurons are absent in fby
mutants
Parapineal specific marker gfi-1, dorsal view
L R
L R
WT fby
11
The from beyond mutation affects the develoment
of the parapineal
pineal complex habenulae (2 days
old) (4 days old)
left habenula
wildtype from beyond homozygote
leftover
12
Generating a polymorphic mapping strain
AB (fby heterozygote)
mapping strain

zebrafish haploid genome
X
WIK (wild type)

13
Examples of zebrafish simple sequence length
polymorphism (SSLP) markers, a.k.a. Z-markers
marker 2
marker 1

AB WIK
AB WIK
14
Genetic mapping of fby
Gametes
Crossovers during Meiosis I in map cross parents
AB
WIK


Intercross male and female map cross parents
Genotyping of progeny


recombinant
non-recombinant
WIK allele AB allele
15
Recombination events are identified by AB/WIK
heterozygocity of an SSLP
WIK allele
Marker z11320, 4 agarose gel
16
Chromosome 15
SSLP (Recombinations) Physical distance
z11320 (29/1241) 1.4Mb away
z3358 (22/1241) 1.0Mb away
z22430 (2/1241) 96kb away
from beyond mutation
z21165 (8/178) 2.7Mb away
boz
Z9189 (11/118) 5.6Mb away
In zebrafish, 1 recombination (1 centimorgan)
600 Kb
17
The tbx2b transcription factor gene is the
correct distance and direction from the z22430
SSLP
100 kilobases
z22430
tbx2b
18
tbx2b is expressed in a subset of pineal complex
precursors
6 somites
10 somites
L R
tbx2b
tbx2b flh
dorsal views
19
The transcription factor tbx2 is mutated in from
beyond
1 93 265 678
T-box
tbx2b
244 245 246
tbx2b tbx2bfby
Y245-gtstop
20
tbx2b MOs phenocopy fby
R L
R L
WT fby tbx2b MO
foxd3gfp, frontal view
21
Mutation of the flh transcription factor results
in normal parapineal but a greatly reduced pineal
flh
WT
L R
L R
otx5, 48 h
22
The tbx2b and flh transcription factors are
required for different cell types
tbx2b
parapineal
pineal
flh
23
tbx2b represses pineal fate in the parapineal
Foxd3GFP/Zpr1
zpr1 cells
fby
WT
flh MO
fby flh MO
24
tbx2b represses pineal fate in the parapineal
tbx2b
parapineal
pineal
flh
25
Acknowledgments
Vanderbilt Corey Snelson Lijun Bian Erin
Booton

• Carnegie Institution
• Marnie Halpern
• Kiran Santhakumar
• Michelle Macurak
• Lea Fortuno

IGBMC, France Bernard and Christine Thisse
Picasso, 1944
