Pioneer Site Kick-off Presentation

1

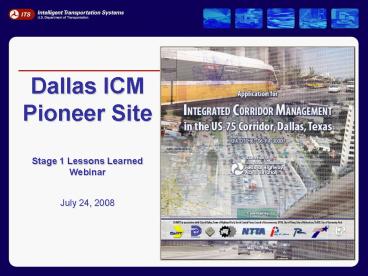

Dallas ICM Pioneer Site Stage 1 Lessons
Learned Webinar July 24, 2008
2
Why ICM is needed in the US 75 Corridor

• DFW 5th most congested region in US (1 worst
  region for growth in congestion)
• DFW population is 6 million and adding 1 million
  every 8 years
• US 75 is a critical, regional corridor
• Travel demand and congestion continue to grow
• No ability to expand freeway, arterials, or
  alternate routes
• Other freeways are scheduled for construction
• Significant employers in corridor
• Numerous special events throughout year
• Showcase for ITS integration in the region

3
US 75 Corridor Networks

• US 75 Freeway with Continuous Frontage Roads
• HOV lanes on US 75 and IH-635
• Dallas North Tollway
• 167 Miles of Arterials
• DART Bus Network Including Express Service
• DART Light Rail
• Red and Blue Lines

4
Description of Corridor

• Corridor Assets
• Diverse transportation infrastructure
• State-of-the-art freeway and frontage road system
• Recently completed 5-level interchange
• HOV, toll and SOV lanes
• Parallel arterials
• Two light rail transit lines
• Bus transit
• Management Centers
• 3 city TMCs
• state TMC
• transit TMC
• toll authority TMC

5
Corridor Summary Statistics
Freeways with Frontage Roads 272 Lane-miles
High Occupancy Vehicle Facilities 31 lane-miles
Light Rail Transit System (DART) 2 lines 20 stations
Bus Transit System (DART) 30 bus routes
Dallas Signal System 500 signals
Plano Signal System 196 signals
Richardson Signal System 120 signals
Arterials Streets 167 center-line miles
Park and Ride Lots (DART) 9 lots
Pedestrian / Bike Trails 12 miles
Tollways (NTTA) 105 lane-miles


6
Dallas ICM Team

• Agency Partners
• Dallas Area Rapid Transit (Lead)
• Cities of Dallas, Highland Park, Richardson,
  Plano, and University Park
• North Central Texas Council of Governments
• North Texas Tollway Authority
• TxDOT Dallas District
• Technical Support Team
• Telvent Farradyne (Lead)
• Texas Transportation Institute
• Southern Methodist University
• University of Texas _at_ Arlington

7
Regional Support for ICM

• Regional ITS MOU executed in 1999
• Regional ITS Committees Will Provide Oversight
• Programmed Funding for Regional Integration
• Regional communication system
• Center-to-Center (C2C) plug-ins

8
Regional ITS Elements in Place

• Dallas Area-wide ITS Plan (1996, 2006 update)
• Individual agency ITS Plans
• Regional Architecture
• Regional Concept of Operations
• Regional Traveler Information Website
• Regional Telecommunication
• C2C Video and Data Sharing
• Regional Data Archiving
• Statewide interoperable tolling system

9
Regional ITS Elements in Place
10
Freeway System

• US 75 Corridor fully instrumented by 2007
• New DalTrans Transportation Management Center
• Integrate TxDOT, DART, and Dallas County
  Sheriffs Dept
• CCTV Cameras
• Detection Systems
• Dynamic Message Signs
• With posted travel times
• Mobility Assistance Patrol

11
Arterial System

• Central Systems
• All signals connected
• C2C interface funded
• 911 Integration
• Surveillance cameras
• Video to wreckers
• Arterial DMS
• Freeway integration funded
• Traffic Signal Priority

12
DART Transit System (13 member cities)

• Light Rail Transit
• Park-and-Ride Lots
• Managed / HOV Lanes
• Bus System
• Local, Express
• Commuter Rail Connection
• Automated Vehicle Location
• Centralized Transit Control
• Passenger Alert System
• Transit Signal Priority
• 300 Member Transit Police

13
US 75 ICM Vision

• Operate the US 75 Corridor in a true multimodal,
  integrated, efficient, and safe fashion where the
  focus is on the transportation customer.

14
Physical Architecture
15
Dallas US 75 ICM Strategies

• Possible ICM Strategies
• Performance measure approach
• Multi-modal and/or modal independent
• Common measures across agencies and jurisdictions
• Comparative measures shared with all agencies
• Improved traveler information and operational
  strategies to promote modal shift
• Enhanced data sharing among stakeholders and
  responders
• Development of sophisticated tools
• Modeling for evaluation
• Real-time modeling for operational prediction and
  optimization

16
Decision Support Tool
17
Dallas Goals for ICM Corridor

• Transportation Goals
• Increase corridor throughput
• Improve travel time reliability
• Improved incident management
• Enable intermodal travel decisions
• Community Goals
• Encourage business development
• Sustain economic activity
• Enable emergency services

Source FHWA Urban Congestion Report
18
Lessons Learned - Operational

• Only extra capacity in US 75 corridor is on
  rail transit
• Individual agencies operating their systems very
  well
• Operational opportunities exist with
  collaborative operation
• May require penalizing one user group to benefit
  overall corridor
• Example Freeway incident
• May require decreasing cross street arterial
  green time in favor of more arterial green time
  parallel to freeway for diverted trips
• Need for decision support tool to assess those
  operational trade-offs
• Need for better real-time arterial data

19
Lessons Learned - Institutional

• Good partnerships already in place
• Operational trust already exists from traffic
  management team, incident management cooperation,
  and HOV lane operation
• Build on existing agreements / MOUs
• Build on existing oversight
• ICM reports to existing Regional ITS Committee

20
Lessons Learned - Technical

• Need for enhancing regional data sharing
• Must accelerate existing data sharing projects
  already scheduled for region
• Need to determine methods for comparing and
  measuring multi-modal information
• Need additional detection for better real-time
  arterial data
• Travel times from toll tags may be most cost
  effective
• Need for detailed system engineering knowledge
• Developing Concept of Operations and System
  Requirements was system engineering intensive
• Use of consultants with experience was beneficial

21
Conclusions

• Individual agencies are operating their systems
  well
• Opportunities for advancement are in coordinated
  management
• Need alternatives for travelers, especially
  transit
• Need common, reliable data platforms for decision
  making
• Building on existing institutional arrangements
  was a key to building consensus
• Need to build trust with the public on accuracy
  and reliability of information
