Title: CMS Software


1

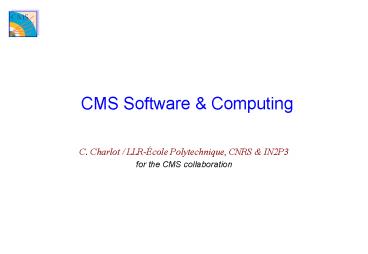

CMS Software Computing
  • C. Charlot / LLR-École Polytechnique, CNRS
    IN2P3
  • for the CMS collaboration

2
The Context
  • LHC challenges
  • Data Handling Analysis
  • Analysis environments
  • Requirements constraints

3
Challenges Complexity
  • Detector
  • 2 orders of magnitude more channels than today
  • Triggers must choose correctly only 1 event in
    every 400,000
  • Level 23 triggers are software-based
    (reliability)
  • Computer resources
  • will not be available
  • in a single location

4
Challenges Geographical Spread
  • 1700 Physicists
  • 150 Institutes
  • 32 Countries
  • CERN state 55
  • NMS 45
  • 500 physicists analysing data
  • in 20 physics groups
  • Major challenges associated with
  • Communication and collaboration at a distance
  • Distribution of existing/future computing
    resources
  • Remote software development and physics analysis

5
HEP Experiment-Data Analysis
Quasi-online Reconstruction
Environmental data
Detector Control
Online Monitoring
store
Request part of event
Store rec-Obj
Request part of event
Event Filter Object Formatter
Request part of event
store

Persistent Object Store Manager
Database Management System
Store rec-Obj and calibrations
Physics Paper
store
Request part of event
Data Quality Calibrations Group Analysis
Simulation
User Analysis on demand
6
Data handling baseline
  • CMS data model for computing in year 2007
  • typical objects 1KB-1MB
  • 3 PB of storage space
  • 10,000 CPUs
  • Hierarchy of sites
  • 1 tier05 tier125 tier2
  • all over the world
  • Network bw between sites
  • .6-2.5Gbit/s

7
Analysis environments
  • Real Time Event Filtering and Monitoring
  • Data driven pipeline
  • Emphasis on efficiency (keep up with rate!) and
    reliability
  • Simulation, Reconstruction and Event
    Classification
  • Massive parallel batch-sequential process
  • Emphasis on automation, bookkeeping, error
    recovery and rollback mechanisms
  • Interactive Statistical Analysis
  • Rapid Application Development environment
  • Efficient visualization and browsing tools
  • Easy of use for every physicist
  • Boundaries between environments are fuzzy
  • e.g. physics analysis algorithms will migrate to
    the online to make the trigger more selective

8
Offline Architecture Requirements at LHC
  • The only requirement
  • Offline software should enable physicists to take
    maximum benefit of the acquired experiments data
  • The (not so) new constraints
  • Bigger Experiment, higher rate, more data
  • Larger and dispersed user community performing
    non trivial queries against a large event store
  • IT technologies fast development
  • Increased demand of both flexibility and
    coherence
  • ability to plug-in new algorithms
  • ability to run the same algorithms in multiple
    environments
  • Quality, reproducibility, user-friendliness,
    etc..

9
Architecture Overview
Data Browser
Generic analysis Tools
GRID
Distributed Data Store Computing Infrastructure
Analysis job wizards
ODBMS tools
ORCA
COBRA
OSCAR
FAMOS
Detector/Event Display
CMS tools
Federation wizards
Coherent set of basic tools and mechanisms
Software development and installation
Consistent User Interface
10
TODAY
  • Data production and analysis challenges
  • Transition to Root/IO
  • Ongoing work on baseline software

11
CMS Production stream
Task Application Input Output Output Req. on resources
1 Generation Pythia None None Ntuple (static link) Geometry files Storage
2 Simulation CMSIM Ntuple Ntuple FZ file (static link) Geometry files Storage
3 Hit Formatting ORCA H.F. FZ file FZ file DB Shared libs Full CMS env. Storage
4 Digitization ORCA Digi. DB DB DB Shared libs Full CMS env. Storage
5 Physics group analysis ORCA User DB DB Ntuple or root file Shared libs Full CMS env. Distributed input
6 User Analysis PAW/Root Ntuple or root file Ntuple or root file Plots Interactive environment
12
Production 2002 the scales
Number of Regional Centers 11
Number of Computing Centers 21
Number of CPUs 1000
Number of Production Passes for each Dataset(including analysis group processing done by production) 6-8
Number of Files 11,000
Data Size (Not including fz files from Simulation) 17TB
File Transfer over the WAN 7TB toward T1 4TB toward T2
Bristol/RAL
Caltech
CERN
FNAL
IC
IN2P3
INFN
Moscow
UCSD
UFL
WISC
13
Production center setup
  • Most critical task is digitization
  • 300 KB per pile-up event
  • 200 pile-up events per signal event ? 60 MB
  • 10 s to digitize 1 full event on a 1 GHz CPU
  • 6 MB / s per CPU (12 MB / s per dual processor
    client)
  • Up to 5 clients per pile-up server ( 60 MB / s
    on its network card Gigabit)
  • Fast disk access

5 clients per server
14
Spring02 production summary
6M
CMSIM 1.2 seconds / event for 4 months
requested
Nbr of events
produced
3.5M

requested
February 8
May 31
1034
produced
High luminosity Digitization 1.4 seconds / event
for 2 months
April 19
June 7
15
Production processing
16
RefDB Assignement Interface
  • Selection of a set of Requests and their
    Assignment to an RC
  • the RC contact persons get an automatic email
    with the assignment ID to be used as argument to
    IMPALA scripts (DeclareCMKINJobs.sh -a ltidgt)
  • Re-assignment of a Request to another RC or
    production site
  • List and Status of Assignments

17
IMPALA
  • Data product is a DataSet (typically few 100
    jobs)
  • Impala performs production task decomposition and
    script generation
  • Each step in the production chain is split into 3
    sub-steps
  • Each sub-step is factorized into customizable
    functions

JobDeclaration
Search for something to do
JobCreation
Generate jobs from templates
JobSubmission
Submit jobs to the scheduler
18
Job declaration, creation, submission
  • Jobs to-do are automatically discovered
  • looking for output of previous step at predefined
    directory for the Fortran Steps
  • querying the Objectivity/DB federation for
    Digitization, Event Selection, Analysis
  • Once the to-do list is ready, the site manager
    can actually generate instances of jobs starting
    from a template
  • Job execution includes validation of produced
    data
  • Thank to the sub-step decomposition into
    customizable functions site managers can
  • Define local actions to be taken to submit the
    job (local job scheduler specificities, queues,
    ..)
  • Define local actions to be taken before and after
    the start of the job (staging input, staging
    output from MSS)
  • Auto-recovery of crashed jobs
  • Input parameters are automatically changed to
    restart job at crash point

19
BOSS job monitoring
BOSS
Local Scheduler
boss submit boss query boss kill
BOSS DB
  • Accepts job submission from users
  • Stores info about job in a DB
  • Builds a wrapper around the job (BossExecuter)
  • Sends the wrapper to the local scheduler
  • The wrapper sends to the DB info about the job

20
Getting info from the job
  • A registered job has scripts associated to it
    which are able to understand the job output

Users executable
21
CMS transition to ROOT/IO
  • CMS work up to now with Objectivity
  • We manage to make it work, at least for
    production
  • Painful to operate, a lot of human intervention
    needed
  • Now being phased out, to be replaced by LCG
    software
  • Hence being in a major transition phase
  • Prototypes using ROOTRDBMS layer being worked on
  • This is done within LCG context (persistency
    RTAG)
  • Aim to start testing new system as it becomes
    available
  • Target early 2003 for first realistic tests

22
OSCAR Geant4 simulation
  • CMS plan is to replace cmsim (G3) by OSCAR (G4)
  • A lot of work since last year
  • Many problems from the G4 side have corrected
  • Now integrated in the analysis chain
  • Generator-gtOSCAR-gtORCA using COBRA persistency
  • Under geometry physics validation
  • Overall is rather good
  • Still more to do before using it in production

SimTrack
Cmsim 122
OSCAR 1 3 2 pre 03
HitsAssoc
23
OSCAR Track Finding
  • Number of rechits/simhits per track vs eta

RecHits
SimHits
24
Detector Description Database
  • Several applications (simulation, reconstruction,
    visualization) needed geometry services
  • Use a common interface to all services
  • On the other hand several detector description
    sources currently in use
  • Use a unique internal representation derived from
    the sources
  • Prototype now existing
  • co-works with OSCAR
  • co-works with ORCA (Tracker, Muons)

25
ORCA Visualization
  • IGUANA framework for visualization
  • 3D visualization
  • mutliple views, slices, 2D proj, zoom
  • Co-works with ORCA
  • Interactive 3D detector geometry for sensitive
    volumes
  • Interactive 3D representations of reconstructed
    and simulated events, including display of
    physics quantities
  • Access event by event or automatically fetching
    events
  • Event and run numbers

26
TOMORROW
  • Deployment of a distributed data system
  • Evolve software framework to match with LCG
    components
  • Ramp up computing systems

27
Toward ONE Grid
  • Build a unique CMS-GRID framework (EUUS)
  • EU and US grids not interoperable today. Need for
    help from the various Grid projects and
    middleware experts
  • Work in parallel in EU and US
  • Main US activities
  • PPDG/GriPhyN grid projects
  • MOP
  • Virtual Data System
  • Interactive Analysis Clarens system
  • Main EU activities
  • EDG project
  • Integration of IMPALA with EDG middleware
  • Batch Analysis user job submission analysis
    farm

28
PPDG MOP system
PPDG Developed MOP production System Allows
submission of CMS prod. Jobs from a central
location, run on remote locations, and
returnresults Relies on GDMP for
replication Globus GRAM Condor-G and local
queuing systems for Job Scheduling IMPALA for
Job Specification DAGMAN for management of
dependencies between jobs Being deployed in USCMS
testbed
29
CMS EU Grid Integration
CMS EU developed integration of production tools
with EDG middleware Allows submission of CMS
production jobs using WP1 JSS from any site that
has client part (UI) installed Relies on GDMP for
replication WP1 for Job Scheduling IMPALA for Job
Specification Being deployed in CMS DataTAG
testbed UK, France, INFN, Russia
30
CMS EDG Production prototype
Reference DB has all information needed by
IMPALA to generate a dataset
  • User Interface

IMPALA Get request for a production Create
location independent jobs
31
GriPhyN/PPDG VDT Prototype
no code
existing
implemented using MOP
User
Storage Resource
Planner
Executor
Compute Resource
Concrete DAG
Abstract DAG
Concrete Planner/ WP1
BOSS
Abstract Planner (IMPALA)
MOP/ DAGMan WP1
Local Tracking DB
CMKIN
Wrap- per Scripts
Local Grid Storage
CMSIM
Etc.
ORCA/COBRA
Script
Replica Mgmt
Catalog Services
RefDB
Materia-lized Data Catalog
Virtual Data Catalog
Replica Catalog GDMP
Objecti-vity Federation Catalog
32
CLARENS a Portal to the Grid
  • Grid-enabling environment for remote data
    analysis
  • Clarens is a simple way to implement web services
    on the server
  • No Globus needed on client side, only
    certificate
  • The server will provide a remote API to Grid
    tools
  • Security services provided by the Grid (GSI)
  • The Virtual Data Toolkit Object collection
    access
  • Data movement between Tier centres using GSI-FTP
  • Access to CMS analysis software (ORCA/COBRA)

33
Conclusions
  • CMS has performed large scale distributed
    production of Monte Carlo events
  • Baseline software is progressing and this is done
    now within the new LCG context
  • Grid is the enabling technology for the
    deployment of a distributed data analysis
  • CMS is engaged in testing and integrating grid
    tools in its computing environment
  • Much work to be done to be ready for a
    distributed data analysis at LHC startup
Write a Comment
User Comments (0)
About PowerShow.com
