Aspect ratios: Anamorphic Widescreen elements that make DV more filmic

1

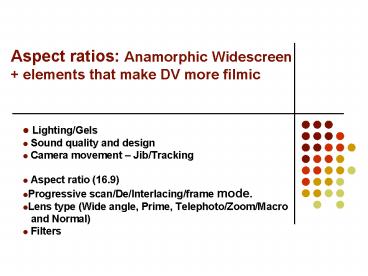

Aspect ratios Anamorphic Widescreen elements
that make DV more filmic

• Lighting/Gels
• Sound quality and design
• Camera movement Jib/Tracking
• Aspect ratio (16.9)
• Progressive scan/De/Interlacing/frame mode.
• Lens type (Wide angle, Prime, Telephoto/Zoom/Macro

• and Normal)
• Filters

2
Aspect ratio The relationship between the width
of a film image and its height is known as its
aspect ratio.

• 1890s -1950s, almost all films standard aspect
  ratio of 1.331. (Technically 1.371, but
  1.331).
• "1.33" refers to the width, in units, in
  comparison to the height of the frame unit, which
  is always "1".
• The colon separates the two units and should be
  expressed as "to".
• this reads as "one-point-three-three to
  one".
• For every one unit high the image is, it
  correspondingly is 1.33 units wide (4x3,
  meaning 4 units of width for every 3 of height).
• Known as Academy Standard (recognized by
• Academy of Motion Picture Arts and Sciences
• in the 1930s)

3
Dracula (1931) and Gone with the Wind (1939)
4
1950s - National Television Standards Committee
(NTSC), selected Academy Standard as the official
aspect ratio.

• Transferring to TV in the Academy Standard aspect
  ratio was not a problem - similar ratio to TV
  set.
• "4x3" -industry reference to current TVs.
• 1950s TV began to attract more viewer interest
  than Hollywood.
• So the film industry began to change the look of
  film.
• After 50s 20th Century Fox introduced the world
  to the CinemaScope used 1953-1967.
• Eventually Panavision became the most used
  widescreen process.
• Today, widescreen dominates filmmaking in a
  variety of aspect ratios.
• Two "standardized" ratios that are the most
  common
• Academy Flat (1.851) and Anamorphic Scope
  (2.351).
• less used ratios include 1.661 and 2.201 (70mm).

5

• Academy Flat
• Film is 1.85 times as wide as it is tall
  (referred to as "Flat").

• Anamorphic Scope
• Wider - 2.35 times as wide as it is tall
  (usually called "Scope").
• Scope films include Star Wars, Apocalypse Now and
  Blade Runner.

6
Wider aspect ratio enhances dramatic impact
But Both Scope (2.351) and Flat (1.851) aspect
ratios have problems with full frame
presentation.
7
Problems - Transferring films to TV

• Wider aspect ratios are too wide to fill TV
  screen vertically if seeing the whole image
  horizontally.
• Pan scan process
• letterbox transfers
• Pan scan Can be referred to as "full frame
• Film is "modified" to fit TV screen.
• Most film enthusiasts prefer letterbox format.
• ENTIRE film image with black bars filling the
  unused screen area at top and bottom of the frame

8
Pan scan transfer.

• The video camera "pans and scans" back and forth
  across the film image to keep the most important
  action centered on your TV screen.
• The problem - as much as 50 of the film's
  original image can be lost in the process.
• Composition of objects and movement within the
  frame is destroyed.

9
Widescreen vs. Full Frame (pan and scan) -
2.351 Ratio Films
Blade Runner
10
Letterbox transfer

• To view a movie in aspect ratio originally
  intended by director.
• view widescreen movies in the letterbox format
• ENTIRE film image is presented, and black bars
  fill the unused screen area at the top and bottom
  of the frame.
• Problem -letterbox viewing a loss of vertical
• picture resolution.
• The black bars take up part of the screen on your
  TV, leaving less picture area for the actual film
  image.
• Anamorphic widescreen can resolve this problem.

11
(1.851Flat) 4x3 TV screen
(2.351Scope)
While some vertical picture resolution is
sacrificed, the director's original widescreen
composition is preserved
12
Aspect Ratios

• o 1.331 Academy (4x3)
• o 1.661 European Super 16mm
• o 1.781 U.S. Digital TV HDTV
• Anamorphic widescreen - (16x9)
• o 1.851 U.S. Wide Screen
• o 2.351 Scope (Anamorphic scope)
• NB refer to class test articles in DISM folder
  (www.filmtechnology. Info) for more information.

13
Anamorphic Widescreen

• Aspect ratio - 1.781 (also known as 16x9) will
  be the future of TV widescreen.
• If a widescreen movie is recorded in the
  anamorphic format, a Digital Projector or TV can
  "unsqueeze" the image.
• It fills the full width of the TV screen, while
  retaining more vertical resolution.
• Still not full high definition (HDTV) but more
  than on Standard TV.
• How Does Anamorphic Work?
• During an anamorphic transfer during projection
  or the telecine stage. (e.g. HD)
• Authoring software allows the DVD player and DTV
  to recognize the anamorphic signal.
• Displaying anamorphic widescreen and standard
  letterbox (non-anamorphic) aspect ratios.

14
Avid Anamorphic (16x9) Anamorphic Scope
(2.351)

• 16x9 is becoming the standard for all (HDTV).
• From earliest proposed HDTV format.
• In this 1920 pixels (wide) x 1080 pixels (high)
• Divide 1920 by 1080 ratio 1.77777781
• but to make it simpler divide 16 by 9
  1.7777778.
• To display larger film image
• 1. During either shooting or the telecine
  process, use a 169 lens to squeeze the film
  images anamorphically to the 43 aspect ratio.
• 2. After capturing the footage, select Clip gt
  169 Monitors to return the squeezed image to its
  normal aspect ratio. The picture is larger.
• Any masked letterbox area at the top and bottom
  of the footage is smaller or might not be visible
  once it is set to 169.

15
Avid Masks
43
1.69
1.66
185
Anamorphic
16
Avid Masks
43
1.69
1.66
185
Anamorphic Scope 2.351
17
Film masks, effects and techniques can also be
found under ( Illusion FX and Film)
18
Interlaced Scanning/ Progressive Scanning

• Usual method of displaying TV images
• Scanning method reduces transmitted TV picture's
  bandwidth and works in accordance with
  electricity supply frequency (50Hz in the UK and
  Europe and 60Hz in the US).
• Result in interlaced scanning
• Each TV frame in two parts, called 'fields'
• Each field contains half of the scan lines of a
  frame. 1st field odd lines, 2nd field even
  lines.
• The even lines are interlaced between the odd
  ones to 'fill in the gaps'.
• In the 50Hz PAL system, each TV frame lasts
  1/25sec, with the electron gun scanning each
  field in 1/50sec.
• Interlaced scanning produces good pictures, but
  visible line and flickering caused by switching
  between two fields.
• With progressive scanning
• frames are not split into two fields of odd and
  even lines.
• Instead all image scan lines are drawn in one go
  from top to bottom.
• Sometimes referred to as 'sequential scanning' or
  'non-interlaced'.
• The fact that frames are shown as a whole makes
  it similar film

19
(No Transcript)
20
field

• One-half of the scan lines in an interlaced video
  frame.
• In most systems, the odd-numbered lines form one
  field, and the even-numbered lines form the
  second.
• NTSC video contains approximately 60 fields (30
  frames) per second, and PAL video contains 50
  fields (25 frames) per second.

21
Film and video transfer The 2-3 Pull Down

• Film intended for projection in cinemas - shot at
  24 fps and video travels at a different rate.
• PAL- 25 fps
• NTSC 30fps needs to be transferred to 24 fps.
• Each frame of video consists of 2 fields - each
  field contains half the frames total lines, which
  are scanned horizontally.
• This means that during transfer, the telecine
  machine places 4 frames onto 5 frames of video.

22
Gamma

• A measurement of the midpoint in the luminance
  range of an image.
• Used in color adjustments to control the
  proportions of brighter and darker areas in an
  image.
• Also called the gray point.

23
Camera Lenses - Wide-angle, Normal, Telephoto
and Zoom. (terms refer to the focal length of the
lens)

• Focal length - defined as distance from the
  center of the lens to the image it
• forms when the lens is set at infinity.
• In practice, focal length affects the field of
  view, magnification, and depth of field of a
  lens.
• In 35-mm photography Lenses with Focal lengths
  from
• 20 to 35 mm are considered wide-angle lenses.
  (Providing - greater depth of field and a larger
  field (or angle) of view with relatively low
  magnification.
• 45 to 55 mm are referred to as normal lenses -
  because they produce an image that approximates
  the field of view of the human eye.
• 85 mm or more are considered telephoto - longer
  focal lengths, called telephoto lenses, constrict
  the field of view and decrease the depth of field
  while greatly magnifying the image.
• Zoom lens- designed to have a variable focal
  length, which can be adjusted continuously
  between two fixed limits.
• Anamorphic - Compresses image horizontally during
  filming and expands it again during projection to
  give a oblong, wide screen picture.

24
Camera Lenses
25
Filters
26
Class Test

• NB refer to class test articles in DISM folder
  (www.filmtechnology.info) for more information.
• Check Avid and Cool Edit Tutorials and consider
  lectures so far.
• Next week Tim will cover PAL and NTSC
  broadcasting standards and Interlacing and
  progressive scan in more detail.
