Tomi Ylinen

1

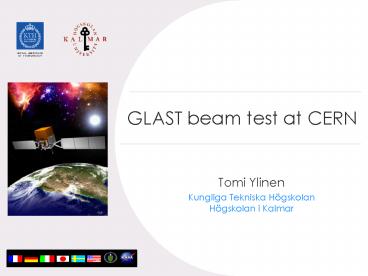

GLAST beam test at CERN

• Tomi Ylinen
• Kungliga Tekniska HögskolanHögskolan i Kalmar

2
Outline

• GLAST
• Beam test at CERN
• Beam test analysis
• Summary

3
GLAST
GLASTBeam testAnalysisSummary

• International collaboration to construct a
  gamma-ray satellite, with members from USA,
  Italy, France, Japan, Sweden
• Swedish GLAST consortium
• KTH, Stockholm University, Kalmar University
• L. Bergström, S. Carius, P. Carlson, J. Conrad
  (coordinator), J. Edsjö, S. Larsson, A. Pohl, F.
  Ryde, A. Sellerholm, T. Ylinen
• Science topics GRBs, dark matter, beam test
  analysis

GLAST beam test at CERN Tomi Ylinen
Partikeldagarna in Uppsala 20.10.2006
4
GLAST
GLASTBeam testAnalysisSummary
Gamma-ray Large Area Space Telescope
Large Area Telescope (LAT)
Gamma-ray Burst Monitor (GBM)

• Combined energy range 10 keV 300 GeV

GLAST beam test at CERN Tomi Ylinen
Partikeldagarna in Uppsala 20.10.2006
5
GLAST
GLASTBeam testAnalysisSummary

EGRET Energetic Gamma-ray
Experiment Telescope
GLAST beam test at CERN Tomi Ylinen
Partikeldagarna in Uppsala 20.10.2006
6
LAT status
GLASTBeam testAnalysisSummary

• Construction and assembly of the LAT instrument
  has been finished at SLAC
• Environmental testing (TVAC) has been performed
  at the Naval Research Laboratory (NRL)
• Integration with space craft is now in progress
  in Arizona
• Launch in fall 2007

GLAST beam test at CERN Tomi Ylinen
Partikeldagarna in Uppsala 20.10.2006
7
Simulations
GLASTBeam testAnalysisSummary

• Simulations well developed. Data Challenge 2, 55
  days of full sky simulations for LAT finished

GLAST beam test at CERN Tomi Ylinen
Partikeldagarna in Uppsala 20.10.2006
8
GLAST beam test
GLASTBeam testAnalysisSummary

• Beam test at CERN approved by GLAST 2005
  Collaboration Meeting
• Build a fraction of the LAT using available
  flight spare modules (Calibration Unit - CU)
• Expose CU to variety of beams (?, e-, e, p, p)
  and measure performance
• Beam request submitted to CERN in October 2005
• Final CERN schedule (delivered 26/6/2006)
  allocates
• 4 weeks at PS/T9 area, 26/7-23/8
• 11 days at SPS/H4 area, 4-15/9
• Goal Validate full LAT Monte-Carlo simulation

GLAST beam test at CERN T. Ylinen
Partikeldagarna in Uppsala 20.10.2006
9
Calibration Unit (CU)
GLASTBeam testAnalysisSummary

• Scaled down version of LAT, with 2 tracker
  towers and 3 calorimeters (flight spares)

ACD-tiles
TKR 8
TKR 16
dummy
CAL 119
CAL 109
CAL 101
rotation table
GLAST beam test at CERN T. Ylinen
Partikeldagarna in Uppsala 20.10.2006
10
Experimental areas
GLASTBeam testAnalysisSummary

• SPS H4 line
• Prevessin (FR)
• e, p, p 10-280GeV

• PS T9 line
• Meyrin (CH)
• ?, e, p, p 0.5-10GeV

GLAST beam test at CERN T. Ylinen
Partikeldagarna in Uppsala 20.10.2006
11
PS setup
GLASTBeam testAnalysisSummary
CU
magnet
beam
dump
direction, conversion
magnet
particleidentification
triggering
GLAST beam test at CERN T. Ylinen
Partikeldagarna in Uppsala 20.10.2006
12
SPS setup
GLASTBeam testAnalysisSummary
beam
GLAST beam test at CERN T. Ylinen
Partikeldagarna in Uppsala 20.10.2006
13
Event display
GLASTBeam testAnalysisSummary
?
GLAST beam test at CERN T. Ylinen
Partikeldagarna in Uppsala 20.10.2006
14
Data analysis
GLASTBeam testAnalysisSummary
B. Lott
Monte CarloData
layer 1
layer 2

• 75 million events taken
• Layerwise full bremsstrahlung energy spectrum
  from the calorimeter
• Just a quick look.A more thorough analysis
  coming soon

layer 4
layer 3
Counts
layer 6
layer 5
layer 8
layer 7
500 MeV
Energy
GLAST beam test at CERN T. Ylinen
Partikeldagarna in Uppsala 20.10.2006
15
Swedish interests
GLASTBeam testAnalysisSummary

• Compare tracker and calorimeter reconstructions
  for direction and position
• In the TKR, clustering of neighbouring hits in
  strip sheets is used for reconstruction
• In the CAL, reconstruction uses moments analysis
  to construct an ellipsoid

Simplified and exaggerated!
GLAST beam test at CERN T. Ylinen
Partikeldagarna in Uppsala 20.10.2006
16
Summary
GLASTBeam testAnalysisSummary

• LAT is ready for integration with spacecraft
• Two beam tests were performed at CERN, at 0.5-10
  GeV and at 10-280 GeV, using beams of ?, e-, e,
  p and p
• About 75 M events taken in total
• Data analysis is ongoing. Much work remains but
  results are expected soon

GLAST beam test at CERN T. Ylinen
Partikeldagarna in Uppsala 20.10.2006
17

• Thank you!

GLAST beam test at CERN T. Ylinen
Partikeldagarna in Uppsala 20.10.2006
18
PS setup (spare)
GLASTBeam testAnalysisSummary
CU
magnet
beam
dump
direction, conversion
magnet
particleidentification
triggering
GLAST beam test at CERN T. Ylinen
Partikeldagarna in Uppsala 20.10.2006
19
Reconstruction (spare)
GLASTBeam testAnalysisSummary
GLAST beam test at CERN T. Ylinen
Partikeldagarna in Uppsala 20.10.2006
