Title: Geometry Monitoring System

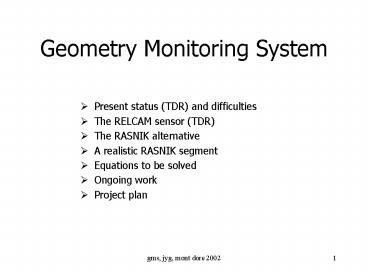

1
Geometry Monitoring System
  • Present status (TDR) and difficulties
  • The RELCAM sensor (TDR)
  • The RASNIK alternative
  • A realistic RASNIK segment
  • Equations to be solved
  • Ongoing work
  • Project plan

2
Present difficulties
  • In TDR, the set-up of laser lines is
  • 4 lines in two vertical planes and one step
  • 4 lines in 45o planes in azimuth and two steps
  • Problems of this set-up are
  • No projectivity
  • Two supports to be monitored
  • induce lost of precision
  • Effect of temperature gradient expected important
    in this case of long light lines
  • question about realistic shielding

3
The RELCAM sensor
  • In TDR, was presented the RELCAM sensor
  • Semi-reflecting mirror
  • CMOS camera (628 x 582 pixels)
  • Test on bench
  • Laser (785 nm), Granit table (2.5 x 0.5 m2)
  • Motorized stage (x, y) 0.5 µm
  • Results
  • Resolution sx sy 0.5 µm
  • Stability ?x, ?y lt 0.8 µm per oC
  • Linearity lt 1 µm within 2 x 2 cm2
  • Problem a 2 dimension sensor in the transverse
    directions (x, y)
  • z direction not monitored

4
One step laser lines
  • We cannot adopt such a set-up
  • Due to the constraints imposed by the coil
  • More than 24 slats of the stations 3, 4, 5 would
  • be on the path of the lines
  • No realistic change in their design is possible
  • without triggering a crisis with Manoel and
    others
  • Need of new system for monitoring

5
Alternative proposal
  • Based on the RASNIK sensor
  • Each element is set on a chamber frame/support to
    be monitored
  • Resolution sx sy 1 µm, sz 100 µm
  • Well adapted to our problem
  • Used by L3, adopted by (GEM) and ATLAS
  • Advantages it is a 3 dimension sensor
  • and no laser beam is used (safety)

6
A realistic RASNIK segment
  • Initial positions of the Mask and Camera not on
    the Lens axis
  • Initial recorded Mask image is not centered on
    the Mask
  • x M,L,C, yM,L,C, zM,L,C shifts can be extracted
    from the analysis of the final Mask image

7
The recorded images
y
16 pads
x
M
25 pads
25 pads
8
Equations to be solved
  • x0 (y0) initial distance between the camera and
    the plane xOz (yOz) containing the optical axis
  • of the lens
  • d (d) initial Mask-Lens distance (Camera-Lens)
    along the optical axis
  • The displacements of the RASNIK elements (Mask,
    Lens, Camera) in their coordinate systems are
  • xM, yM, zM, xL, yL, zL, xC, yC, zC
  • Few RASNIK lines are necessary for the monotoring
    of three planes
  • if these planes are rigid planes

x
y
M
(Philippe Pillot)
  • x, y shifts of the image
  • M magnification

9
Proposal for a new set-up
Reference plane
  • We propose to study the performance of a
    monitoring system with
  • 8 RASNIK segments on
  • the muon filter (C), the chamber
    10 (L), the chamber 9 (M)
  • Then, 8 RASNIK segments on
  • the chamber 10 (C), the chamber 8
    (L), the chamber 6 (M),
  • the chamber 6 (C), the chamber 4
    (L), the chamber 2 (M),
  • the chamber 9 (C), the chamber 7
    (L), the chamber 5 (M),
  • and the chamber 5 (C), the chamber 3
    (L), the chamber 1 (M)
  • And, to increase the constraints between the two
    groups of chambers,
  • 8 RASNIK segments on
  • the chambers 2 (C), the chamber 1
    (L and M),
  • and the chamber 4 (C), the chamber 3 (L
    and M)

10
Present work
  • Evaluation of the performances of the proposed
    setup
  • Resolution in position of each chamber
  • Resolution in mass at the ? mass
  • Localization of the monitoring lines through the
    spectrometer
  • Position of the elements on the chamber
    frames/supports
  • in collaboration with the Engineers
  • Decision (?) for a monitoring of the
    chamber/support flatness
  • Choice of the system, position of the elements
  • in collaboration with the Engineers
  • Alternative to RASNIK (?)
  • System baseline design to be decided by June 2002
    (?)

11
Project plan
  • Development of the system starting as soon as
    possible in 2002
  • Measure of the performances
  • Study of the temperature gradient effects
    (neutralization)
  • Technical support demanded, answer expected soon
  • Realisation of the system starting in 2004
  • Design study
  • Fabrication of sensors and supports
  • Calibrations
  • Installation
  • Lyon and Erevan
  • Budget (MOU)
  • 140 KFS to be re-estimated
