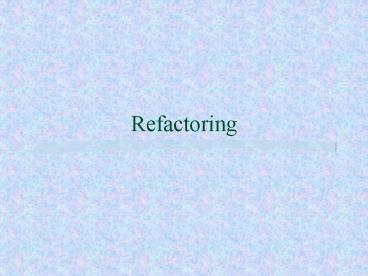

Refactoring

1
Refactoring
2
Piecemeal Growth

• The way living things grow
• The way software grows
• More than just addition -- transformation

3

• http//c2.com/cgi/wiki?ExtremeNormalForm
• Your classes are small and your methods are
  small you've said everything OnceAndOnlyOnce and
  you've removed the last piece of unnecessary
  code.
• Somewhere far away an Aikido master stands in a
  quiet room. He is centered.. aware.. ready for
  anything.
• Outside a sprinter shakes out her legs and
  settles into the block, waiting for the crack of
  the gun while a cool wind arches across the
  track.
• Softly, a bell sounds.. all of your tests have
  passed.
• Your code is in ExtremeNormalForm.. tuned to
  today and poised to strike at tomorrow.

4
Extreme Normal Form Defined

• All the code is tested. The code passes all the
  tests.
• No one on the team can think of code in the
  system that they could remove or simplify without
  reducing the feature set.
• You never have to go more than one place to
  change one thing.

5
Refactoring

• Extreme Normal Form is a result of refactoring
• Refactoring changes to the organization of a
  program, not its function.
• Behavior preserving program transformations.

6
Why refactoring is important

• Only defense against software decay.
• Often needed to fix reusability bugs.
• Lets you add patterns after you have written a
  program lets you transform program into
  framework.
• Lets you worry about generality tomorrow just
  get it working today.
• Necessary for beautiful software.

7
Refactoring

• Refactoring Improving the Design of Existing
  Code by Martin Fowler with contributions by Kent
  Beck, John Brant, William Opdyke, and Don
  Roberts, Addison-Wesley 1999
• www.refactoring.com

8
How to refactor

• Make changes as small as possible.
• Test after each change.
• Many small changes are easier than one big
  change.
• Each change makes it easier to see that more
  changes are needed.

9
How to Refactor

• Use Sunit to write test suite
• Use TestRunner to run it keep your light
  green.
• Plan change so it is a series of small
  refactoring.
• Run tests after every refactoring, once every 5
  minutes.

10
Example Strategy

• Initially class C with public method m
• 1) Make a Strategy class S with empty method
  mFor
• 2) Add instance variable strategy to C,
  initialize it with an instance of S, and change m
  to have strategy mFor self
• 3) Move code from m to mFor
• 4) Move private methods from C to S.

11
Refactoring browser

• In Squeak, part of Omnibrowser
• Automates many refactorings - renaming, moving
  code, splitting
• Undo
• SmallLint helps you find places that need to be
  refactored.

12
Code Smells

• Data class
• Switch statements
• Speculative generality
• Temporary field
• Refused bequest

Duplicated code Long method Large class Long
parameter list Message chain Feature envy
13
Duplicate code

• Eliminate duplication by
• making new methods
• making new objects
• moving methods to common superclass

14
Long methods

• Each method should do one thing.
• One comment for each method.
• Method should fit on the screen.
• Method is all on same level of abstraction.
• Method should be in right class.

15
FileSystemHandler

• directoryResponse aDirectory
• self indexFileNames
• do each indexFile
• indexFile aDirectory construct
  each. indexFile safeIsReadable
• ifTrue FileResponse fileNamed indexFile.
• DirectoryResponse fileNamed aDirectory in self
• indexFileNames
• ('index.html' 'index.htm' 'default.html'
  'default.htm')

16
FileSystemHandler

• directoryResponse aDirectory
• (self indexFilesFor aDirectory)
• do indexFile indexFile safeIsReadable
• ifTrue FileResponse fileNamed indexFile.
• DirectoryResponse fileNamed aDirectory in self
• indexFilesFor aDirectory
• ('index.html' 'index.htm' 'default.html'
  'default.htm')
• collect each aDirectory construct each

17
Long method in CompositeWiki

• responseKeyFor aRequest
• mightNotBeTheRightPlace key
• mightNotBeTheRightPlace aRequest identifier
  size gt self depth.
• mightNotBeTheRightPlace
• ifTrue key aRequest identifier at self
  depth
• ifFalse
• aRequest postDataAt COMMAND
• ifAbsent aRequest postDataAt
  DEFAULT_COMMAND ifAbsent self rootKey.
• (self containsAction key)
• ifTrue aRequest decodeUrlencodedFormData
  aRequest lastIdentifier.
• key

18
Method in CompositeWiki

• responseKeyFor aRequest
• aRequest identifier size lt self depth
• ifTrue
• aRequest postDataAt COMMAND ifAbsent

• aRequest postDataAt DEFAULT_COMMAND
  ifAbsent
• self rootKey.
• (self containsAction (self keyIn aRequest))
• ifTrue aRequest decodeUrlencodedFormData
  aRequest lastIdentifier.
• self keyIn aRequest

19

• responseKeyFor aRequest
• (aRequest isKeyMissingFor self)
• ifTrue
• aRequest postDataAt COMMAND ifAbsent

• aRequest postDataAt DEFAULT_COMMAND
  ifAbsent
• self rootKey.
• (self containsAction (self keyIn aRequest))
• ifTrue aRequest decodeUrlencodedFormData
  aRequest lastIdentifier.
• self keyIn aRequest

20
Data class

• Some classes have only variables and accessors.
• Look for places where accessors are used and
  eliminate feature envy and message chains.

21
Feature Envy

• teacher classes add thisClass.
• teacher classLoad (teacher classLoad 1)
• teacher addClass thisClass

22
Message chain

• Eliminate navigation code
• Ensures that user of an object doesnt have to
  know many classes
• aFigure boundingBox center

23
Message chain

• Law of Demeter
• Method should only send messages to classes of
  instance variables and arguments.
• anX m1 m2 m3 m4 m5 m6 gt anX m6

24
Large classes

• More than seven or eight variables
• More than fifty methods
• You probably need to break up the class
• Components (Strategy, Composite, Decorator)
• Inheritance

25
Long parameter lists

• If you see the same set of parameters repeated in
  several methods, bundle them into a new object.
  Create accessers to get the original parameters
  from the object. Change the methods to use the
  new object instead of the parameters.
• Then figure out what other functionality needs to
  move to the object.

26
Case Statements

• Use polymorphism, not case statement.
• Make class hierarchy, one class for each case.
• Make a method for each case statement.
• Make each branch of case statement be a method in
  a class

27
Refused bequest

• Subclass does not use all the inherited methods.
• Overrides methods with different algorithm
• Overrides methods with error message
• Solution
• Make a new superclass

28
Refused Bequest
A doX doY
C doY
B doX
B doX
A doX
29
Temporary field

• Instance variable is only used during part of the
  lifetime of an object.
• For example, it is only used while the object is
  initialized.
• Move variable into another object

30
Non-localized plan

• Adding a feature requires a plan. If adding a
  feature requires changing many parts of a
  program, it is called a non-localized plan.
• Parallel class hierarchies adding a class in
  one class hierarchy requires adding a class in
  another
• Example a new view class requires a new
  controller class

31
How to refactor non-localized plan

• Make a new object that represents everything that
  changes.
• Methods that change together should stay together.

32
When to refactor

• If a new feature seems hard to implement,
  refactor.
• If a new feature created some ugly code,
  refactor.
• When you cant stand to look at your code,
  refactor.

33

• Start reading Smalltalk Best Practice Patterns
• You will know some of these already.
• Think of each pattern as a refactoring.
