Transcript and Presenter's Notes

Title: WEB-BASED%20STYLE%20GUIDES

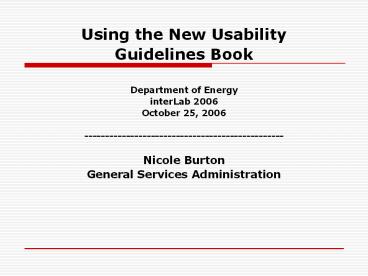

1
  • Using the New Usability
  • Guidelines Book
  • Department of Energy
  • interLab 2006
  • October 25, 2006
  • ------------------------------------------------
  • Nicole Burton
  • General Services Administration

2
Introduction
  • My background
  • How I became a usability specialist

3
Our Objective
  • To build practical design skills
  • To enhance our community of practice
  • Guidelines book should not be shelf-ware!

4
What Well Cover
  • Introduction to User-Centered Design and
    Guidelines book
  • Selected guidelines
  • Best Practices and Usability Resources
  • The 4 Es (plus the 5th E)
  • Discussion
  • Raffle two Guidelines books

5
? What Is Usability?
  • Usability Fitness to Purpose
  • The quality of a user's experience when
    interacting with a product or system a website,
    a software application, mobile technology, or any
    user-operated product.
  • User-Centered Design
  • UCD is a flexible yet structured development
    methodology driven by specified, task-oriented
    business goals, and the recognition of user
    needs, limitations, and preferences

6
What does Usability Measure?
  • Usefulness
  • Degree to which users can successfully achieve
    goals/complete tasks
  • Ease of Use
  • Ability of users to accomplish goals with speed
    ease
  • Ease of Learning
  • Ability to operate the system to some defined
    level of competence after some predetermined
    amount of training
  • Satisfaction
  • Attitude of users, including perceptions,
    feelings and opinions of the product

7
User-Centered Design Model
Define
Design
8
The Traditional Development Process
9
Why Is Usability Important to Government?
  • Federal Government largest single producer,
    collector, consumer, and disseminator of
    information in the world
  • Government provides critical informationbenefits,
    health info, safety alerts, commerce, education
  • 97 million adult Americans, or 77 of Internet
    users, took advantage of e-gov in 2003, whether
    that meant going to government websites or
    emailing government officials. This represented a
    growth of 50 from 2002. (Pew Internet in
    American Life, 2003)

10
Why Is Usability Important?
11
FedBizOps.gov
12
(No Transcript)
13
Usability.gov
14
Research-Based Guidelines
15
Guideline Categories
Design Process and Evaluation Optimizing the User Experience Accessibility Hardware and Software The Homepage Page Layout Navigation Scrolling and Paging Headings, Titles, Labels Links Text Appearance Lists Screen-Based Controls (Widgets) Graphics, Images, Multimedia Writing Web Content Content Organization Search Usability Testing
16
Chapter 1 Design Process and Evaluation
17
11 Provide Useful Content
Importance
Evidence
Guideline Provide content that is engaging,
relevant, and appropriate to the audience.
18
13 Understand and Meet Users Expectations
Importance
Evidence
Guideline Ensure the Web site format meets user
expectations, especially related to navigation,
content, and organization.
19
14 Involve Users in Establishing User
Requirements
Importance
Evidence
Sources 7
  • Field studies/Contextual interviews
    (watching users doing real work onsite)
    www.sitepoint.com/article/contextual-enquiry-pr
    imer
  • User interviews/user gatherings
  • Surveys focus groups
  • Help desk logs webmaster E-mail
  • Search logs and Web analytics

20
15 Set and State Goals
Importance
Evidence
Sources 3
Guideline Identify and clearly articulate the
primary goals of the website before beginning the
design process. Before starting design work,
identify primary goals of the website (educate,
inform, entertain, sell, etc.). Goals determine
the audience, content, function, and the sites
unique look and feel. Communicate the goals to,
and develop consensus for the site goals from,
management and those working on the website.
21
15 Set and State Goals
Importance
Evidence
Sources 3
  • A technique for expressing this on your site
    goal statement or tagline
  • Clearly explain what you do
  • Describe your primary audience
  • Describe what makes you unique amongst your
    competitors

22
Importance
15 Set and State Goals
Evidence
Sources 3
23
Importance
15 Set and State Goals
Evidence
Sources 3
24
111 Use Personas
Importance
Evidence
Sources 3
25
Importance
111 Use Personas
Evidence
Sources 3
  • Persona Information Categories
  • Personal Characteristics (Name, Age,
    Sex, Marital Status, Vehicle, Photograph)
  • Experience and Education
  • Goals and Motivations
  • Job Role
  • User Needs Design Implications

26
Importance
111 Use Personas
Evidence
Sources 3
  • Personas focus attention on specific users
  • Personas reduce self-referential decisions
  • Personas are a good team-building exercise
  • Three to five personas is optimal
  • Designate a primary persona
  • Visibly display personas as posters

27
Chapter 2 Optimizing the User Experience
28
22 Increase Web Site Credibility
Importance
Evidence
Sources 4
  • A physical address is provided on the homepage
    and all major points of entry
  • Frequently asked questions are provided AND are
    useful

29
22 Increase Web Site Credibility
Importance
Evidence
Sources 4
www.firstgov.gov/webcontent/getting_started/namin
g/sponsorship.shtml
30
22 Increase Web Site Credibility
Importance
Evidence
Sources 4
  • Organization providing the information is highly
    visible
  • Site is arranged in a logical way
  • Provides phone numbers
  • Dates are provided up-front and are kept current

31
Chapter 3 Accessibility
32
Government Best Practices
www.firstgov.gov/webcontent/reqs_bestpractices.sht
ml
33
33 Do Not Use Color Alone to Convey Information
Importance
Evidence
Sources 14
34
Importance
33 Do Not Use Color Alone to Convey Information
Evidence
Sources 14
As seen by non-colorblind users.
35
Importance
33 Do Not Use Color Alone to Convey Information
Evidence
Sources 14
As seen by 5 of the population.
36
3.3 Do Not Use Color Alone
Imporance
Evidence
Sources 14
X This information is required.
37
Chapter 4 Hardware and Software
38
41 Design for Common Browsers
Importance
Evidence
Sources 4
thecounter.com, August 2006
39
41 Design for Common Browsers
Importance
Evidence
Sources 4
webusability.com
40
41 Design for Common Browsers
Importance
Evidence
Sources 4
41
Chapter 5 The Homepage
42
Importance
52 Show All Major Options on the Homepage
Evidence
Sources 4
All major topic areas and categories are
presented at the homepage level.
43
Importance
52 Show All Major Options on the Homepage
Evidence
Sources 4
44
Importance
53 Create a Positive First Impression
Evidence
Sources 4
Updated as of 5/30/05
45
Importance
53 Create A Positive First Impression
Evidence
Sources 4
DOE Office of Health, Safety Security
46
Chapter 6 Page Layout
47
63 Place Important Items at Top Center
Importance
Evidence
Sources 10
1
3
2
4
48
63 Place Important Items at Top Center
Importance
Evidence
Sources 10
49
Chapter 9 Headings, Titles, and Labels
50
Importance
Evidence
91 Use Clear Category Labels
Sources 7
Link labels are clear and distinct, allowing
users to distinguish paths quickly.
51
Importance
91 Use Clear Category Labels
Evidence
Sources 7
Matching Labels
52
Chapter 10 Links
53
Importance
Evidence
101 Use Meaningful Link Labels
Sources 7
54
Chapter 15 Writing Web Content
55
153 Use Familiar Words
Importance
Evidence
Sources 1
56
Chapter 16 Content Organization
57
Importance
161 Organize Information Clearly
Evidence
Sources 18
Illustrates the ten steps
58
Importance
161 Organize Information Clearly
Evidence
Sources 18
59
Importance
161 Organize Information Clearly
Evidence
Sources 18
60
Importance
162 Facilitate Scanning
Evidence
Sources 16
61
Chapter 17 Search
62
Importance
Evidence
18 Be Easily Found in the Top 10
Sources 16
63
172 Ensure Usable Search Results
Importance
Evidence
Sources 7
64
174 Provide a Search Option on Each Page
Importance
Evidence
Sources 7
?
65
174 Provide a Search Option on Each Page
Importance
Evidence
Sources 7
Provide at least 36 characters in Search Box
?
66
181 Use an Iterative Design Approach
Importance
Evidence
Sources 9
Guideline Develop and test prototypes through
an iterative design approach to create the most
useful and usable website. Iterative design
consists of creating paper and software
prototypes, testing the prototypes, and then
making changes based on the test results. The
test and make changes process is repeated until
the website meets performance benchmarks
(usability goals). When these goals are met,
the iterative process ends. Software tools are
available to assist and facilitate the
development of prototypes. Establish an ongoing
evaluation strategy (customer satisfaction,
usability testing, etc.).
67
Usability Objectives
  • Ease of Use Examples
  • At least 95 of typical users will complete a
    specific task (find a clinical trial) in less
    than three minutes
  • At least 90 of users will find information on a
    specific topic (risks related to taking
    aspirin) within 30 seconds
  • The average time to complete a particular task
    (make an airline reservation) will be 10
    faster when using the revised website than when
    using the current website

68
World Usability Day Chicago-11/14/2006
  • www.worldusabilityday.org/event/show/63

69
5 Es of Implementation
  • Education
  • Enforcement
  • Exemption
  • Enhancement
  • Empowerment

70
1st E Education
  • Use the guidelines to make design decisions
  • Share and discuss the info with your colleagues
  • Available at www.usability.gov/pdfs/guidelines.htm
    l
  • Use research to support your viewpoint
  • Educate us Send feedback on how youre using it
    or additional research

71
Webcontent.gov, Web Manager University,
Usability.gov, Guidelines Book
72
2nd E Enforcement
  • Incorporate the guidelines in your design process
  • Create a culture that emphasizes the value of
    research (over opinion)
  • Ensure research is being used
  • Dont forget to verify their use
  • Balanced with

73
3rd E Exemption
  • Balanced with Enforcement
  • Do not let guidelines stifle creativity
  • Encourage innovation not anticipated by existing
    research
  • Allow for exceptions
  • Dont ignore what you know about your users

74
4th E Enhancement
  • A living document in a fast-changing field
  • Biennial updates
  • Customize Add local standards, guidelines,
    best practices

75
5th E Empowerment
  • IT Spending 50 of Federal budget
  • Do your tax dollars support usable design?
  • We are the stakeholders!
  • Government can lead the way (i.e. Internet)
  • Never doubt that a small group of thoughtful,
    committed people can change the world. Indeed, it
    is the only thing that ever has. Margaret Mead

76
Contact Information
  • Nicole.Burton_at_gsa.gov
  • General Services Administration (GSA), FirstGov
    Division,Web Best Practices Group
  • (202) 219-0820
Write a Comment
User Comments (0)
About PowerShow.com
