Ocean Surface Circulation

1

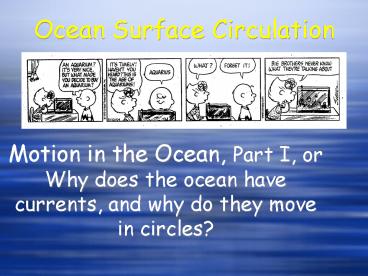

Ocean Surface Circulation

• Motion in the Ocean, Part I, or Why does the
  ocean have currents, and why do they move in
  circles?

2
Two types of Ocean Circulation

• Surface Circulation -- Wind-driven
• Deep Circulation -- Density (T,S) driven

3
Atmospheric Circulation
4
Temperature and Pressure

• As the Earths surface is heated, air is warmed,
  expands and rises (Low P)
• Warm air carries water vapor
• In the upper atmosphere the air cools and sinks
  (High P)
• This round-trip is called a cell

5
Things get interesting!

• On a rotating planet, moving objects appear to be
  deflected
• Why is this?

6
Coriolis Deflection (aka I Could Care Less
force)

• Apparent force due to Earths rotation
• Deflection in path of motion when viewed from a
  rotating reference frame
• Gustave-Gaspard Coriolis (1835)
• Familiar from merry-go-rounds
• Significant only for large distances (not
  toilets and billiards!)

7
Coriolis Deflection
8
Consequences of Coriolis

• Moving fluids (atmosphere and ocean) turn to the
  right in the Northern Hemisphere
• Moving fluids (atmosphere and ocean) turn to the
  left in the Southern Hemisphere

9
Global Wind Circulation
10
Wind-Driven Ocean Circulation

• Steady winds produce waves and set the surface
  water in motion
• Moving water is deflected to the right
  (N.Hemisphere) or left (S.Hemisphere)
• This starts the main gyre motion of the surface
  ocean

11
Surface Ocean Circulation
12
Main Features

• Five large gyres
• Antarctic Circumpolar Current
• Equatorial Countercurrent
• Velocities vary -- fastest are meters/sec

13
106 m3/sec (Sverdrup) all the rivers
14
Gulf Stream - Benj Franklin
15
Gulf Stream
16
So, do the gyres just follow the winds?

• Not exactly! But the winds get the motion in the
  ocean started
• The oceans respond by flowing and turning
• Water piles up in the center of gyres -- several
  meters high

17
Ekman Transport -- moves water 90 to the winds
18
Upwelling and Oregons Ocean

• Winter winds from the south -- downwelling
• Summer winds from the north -- upwelling

19
Winter Summer
20
Global Wind Circulation
21
Geostrophic Currents
22
Coriolis deflection plus the Pressure Gradient
steers the currents around the gyres
23
Northern Hemisphere Gyres
24
Surface Circulation
25
How do we track ocean circulation?

• Fixed Buoys -- measure current speed and
  direction
• Drifters -- travel with the currents and transmit
  their location

26
Beach Swap Meets!
27
Tracking CurrentsThe Story of the Lost Nikes

• 1 60,000 shoes spilled, May 1990
• 2-8 1990-91
• 9 1993
• 10 1994

28
Marine Debris Pacific Trash
