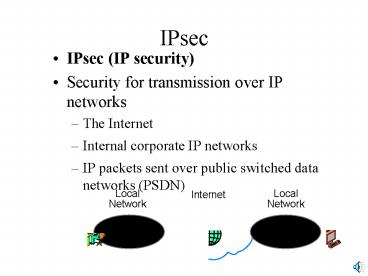

IPsec

1
IPsec

• IPsec (IP security)
• Security for transmission over IP networks
• The Internet
• Internal corporate IP networks
• IP packets sent over public switched data
  networks (PSDN)

Local Network
Local Network
Internet
2
IPsec

• Why do we need IPsec?
• IP has no security
• Add security to create a virtual private network
  (VPN) (Chapter 9) to give secure communication
  over the Internet or another IP network

Local Network
Local Network
Internet
3
IPsec

• Genesis
• Being created by the Internet Engineering Task
  Force
• For both IP version 4 and IP version 6

4
IPsec

• Two Modes of operation
• Tunnel Mode
• IPsec server at each site
• Secures messages going through the Internet

Local Network
Internet
Local Network
IPsec Server
Secure Communication
5
IPsec

• Tunnel Mode
• Hosts operate in their usual way
• Tunnel mode IPsec is transparent to the hosts
• No security within the site networks

Local Network
Internet
Local Network
IPsec Server
Secure Communication
6
IPsec

• Two Modes of operation
• Transport Mode
• End-to-end security between the hosts
• Security within site networks as well
• Requires hosts to implement IPsec

Local Network
Internet
Local Network
Secure Communication
7
IPsec

• Transport Mode
• Adds a security header to IP packet
• After the main IP header
• Source and destination addresses of hosts can be
  learned by interceptor
• Only the original data field is protected

Protected Original Data Field
Original IP Header
Transport Security Header
8
IPsec

• Tunnel Mode
• Adds a security header before the original IP
  header
• Has IP addresses of the source and destination
  IPsec servers only, not those of the source and
  destination hosts
• Protects the main IP header

Protected Original Data Field
Protected Original IP Header
Tunnel Security Header
9
IPsec

• Can combine the two modes
• Transport mode for end-to-end security
• Plus tunnel mode to hide the IP addresses of the
  source and destination hosts during passage
  through the Internet

Local Network
Internet
Local Network
Tunnel Mode
Transport Mode
10
IPsec

• Two forms of protection
• Encapsulating Security Protocol (ESP) security
  provides confidentiality as well as
  authentication
• Authentication Header (AH) security provides
  authentication but not confidentiality
• Useful where encryption is forbidden by law
• Provides slightly better authentication by
  providing authentication over a slightly larger
  part of the message, but this is rarely decisive

11
IPsec

• Modes and protection methods can be applied in
  any combination

12
IPsec

• Security Associations (SAs) are agreements
  between two hosts or two IPsec servers, depending
  on the mode
• Contracts for how security will be performed
• Negotiated
• Governs subsequent transmissions

Negotiate Security Association
Host A
Host B
13
IPsec

• Security Associations (SAs) can be asymmetrical
• Different strengths in the two directions
• For instance, clients and servers may have
  different security needs

SA for messages From A to B
Host A
Host B
SA for messages From B to A
14
IPsec

• Policies may limit what SAs can be negotiated
• To ensure that adequately strong SAs for the
  organizations threats
• Gives uniformity to negotiation decisions

Host A
Host B
15
IPsec

• First, two parties negotiate IKE (Internet Key
  Exchange) Security Associations
• IKE is not IPsec-specific
• Can be used in other security protocols

Communication Governed by IKE SA
Host A
Host B
16
IPsec

• Under the protection of communication governed by
  this IKE SA, negotiate IPsec-specific security
  associations

Communication Governed by IKE SA
Host A
Host B
IPsec SA Negotiation
17
IPsec

• Process of Creating IKE SAs (and other SAs)
• Negotiate security parameters within policy
  limitations
• Authenticate the parties using SA-agreed methods
• Exchange a symmetric session key using SA-agreed
  method
• Communicate securely with confidentiality,
  message-by-message authentication, and message
  integrity using SA-agreed method

18
IPsec

• IPsec has mandatory security algorithms
• Uses them as defaults if no other algorithm is
  negotiated
• Other algorithms may be negotiated
• But these mandatory algorithms MUST be supported

19
IPsec

• Diffie-Hellman Key Agreement
• To agree upon a symmetric session key to be used
  for confidentiality during this session
• Also does authentication (not discussed)

Party A
Party B
20
IPsec

• Diffie-Hellman Key Agreement
• Each party sends the other a nonce (random
  number)
• The nonces will almost certainly be different
• Nonces are not sent confidentially

Nonce B
Party A
Party B
Nonce A
21
IPsec

• Diffie-Hellman Key Agreement
• From the different nonces, each party will be
  able to compute the same symmetric session key
  for subsequent use
• No exchange of the key instead, agreement on the
  key

Symmetric Key
Symmetric Key
From nonces, independently compute same
symmetric session key
Party A
Party B
22
IPsec

• Mandatory algorithm for confidentiality is
  DES-CBC
• DES with Cipher Block Chaining
• An extension of DES (Data Encryption Standard)
• Straight DES always gives the same ciphertext for
  the same plaintext and key
• This allows certain types of attacks to guess
  passwords

23
IPsec

• DES-CBC (DES Cipher Block Chaining)
• DES works in blocks of 64 bits
• DES-CBC begins with 64-bit plaintext to be
  encrypted
• Combines with the ciphertext output from the
  previous block (cipher block chaining)

Cipher Block Chaining
Plaintext Block
Previous Ciphertext Block
Block To be Encrypted

24
IPsec

• DES-CBC
• Encrypts the plaintext block plus previous
  ciphertext block to give ciphertext for the
  current block
• This gives different ciphertexts for the same
  plaintext and key on different occasions

Block To be Encrypted
Ciphertext For Block
DES Encryption
25
IPsec

• Adding Plaintext and Ciphertext together in
  DES-CBC
• The bits are XORed
• The result is 1 if one bit (but not both) is 1
• 1 XOR 0 1
• 0 XOR 1 1
• The result is 0 if both bits are 1 or 0
• 1 XOR 1 0
• 0 XOR 0 0

26
IPsec

• Adding Plaintext and Ciphertext together in
  DES-CBC
• The bits are XORed
• If the ciphertext is 111000
• And the plaintext is 101010
• The result is 010010

27
IPsec

• HMAC
• key-Hashed Message Authentication Code
• Mandatory IKE message-by-message authentication
  and message integrity algorithm
• Not a digital signature
• HMAC does not use public key encryption
• So it is faster than digital signature
  authentication, which uses public key encryption

28
IPsec

• HMAC
• Begins with original plaintext
• Adds a secret HMAC key that only the
  communicating partners know
• It is a shared secret
• Usually different from the symmetric key used to
  send the entire message confidentiality

Original Plaintext
HMAC Key
29
IPsec

• HMAC
• Hashes the combination with MD5 or SHA1
• This gives the HMAC
• Get different HMACs with different HMAC keys

Original Plaintext
HMAC Key
HMAC
Hashing
30
IPsec

• HMAC
• The HMAC is added to the original plaintext
• Gives authentication and message integrity
• HMAC is similar to digital signature
• However, hashes instead of using public key
  encryption, so processing is faster

Original Plaintext
HMAC
31
IPsec

• HMAC
• Receiver again hashes plaintext message plus
  shared secret HMAC key
• If the same as transmitted HMAC, sender is
  authenticated because the sender knows the shared
  secret HMAC key

Transmitted Original Plaintext
Transmitted HMAC
HMAC Key
Computed HMAC
Transmitted Original Plaintext
Hashing
32
IPsec

• IPsec only uses symmetric key encryption and
  hashing, which are very fast
• Avoids public key encryption, which is very slow
• Diffie-Hellman key exchange instead of sending
  session key encrypted with receivers public key
• HMAC instead of digital signatures
• This allows IPsec to be fairly fast, reducing
  host or IPsec security server costs
