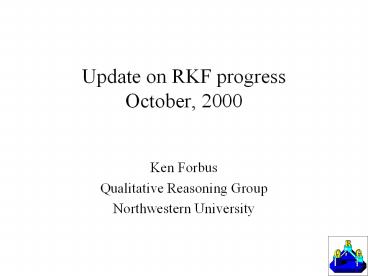

Update on RKF progress October, 2000

1
Update on RKF progressOctober, 2000

• Ken Forbus
• Qualitative Reasoning Group
• Northwestern University

2
Overview

• Analogical Reasoning
• Reasoning Engines
• Domain Theories
• Sketching

3
Our analogical processing tools
Structure-Mapping Engineprovides
analogical matching
Inputs propositional descriptions, w/
incremental updates Output one or two mappings
Mappings correspondences structural
evaluation candidate inferences
Operates in polynomial time, by exploiting graph
labels greedy algorithms
MAC/FAC providessimilarity-based retrieval
Probe
Memory Pool
Output memory item SME results
No hand-indexing of cases required
Cheap, fast, non-structural
4
How SEQL Works
SEQL refines knowledge by progressive alignment
of examples New The GEL algorithm
1. Compare against each generalization Gi. If
close enough, assimilate input into Gi by
replacing Gi with the overlap of Gi and input and
halt.
2. Compare input against each exemplar Ei. If
similar enough, create new generalization from
overlap of Ei and input, halt. If nothing
similar enough, add input to set of exemplars
5
Case Mapper An Analogy GUI

• Goal Provide civilized interface for entering
  knowledge via analogy
• Should be useful platform for experimenting with
  dialogue moves
• Current state
• Basic functionality showing signs of life
• AI-expert friendly
• Next steps
• Improved pidgin
• Interface to inference machinery for candidate
  inference evaluation
• Explore using dialogue management, simple NLP for
  interaction

6
Initial results of Matching
7
Exploring the candidate inferences
8
Integrating into the E2E system

• Strategy Provide analogy server
• KQML for communication
• Strategies for analogical reasoning coded in
  next-generation reasoner
• Advantages
• Neutral with respect to uniprocessor/distributed
  operation
• Enables us to tune our strategies more easily
• Drawbacks
• Sockets as bottleneck
• Need to keep KB in synch
• Alternative strategy Assimilation

9
Domain Theory Environment (DTE)
10
Domain Theory Environment (DTE)
Uses ODBC, Relational database (Microsoft Access)
to store KB contents (inspired by Hendlers
PARKA-DB)
11
Domain Theory Environment (DTE)
Federated architecture, supports reasoning
sourcesthat provide special-purposecapabilities
efficiently
12
Domain Theory Environment (DTE)
Query-driven backchainerprovides basic reasoning
services, integration mechanism
13
Domain Theory Environment (DTE)
KQML interface for building servers(e.g.,
analogy server,geographic reasoner)
14
DTE Problems
High overhead,too many computational cliffs
Too slow, not scaling well
15
Solution Build next-generation system

• Collaborating with Xerox PARC
• John Everett, Reinhard Stolle, Bob Cheslow
• Keeping good ideas in DTE
• Federated architecture/Reasoning sources model
• Using database to implement KB
• Query mechanism with simple backchainer as glue
• Use of LTMS for justifications, reasoning
• Overall structure of interfaces to applications
  using it will be similar
• Internals will be very different

16
Next-generation system
Special-purpose C database,written by PARC.
Built-in support for pattern matching.Adding new
knowledgeDTE DB 4 assertions/secondNew DB 98
assertions/secondRetrieval2-3 msec, in 111K
assertion KB (preliminary data)
17
Next-generation System
Working memory LTRE discrimination tree
indexing.Suggestions ArchitectureLimit
backchaining for quick reasoning. Expensive
operations queued as suggestions, processed via
agenda mechanism.Multithreaded, to exploit time
user spends doing other things. Especially
important for sketching, dialogue management
18
Next-Generation System
Streamlined reasoning source interface, with
constraint posting for query optimizer.
Analogical Reasoner
Reasoner
Spatial Reasoner
Provide qualitative reasoningservices by
embedding QP theory implementation
Gizmo Mk2
Create ink-based spatial reasoner, organized for
incremental processing from the ground up
Knowledge Base
Perceptual Ink Processor
19
Current schedule

• Halloween First version turning over
• Thanksgiving DTE applications ported
• Christmas First round of performance tuning
  finished

20
Everyday Physical Semantics domain theory

• Claim There is a basic set of physical notions
  that need to be understood in order to interpret
  sketched explanations
• e.g., Simple notions of surfaces, volumes,
  forces, and materials
• Claim Qualitative physics research can provide
  most of this knowledge
• Much of it has already been done, in isolated
  pieces
• Needs to be integrated, gaps filled
• Tied to sketch-based spatial representations

• Surface constraints on motion
• Will use Nielsens qualitative mechanics
• Fluid Ontologies
• Collins molecular collection ontology
• Kims bounded stuff ontology
• usual contained stuff ontology
• Surface/fluid interactions
• Kims qualitative streamline theory
• Qualitative topology
• Cohns spatial algebras
• Qualitative Statics
• Nielsen Kims qualitative vectors

21
Multiple Perspectives An example

• How to reason about liquids?
• Two models, due to Hayes
• Contained stuff ontology Individuate liquid via
  the space that it is in.
• Piece of stuff ontology Individuate liquid as a
  particular collection of molecules.

22
Fluid ontologies

• Contained stuffs
• Most detailed Paper with John Collins, FSThermo
  domain theory
• Pieces of stuff
• Molecular collections (w/John Collins)
• Plugs (Gordon Skorstad)
• Bounded stuffs (H. Kim)

23
Molecular Collection ontology

• Idea Follow a little piece of stuff around a
  system
• So small that when it reaches a junction, it
  never splits apart
• Provides the perspective gained by tracing
  through a system of changes

24
Two containers example
25
Steam plant example
26
Refrigerator example
27
Bounded stuffs

• Specialization of contained stuff ontology
• Where something is within the space matters
• Affects connectivity

28
Ontology zoo for liquids
Contained Stuff
Piece of Stuff
Parasitic on
Bounded Stuff
Molecular Collection
Plug
29
Qualitative Mechanics

• Provides axioms for interaction of solids and
  surfaces
• Qualitative vector representation
• Assumes visual parsing of 2D shapes
• Center of gravity, center of rotation critical
• Surfaces broken at corners, points of contact

not Ok
30
Qualitative Mechanics

• Qualitative angles and vectors
• How forces interact with surfaces, constraints on
  motion
• Laminar flow fields

31
Engineering Thermodynamics

• Basics of heat, mass flow
• In-depth KB for supporting design, analysis
• KB for supporting textbook problem solving
• Includes control knowledge, analysis of roles for
  equations in problem-solving
• Pisans Ph.D. thesis solves most problems in
  typical engineering thermodynamics textbooks
• Teleological representations for thermodynamic
  cycles
• No chemical interactions

32
Sketching for knowledge acquisition

• sKEA Sketch-based Knowledge Entry Associate
• Built on top of nuSketch significant extensions
• Rich perceptual processing of digital ink
• Will support visual analogies and analogies using
  diagrams Speech I/O and specialized Dialogue
  Manager
• Can be used standalone or as component in larger
  system

• Ink Interpretation is key problem
• Collaborating with PARC vision group (Eric Saund,
  Jim Mahoney) for perceptual processing
• Developing domain theories that bridge perception
  and conceptual knowledge

33
Tools we will use in sketching
GeoRep provides high-level visual processing
for spatial reasoning
Provides bridge between the visual and the
conceptual
Provides equivalent of Ullmans universal visual
routines
MAGI models processes of symmetry and regularity
detection
GeoRep
MAGI

• Uses variation of structure-mapping laws to
  detect self-similarity
• Same software operates on visual, functional,
  conceptual, and mathematical representations
• Makes predictions consistent with human
  perceptual data

34
Visual Symbology domain theory

• Represents conventions for displaying conceptual
  information graphically
• Includes
• What visual entities often depict
• boxes, blobs, arrows, etc.
• Conventional views
• side/top/bottom, 2D/3D, abstract/physical,
  cutaways
• Conceptual interpretation of visual relations
• proximity/alignment indicating grouping, inside
  indicating containment or partonomy,touching
  indicating contact

State (after)
State (before)
Process
Binary Relationship
Arg2
Arg1
35
(No Transcript)
36
(No Transcript)
37
(No Transcript)
38
(No Transcript)
39
Approach Blob Semantics

• Shape, object recognition irrelevant
• Linguistic input provides labels and type
  information
• Arrows may be exception wrt recognition
• Spatial relationships between blobs is central
• Topology
• Touching or not, inside, overlap
• Proximity
• What arrows refer to
• Orientation
• Multiple reference frames
• Quadrant plus relative inclination
• Conceptual interpretation of spatial
  relationships
• Hypothesis Sufficient for
• Process diagrams
• Action sequences

40
Issues in blob semantics

• Adequacy of visual primitives
• User-defined diagram types
• Kinds of objects participating
• Conceptual interpretation of spatial
  relationships
• Arrow recognition
• Support different types of arrows?

41
Perceptual Ink Processor

• Will use next-generation reasoner for conceptual
  side of reasoning
• For visual reasoning, draw on three sources
• Our work on GeoRep and Magi (Fergusons Ph.D.
  work)
• Eric Saunds scale-space blackboard (Xerox PARC)
• Stroke-based visual routines
• Should provide robust proximity detection
• Jim Mahoneys MAPS ideas (Xerox PARC)
• Bitmap-based visual routines
• Should provide robust qualitative descriptions of
  free space

42
Example eTDG10 Map
43
SR Regions for eTDG10 map (hand-sketched)
44
Hard constraints from SR regions
45
Voronoi diagram for free space
46
Junctions provide seeds for open regions
47
Regions extended from seeds
48
Edges outside regions form corridor seeds
49
Combined results for eTDG10
50
Speech or not?

• Most multimodal systems use speech recognition
• Hands, eyes busy with diagram
• Potential problems with speech for RKF
• Novel nouns, phrases could lead to distracting
  speech training during knowledge entry
• How open-ended is grammar? Necessity versus user
  expectations
• Trying both in RKF
• NLP support with speech
• LKB parser (Stanford CSLI)
• Experiment Speechless multimodal interface
• Type (or write) label for instance, collection
• Draw button, as in nuSketch COA Creator
• Sacrifice fluidity for expressiveness

51
Intermediate goal 1st generation sKEA

• sKEA sketching Knowledge Entry Associate
• nuSketch application for knowledge formation
• Initial targets
• Process diagrams
• Action sequences
• Additional task Scenario setup for testing
  everyday physical semantics
• Draw examples from biomechanics
