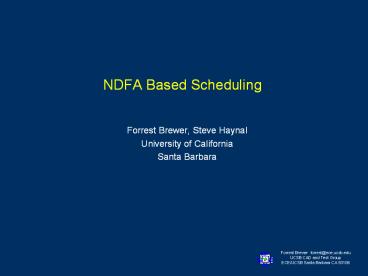

NDFA Based Scheduling

• Forrest Brewer, Steve Haynal
• University of California
• Santa Barbara

2
Scheduling is Behavioral Synthesis

• Exploits fundamental freedom -- ordering and
  binding of operations, operands
• Subdivided into DFG transformation, resource
  allocation, time-scheduling, operation binding,
  memory binding, communication binding, resource
  modeling, reallocation...
• Complexity of tasks requires top-down flow -- yet
  evaluations/constraints are bottom-up
• Behavioral Synthesis difficult to use!
• Seemingly trivial changes cause vast output
  changes
• Design tradeoffs tied to a particular point
  language (VHDL, Verilog, Silage, Esterel...)
• No direct control of implementation
• No direct control of binding, mapping
• No distinction between problem statement and
  constraints
• No canonical representation of design space
• Fundamental problem covers enormous scope
• Universality issues in specification
• How to capture design mapping knowledge?
• How to create verifiable design representation
  without canonical model?

• Our viewpoint -- wrong problem

3
Simpler Problem

• Assume Designer creates the design
• Support incremental refinement of design at all
  levels of representation
• Support incremental design synthesis when
  possible
• Provide well defined hierarchy on which to place
  constraints, trial implementations ...
• Provide mechanism for subsystem abstraction,
  modeling and evaluation at each level
• How to do this?
• Drop representation distinction between logic,
  module, and sub-system levels
• Drop potential for universality in internal
  representations
• Create mechanism for automatic design abstraction
  within designer's design decomposition
• Use efficient representation of fundamental model
• Provide feedback to designer for evaluating both
  the design itself and the representation
• Where do we start?
• Interface Protocols are key complexity growth
  problem
• Designer constructs system model with abstract
  protocols, required data-flows, possible maps
• Generalize scheduling to provide possible
  sequencing of sub-systems into systems meeting
  external protocol constraints (models)

4
Protocol Constrained Scheduling

• Problem Conventional scheduling algorithms
  cannot accommodate the typical complex sequencing
  and timing constraints of modern design.
• Three Problems Specification, Scheduling, and
  Problem Scale
• Specification How to specify the required timing
  in an concise, explicit way?
• Scheduling How to systematically exploit mapping
  freedom while meeting the timing requirements?
• Problem Scale Problems of interest to industry
  are enormously complex!
• Idea Protocol specification is amenable to NDFA
  modeling -- so create automata-based model to
  represent Control/Data-flow freedom gt All
  possible implementations exist as sequences of
  states of the joint automaton

5
Protocol Specification

• Sequencing complexity of digital system
  interfaces increasing
• Specification languages Verilog?, VHDL require
  implicit protocol specification
• Alternative specification via NDFA automata (e.g.
  PBS, Esterel, Custom point language)
• Representation is finite
• Synthesis can be very efficient -- can handle
  very complex designs
• Provides mechanism for time sequence
  specification relatively independent of data-flow
  control semantics
• Protocol CDFG semantics mapping abstractions
  make a complete model
• No ad-hoc mapping library (beyond control of
  designer)
• No convenient dependency binding assumptions (to
  be worked around by designer)
• No encrypting desired sequential FSM in higher
  level language!
• Designer specifies event sequences he wants
• System evaluates/synthesizes ensemble FSM

6
Design Representation

• Model System as hierarchy of design frames
• Frames have external protocol specification NDFA,
  CDFG, and allowed Mappings
• Frames contain instances of other frames
  abstractions (abstracted NDFA/CDFG model)
• Resource utilization and sharing restricted to
  within a design frame

Sub-frame Model
Control Data Flow Graph
Frame
External Protocol
7
Hierarchy of Refinement

• Exact protocol scheduling intractable for
  practical large problems
• Hierarchy of Refinement
• partition the problem into manageable
  abstractions
• hides lower level details
• allows systematic high-level pruning of designs
  before more detailed treatment
• Completed sub-frame designs can be abstracted to
  high level component models
• allows incremental design change/refinement at
  any level
• --provides mechanism for consistency verification

8
Protocol Scheduling Implementation

• Represent CDFG model as Causal (NDFA) Automaton
• Generalization of current scheduling model
• Models all valid data flows
• Models code hoisting, unrolling,
  transformations...
• Represent External Protocol as NDFA automaton
• Very general, efficient model
• Synchronous timing model (can be generalized--
  future work)
• Alternative behavior as NDFA alternatives
• CDFG maps I/O operations among sub-frames
• Sub-frames have interface protocols, abstracted
  CDFG semantics
• Construct ensemble automata model with all valid
  sequences of events meeting internal and external
  protocols and causal data-flow constraints
• Need only find complete sub-set of all possible
  states for solution

9
Scheduling Solution

• Every schedule is some subset of states of the
  ensemble automaton
• Must construct causal and complete set of states
• Exact solution strategies
• Construct all states up to resource bounds
• Depth-first search of states
• Heuristic search -- choose good path, complete
  schedule automatically
• Prune solution space
• Additional constraints or objectives -- technique
  works best when highly constrained
• Heuristic strategies
• Sub-set BDD representation of reachable states
• Incremental search (this is not verification!)
• Possible objectives
• Communication
• Temporary storage (memory)
• Performance
• Control complexity

10
DFA Model of Two Stage Pipe

• Input 1 indicates operands are supplied to the
  pipe
• Output 1 indicates operand is produced by the
  pipe

State
a
b
c
b
d
c
b
d
d
c
a
11
NDFA Protocol for Two Stage Pipe

• Inputs and outputs same as DFA model
• Some transitions produce no outputs

12
Operand Scheduling a CDFG on NDFA Protocol

• CDFG to Schedule
• Two stage NDFA protocol description for component
• Protocol alone is insufficient -- need internal
  data-flow requirements
• Mapping is trivial (in this case)
• Protocol CDFG is sufficient -- but also
  describes information not needed externally
• Solution Simplify scheduling solution of
  sub-frame to make abstracted model

13
Operand Schedule on NDFA Protocol

• Optimal one multiplier schedule (co-execution of
  protocol and causal automata)

14
Causal Automaton Formulation of Scheduling

• Scheduling Problem (V, E, C, R)
• vertex v eV is an operation
• edge (u,v) e E is a directed edge representing a
  data dependency
• hyper-edge vc,VTc,VFc groups a control
  operation and corresponding subsets of operations
• hyper-edge bound, (T m V) e R represents a
  resource bound applied to a subset of (mapped)
  operations
• The edge set is partitioned into a forest of
  forward edges and a subset of looping edges which
  point backward
• Scheduling solution is a complete, compatible set
  of deterministic sequences of vertices such that
  all dependencies are causal and all resource
  bounds are met at each state, and the set has
  sequences for each possible future value of the
  set of controls.
• In the following, we will discuss minimum latency
  and maximal throughput as objective functions.

15
Single-Cycle Operation Modeling Automata
1? 1
0?0
0?1
1? 0

• 0?0 Operation unscheduled and remains so

• 0?1 Operation scheduled next cycle

• 1?1 Operation scheduled and remains so

• 1?0 Operation scheduled but result lost

16
Scheduling Automata

• State represents current set of available
  operands and state of modeling protocol automata
• Constraints on transitions
• Representation Compact
• Product of Mapped Modeling automata for each
  resource protocol

17
Resource Bounds

• 0?1 indicates resource
• Resource bounds constrain simultaneous 0?1
  transitions
• Iterative constraint on CA

• ROBDD representation
• 2? bound? operations

One Resource
18
Dependency Implication

• All transitions in which j is active before
  all of its predecessors are known are removed
• BDD Complexity is O(predecessors
  operations)

19
Example NFA

• Assume 1 resource

• Transition relation induces graph

• Any path from all operations unknown to all known
  is a valid schedule

• Shortest paths are minimum latency schedules

20
All Minimum Latency Schedules

• Symbolic reachable state analysis

• Newly reached states are saved each cycle

• Backward pruning preserves transitions used in
  all shortest paths

21
All Minimum Latency Schedules

• Symbolic reachable state analysis

• Newly reached states are saved each cycle

• Backward pruning preserves transitions used in
  all shortest paths

22
All Minimum Latency Schedules

• Symbolic reachable state analysis

• Newly reached states are saved each cycle

• Backward pruning preserves transitions used in
  all shortest paths

23
All Minimum Latency Schedules

• Symbolic reachable state analysis

• Newly reached states are saved each cycle

• Backward pruning preserves transitions used in
  all shortest paths

24
All Minimum Latency Schedules

• Described construction is Exact --
• Suitable heuristics are available and since they
  can use arbitrary subsets of the potential
  schedules are powerful

25
CDFG Representation
26
CDFGs Multiple Control Paths

• Guard automata differentiate control paths
• Before control operation scheduled

Control value unknown

• After control operation scheduled

• Guards are implemented as modified operation
  automata

27
CDFGs Multiple Control Paths

• All control paths form ensemble schedule
• Possibly 2c control paths to schedule
  (non-looping case)
• Dummy operation identifies when control path
  terminates
• Only one termination operation
• Ensemble schedule need not be causal!
• Need solution for each control path
  (Completeness)
• Need compatibility between paths whose control is
  not resolved (Causality)
• Solution validation algorithm
• Validation is a path to path property for all
  control paths in ensemble schedule
• Fixed Point Iteration

28
CDFG Example

• One green resource

• Shortest paths

• False termination

29
Validated CDFG Example

• Validation algorithm ensures control paths dont
  bifurcate before control value is known

30
Validated CDFG Example

• Validation algorithm ensures control paths dont
  bifurcate before control value is known
• Pruned for all shortest paths as before

31
Validation Algorithm

• Validation Proceeds on potential traces
• Re-traverse Automata, Dynamically Modifying
  Transition Relation based on current available
  states in each time step Allow guard computation
  only for states with matching histories if the
  guard is true or false.
• Iterate until fixed point on all paths
• Apply the following non-linear filter to each
  transition

32
Selected CDFG Benchmarks
33
Large Benchmarks
957
34
Comparison of CPU Times
35
Required CPU Seconds
36
Construction for Looping DFGs

• Use trick 0/1 representation of the MA could be
  interpreted as 2 mutually exclusive operand
  productions
• Schedule from know -gt known -gt known where each
  0-gt1 or 1-gt0 transition requires a resource.
• Since dependencies are on operands, add new
  dependencies in 1 -gt0 sense as well
• Idea is to remove all transitions which do not
  have complete set of known or known predecessors
  for respective sense of operation
• So -- get looping DFG automata as nearly same
  automata as before
• preserve efficient representation
• Selection of Minimal Latency solutions is more
  difficult

37
Loop construction resources

• Resources we now count both 0 -gt 1 and 1 -gt0
  transition as requiring a resource.
• Use Tuple BDD construction at most k bits of n
  BDD
• Despite exponential number of product terms, BDD
  complexity O(bound V)

38
Example CA

• State order (v1,v2,v3,v4)
• Path 0,9,C,7,2,9,C,7,2,is a valid schedule.
• By construction, only 1 instance of any operator
  can occur in a state.

39
Strategy to Find Maximal Throughput

• CA automata construction simple
• How to find closed subset of paths guaranteeing
  optimal throughput
• Could start from known initial state and prune
  slow paths as before-- but this is not optimal!
• Instead find all reachable states (without
  resource bounds)
• Use state set to prune unreachable transitions
  from CA
• Choose operator at random to be pinned (marked)
• Propagate all states with chosen operator until
  it appears again in same sense
• Verify closure of constructed paths by Fixed
  Point iteration
• If set is empty -- add one clock to latency and
  verify again
• Result is maximal closed set of paths for which
  optimal throughput is guaranteed

40
Maximal Throughput Example

• DFG above has closed 3-cycle solution (2
  resources)
• However- average latency is 2.5-cycles
• (a,d) (b,e) (a,c) (b,d) (c,e) (a,d)
• Requires 5 states to implement optimal throughput
  instance
• In general, it is possible that a k-cycle closed
  solution may exist, even if no k-state solution
  can be found
• Current implementation finds all possible k-cycle
  solutions

41
EWF Looping Benchmarks
268
42
Synthetic Benchmarks

• Over 100 synthetic benchmarks tested
• Sizes 50 operator, 100 operator, randomly
  assigned dependency chains, resources
• 32 had no causal schedule
• 35 had all maximum throughput schedules found in
  15 minute timeout (1 minute Reachable States, 14
  minute Fixed Point)
• 33 Timed Out
• Analysis of timeout cases most included
  disconnected independent sub-graphs
• Trial partitioning of the Transition Relation
  looks very promising on these cases (time/space
  reduction nearly quadratic!)

43
Synthetic Loop Benchmarks
44
Schedule Exploration Loops

• Idea Use partial symbolic traversal to find
  states bounding minimal latency paths
• Latency-- Identify all paths completing cycle in
  given number of steps
• Repeatability-- Fixed Point Algorithm to
  eliminate all paths which cannot repeat in given
  latency
• Validation-- Ensure all possible control paths
  are present for each remaining path
• Optimization-- Selection of Performance Objective

45
Kernel Execution Sequence Set

• Path from Loop cut to first repeating states
• Represents candidates for loop kernel

Loop Kernel
46
Repeatable Kernel Execution Sequence Set

• Fixed-point prunes non-repeating states
• Only repeatable loop kernels remain
• Paths not all same length
• Average latency lt shortest Repeating Kernel

Loop Cut
Repeatable Loop Kernel
47
Validation I

• Schedule Consists of bundle of compatible paths
  for each possible future
• Not Feasible to identify all schedules
• Instead, eliminate all states which do not belong
  to some ensemble schedule
• Fragile since any further pruning requires
  re-validation
• Double fixed point

48
Validation II

• Path Divergence -- Control Behavior
• Ensure each path is part of some complete set for
  each control outcome
• Ensure that each set is Causal

49
Loop Cuts and Kernels
Loop Cut

• Method Covers all Conventional Loop
  Transformations
• Sequential Loop
• Loop winding
• Loop Pielining

Loop Kernel
Loop Cut
Loop Kernel
Loop Cut
Loop Kernel
50
Results

• Conventional Scheduling
• 100-500x speedup over ILP
• Control Scheduling Complexity typically pseudo
  polynomial in number of branching variables
• Cyclic Scheudling
• Reduced preamble complexity
• Capacity 200-500 operands in exact
  implementation
• General Control Dominated Scheduling
• Implicit formulation of all forms of CDFG
  transformation
• Exact Solutions with Millions of Control paths
• Protocol Constrained Scheduling
• Exact for small instances needs sensible
  pruning of domain

51
MIPS Model

• SimpleScalar (MIPS IV superset) Model
• Trace Probabilities from MediaBench
• Hierarchical Model
• Collection of Instruction Tasks in Flight
• Each Instruction Task is Complete Behavioral
  Model of Instruction Execution, including all
  instruction types, hazards, controls, and
  Contention for Physical Resources
• Additional Sequential Protocols for Memory
  Subsystem, both Fetch and Load/Store

52
Processor Composition

• Ordered Fetch/Commit
• 3 Simultaneous Instruction Executions
• Sequencing of Instructions separated from
  pipeline
• Out of Order Prefetch or Commit can be Modeled

53
PC update Speculative Fetch

• Speculate Joins to allow early prefetch and
  address computation

54
MIPS Transaction Dependencies
55
MIPS Results Constraints

• Scenario A
• 1/2 cycle tasks, Single Bypass
• 2 cycle Pipelined Double Word Memory Fetch
• 2 cycle Pipelined Multiply
• 2R/1W Register File, 2 ALU's, 2 port Memory
• Scenario B
• 2 cycle Memory Read/Write/Fetch
• 2R -1R/1W Register File, 1 ALU, 1 port Memory
• Cache 1 cycle hit/3 cycle miss, Deferred Pipeline

56
MIPS Results Instruction Mix

• Media Bench Tuning
• 88 reg-reg, reg-imm, br taken, load single
• 80 branch taken
• 35 Single Bypass Hazard
• 1 Multiple Bypass (Stall in model)?
• Two Sets of Priority Mixes
• Mix1 favors (reg-reg, reg-imm, br-taken)?
• Mix 2 favors (load-sw, br-taken)?

57
MIPS Results Mix 1

• Mix 1 favors reg-reg, reg-imm, and br-taken

58
MIPS Results Mix 2

• Mix 2 Favors loads, reg-reg w. branches

59
Cache and I/O Protocol

• For 3 instructions in flight gt 542,000 control
  paths!
• Schedules still exact every optimal sequence is
  constructed

60
Conclusions

• NFA protocol modeling shown to be effective
  representation for generalized scheduling problem
• Efficiency of algorithms so far is comparable or
  superior to any known exact technique
• Potential for powerful heuristics based on
  sub-set representation
• First exact solutions for a wide variety of
  generalized scheduling problems
