Title: The%20Transactional%20Interpretation%20of%20Quantum%20Mechanics


1

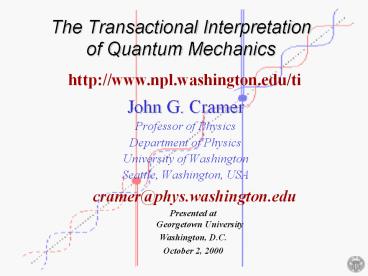

The Transactional Interpretationof Quantum
Mechanics
http//www.npl.washington.edu/ti
  • John G. Cramer
  • Professor of Physics
  • Department of Physics
  • University of Washington
  • Seattle, Washington, USA

cramer_at_phys.washington.edu
Presented atGeorgetown University Washington,
D.C. October 2, 2000
2
Recent Research at RHIC
g 60 b 0.99986
g 60 b -0.99986
  • RHIC Au Au
  • collision at
  • 130 Gev/nucleon
  • measured with
  • the STAR
  • time projection
  • Chamber on
  • June 24, 2000.
  • Colllisions may
  • resemble the 1st microsecond of the Big Bang.

3
Outline
  • What is Quantum Mechanics?
  • What is an Interpretation?
  • Example F m a
  • Listening to the formalism
  • Lessons from EM
  • Maxwells Wave Equation
  • Wheeler-Feynman Electrodynamics Advanced Waves
  • The Transactional Interpretation of QM
  • The Logic of the Transactional Interpretation
  • The Quantum Transactional Model
  • Paradoxes
  • The Quantum Bubble
  • Schrödingers Cat
  • Wheelers Delayed Choice
  • The Einstein-Podolsky-Rosen Paradox
  • Application of TI to Quantum Experiments
  • Conclusion

4
Theories andInterpretations
5
What is Quantum Mechanics?
  • Quantum mechanics is a theory that is ourcurrent
    standard model for describingthe behavior of
    matter and energy at thesmallest scales
    (photons, atoms, nuclei,quarks, gluons, leptons,
    ).
  • Like all theories, it consists of amathematical
    formalism and aninterpretation of that
    formalism.
  • However, while the formalism has beenaccepted
    and used for 75 years, itsinterpretation remains
    a matter of controversy anddebate, and there are
    several rival interpretationson the market.

6
Example of an Interpretation Newtons 2nd Law
  • Formalism F m a

7
Example of an Interpretation Newtons 2nd Law
  • Formalism F m a
  • Interpretation The vector force on a bodyis
    proportional to the product of its scalar mass,
    which is positive, and the 2nd time derivative
    of its vector position.

8
Example of an Interpretation Newtons 2nd Law
  • Formalism F m a
  • Interpretation The vector force on a bodyis
    proportional to the product of its scalar mass,
    which is positive, and the 2nd time derivative
    of its vector position.
  • What this Interpretation does
  • It relates the formalism to physical observables
  • It avoids paradoxes that arise when mlt0.
  • It insures that Fa.

9
What is an Interpretation?
  • The interpretation of a formalism should
  • Provide links between the mathematical symbols of
    the formalism and elements of the physical world

10
What is an Interpretation?
  • The interpretation of a formalism should
  • Provide links between the mathematical symbols of
    the formalism and elements of the physical world
  • Neutralize the paradoxes all of them

11
What is an Interpretation?
  • The interpretation of a formalism should
  • Provide links between the mathematical symbols of
    the formalism and elements of the physical world
  • Neutralize the paradoxes all of them
  • Provide tools for visualization or for
    speculation and extension.

12
What is an Interpretation?
  • The interpretation of a formalism should
  • Provide links between the mathematical symbols of
    the formalism and elements of the physical world
  • Neutralize the paradoxes all of them
  • Provide tools for visualization or for
    speculation and extension.
  • It should not make its own testable
    predictions!
  • It should not have its own sub-formalism!

13
Listening to the Formalism of Quantum Mechanics
  • Consider a quantum matrix element
  • ltSgt òv y S y dr3 ltf S igt
  • a y - y sandwich. What does this suggest?

14
Listening to the Formalism of Quantum Mechanics
  • Consider a quantum matrix element
  • ltSgt òv y S y dr3 ltf S igt
  • a y - y sandwich. What does this suggest?

Hint The complex conjugation in y is the
Wigner operator for time reversal.
15
Listening to the Formalism of Quantum Mechanics
  • Consider a quantum matrix element
  • ltSgt òv y S y dr3 ltf S igt
  • a y - y sandwich. What does this suggest?

Hint The complex conjugation in y is the
Wigner operator for time reversal. If y is a
retarded wave, then y is an advanced wave.
16
Listening to the Formalism of Quantum Mechanics
  • Consider a quantum matrix element
  • ltSgt òv y S y dr3 ltf S igt
  • a y - y sandwich. What does this suggest?

Hint The complex conjugation in y is the
Wigner operator for time reversal. If y is a
retarded wave, then y is an advanced wave. If
y A ei(kr-wt) then y A ei(-krwt)
(retarded) (advanced)
17
Lessons fromClassical EM
18
Maxwells Electromagnetic Wave Equation
  • Ñ2 Fi 1/c2 2Fi /t2
  • This is a 2nd order differential equation, which
    has two time solutions, retarded and advanced.

19
Maxwells Electromagnetic Wave Equation
  • Ñ2 Fi 1/c2 2Fi /t2
  • This is a 2nd order differential equation, which
    has two time solutions, retarded and advanced.

Conventional Approach Choose only the retarded
solution(a causality boundary condition).
20
Maxwells Electromagnetic Wave Equation
  • Ñ2 Fi 1/c2 2Fi /t2
  • This is a 2nd order differential equation, which
    has two time solutions, retarded and advanced.

Conventional Approach Choose only the retarded
solution(a causality boundary condition).
Wheeler-Feynman Approach Use ½ retarded and ½
advanced(time symmetry).
21
Lessons fromWheeler-FeynmanAbsorber Theory
22
A Classical Wheeler-Feynman Electromagnetic
Transaction
  • The emitter sends retarded and advanced waves.
    It offersto transfer energy.

23
A Classical Wheeler-Feynman Electromagnetic
Transaction
  • The emitter sends retarded and advanced waves.
    It offersto transfer energy.
  • The absorber responds with an advanced wave
    thatconfirms the transaction.

24
A Classical Wheeler-Feynman Electromagnetic
Transaction
  • The emitter sends retarded and advanced waves.
    It offersto transfer energy.
  • The absorber responds with an advanced wave
    thatconfirms the transaction.
  • The loose ends cancel and disappear, and energy
    is transferred.

25
The TransactionalInterpretation ofQuantum
Mechanics
26
The Logic of theTransactional Interpretation
  1. Interpret Maxwells waveequation as a
    relativisticquantum wave equation(for mrest
    0).

27
The Logic of theTransactional Interpretation
  1. Interpret Maxwells waveequation as a
    relativisticquantum wave equation(for mrest
    0).
  2. Interpret the relativisticKlein-Gordon and
    Diracequations (for mrest gt 0)

28
The Logic of theTransactional Interpretation
  1. Interpret Maxwells waveequation as a
    relativisticquantum wave equation(for mrest
    0).
  2. Interpret the relativisticKlein-Gordon and
    Diracequations (for mrest gt 0)
  3. Interpret the Schrödinger equation as a
    non-relativistic reduction of the K-G and
    Diracequations (for mrest gt 0).

29
The QuantumTransactional Model
  • Step 1 The emitter sendsout an offer wave Y.

30
The QuantumTransactional Model
  • Step 1 The emitter sendsout an offer wave Y.

Step 2 The absorber responds with a
confirmation wave Y.
31
The QuantumTransactional Model
  • Step 1 The emitter sendsout an offer wave Y.

Step 2 The absorber responds with a
confirmation wave Y.
Step 3 The process repeats until energy and
momentum is transferred and the transaction is
completed (wave function collapse).
32
The Transactional Interpretation and
Wave-Particle Duality
  • The completed transactionprojects out only that
    partof the offer wave that had been reinforced
    by theconfirmation wave.
  • Therefore, the transactionis, in effect, a
    projectionoperator.
  • This explains wave-particleduality.

33
The Transactional Interpretation and the Born
Probability Law
  • Starting from EM and the Wheeler-Feynman
    approach, the E-fieldecho that the emitter
    receivesfrom the absorber is the productof the
    retarded-wave E-field atthe absorber and the
    advanced-wave E-field at the emitter.

34
The Transactional Interpretation and the Born
Probability Law
  • Starting from EM and the Wheeler-Feynman
    approach, the E-fieldecho that the emitter
    receivesfrom the absorber is the productof the
    retarded-wave E-field atthe absorber and the
    advanced-wave E-field at the emitter.
  • Translating this to quantummechanical terms, the
    echothat the emitter receives fromeach
    potential absorber is yy,leading to the Born
    Probability Law.

y
yy
35
The Role of the Observer inthe Transactional
Interpretation
  • In the Copenhagen interpretation,observers have
    a special role as the collapsers of wave
    functions. This leads to problems, e.g., in
    quantum cosmology where no observers are present.

36
The Role of the Observer inthe Transactional
Interpretation
  • In the Copenhagen interpretation,observers have
    a special role as the collapsers of wave
    functions. This leads to problems, e.g., in
    quantum cosmology where no observers are present.
  • In the transactional interpretation, transactions
    involving an observer are the same as any other
    transactions.

37
The Role of the Observer inthe Transactional
Interpretation
  • In the Copenhagen interpretation,observers have
    a special role as the collapsers of wave
    functions. This leads to problems, e.g., in
    quantum cosmology where no observers are present.
  • In the transactional interpretation, transactions
    involving an observer are the same as any other
    transactions.
  • Thus, the observer-centric aspects of the
    Copenhagen interpretation are avoided.

38
QuantumParadoxes
39
Paradox 1The Quantum Bubble
Situation A photon is emitted from an
isotropic source.
40
Paradox 1The Quantum Bubble
Situation A photon is emitted from an
isotropic source.
  • Question (Albert Einstein)
  • If a photon is detected at Detector A, how does
    the photons wave function at the location of
    Detectors B C know that it should vanish?

41
Paradox 1The Quantum Bubble
Situation A photon is emitted from an
isotropic source.
  • Question (Albert Einstein)
  • If a photon is detected at Detector A, how does
    the photons wave function at the location of
    Detectors B C know that it should vanish?

42
Paradox 1 Application of the Transactional
Interpretationto the Quantum Bubble
  • A transaction developsbetween the source
    anddetector A, transferring the energy there and
    blocking any similar transfer to the other
    potential detectors, due to the 1-photon
    boundary condition.
  • The transactional handshakes acts nonlocally to
    answer Einsteins question.
  • This is an extension of Pilot-Wave idea of
    deBroglie.

43
Paradox 2Schrödingers Cat
  • Experiment A cat isplaced in a sealed
    boxcontaining a devicethat has a 50
    probabilityof killing the cat.

44
Paradox 2Schrödingers Cat
  • Experiment A cat isplaced in a sealed
    boxcontaining a devicethat has a 50
    probabilityof killing the cat.
  • Question 1 When does thewave function
    collapse?What is the wave functionof the cat
    just before thebox is opened? (Y ½ dead ½
    alive?)

45
Paradox 2Schrödingers Cat
  • Experiment A cat isplaced in a sealed
    boxcontaining a devicethat has a 50
    probabilityof killing the cat.
  • Question 1 When does thewave function
    collapse?What is the wave functionof the cat
    just before thebox is opened? (Y ½ dead ½
    alive?)

Question 2 If we observe Schrödinger, what is
his wavefunction during the experiment? When
does it collapse?
46
Paradox 2 Application of the Transactional
Interpretationto Schrödingers Cat
  • A transaction eitherdevelops between thesource
    and the detector,or else it does not. Ifit
    does, the transactionforms nonlocally, notat
    some particular time.
  • Therefore, asking whenthe wave
    functioncollapsed was asking the wrong question.

47
Paradox 3Wheelers Delayed Choice
  • A source emits one photon. Its wave function
    passes through two slits, producing interference.

48
Paradox 3Wheelers Delayed Choice
  • A source emits one photon. Its wave function
    passes through two slits, producing interference.
  • The observer can choose to either(a) measure
    the interference pattern (wavelength) at E

49
Paradox 3Wheelers Delayed Choice
  • A source emits one photon. Its wave function
    passes through two slits, producing interference.
  • The observer can choose to either(a) measure
    the interference pattern (wavelength) at E or(b)
    measure the slit position with telescopes T1 and
    T2.

50
Paradox 3Wheelers Delayed Choice
  • A source emits one photon. Its wave function
    passes through two slits, producing interference.
  • The observer can choose to either(a) measure
    the interference pattern (wavelength) at E or(b)
    measure the slit position with telescopes T1 and
    T2.
  • He decides which to do after the photon has
    passed the slits.

51
Paradox 3 Application of the Transactional
Interpretation
  • If plate E is up, atransaction forms betweenE
    and the source S andinvolves waves
    passingthrough both slits.

52
Paradox 3 Application of the Transactional
Interpretation
  • If plate E is up, atransaction forms betweenE
    and the source S andinvolves waves
    passingthrough both slits.
  • If the plate E is down, atransaction forms
    betweentelescope T1 or T2 and thesource S, and
    involves wavespassing through only one slit.

53
Paradox 3 Application of the Transactional
Interpretation
  • If plate E is up, atransaction forms betweenE
    and the source S.
  • If the plate E is down, atransaction forms
    betweenone of the telescopes(T1, T2) and the
    source S.
  • In either case, when thedecision was made
    isirrelevant.

54
Paradox 4 EPR ExperimentsMalus and Furry
  • An EPR Experiment measures the correlated
    polarizations of a pairof entangled photons,
    obeyingMalus Law P(qrel) Cos2qrel

55
Paradox 4 EPR ExperimentsMalus and Furry
  • An EPR Experiment measures the correlated
    polarizations of a pairof entangled photons,
    obeyingMalus Law P(qrel) Cos2qrel
  • The measurement gives the same resultas if both
    filters were in the same arm.

56
Paradox 4 EPR ExperimentsMalus and Furry
  • An EPR Experiment measures the correlated
    polarizations of a pairof entangled photons,
    obeyingMalus Law P(qrel) Cos2qrel
  • The measurement gives the same resultas if both
    filters were in the same arm.
  • Furry proposed to place both photons inthe same
    random polarization state.This gives a different
    and weaker correlation.

57
Paradox 4 Application of the Transactional
Interpretation to EPR
  • An EPR experiment requires a consistent double
    advanced-retarded handshake between the emitter
    and the two detectors.

58
Paradox 4 Application of the Transactional
Interpretation to EPR
  • An EPR experiment requires aconsistent double
    advanced-retarded handshake betweenthe emitter
    and the twodetectors.
  • The lines of communicationare not spacelike
    butnegative and positivetimelike. While
    spacelikecommunication hasrelativity problems,
    timelike communication does not.

59
Faster Than Light?
60
Is FTL CommunicationPossible with EPR
Nonlocality?
  • Question Can the choice of measurementsat D1
    telegraph information as themeasurement outcome
    at D2?

61
Is FTL CommunicationPossible with EPR
Nonlocality?
  • Question Can the choice of measurementsat D1
    telegraph information as themeasurement outcome
    at D2?
  • Answer No! Operators for measurementsD1 and D2
    commute. D1, D20. Choiceof measurements at
    D1 has no observableconsequences at D2.
    (Eberhards Theorem)

62
Is FTL CommunicationPossible with EPR
Nonlocality?
  • Question Can the choice of measurementsat D1
    telegraph information as themeasurement outcome
    at D2?
  • Answer No! Operators for measurementsD1 and D2
    commute. D1, D20. Choiceof measurements at
    D1 has no observableconsequences at D2.
    (Eberhards Theorem)
  • Levels of EPR Communication
  • Enforce conservation laws (Yes)

63
Is FTL CommunicationPossible with EPR
Nonlocality?
  • Question Can the choice of measurementsat D1
    telegraph information as themeasurement outcome
    at D2?
  • Answer No! Operators for measurementsD1 and D2
    commute. D1, D20. Choiceof measurements at
    D1 has no observableconsequences at D2.
    (Eberhards Theorem)
  • Levels of EPR Communication
  • Enforce conservation laws (Yes)
  • Talk observer-to-observer (No!) Unless
    nonlinear QM?!)

64
Conclusions (Part 1)
  • The Transactional Interpretation isvisible in
    the quantum formalism
  • It involves fewer independentassumptions than
    its alternatives.
  • It solves the quantum paradoxesall of them.
  • It explains wave-function collapse, wave-particle
    duality, and nonlocality.
  • ERP communication FTL is not possible!

65
ApplicationAn Interaction-FreeMeasurement
66
Elitzur-VaidmannInteraction-Free Measurements
  • Suppose you are given a set of photon-activatedbo
    mbs, which will explode when a singlephoton
    touches their optically sensitive triggers.

67
Elitzur-VaidmannInteraction-Free Measurements
  • Suppose you are given a set of photon-activatedbo
    mbs, which will explode when a singlephoton
    touches their optically sensitive trigger.
  • However, some fraction of the bombs are duds
    whichwill freely pass an incident photon without
    exploding.

68
Elitzur-VaidmannInteraction-Free Measurements
  • Suppose you are given a set of photon-activatedbo
    mbs, which will explode when a singlephoton
    touches their optically sensitive triggers.
  • However, some fraction of the bombs are duds
    which will freely pass an incident photon without
    exploding.
  • Your assignment is to sort the bombs into live
    and dud categories. How can you do this
    without exploding all the live bombs?

69
Elitzur-VaidmannInteraction-Free Measurements
  • Suppose you are given a set of photon-activatedbo
    mbs, which will explode when a singlephoton
    touches their optically sensitive trigger.
  • However, some fraction of the bombs are duds
    whichwill freely pass an incident photon without
    exploding.
  • Your assignment is to sort the bombs into live
    and dud categories. How can you do this
    without exploding allthe live bombs?
  • Classically, the task is impossible. All live
    bombs explode!

70
Elitzur-VaidmannInteraction-Free Measurements
  • Suppose you are given a set of photon-activatedbo
    mbs, which will explode when a singlephoton
    touches their optically sensitive triggers.
  • However, some fraction of the bombs are duds
    which will freely pass an incident photon without
    exploding.
  • Your assignment is to sort the bombs into live
    and dud categories. How can you do this
    without exploding all the live bombs?
  • Classically, the task is impossible. All live
    bombs explode!
  • However, using quantum mechanics, you can do it!

71
The Mach-Zender Interferometer
  • A Mach-Zender intereferometersplits a light beam
    at S1 intotwo paths, A and B, havingequal
    lengths, and recombinesthe beams at S2. All the
    lightgoes to detector D1 because the beams
    interfere destructively at detector D2.

72
The Mach-Zender Interferometer
  • A Mach-Zender intereferometersplits a light beam
    at S1 intotwo paths, A and B, havingequal
    lengths, and recombinesthe beams at S2. All the
    lightgoes to detector D1 because the beams
    interfere destructively at detector D2.

D1 LS1rArS2tD1 and LS1tBrS2rD1 gt in
phase
73
The Mach-Zender Interferometer
  • A Mach-Zender intereferometersplits a light beam
    at S1 intotwo paths, A and B, havingequal
    lengths, and recombinesthe beams at S2. All the
    lightgoes to detector D1 because the beams
    interfere destructively at detector D2.

D1 LS1rArS2tD1 and LS1tBrS2rD1 gt in
phase D2 LS1rArS2rD2 and LS1tBrS2tD2
gt out of phase
74
A M-Z Inteferometer withan Opaque Object in Beam
A
  • If an opaque object is placed inbeam A, the
    light on path Bgoes equally to detectors D1and
    D2.

75
A M-Z Inteferometer withan Opaque Object in Beam
A
  • If an opaque object is placed inbeam A, the
    light on path Bgoes equally to detectors D1and
    D2.
  • This is because there is now no interference, and
    splitter S2 divides the incident light equally
    between the two detector paths.

76
A M-Z Inteferometer withan Opaque Object in Beam
A
  • If an opaque object is placed inbeam A, the
    light on path Bgoes equally to detectors D1and
    D2.
  • This is because there is now no interference, and
    splitter S2 divides the incident light equally
    between the two detector paths.
  • Therefore, detection of a photon at D2 (or an
    explosion) signals that a bomb has been placed in
    path A.

77
How to Sort the Bombs
  • Send in a photon with thebomb in A. If it is a
    dud,the photon will alwaysgo to D1. If it is a
    livebomb, ½ of the time thebomb will explode, ¼
    ofthe time it will go to D1 and ¼ of the time to
    D2.

78
How to Sort the Bombs
  • Send in a photon with thebomb in A. If it is a
    dud,the photon will alwaysgo to D1. If it is a
    livebomb, ½ of the time thebomb will explode, ¼
    ofthe time it will go to D1 and ¼ of the time to
    D2.
  • Therefore, on each D1 signal, send in another
    photon.On a D2 signal, stop, you have a live
    bomb!After 10 or so D1 signals, stop, you have a
    dud bomb! By this process, you will find
    unexploded 1/3 of the live bombs and will explode
    2/3 of the live bombs.

79
Quantum Knowledge
  • Thus, we have used quantummechanics to gain a
    kind ofknowledge (i.e., whichunexploded bombs
    are live)that is not accessible to us
    classically.

or
80
Quantum Knowledge
  • Thus, we have used quantummechanics to gain a
    kind ofknowledge (i.e., whichunexploded bombs
    are live)that is not accessible to us
    classically.
  • Further, we have detected the presence of an
    object (the live bomb), without a single photon
    having interacted with that object. Only the
    possibility of an interaction was required for
    the measurement.

or
81
Quantum Knowledge
  • Thus, we have used quantummechanics to gain a
    kind ofknowledge (i.e., whichunexploded bombs
    are live)that is not accessible to us
    classically.
  • Further, we have detected the presence of an
    object (the live bomb), without a single photon
    having interacted with that object. Only the
    possibility of an interaction was required for
    the measurement.
  • Q How can we understand this curious quantum
    behavior?

or
82
Quantum Knowledge
  • Thus, we have used quantummechanics to gain a
    kind ofknowledge (i.e., whichunexploded bombs
    are live)that is not accessible to us
    classically.
  • Further, we have detected the presence of an
    object (the live bomb), without a single photon
    having interacted with that object. Only the
    possibility of an interaction was required for
    the measurement.
  • Q How can we understand this curious quantum
    behavior?
  • A Apply the transactional interpretation.

or
83
Transactions for No Object
  • There are two allowed paths between the light
    source L and the detector D1.

84
Transactions for No Object
  • There are two allowed paths between the light
    source L and the detector D1. If the paths have
    equal lengths, the offer waves y to D1 will
    interfere constructively, while the offer y waves
    to D2 interfere destructively and cancel.

85
Transactions for No Object
  • There are two allowed paths between the light
    source L and the detector D1. If the paths have
    equal lengths, the offer waves y to D1 will
    interfere constructively, while the offer y waves
    to D2 interfere destructively and cancel. The
    confirmation waves y traveling back to L along
    both paths back to L will confirm the transaction.

86
Transactions with Bomb Present (1)
  • An offer wave from L on path A will reach the
    bomb. An offer wave on path B reaching S2 will
    split equally, reaching each detector with ½
    amplitude.

87
Transactions with Bomb Present (2)
  • The bomb will return a confirmation wave on path
    A. Detectors D1 and D2 will each return
    confirmation waves, both to L and to the back
    side of the bomb. The amplitudes of the
    confirmation waves at L will be ½ from the bomb
    and ¼ from each of the detectors, and a
    transaction will form based on those amplitudes.

88
Transactions with Bomb Present (3)
  • Therefore, when the bomb does not explode, it is
    nevertheless probed by virtual offer and
    confirmation waves from both sides.
  • The bomb must be capable of interaction with
    these waves, even though no interaction takes
    place (because no transaction forms).

89
ApplicationThe QuantumXeno Effect
90
Quantum Xeno Effect Improvementof
Interaction-Free Measurements
  • Kwait, et al, have devisedan improved scheme
    forinteraction-freemeasurements that canhave
    efficienciesapproaching 100.
  • Their trick is to use thequantum Xeno effect to
    probe the bomb with weak waves many times. The
    incident photon runs around anoptical racetrack
    N times, until it is deflected out.

91
Efficiency of the Xeno Interaction-Free
Measurements
  • If the object is present,the emerging photonat
    DH will be detectedwith a probabilityPD
    Cos2N(p/2N).
  • The photon will interactwith the object with
    aprobability PR 1 - PD 1 - Cos2N(p/2N).When
    N is large, PD 1 - (p/2)2/N and PR (p/2)2/N.
    Therefore, the interaction probability decreases
    as 1/N.

92
Offer Waveswith No Object in the V Beam
  • This shows an unfolding of the Xeno apparatus
    when no object is present in the V beam. In this
    case the photon wave is split into horizontal (H)
    and vertical (V) components, and then recombined.
    The successive R filters each rotate the plane
    of polarization by p/2N. The photon emerges with
    V polarization.

93
Offer Waveswith an Object in the V Beam
  • This shows an unfolding of the Xeno apparatus
    when an object is present in the V beam. In this
    case the photon wave is repratedly reset to
    horizontal (H) polarization. The photon emerges
    with H polarization.

94
Confirmation Waveswith an Object in the V Beam
  • This shows the confirmation waves for an
    unfolding of the Xeno apparatus when an object is
    present in the V beam. In this case the photon
    wave is reset to horizontal (H) polarization. The
    wave returns to the source L with theH
    polarization of the initial offer wave.

95
Conclusions (Part 2)
  • The Transactional Interpretation can account for
    the non-classical information provided by
    interaction-free-measurements.
  • The roles of the virtual offer and confirmation
    waves in probing theobject being measured
    lends supportto the transactional view of the
    process.
  • The examples shows the power of the
    interpretation in dealing with counter-intuitive
    quantum optics results.

96
Applications of the Transactional Interpretation
of Quantum Mechanics
http//www.npl.washington.edu/ti
  • John G. Cramer
  • Professor of Physics
  • Department of Physics
  • University of Washington
  • Seattle, Washington, USA

cramer_at_phys.washington.edu
Presented at theBreakthrough Physics Lecture
SeriesMarshall Space Flight Center Marshall,
Alabama August 17, 2000
Write a Comment
User Comments (0)
About PowerShow.com
