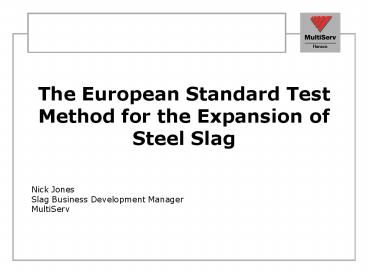

The European Standard Test Method for the
Expansion of Steel Slag

• Nick Jones
• Slag Business Development Manager
• MultiServ

2
Content

• Background
• Development of the test
• Test method
• Proposed amendments to the standard
• Development of a test for single sized aggregate

3
Background

• Need to evaluate expansion within steel slag
• Many countries developed own tests (e.g.
  Belgium, France, Canada, UK)
• Types
• Soak in water at elevated temperature
• Autoclave
• Breakdown of particles
• Variation in grading
• Measure increase in volume

4
Background

• Development of European Standards Late 80s Early
  90s
• Various national test methods reviewed
• German test method had backing of full scale road
  trial
• Adopted in 1998 in EN 1744-1 Tests for Chemical
  properties of aggregates part1 Chemical
  analysis

5
Background

• EN1744-1 comprises many chemical tests including
  these slag related ones
• Free Lime
• Iron disintegration BFS
• Di-calcium silicate unsoundness BFS
• Format of the standards segments the test
• Reagents
• Apparatus
• Method
• Calculations

6
Development of the test

• Developed by Fehs German research establishment
• Based on the unbound sub-base material used in
  Germany
• 22mm maximum size aggregate graded to the fuller
  parabola
• Laboratory tests correlated with performance of
  sub-base in the field in-situ tests.

7
Summary of test method

• Sample of slag graded to the Fuller Parabola
  (0/22mm)
• Compact into a steel cylindrical pot (with holes
  in the base-plate) to target voids content
• Heat sample to 1100C to stop condensation
• Force steam through the sample for
• 24 hours if MgO lt5
• 168hours if MgO gt5
• Measure increase in volume
• Test in duplicate average the two results

8
Test pot
9
Steam hole pattern
10
Compacting the slag
11
Compacting the slag
12
Adding glass beads
13
Placing the surcharge support
14
Final surcharge
15
Placing sample on test machine
16
Sample ready for test
17
Completed Sample
18
Multi-cell expansion machine
19
Level indicator sensors
20
Control interface
21
Control interface
22
Typical BOF Result
23
Typical EAF Result
24
Smorgon EAF slag
0.19
25
Acceptance Limits

• EN 130432002 Aggregates for bituminous mixtures
  and surface treatments for roads, airfields and
  other trafficked areas

Type of steel slag Expansion Percent by volume Category V
BOF slag/EAF slag lt 3.5 lt6.5 lt10 gt10 V3.5 V6.5 V10 VDeclared
No Requirement VNR
26
What does this test do?

• This tests places slag in a very hostile
  environment accelerating expansion through the
  hydration of free lime and magnesia
• It accentuates/exaggerates the potential
  expansion of the slag
• Generates sufficiently large numbers to enable
  ranking of acceptable/unacceptable slags
• Does not reflect levels expected in the field

27
Summary of proposed amendments

• Review procedure every 5 years
• Points of clarity
• Description of equipment improve and add
  diagrams
• Description of procedure surcharge weight was
  ambiguous
• Improve controls Rate of generation of steam
• Changes target voids content hard to hit
  through experience
• Add note on predictive software to reduce test
  time
• Add note these values are not representative of
  expansion levels in the field

28
Steam test for single size fractions

• MultiServ Holland
• Corus RDT Holland

29
Background

• Rationale for developing a single size fraction
  test
• 1) market for single size fractions requires
  stability information
• 2) aged single size fractions cannot be tested
  with conventional "bulk slag 0-22 mm" steam test.
• Test requirements
• - chosen test method should closely correspond to
  steam test EN1744-1 to allow comparison to
  conventional Vol. exp. data

30
Methodology

• 50 SLAG 50 FILLER
• Single size fraction of interest - 2,25 kg
  (e.g., 5.6-8 mm, or 8-11.2 mm, or other )
• rest of material is inert 0-3 mm corundum with
  Fuller distribution - 2.25 kg (layer by layer
  assembly of slag and inert filler)
• standard steam test performance according to
  EN1744-1

31
Sample characteristics

• Slag batch from single converter heat
• Slag conditioning with dolomite and lime
• Cooled by pooring onto steel slabs
• No water involved

32
Summary of Samples

• Normal steam test on slag sample yields 17 Vol.
  exp.
• 8-11 mm size fraction from same bulk sample
• 11-16 mm size fraction from same bulk sample
• 16-22 mm size fraction from same bulk sample

33
Single size fraction bulk sample
34
Single size fraction 11-16 8 -11
Sample name Single11/16 Single8/11
Material Single size ms 17 Single size ms 17
Produced by 0 0
Date Start test 17/06/05 1222 17/06/05 1222
Duration of test hours 168.94 168.94
Unit no UNIT 1 UNIT 2
Cylinder no 1 2
Sample Weight g 4494 4500
Sample Volume cm3 0.00 0.00
Bulk Density (comp.) g/cm3 2.70 2.78
Rel. Density of slag g/cm3 3.62 3.65
Voids 25.4 24.0
35
Single size fraction 11-16mm 8 -11mm
36
Single size fraction 11-16 16-22
Sample name Single1116 Single1622
Material Single size ms 17 Single size ms 17
Produced by 0 0
Date Start test 01/07/05 1249 01/07/05 1249
Duration of test hours 171.02 171.02
Unit no UNIT 1 UNIT 2
Cylinder no 3 4
Sample Weight g 4500 4500
Sample Volume cm3 0.00 0.00
Bulk Density (comp.) g/cm3 2.78 2.91
Rel. Density of slag g/cm3 3.62 3.62
Voids 23.1 19.6
37
Single size fraction 11-16 16-22
38
Combined Results
39
Summary of trial

• Test results of single size fractions diluted
  with 50 filler give Volume expansions
  approximately half of those of conventional bulk
  test.
• Coarser fractions show somewhat lower expansion
  than half
• Finer fractions show a somewhat higher value
• Test is very easy to perform and requires little
  slag sample preparation
• Further testing is required

40
