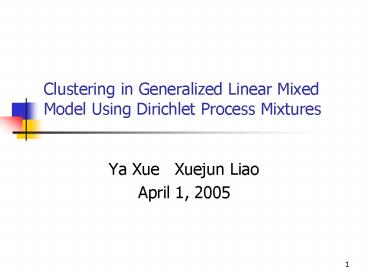

Clustering in Generalized Linear Mixed Model Using Dirichlet Process Mixtures

1
Clustering in Generalized Linear Mixed Model
Using Dirichlet Process Mixtures

• Ya Xue Xuejun Liao
• April 1, 2005

2
Introduction

• Concept drift is in the framework of generalized
  linear mixed model, but brings new question of
  exploiting the structuring of auxiliary data.
• Mixtures with a countably infinite number of
  components can be handled in a Bayesian framework
  by employing Dirichlet process priors.

3
Outline

• Part I generalized linear mixed model
• Generalized linear model (GLM)
• Generalized linear mixed model (GLMM)
• Advanced applications
• Bayesian feature selection in GLMM
• Part II nonparametric method
• Chinese restaurant process
• Dirichlet process (DP)
• Dirichlet process mixture models
• Variational inference for Dirichlet process
  mixtures

4

• Part I
• Generalized Linear Mixed Model

5
Generalized Linear Model (GLM)

• A linear model specifies the relationship between
  a dependent (or response) variable Y, and a set
  of predictor variables, Xs, so that
• GLM is a generalization of normal linear
  regression models to exponential family (normal,
  Poisson, Gamma, binomial, etc).

6
Generalized Linear Model (GLM)

• GLM differs from linear model in two major
  respects
• The distribution of Y can be non-normal, and does
  not have to be continuous.
• Y still can be predicted from a linear
  combination of Xs, but they are "connected" via a
  link function.

7
Generalized Linear Model(GLM)

• DDE Example binomial distribution
• Scientific interest does DDE exposure increase
  the risk of cancer? Test on rats. Let i index
  rat.
• Dependent variables
• Independent variable dose of DDE exposure,
  denoted by xi.

8
Generalized Linear Model(GLM)

• Likelihood function of yi
• Choosing the canonical link
  , the likelihood function becomes

9
GLMM Basic Model

• Returning to the DDE example, 19 labs all over
  the world participated this bioassay.
• There are unmeasured factors that vary between
  the different labs.
• For example, rodent diet.
• GLMM is an extension of the generalized linear
  model by adding random effects to the linear
  predictor (Schall 1991).

10
GLMM Basic Model

• The previous linear predictor is modified as
• ,
• where index lab,
  index rat within lab .
• are fixed effects - parameters common to
  all rats.
• are random effects - deviations for lab i.

11
GLMM Basic Model

• If we choose xij zij , then all the regression
  coefficients are assumed to vary for the
  different labs.
• If we choose zij 1, then only the intercept
  varies for the different labs (random intercept
  model).

12
GLMM - Implementation

• Gibbs sampling
• Disadvantage slow convergence.
• Solution hierarchical centering
  reparametrisation (Gelfand 1994 Gelfand 1995)
• Deterministic methods are only available for
  logit and probit models.
• EM algorithm (Anderson 1985)
• Simplex method (Im 1988)

13
GLMM Advanced Applications

• Nested GLMM within each lab, rats were group
  housed with three cats per cage.
• let i index lab, j index cage and k index rat.
• Crossed GLMM for all labs, four dose protocols
  were applied on different rats.
• let i index lab, j index rat and k indicate
  the protocol applied on rat i,j.

14
GLMM Advanced Applications

• Nested GLMM within each lab, rats were group
  housed with three cats per cage.
• Two-level GLMM
• level I lab, level II cage.
• Crossed GLMM for all labs, four dose protocols
  were applied on different rats.
• Rats are sorted into 19 groups by lab.
• Rats are sorted into 4 groups by protocol.

15
GLMM Advanced Applications

• Temporal/spatial statistics
• Account for correlation between the random
  effects at different times/locations.
• Dynamic latent variable model (Dunson 2003)
• Let i index patient and t index follow-up
  time,

16
GLMM Advanced Applications

• Spatially varying coefficient processes (Gelfand
  2003) random effects are modeled as spatially
  correlated process.

Possible application A landmine field where
landmines tend to be close together.
17
Bayesian Feature Selection in GLMM

• Simultaneous selection of fixed and random
  effects in GLMM (Cai and Dunson 2005)
• Mixture prior

18
Bayesian Feature Selection in GLMM

• Fixed effects choose mixture priors for the
  fixed effects coefficients.
• Random effects reparameterization
• LDU decomposition of the random effect covariance
• Choose mixture prior for the elements in the
  diagonal matrix.

19
Missing Identification in GLMM

• Data table of DDE bioassay
• What if the first column is missing?
• Unusual case in statistics, so few people work on
  it.
• But this is the problem we have to solve for
  concept drift.

20
Concept Drift

• Primary data
• Auxiliary data
• If we treat the drift variable as random
  variable, concept drift is a random intercept
  model - a special case of GLMM.

21
Clustering in Concept Drift
K 51 clusters (including 0) out of 300
auxiliary data points Bin resolution 1
22
Clustering in Concept Drift

• There are intrinsic clusters in auxiliary data
  with respect to drift value.
• The simplest explanation is best.
• Occam Razor
• Why dont we instead give each cluster a
  random effect variable?

23
Clustering in Concept Drift

• In usual statistics applications, we know which
  individuals share the same random effect .
• However, in concept drift, we do not know which
  individuals (data points or features) share the
  same random-intercept.
• Can we train the classifier and cluster the
  auxiliary data simultaneously? This is a new
  problem we aim to solve.

24
Clustering in Concept Drift

• How many clusters (K) should we include in our
  model?
• Does choosing K actually make sense?
• Is there a better way?

25

• Part II
• Nonparametric Method

26
Nonparametric method

• Parametric method the forms of the underlying
  density functions were known.
• Nonparametric method is a wide category, e.g. NN,
  minmax, bootstrapping...
• Nonparametric Bayesian method make use of the
  Bayesian calculus without prior parameterized
  knowledge.

27
Cornerstones of NBM

• Dirichlet process (DP)
• allow flexible structures to be learned and
  allow sharing of statistical strength among sets
  of related structures.
• Gaussian process (GP)
• allow sharing in the context of multiple
  nonparametric regressions
• (suggest to have a separate seminar on GP)

28
Chinese Restaurant Process

• Chinese restaurant process (CRP) is a
  distribution on partitions of integers.
• CRP is used to represent uncertainty over the
  number of components in a mixture model.

29
Chinese Restaurant Process

• Unlimited number of tables
• Each table has an unlimited capacity to seat
  customers.

30
Chinese Restaurant Process
The (m1)th subsequent customer sits at a table
drawn from the following distribution
where mi is the number of previous customers at
table i and is a parameter.
31
Chinese Restaurant Process
Example The probability that next customer sits
at table
32
Chinese Restaurant Process

• CRP yields an exchangeable distribution on
  partitions of integers, i.e., the specific
  ordering of the customers is irrelevant.
• An infinite set of random variables is said to be
  infinitely exchangeable if for every finite
  subset , we have

for any permutation .
33
Dirichlet Process
G0 any probability measure on the reals,
partition.
A process is a Dirichlet process if the following
equation holds for all partitions
where is a concentration parameter.
Note Dir Dirichlet distribution, DP -
Dirichlet process.
34
Dirichlet Process

• Denote a sample from the Dirichlet process as
• G is a distribution.
• Denote a sample from the distribution G as

Graphical model for a DP generating the
parameters .
35
Dirichlet Process

• Properties of DP

36
Dirichlet Process

• The marginal probabilities for a new

This is Chinese restaurant process.
37
DP Mixtures
If F is a normal distribution, this is the a
Gaussian mixture model.
38
Applications of DP

• Infinite Gaussian Mixture Model (Rasmussen 2000)
• Infinite Hidden Markov Model (Beal 2002)
• Hierarchical Topic Models and the Nested Chinese
  Restaurant Process (Blei 2004)

39
Implementation of DP

• Gibbs sampling
• If G0 is a conjugate prior for the likelihood
  given by F (Escobar 1995)
• Non-conjugate prior (Neal 1998)

40
Variational Inference for DPM

• The goal is to compute the predictive density
  under DP mixture
• Also, we minimized the KL distance between p and
  a variational distribution q.
• This algorithm is based on the stick-breaking
  representation of DP.
• (I would suggest to have a separate seminar on
  stick-breaking view of DP and variational DP.)

41
Open Questions

• Can we apply ideas of infinite models beyond
  identifying the number of states or components in
  a mixture?
• Under what conditions can we expect these models
  to give consistent estimates of densities?
• ...
• Specified to our problem Non conjugate due to
  sigmoid function
