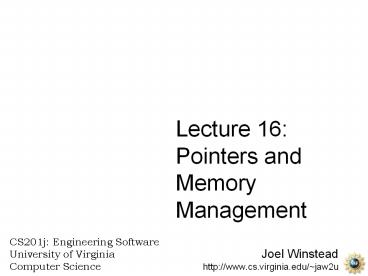

Lecture 16 Pointers and Memory Management
CS201j Engineering Software University of
Virginia Computer Science

• Joel Winstead
• http//www.cs.virginia.edu/jaw2u

2
Menu

• Null Pointers in C
• Memory Management in C
• Phylogeny Revisited

3
Pointers in C

• Pointers are similar to object references in Java
• Assigning a pointer has sharing semantics

int i 37 int p malloc(sizeof(int)) int
q q p p 7
37
i
7
p
q
4
Null Pointers

• What if a pointer doesnt point to anything?

void main(String argv) Integer i
null System.out.println(i.intValue())
int main(int argc,char argv) int i
NULL printf(i is d\n,i)
5
Null Pointers

• What if a pointer doesnt point to anything?

void main(String argv) Integer i
null System.out.println(i.intValue())
int main(int argc,char argv) int i
NULL printf(i is d\n,i)
Exception in thread main java.lang.NullPointerEx
ception at nullref.main(nullref.java7)
Behavior is undefined!
6
Following Null Pointers

• The program may crash immediately
• The program may produce corrupted output
• The program may corrupt data somewhere else in
  the programs memory
• This results in a difficult-to-find bug
• The program could mail itself to everyone in your
  address book and cause your computer to
  self-destruct
• The C standard does not define what should
  happen, so absolutely anything is legal!

7
Splint Annotations for Pointers

• /_at_notnull_at_/
• A pointer guaranteed not to be null
• /_at_null_at_/
• A pointer that might be null

/_at_null_at_/ FILE fopen(/_at_notnull_at_/ char
filename,char mode)
8
Splint Warnings

• Splint reports a warning if
• The program dereferences a /_at_null_at_/ pointer
  without checking first
• The program assigns a /_at_null_at_/ pointer to a
  /_at_notnull_at_/ variable
• The program passes a /_at_null_at_/ pointer to a
  function expecting a /_at_notnull_at_/ pointer

9
Example

• char firstChar( /_at_null_at_/ char s)
• return s
• gt splint null.c
• Splint 3.0.1.6
• null.c (in function firstChar)
• null.c311 Dereference of possibly null pointer
  s s
• null.c135 Storage s may become null
• Finished checking --- 1 code warning found

10
Correcting the Problem
char firstChar( /_at_null_at_/ char s) if (s
NULL) fprintf(stderr,s is null in
firstChar\n) exit(EXIT_FAILURE)
else return s
11
Another Solution
char firstChar( /_at_notnull_at_/ char s)
return s
12
Memory Management in C
13
malloc

• Memory in C is allocated using the malloc
  function
• This is similar in some ways to Javas new
  operator
• We use sizeof to determine how much memory to
  allocate

int i malloc(sizeof(int)) char s
malloc(sizeof(char)100) Species s
malloc(sizeof(s))
14
Creating Objects in C
Species Species_new(const char name,const char
genome) Species result
malloc(sizeof(result)) result-gtname
name result-gtgenome genome return
result
15
Memory Leaks
for (i 0 i lt 10 i) int p
malloc(sizeof(p)) p ii printf(d
squared is d\n,i,p)
0
p
i
0
16
Memory Leaks
for (i 0 i lt 10 i) int p
malloc(sizeof(p)) p ii printf(d
squared is d\n,i,p)
0
p
1
i
1
17
Memory Leaks
for (i 0 i lt 10 i) int p
malloc(sizeof(p)) p ii printf(d
squared is d\n,i,p)
0
p
1
i
3
4
9
18
Detecting Memory Leaks

• for (i 0 i lt 10 i)
• int p malloc(sizeof(p))
• p ii
• printf(d squared is d\n,i,p)
• gt splint leak.c
• Splint 3.0.1.6
• leak.c116 Fresh storage p not released before
  scope exit
• A memory leak has been detected. Storage
  allocated locally is not released before the last
  reference to it is lost.

19
free

• Javas garbage collector automatically reclaims
  memory
• C has no garbage collector
• We must release memory explicitly using the free
  function

20
Releasing Memory
for (i 0 i lt 10 i) int p
malloc(sizeof(p)) p ii printf(d
squared is d\n,i,p) free(p)
p
i
9
81
21
Releasing Memory Too Soon
int f() int i malloc(sizeof(i))
i 42 free(i) printf(i is
d\n,i)
The result is undefined!
22
Avoiding Memory Leaks

• Whenever we allocate memory, there is a
  responsibility to release it
• We can specify what part of the code has this
  responsibility by using annotations.
• Code that uses an /_at_only_at_/ pointer must free
  the storage, or pass the responsibility somewhere
  else
• If an /_at_only_at_/ pointer is lost of goes out of
  scope, Splint warns of a possible memory leak.

23
Why does Splint detect the error?

• for (i 0 i lt 10 i)
• int p malloc(sizeof(p))
• p ii
• printf(d squared is d\n,i,p)
• gt splint leak.c
• Splint 3.0.1.6
• leak.c116 Fresh storage p not released before
  scope exit
• A memory leak has been detected. Storage
  allocated locally is not released before the last
  reference to it is lost.

24
Annotating Functions

• We can annotate functions to indicate how they
  delegate the responsibility to release memory
• /_at_only_at_/ /_at_null_at_/ void malloc(size_t
  bytes)
• void free(void ptr)
• With these annotations, Splint knows
• Any call to malloc might return NULL
• The caller of malloc is responsible for releasing
  the allocated memory.

25
Annotating Functions

• We can annotate functions to indicate how they
  delegate the responsibility to release memory
• /_at_only_at_/ /_at_null_at_/ void malloc(size_t
  bytes)
• void free(/_at_only_at_/ void ptr)
• With these annotations, Splint knows
• Any call to malloc might return NULL
• The caller of malloc is responsible for releasing
  the allocated memory.
• free will take responsibility for releasing an
  /_at_only_at_/ pointer.

26
Annotating Constructors
Species Species_new(const char name,
const char genome)
Species s malloc(sizeof(s)) s-gtname
name s-gtgenome genome return s
27
Annotating Constructors
/_at_only_at_/ Species Species_new(const char name,

const char genome) Species s
malloc(sizeof(s)) s-gtname name
s-gtgenome genome return s
28
Annotating Constructors
/_at_only_at_/ Species Species_new(const char name,

const char genome) Species s
malloc(sizeof(s)) if (s NULL)
fprintf(stderr,Out of memory in
Species_new.\n) exit(EXIT_FAILURE)
s-gtname name s-gtgenome genome
return s
29
Annotating Constructors
/_at_only_at_/ Species Species_new(/_at_only_at_/ const
char name,
/_at_only_at_/ const char genome)
Species s malloc(sizeof(s)) if
(s NULL) fprintf(stderr,Out of memory in
Species_new.\n) exit(EXIT_FAILURE)
s-gtname name s-gtgenome genome
return s
30
Dependent and Owned

• Sometimes we need to have more than one pointer
  to the same object
• However, we want to be able to check that the
  object is released
• Why cant we use /_at_only_at_/ in this situation?
• /_at_owned_at_/ references indicate an obligation to
  release the memory before the reference is lost
• /_at_dependent_at_/ references refer to objects that
  are /_at_owned_at_/ by some other pointer

31
Use of Dependent
void SpeciesSet_insert(SpeciesSet set,
/_at_dependent_at_/ Species species)

• SpeciesSet holds references to Species objects
• We might want to put a single Species object into
  more than one SpeciesSet
• Therefore, SpeciesSet cannot take responsibility
  for releasing the Species object
• Some other /_at_owned_at_/ reference must take
  responsibility for releasing the Species object

32
PS6 Phylogeny Revisited

• We have rewritten the Phylogeny program from
  Problem Set 4 in C
• The C version of the program has several errors
• Null pointer dereferences
• Memory leaks
• Abstraction violations
• Your job is to use Splint annotations to find and
  fix them

33
Charge

• The C compiler does not check for null pointer
  dereferences or memory leaks
• Splint can catch many of these errors if the
  program is annotated correctly
• PS5 Due Today
• PS6 Use C and Splint (Phylogeny Revisited)
