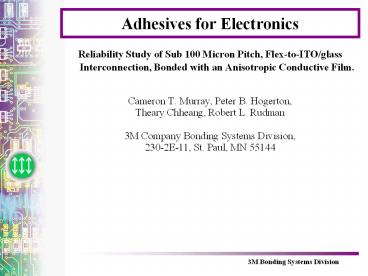

Adhesives for Electronics

• Reliability Study of Sub 100 Micron Pitch,
  Flex-to-ITO/glass Interconnection, Bonded with an
  Anisotropic Conductive Film.
• Cameron T. Murray, Peter B. Hogerton,
• Theary Chheang, Robert L. Rudman
• 3M Company Bonding Systems Division,
• 230-2E-11, St. Paul, MN 55144

2
Z-Axis/ Anisotropic Conductivity
Conductivity in the Z direction only (through the
thickness of the adhesive)
Z
3
Flex to ITO Bonding
Flex Circuit
LCD
Copper trace
ITO Trace
ZAF
Glass
Polymer particle preferred with ITO traces
4
Cellular Phone Applications for ZAF

• Flex to ITO glass
• 5000 series - specific product depending upon
  pitch

• Flex to PCB
• 7303 or 5000 series depending upon pitch

5
Making Reliable Bonds

• Proper thermocompression bonding technique
• Flex alignment to ITO/glass or PCB
• Proper thermal cure profile
• Proper pressure
• Proper overlap area
• guaranteed minimum number of particles (to
  provide low electrical resistance)
• Proper pitch
• minimum space between traces to avoid shorting

6
Thermocompression Bonding
Applied pressure
Compliant layer
Bonding Thermode
Flex Circuit
ITO Glass
Z-Axis Conductive Film
7
Pressure Uniformity
8
Temperature Profile
Ram pressure
Compliant layer
Bonding Thermode
Flex Circuit
ITO Glass
Thermocouple
9
Overlap Area
Flex Circuit
LCD
Copper trace
ITO Trace
ZAF
Glass
Overlap Area ZAF width x
Trace width
10
Overlap Area
11
Particle Count
12
Reliability Study

• Fine Pitch Flex bonded to ITO/Glass (10 W
  /square)
• 80, 100 micron pitch
• 285 interconnections per condition
• Peel Testing and Electrical Resistance
• Environmental Testing Conditions
• 100 C for 1024 hours
• 125 C for 1025 hours
• 60 C / 95 RH for 1029 hours
• -40 C to 100 C Thermal cycle (1 hour/cycle)
  for 1029 cycles
• -55 C to 125 C for 1820 cycles - Thermal shock

• 85 C and 85 RH for 1028 hours

13
Thermocompression Bonder
Thermode
Compliant layer
Circuitry
14
Temperature Profile
15
LCD Visual Inspection
16
Proper Bond Formation
17
Particle Compression - Top
18
Particle Compression - Side
19
4 Wire Resistance Test

• Test designed to subtract out the resistance of
  the copper traces and the ITO glass
• Requires specialized flexible circuit design
• Automated testing jig/ computer data collection
• 57 measurements per sample / 5 samples per
  condition
• Microvoltmeter and power supply
• Test limitations
• Perfect circuit design not possible - measured
  resistance is influenced by ITO resistance
• Samples must be removed from the environment for
  testing

20
4 Wire Test Circuit
Test Pads
Circuit Traces
21
4 Wire Test Pads
Power Supply
Voltmeter
22
100 Micron Reliability
23
80 Micron Reliability
24
Peel Test

• IPC TM-650 2.4.9.1
• 2.5 mm / min peel rate
• 90 degree angle
• Reported values maximum value on plot
• Peel testing performed at the conclusion of
  environmental aging
• 5 peeled parts per environmental condition

25
Typical Peel Test
2.5 mm/min
26
Peel Reliability
27
Shorting Test

• Flex with 30 micron gap bonded to non-conductive
  glass
• Initially shorts found - related to fillet
  formation over edge of ITO glass
• 128 flex samples remade with proper bonding
• 12,800 gaps measured with no shorts

28
Conclusions

• Fine pitch circuitry can be bonded with Z-Axis
  Films into a highly reliable interconnection
• Proper bonding conditions and equipment are
  important when making a reliable bond
• proper placement of ZAF to prevent shorting
• proper particle compression
• proper thermal profile for good mechanical
  (peel) performance
• Visual inspection combined with electrical and
  peel testing are important tools in monitoring
  process control
