Probabilistic Sparse Matrix Factorization

1

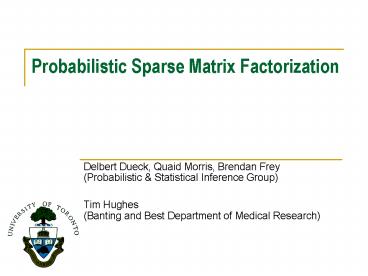

Probabilistic Sparse Matrix Factorization

• Delbert Dueck, Quaid Morris, Brendan
  Frey(Probabilistic Statistical Inference
  Group)
• Tim Hughes(Banting and Best Department of
  Medical Research)

2
Objective

• Patterns in gene expression array data can be
  used to help understand gene regulation and
  predict the function of yet-uncharacterized genes
• Objective To develop a method of probabilistic
  sparse matrix factorization (PSMF) and apply it
  to gene expression data to learn the hidden
  structure underlying the data.

3
Biological Background

• Genes encode basic information about an organism
• They tend to be highly expressed in tissues
  related to their functional role
• Mouse gene expression data is from Zhang, Morris,
  et al. (2004)
• Gene expression is influenced by the presence of
  transcription factors (TFs)
• Co-expressed genes are likely activated by the
  same TFs
• The activity of each gene can be explained by the
  activities of a small number of transcription
  factors

4
Gene Expression Array Dataset
? G22709 genes ?
Entire data set X GT matrix (G22709, T55)
? 100 genes ?
? T55 tissues ?
T55tissues
5
Sparse Matrix Factorization

• Gene expression data model
• Each genes expression profile (xg) is
• a linear combination (weighted by ygc, c?sg)
• of a small number (rgltN)
• of C possible transcription factor profiles (zc,
  c?sg)

6
Sparse Matrix Factorization
Matrix format (entire dataset)
7
Probabilistic Sparse Matrix Factorization

• To express as a distribution, assume
• varying levels of Gaussian noise in the data
• nothing about transcription factor weights
• normally-distributed transcription factor
  profiles
• uniformly-distributed factor assignments
• multinomially-distributed factor counts

8
Probabilistic Sparse Matrix Factorization

• To express as a distribution, assume
• varying levels of Gaussian noise in the data
• nothing about transcription factor weights
• normally-distributed transcription factor
  profiles
• uniformly-distributed factor assignments
• multinomially-distributed factor counts
• Multiply together to get joint distribution

9
Factorized Variational Inference

• Exact inference is intractable with P()

10
Factorized Variational Inference

• Exact inference is intractable with P()
• Approximate it by a simpler distribution, Q(),
  and perform inference on that

11
Factorized Variational Inference

• Parameterize Q()
• Accounts for noise in transcription factor
  profiles and uncertainty in transcription factor
  selection

12
Factorized Variational Inference

• Parameterize Q()
• Accounts for noise in transcription factor
  profiles and uncertainty in transcription factor
  selection
• Minimize KL-divergence between P(), Q()

13
Factorized Variational Inference

• Parameterize Q()
• Accounts for noise in transcription factor
  profiles and uncertainty in transcription factor
  selection
• Minimize KL-divergence between P(), Q()

14
Variational EM algorithm

• Use coordinate descent on free energy

15
Variational EM Free Energy
iteration
16
Visualization
PROBABILISTIC SPARSE MATRIX FACTORIZATION C50
possible factors N3 factors per gene (max)
P(rg).55 .27 .18
Sorted by primary transcription factor (sg1)
17
Results p-value histograms

• Genes can be partitioned into primary
  categories (i.e. same sg1 value), secondary
  classes, etc.
• Compare classes with annotated gene ontology
  (GO-BP) categories for statistical significance

18
Results mean log10 p-values
19
Results count of significant p-values
20
Future Directions different Q()
Iterated conditional modes (point estimates)
21
Summary

• Introduced probabilistic sparse matrix
  factorization (PSMF), each row is a linear
  combination of a small number of hidden factors
  selected from a larger set.
• Described a variational inference algorithm for
  fitting the PSMF model.
• Evaluated model on a gene functional prediction
  task.
