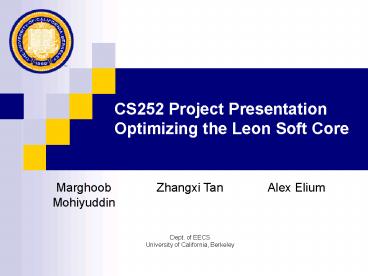

CS252 Project PresentationOptimizing the Leon
Soft Core
Marghoob Mohiyuddin Zhangxi Tan Alex Elium
Dept. of EECSUniversity of California, Berkeley
2
Project Outline

• Goal Reduce the size of Leon on FPGAs
• Our motivation for using Leon
• RAMP research emulation of multiprocessors
• Analysis
• LUT breakdown
• Optimizations
• Circuit Level
• Architectural Level

3
Leon Overview

• 32-bit SPARC V8 compliant processor
• 7 stage pipeline, in-order
• Separate L1 Instruction Data caches
• Configurable cache size, associativity,
  replacement policy
• Optional Memory Management Unit
• AMBA bus interface to memory and peripherals
• Supports Symmetric Multiprocessing
• Open-source (Gaisler Research)

4
Area analysis

• Configuration
• MMU Combined I/D-TLB, 2-entry only
• Integer MUL/DIV enable
• Cache Direct-map I/D cache
• Variables
• DSU - Debug support unit
• Target clock
• 20 MHz - easy to achieve
• 200 MHz - over constrained

5
Resource break down
Relaxed Constraint (20 MHz), no DSU Relaxed Constraint (20 MHz), no DSU Relaxed Constraint (20 MHz), no DSU Relaxed Constraint (20 MHz) with DSU Relaxed Constraint (20 MHz) with DSU Relaxed Constraint (20 MHz) with DSU Over constrained (200 MHz) no DSU Over constrained (200 MHz) no DSU Over constrained (200 MHz) no DSU Over constrained (200 MHz) no DSU Over constrained (200 MHz) with DSU Over constrained (200 MHz) with DSU Over constrained (200 MHz) with DSU
LUT Register LUT LUT Register LUT LUT Regs LUT LUT Regs LUT
Integer Pipeline Integer Pipeline Integer Pipeline 2684 907 52.48 3435 971 57.15 3085 1057 54.21 4034 1224 58.56
MUL MUL 200 135 3.91 200 135 3.33 226 116 3.97 224 108 3.25
DIV DIV 391 81 7.65 383 81 6.37 388 119 6.82 431 123 6.26
MMU MMU 446 276 8.72 495 318 8.23 451 283 7.92 481 332 6.98
ICache ICache 320 89 6.26 320 89 5.32 354 90 6.22 379 105 5.50
DCache DCache 943 285 18.44 1058 289 17.60 1057 292 18.57 1227 304 17.81
Bus IF Bus IF 130 8 2.54 120 8 2.00 130 7 2.28 113 10 1.64

Total Total 5114 1781 6011 1891 5691 1964 6889 2206
6
Why its BIG

• Debugging Support
• More MUXes
• One additional pipeline stage
• Useful for RAMP emulation / bootstrapping
• IU is over 50
• Barrel shifter
• Pipeline control (forwarding)

7
Circuit Level Optimizations

• Store LRU bits in Block RAMs instead of Flip
  Flops
• Also saves LUTs
• One-hot encoding for signals
• Synthesis tool does a good job of 1-hot encoding
  for many signals (e.g., state encoding)
• Applied this to the cache output
• Instead of data(set), we can use data(0) or
  data(1) or data(2) or data(3)
• Useful only for multiway caches
• LUT savings 100 LUTs

8
Circuit Level Optimizations

• Use fast-carry chain logic
• Provided 30 savings in LUT usage for TLB entries
• Multipliers for barrel shifter
• Right shift by b is same as multiplication by 2b
• Savings of 100 LUTs

9
LUTs for Integer Mul / Div

• 2195 / 18429 for entire two core system (12)
• 11.5 of Leon3 core
• (Xilinx ISE)

10
(No Transcript)
11
Didnt your mother teach you to share?

• Savings of 350 LUTs for prototype
• Only multiplier shared
• Only two cores
• 10 could become 5..2.5...1.
• Even more for MAC

12
Operand MUXes 32 bit, 7 to 1 MUX 32 bit, 5 to 1
MUX
13
Operand MUXes
313 LUTs 64 MUX /each
14
Integer Pipeline Changes

• Remove all forwarding
• Single thread Just stall
• Fine Grain Multithreading could boost performance
• LUTs saved 27-37
• Maximum Freq improvement 20

LUTs Regs LUTs Regs LUTs Regs LUTs Regs

Standard Improved
47.4 MHz 49.3 MHz 73.3 MHz 77.7 MHz
2683 907 2637 907 1953 684 1943 684
108.5 MHz 114.6 MHz 127.6 MHz 127.6 MHz 136.1 MHz
3053 960 3013 1048 1928 715 2035 768
Standard w. DSU Improved w DSU
55.9 MHz 52.7 MHz 84.7 MHz 85.2 MHz
3477 971 3320 971 2469 744 2457 744
113.9 MHz 123 MHz 125 MHz 144.9 MHz
4202 1049 4198 1147 2610 778 2938 1371
15
Conclusions

• CAD tools already perform many optimizations
• Remove unused logic
• Infer technology dependent logic from HDL source,
  e.g. Fast carry chain logic
• Optimize logic globally

16
Conclusions

• Optimization is possible
• Higher levels yield (much) greater savings
• Circuit Level 200-300 LUTs
• Architectural Level 1000 of LUTs
• Sharing 700 per core
• Total 35-40 savings
