A Systematic Design Procedure

1
A Systematic Design Procedure

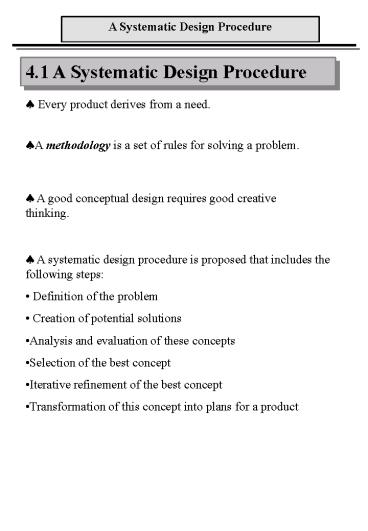

4.1 A Systematic Design Procedure

• Every product derives from a need.

• A methodology is a set of rules for solving a
  problem.

• A good conceptual design requires good creative
  thinking.

• A systematic design procedure is proposed that
  includes the following steps
• Definition of the problem
• Creation of potential solutions
• Analysis and evaluation of these concepts
• Selection of the best concept
• Iterative refinement of the best concept
• Transformation of this concept into plans for a
  product

2
A Systematic Design Procedure
The design of a paper airplane.
3
A Systematic Design Procedure

• The product design process transforms a
  conceptual design into plans for manufacturing
  the product.

• A prototype is a physical model of the product
  used during the development phase to determine
  experimentally whether it satisfies the
  specification.

• The product realization process encompasses the
  conception, design, manufacture, and support of
  products.

4
A Systematic Design Procedure
Essential ingredients of the design process.
