Halting Problem

1

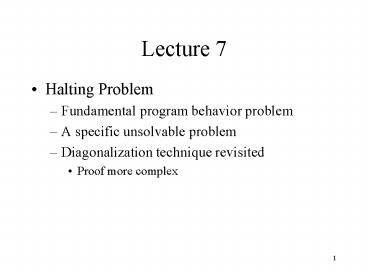

Lecture 7

• Halting Problem
• Fundamental program behavior problem
• A specific unsolvable problem
• Diagonalization technique revisited
• Proof more complex

2
Definition

• Input
• Program P
• Assume the input to program P is a single
  unsigned int
• This assumption is not necessary, but it
  simplifies some of the following unsolvability
  proof
• To see the full generality of the halting
  problem, remove this assumption
• Nonnegative integer x, an input for program P
• Yes/No Question
• Does P halt when run on x?

3
Example Input

• Program with one input of type unsigned int
• bool main(unsigned int Q)
• int i2
• if (Q 0) return false
• while (iltQ)
• if (Qi 0) return (false)
• i
• return (true)
• Input x
• 73

4
Proof that H is not solvable
5
Definition of list L

• The set of all programs is countably infinite
• For simplicity, assume these programs have
• one input
• the type of this input is an unsigned int
• This means there exists a list L where
• each program is on this list
• the programs will appear on this list by order of
  length
• length 0 programs first
• length 1 programs next
• Simpler compared to last time
• We built an algorithm D to work with any
  countably infinite list
• Now, we get to work with this specific list

6
Definition of PH

• If H is solvable, some program must solve H
• Let PH be a procedure which solves H
• We declare it as a procedure because we will use
  PH as a subroutine
• Declaration of PH
• bool PH(program P, unsigned int x)
• In general, the type of x should be the type of
  the input to P
• Comments
• We do not know how PH works
• However, if H is solvable, we can build programs
  which call PH as a subroutine

7
Argument Overview

• List L contains all programs (with one input of
  type unsigned int)
• We use list L to specify a pattern of program
  behavior B which is distinct from all real
  program behaviors
• We construct a program D (with one input of type
  unsigned int) with the following properties
• D satisfies the specification of program behavior
  B and is thus not on list L
• D uses PH as a subroutine which means D exists if
  PH exists
• These two facts imply H is not solvable
• Since L contains all programs but not D, D must
  not exist
• Since D exists if PH exists, PH does not exist

8
Visualizing List L of Programs
0
1
2
3
4
...

• Rows is countably infinite
• Sp is countably infinite
• Cols is countably infinite
• Set of nonnegative integers is countably infinite

P0
P1
P2
P3
P4
...

• Consider each number to be a feature
• A program halts or doesnt halt on each integer
• Several programs may be identical now (e.g.
  several always halt)
• We have a fixed L this time

9
Specifying a non-existent program behavior B

• We specify a non-existent program behavior B by
  using a unique feature
• (number) to differentiate B from Pi

0
1
2
3
4
...
B
P0
NH
H
H
H
H
H
P1
NH
H
H
H
NH
H
P2
NH
NH
NH
NH
NH
H
P3
H
H
NH
NH
NH
H
P4
NH
H
H
H
H
H
...
10
Specification Insufficient

• Task not complete
• The previous slide only provides a specification
  B for program D
• That is, B describes how program D should behave
  in order to not be on the list of all programs
• We still need to construct an actual program D
  that behaves this way
• Previous number of languages proof
• The specification of language D(L) was sufficient
• We were done at this point

11
Overview of D

• Program D with input y
• (type for y unsigned int)
• Given input y, generate the program (string) Py
• Run PH on Py and y
• Guaranteed to halt since PH decides H
• IF (PH(Py,y)) while (1gt0) else return (yes)

0
1
2
...
D
...
y
P0
H
H
H
P1
H
H
NH
P2
NH
NH
NH
...
Py
H
NH
...
12
Generating Py from y

• We wont go into this in detail here
• This was the basis of the question at the bottom
  of slide 21 of lecture 5.
• This is the main place where our assumption about
  the input type for program P is important
• for other input types, how to do this would vary

13
Observation

• For some y, the computed Py of SP will not be a
  legal program
• In particular, the computed Py will not be the
  yth legal program

0
1
2
...
D
...
i
y
l
H
H
H
a
H
H
NH
b
NH
NH
NH
...
...
P0
...
...
Pi-1
...
14
Code for D and PH

• bool main(unsigned int y) / main for program D
  /
• program P generate(y)
• if (PH(P,y)) while (1gt0) else return (yes)
• bool PH(program P, unsigned int x)
• / how PH solves H is unknown /
• Claims
• Program D exhibits behavior B
• Program D exists if PH exists

15
Alternate Proof

• For every program Py, there is a number y which
  we associate with it
• The number we use to distinguish program Py from
  D is this number y
• Using this idea, we can arrive at a contradiction
  without explicitly using the table L
• The diagonalization is hidden

16
H is not solvable, proof II

• Assume H is solvable
• Let PH be the program which solves H
• Use PH to construct program D which cannot exist
• Contradiction
• This means program PH cannot exist.
• This implies H is not solvable
• D is the same as before

17
Arguing D cannot exist

• If D is a program, it must have an associated
  number y
• What does D do on this number y?
• 2 cases
• D halts on y
• This means PH(D,y) NO
• Definition of D
• This means D does not halt on y
• PH solves H
• Contradiction
• This case is not possible

18
Continued

• D does not halt on this number y
• This means PH(D,y) YES
• Definition of D
• This means D halts on y
• PH solves H
• Contradiction
• This case is not possible
• Both cases are not possible, but one must be for
  D to exist
• Thus D cannot exist

19
Implications

• The Halting Problem is one of the simplest
  problems we can formulate about program behavior
• We can use the fact that it is unsolvable to show
  that other problems about program behavior are
  also unsolvable
• This has important implications restricting what
  we can do in the field of software engineering
• In particular, perfect debuggers/testers do not
  exist
• We are forced to test programs for correctness
  even though this approach has many flaws

20
Summary

• Halting Problem definition
• Basic problem about program behavior
• Halting Problem is unsolvable
• We have identified a specific unsolvable problem
• Diagonalization technique
• Proof more complicated because we actually need
  to construct D, not just give a specification
