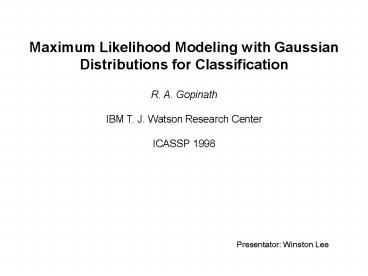

Maximum Likelihood Modeling with Gaussian
Distributions for Classification
R. A. Gopinath IBM T. J. Watson Research
Center ICASSP 1998
Presentator Winston Lee
2
References

• S. R. Searle, Matrix Algebra Useful for
  Statistics, John Wiley and Sons, 1982.
• N. Kumar and A. G. Andreou, Heteroscedastic
  Discriminant Analysis and Reduced Rank HMMs for
  Improved Speech Recognition, Speech
  Communication, 1998.
• E. Alpaydin, Introduction to Machine Learning,
  The MIT Press, 2004.
• R. A. Gopinath, Constrained Maximum Likelihood
  Modeling with Gaussian Distributions.
• M. J. F. Gales, Maximum Likelihood Linear
  Transformations for HMM-based Speech
  Recognition, Cambridge, U.K. Cambridge Univ.,
  Tech. Rep. CUED/F-INFENG/TR291, 1997
• M. J. F. Gales, Semi-Tied Covariance Matrices
  for Hidden Markov Models, IEEE Transactions.
  Speech and Audio Processing, 7272281, 1999
• G. Saon, et al., Maximum Likelihood.
  Discriminant Feature Spaces, in Proc. ICASSP
  2000.

3
Outline

• Abstract
• Introduction
• ML Modeling
• Linear Transformation
• Single Class
• Multiclass

4
Abstract

• Maximum Likelihood (ML) modeling of multiclass
  data for classification often suffers from the
  following problems a) data insufficiency
  implying over-trained or unreliable models, b)
  large storage requirement, c) large computational
  requirement, and/or d) ML is not discriminating
  between classes. Sharing parameters across
  classes (or constraining the parameters) clearly
  tends to alleviate the first three problems.
• In this paper we show that in some cases it can
  also lead to better discrimination (as evidenced
  by reduced misclassification error). The
  parameters considered are the means and variances
  of the Gaussians and linear transformations of
  the feature space (or equivalently the Gaussian
  means).
• Some constraints on the parameters are shown to
  lead to Linear Discrimination Analysis (a
  well-known result) while others are shown to lead
  to optimal feature spaces (a relatively new
  result). Applications of some of these ideas to
  the speech recognition problem are also given.

5
Introduction

• Why Gaussians when modeling data?
• Any distribution can be approximated by Gaussian
  Mixtures.
• A rich set of mathematical results is available
  for Gaussians.
• How to model the labeled training data well for
  classification?
• Assumption the training and test data have the
  same distribution.
• So, Just model the training data as well as
  possible.
• Criterion Maximum Likelihood (ML) Principle.
• The main idea
• In constrained ML modeling (e.g., diagonal
  covariance), there are optimal feature spaces.
• Kumars HLDA.
• Gales efficient algorithm.

To search for the parameters that maximizes the
likelihood of the sample.
6
ML Modeling

• The likelihood of the training data
  is given by
• The idea is to choose the parameters and
  so as to maximize
  .

label
data numbers
class
dimension
7
ML Modeling (cont.)

• can be expressed as
  follows

sample mean of class j
sample covariance of class j
8
Linear Transformation

• Now consider linearly transforming the samples
  from each class
• can also be modeled with
  Gaussians. Why?
• Proof The moment generating function for normal
  distribution is The
  moment generating function of is

nonsingular d x d matrix
new covariance
new mean
9
Linear Transformation (cont.)

• The problem of scaling
• The choice of can make the likelihood of a
  test data sample difficult to be compared.
• The likelihood of data from class j may be
  arbitrarily large.
• Two approaches to compare likelihoods
• First, to ensure that for every
  class, and the likelihood of the data
  corresponding to each class is the same in the
  original and transformed spaces. (implying
  .)
• Second, to only consider the likelihood in the
  original space even though the data is modeled in
  the transformed space.(Kumars start point in
  his paper.)

10
Linear Transformation (cont.)

• For the first approach

11
Linear Transformation (cont.)

• For the second approach

12
Linear Transformation (cont.)

• Why rather than when modeling?
• If the data is modeled using full-covariance
  Gaussians, it makes no difference.
• How about diagonal or block-diagonal Gaussians?
• If we directly remove the off-diagonal entries,
  the correlations in the data cannot be account
  for explicitly (Ljolje, 1994).
• The transformations can be used to find the basis
  in which this structural constraint on the
  variances is more valid as evidenced from the
  data.

13
Single Class

• Ignore the class labels and modeling the entire
  data with one Gaussian
• By ML estimation, , and the
  ML value of the training data is
• On average each sample contribute to the
  ML value.

The ML estimator
14
Single Class ML Estimates

• ML estimation

15
Single Class Linear Transformation

• Consider a global non-singular linear
  transformation of the data
• By ML estimation, and
  the ML value of the training data is
• If then

We can name such kind of matrix as unimodular or
volume-preserving linear transformation.
16
Single Class Linear Transformation (MLE)

• ML estimation

17
Single Class Diagonal Covariance

• If we are constrained to use a diagonal
  covariance model, The ML estimators will be
  and .
• The ML value
• Because of the diagonal constraint,

Another proof of Hadamards inequality.
18
Single Class Diagonal Covariance (MLE)

• ML estimation

19
Single Class Diagonal Covariance (LT)

• If one linearly transforms the data and models
  using a diagonal Gaussian, the ML value is
• One can maximize the ML value over A to obtain
  the best feature space in which to model with the
  diagonal covariance constraint.
• Note that A is still supposed to be unimodular.
• one optimal choice of A

No loss in likelihood!
20
Multiclass

• In this case the training data is modeled with a
  Gaussian for each class . one can
  split the data into J classes and model each one
  separately.
• The ML estimators
• The ML value
• Note that there is no interaction between the
  classes and therefore unconstrained ML modeling
  is not discriminating.
• For the same sake, the unimodular transformations
  cannot help in better classification.

21
Multiclass Diagonal Covariance

• The ML estimators
• The ML value
• If one linearly transforms the data and models
  using a diagonal Gaussian, the ML value is

The main task is to choose A.
22
Multiclass Some Issues

• If the sample size for each class is not large
  enough then the ML parameter estimates may have
  large variance and hence be unreliable.
• The storage requirement for the model
• The computational requirement
• The parameters for each class are obtained
  independently ML principle dose not allow for
  discrimination between classes.

MLE
population covariance
23
Multiclass Some Issues (cont.)

• Parameters sharing across classes
• reduces the number of parameters
• reduces storage requirements
• reduces computational requirements
• is more discriminating leading to better
  classifiers.
• But, we can appeal to Fishers criterion of LDA
  and a result of Campbell to argue that sometimes
  constrained ML modeling is discriminating .

but comes with a loss in likelihood
hard to justify
24
Multiclass Some Issues (cont.)

• Solution
• We can globally transform the data with a
  unimodular matrix A and model the transformed
  data with diagonal Gaussians.(There is a loss in
  likelihood too.)
• Among all possible transformation A, we can
  choose the one that takes the least loss in
  likelihood.(In essence we will find a linearly
  transformed (shared) feature space in which the
  diagonal Gaussian assumption is most valid.)

25
Multiclass Equal Covariance

• Here all the covariances are assumed to be
  equal.
• Notice that the ML estimate of covariance for
  each class is not supposed to be equal a priori.
• The ML estimators

equal covariance of each class
26
Multiclass Equal Covariance (cont.)

• ML estimation

ML estimator of mean
within-class scatter as the ML estimate of
covariance
27
Multiclass Equal Covariance (cont.)

• Each sample on average contributes to the
  likelihood and the ML value
• From , we can prove
• The sample covariance of the entire data
• From , we can derive

The geometric is smaller than or equal to the
arithmetic mean.
within-class scatter
between-class scatter
28
Multiclass Equal Covariance Clusters

• Classes are organized into clusters and each
  cluster modeled with a single mean or collection
  of means and a single covariance.
• The former case the data can be relabeled using
  cluster labels and ML estimates and
  ML values can be obtained as before for the
  full-covariance multiclass case.
• The latter case the data can be split into K
  groups in which case this essentially becomes
  the equal-covariance problem for each group.

29
Multiclass Diagonal Covariance Clusters

• Again classes are grouped into clusters. Each
  cluster is modeled with a diagonal Gaussian in a
  transformed feature space.
• The ML estimators in the original feature
  space
• The ML value
• One can choose the best feature space for each
  class cluster by maximizing over the .
• Notice that the  for each class cluster is
  obtained independently.

30
Multiclass One Cluster

• When the number of clusters is one, there is
  single global transformation and the classes are
  modeled as diagonal Gaussians in this feature
  space.
• Note that we have three parameters
  needed to be optimized.
• The ML estimators
• The ML value
• The optimal A can be obtained by optimization as
  follows

objective function
31
Multiclass One Cluster (cont.)

• Optimization the numerical approach
• The objective function F
• Differentiating F with respect to A, and we will
  get the derivative G

32
Multiclass One Cluster (cont.)

• Directly optimizing the objective function is
  nontrivial and requires numerical optimization
  techniques and full matrix, , to be stored
  at each class.
• A more efficient algorithm from (Gales, TR291,
  1997) can be used.

33
Multiclass Gales Approach

• Algorithm
• Estimate the mean (sample mean), which is
  independent of the other model parameters.
• Use the current estimate of the transform A, and
  estimate the set of class-specific diagonal
  variances.
• Estimate the transform A using the current set of
  diagonal covariances.
• Go to 2) until convergence, or appropriate
  criterion satisfied.

sample covariance of class j
The i-th entry of diagonal variance of class j
the i-th row vector of A
The i-th row vector of the cofactors
34
Multiclass Gales Approach (Appendix)

• Lets go back to the log-likelihood of the
  training data

35
Multiclass Gales Approach (Appendix)

• Differentiating with respect to and
  equating to zero

scalar
36
MLLT vs. HDA

• The maximum likelihood linear transformation
  (MLLT) aims at minimizing the loss in likelihood
  between full and diagonal covariance Gaussian
  models.
• (Gopinath, 1998)
• (Gales, 1999)
• The objective is to find a transformation that
  maximizes the log likelihood difference of the
  data
