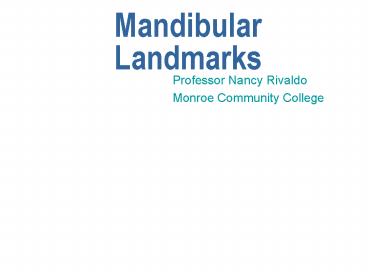

Mandibular Landmarks

1
Mandibular Landmarks

• Professor Nancy Rivaldo
• Monroe Community College

2
Mandible

• 1. Mental Ridge
• 2. Mental Foramen
• 3. External Oblique Ridge
• 4. Ramus

4
1
2
3
3
Cont.

• 5. Lingual Foramen
• 6. Internal Oblique Ridge
• 7. Mandibular Foramen

7
5
6
4
External Oblique Ridge

• Continuation of anterior border of ramus--buccal
  aspect
• Radiopaque line typically superimposed over crown
  of 3rd molar

5
Internal Oblique Ridge

• Radiographic term
• Radiopaque line that overshadows the roots of
  molar teeth--lingual aspect of mandible
• If internal and external seen together the
  internal is the lower of the two

6
Mandibular Canal

• Extends downward and forward from mandibular
  foramen to mental foramen
• Radiolucent band with radiopaque walls

7
Mental Foramen

• Oval or round radiolucency
• Near apices of mandibular premolars
• Found between, below or superimposed on roots

8
Genial Tubercles

• Located on lingual surface of mandible
• Bony growths which serve as muscle attachments
• Appear as a radiopaque circle

9
Lingual Foramen

• Exit point of lingual branches of incisive
  vessels and nerves
• Appears as a radiolucency in middle of radiopaque
  genial tubercles

10
Mental Ridge

• Ridge of bone on labial aspect of mandible
• Bilateral below apical area of canine and
  incisors
• Appears as a broad radiopaque band

11
Mental Fossa

• Concavity in labial plate of bone
• Mandibular incisor area
• Appears radiolucent

12
Mandibular Fossa/Submandibular Fossa

• Area of reduced thickness of bone
• Lingual aspect of mandible
• Radiolucent area below internal oblique ridge

13
Shadow of lip

• Seen on anterior radiograph
• Portion of film not covered by lip appears darker
  then rest of film because there is no soft tissue
  attenuation in that area
