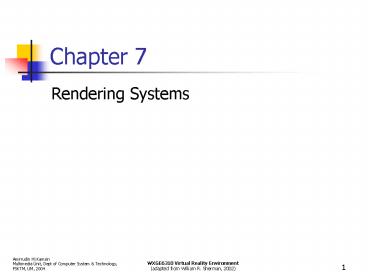

Chapter 7

• Rendering Systems

2
Rendering Systems

• Visual
• Aural
• Haptic

3
Visual Rendering Systems

• aka Computer Graphics
• Software rendering vs. Hardware rendering
• Object representation schemes
• Geometrically based (polygons, NURBS, CSG)
• Non-geometric forms (volumetric rendering,
  particle systems)

4

• Geometrically based internal representations
• Polygons
• Constructive Solid Geometry (CSG)
• Non-Uniform Rational B-Splines (NURBS)
• Other representations are often converted to
  polygons for hardware rendering

5
(No Transcript)
6

• Non-geometrically based internal representations
• Volumetric rendering
• Particle systems

7
(No Transcript)
8

• Techniques for rendering complex visual scenes
• Shading
• Reducing polygon waste
• Texture mapping
• Culling
• Multiplexing multiple renderers to one screen

9

• Multiplexing multiple renderers to one screen
• aka "DPLEX decomposition"
• Added cost of additional rendering systems
• Reduces the maximum delay between and input and
  the response

10
(No Transcript)
11

• Aural Rendering Systems
• Sampling
• Synthesis
• Spectral Methods
• Physical Model
• Abstract Synthesis

12

• Rendering Complex Sounds
• Frequency Modulation
• Additive Subtractive Techniques
• Granular synthesis

13

• Sonic Effects
• Convolution
• Reverberation
• Chorusing

14

• Haptic Rendering Systems
• Thermal Rendering
• Pin-based Rendering
• Kinesthetic Display
• Robotically Operated Shape Display (generic
  specific)
• Physical Object Rendering

15

• Rendering Complex Haptic Scenes with Force
  Displays
• Single point of contact
• Single point of contact with Torque
• Constraint of Movement
• Two points of contact (pinching)
• Multiple Points of contact (grasping)

16

• Haptic Rendering Techniques
• Spring and dashpot
• Point and plane
• Multiple plane
• Point to point
• Multispring model
• Inertial and Resistive effects
• Vibration models
