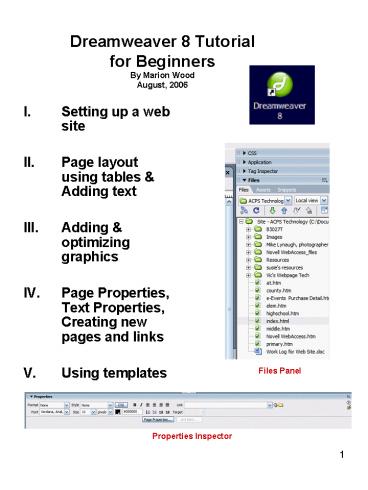

Dreamweaver 8 Tutorial for Beginners By Marion Wood August, 2006

1
Dreamweaver 8 Tutorialfor Beginners By Marion
WoodAugust, 2006

• Setting up a web site
• Page layout using tables Adding text
• Adding optimizing graphics
• Page Properties, Text Properties, Creating new
  pages and links
• Using templates

Files Panel
Properties Inspector
2
Part I Setting up a Site in Dreamweaver 8

• In order to keep all files together and relative
  to each other, it is necessary to create a folder
  for all your files in each web site.
• Right-click on the desktop, click on New, click
  on Folder. Name the new folder My Practice Web
  Site.
• Create a new folder inside the My Practice Web
  Site folder and name it Media.
• Open Dreamweaver. The first time you use
  Dreamweaver, you choose whether you will operate
  in Designer View or Code View. Choose
  Designer. If this is not your first time to use
  Dreamweaver, you should automatically open in
  Designer View.

3

• Open Dreamweaver, and choose Dreamweaver Site.
• Make sure the Basic Tab is chosen.
• Name your site My Practice Web Site and click
  on Next.
• For now, choose No, I do not want to use a server
  technology. Choose Next.

4

• Choose Edit local copies and browse to select
  the folder you created for this site.
  Click on Next.
• Choose None. Click on Next. We will change
  this later.
• Your next page is the Summary Page and should
  look like this. Click on Done.
• Your Site has been created and you should now see
  it in the Files Panel

5

• Choose Create New, HTML.
• Your page should look similar to the one on the
  right.
• Choose File, Save.
• Name your page index. Every web site has a home
  page and it is named index. Browsers look for
  the page entitled index.html.
  Important Note Your home page must be named
  index.htm or index.html.
• You have finished Part I and set up your site.

6
Part II Page Layout Using Tables Adding Text

• Tables are the most simple and direct way of
  creating a layout for your web site.
• From the index page you created in Part I, Choose
  Insert, Table. Create a simple 3 row and 3
  column table. Click OK.
• Your page should look like this.
• Select the 3 cells in the top row.

7

• Choose Modify, Table, Merge Cells.
• Type in your page title.
• Note the Property Inspector at the bottom of the
  page. (This changes by what you have selected.)
  Click on the Align Center button.
• Your Title is now centered in the cell.
• Select the text.
• Open the text box in the Property Inspector.
  Choose the Verdana family of fonts.

8

• Highlight your title. In the Property Inspector,
  choose a larger font and click on Bold.
• Select your table and notice this one is 200
  pixels wide.
• In the Property Inspector, change the width to
  800 pixels and the height to 600 pixels.
• Your table should now look similar to the one on
  the right.
• Click inside the bottom right cell. In order to
  select it, click on the lttdgt at the bottom of the
  document window. This is a handy way to select
  different cells in a table.

9

• Select the top cell by clicking inside it. Click
  on the lttdgt at the bottom of the document window.
  Type 50 in the height box and press enter. Your
  table should look similar to the one here.
• Select the 2 bottom left cells.
• Choose Modify, Table, Merge cells. We will use
  these merged cells to create a horizontal
  navigation bar.
• With the merged cells selected, change the
  vertical and horizontal alignment within the cell
  to Left and Top. Notice your text cursor moves
  to the top left of the cell.
• Sometimes it is helpful to place a table within a
  table. Click inside the left merged cell.
  Choose Insert, Table, and choose 6 Rows and 1
  column.

10

• Type page names in the table. These will be the
  links to the other pages in the site.
• Your table might change when you insert graphics
  or text. Just stretch it to the desired size.
  You will want to make your page size
  approximately 800 X 600 pixels. Minimize
  Dreamweaver to your taskbar.
• You have finished Part II. You have laid out
  your page using tables.

5 Basic Rules of web page design and layout Your
web site should be easy to read. Your web site
should be easy to navigate. Your web site
should be easy to find. Your web page layout
and design should be consistent throughout the
site. Your web site should be quick to
download. http//www.grantasticdesigns.com/5rule
s.htm
11
Part III Adding Optimizing Graphics

• Open Fireworks. You will notice that it is quite
  similar to Dreamweaver in that it uses the
  Property Inspector.
• Click on Open and browse to the picture folder on
  your desktop (or where you are told it is).
• Choose a picture to represent you. You can see a
  sample when you click on it. Click on Open.
• Click on Modify, Canvas, Image Size. Our picture
  needs to fit in one of the cells in our table in
  Dreamweaver. So go back to Dreamweaver to see
  what size the cell is.
• Open Dreamweaver, click on the bottom left cell.
  Notice the one here is 279 pixels wide. We would
  like our picture to fit in this cell.

12

• Go back to Fireworks. Decide how wide you want
  your graphic to be in relation to the cell. 200
  pixels might be good.
• When you change the width to 200, notice the
  height changes also. It is important to
  have the box beside Constrain Proportions
  checked. Click on OK.
• The picture is 47.8 kb in file size. That is not
  very large but needs to be even better. Also the
  white background needs to be made transparent.
  Jpg files are not able to have transparency.
  Pngs and gifs can have transparency.

http//darkwing.uoregon.edu/jqj/pub-intro3/images
-gif.html
13

• The Export Wizard is a great tool. It can be
  used to reduce the file size and to create
  transparent portions of the file. Choose File,
  Export Wizard.
• Select an export format should be checked. Press
  Continue.
• Select Dreamweaver and press Continue.
• Fireworks analyzes your file based on the
  information you provided and makes
  recommendations. Press Exit to see the
  recommendations.
• Fireworks recommends 2 possiblities. The top
  choice is a gif file. The bottom choice is a jpg.

14

• Notice how Fireworks has reduced the file size.
• In order to make the background of the picture
  transparent, choose the gif file.
• Click on the select transparent color icon.
• With your eyedropper tool, click on the white
  background of the picture.
• The checkerboard background shows that it is now
  transparent.
• Choose Export.
• When saving this file, adding tr to the title
  will help you to know that this is the picture
  with a transparent background. Save it where you
  will remember.

15

• Click on Export. The file is now
  optimized. It is reduced in size while
  maintaining quality. It also has a transparent
  background.
• Go back to Dreamweaver, click inside the cell
  where you want to place your picture.
• Choose Insert, Image.
• Choose your optimized file. Notice the size is
  now only 7kb. Click OK.
• Important! The file needs to be imported into
  your root folder, so click Yes.
• Put it in your root folder, inside your Media
  folder. Double-click on your Media folder to
  open it. It is good design practice to keep your
  files neatly filed.
• Click on Save.

16

• New in this version of Dreamweaver, is the
  opportunity to add alternate text at the time you
  insert the image. This makes your site more
  accessible to those with vision problems. Click
  OK.
• Your picture is now in the cell of your choice.
• While the image is selected, use the Property
  Inspector to center it within the cell.
• Now, click inside the cell.
• Click on the Center text button.
• Your picture is now centered within the cell.
• You have now optimized, created transparency, and
  inserted a graphic.

17
Part IV Page Properties, Text Properties,
Creating new pages and links

• Its time to add color. Choose Modify, Page
  Properties.
• Clck on the Background Color Box.
• Pick a color. Click OK.
• Notice how the transparent background on the
  image allows the page background color to show
  through. Without the transparency, your image
  would have a white box aound it.
• Open the Page Property dialogue box again to see
  all the things you can do.

18

• 6. Select the text as shown. Change the font to
  the Verdana family.
• Add text and graphics to the other cells in your
  table.
• Change the fonts to the Verdana family.
• Align the text to the top of each cell.
• Your page should now look similar to the one
  below.

19

• Creating New Pages Save this page first, then
• Choose File, Save as to save a copy of this page
  as photos. Always save pages in lower case,
  without symbols, and as short a name as possible.

• Double-click on the photos page to make sure it
  is the one open.
• For consistency of design, the left navigation
  cell will not be changed. Change the title as
  shown.
• It is now time to add photos in the cells.
• Go back to Fireworks.
• Open the Class2 image. It is a jpg.

20

• This picture needs to be resized and then
  optimized. Because it is a photograph and does
  not need to be transparent, it needs to be
  exported as a jpg.
• Choose Modify, Canvas, Image Size. We want this
  image to replace the one already on the page.
  Remember, the picture needs to be 200 pixels
  wide.
• Choose File, Export Wizard.
• This time, select the jpg. Notice the size is
  12.82k. This is a good file size and the picture
  is good in quality. Choose Export and save it
  with a tr in its name.
• Do the same with the class3 image.

21

• Go back to Dreamweaver. Select and Cut the
  image. With your cursor in the same cell, insert
  class2tr.
• Click in the upper right cell and insert
  class3tr. Your page should like similar to the
  one to the right. Remember to write in your
  alternate text and to center the images and the
  text in the cells.
• You can do this same technique to create all your
  pages. You are, in effect using the first page
  you created as a sort of template

Naming Conventions
22
26. Creating Links a. Page Links Open the
index page. (realizing that there is no
navigation to Home Page, change the Student Work
to Home Page.) Highlight Home Page. Click on the
Point to File icon and drag an arrow to point to
the index file in the Files Panel. (Dreamweaver
automatically creates the link information for
you. It is like magic!) b. External Links
Highlight http//www.Starfall.com and type its
URL in the link box in the Property
Inspector. c. E-mail Links Highlight Contact
Mrs. Wood and type mailto and the e-mail
address mailtomrwood_at_appomattox.k12.va.us in
the link box in the Property Inspector.
23

• If you were creating a real site, you would
  create all the links. You would also create all
  the pages.
• A simple way to get your navigation bar to all
  pages, is to copy it and paste in on each page.
  The links will also copy.
• Select the table,
• copy it,
• go to the next page,
• select the navigation bar on the page and
• choose paste.

You have finished Part IV. You have worked with
Page and Text Properties. You have Created a new
pages and links Preview your site and check to
see if your links work. Recommended Resources A
rubric for school web development and
management http//www.eschoolnews.com/schoolspanwe
bsiterubric.pdf Free video tutorialshttp//www.
video-tutes.com/index.php
24

• If you were creating a real site, you would
  create all the links. You would also create all
  the pages.
• A simple way to get your navigation bar to all
  pages, is to copy it and paste in on each page.
  The links will also copy.
• Select the table,
• copy it,
• go to the next page,
• select the navigation bar on the page and
• choose paste.

You have finished Part IV. You have worked with
Page and Text Properties. You have Created a new
pages and links Preview your site and check to
see if your links work. Recommended Resources A
rubric for school web development and
management http//www.eschoolnews.com/schoolspanwe
bsiterubric.pdf Free video tutorialshttp//www.
video-tutes.com/index.php
25
Part V Using Templates

• Do a Google Search for free Dreamweaver templates
  or go to http//www.dreamweaver-templates.org/free
  -dreamweaver-templates.html
• Create a folder on your desktop and name it
  Template. Download one of the free templates to
  your desktop and into the Template folder.
• Create a new folder on your desktop and name it
  My Template Practice Web Site. Remember to
  place a Media folder inside.
• Close all the pages you have open in Dreamweaver.
  Choose Create New, Dreamweaver Site.
• Name your new site My Template Practice Web
  Site.

26

• Go through the setting up process again.
  Remember to select None for connecting to remote
  server.
• Choose Create New html file.
• Choose File, Open and browse to your template
  folder. Select the file in that folder that says
  index.
• Now you can use the skills you learned earlier in
  this lesson to change the template and make your
  own site.

Template
Revised Template
