Sample Checklist for Use Case Diagrams

1

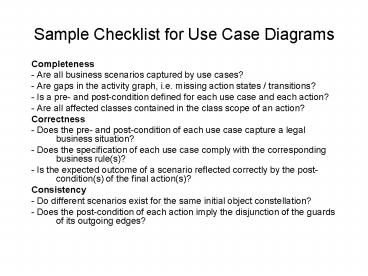

Sample Checklist for Use Case Diagrams

• Completeness
• - Are all business scenarios captured by use
  cases?
• - Are gaps in the activity graph, i.e. missing
  action states / transitions?
• - Is a pre- and post-condition defined for each
  use case and each action?
• - Are all affected classes contained in the class
  scope of an action?
• Correctness
• - Does the pre- and post-condition of each use
  case capture a legal business situation?
• - Does the specification of each use case comply
  with the corresponding business rule(s)?
• - Is the expected outcome of a scenario reflected
  correctly by the post-condition(s) of the final
  action(s)?
• Consistency
• - Do different scenarios exist for the same
  initial object constellation?
• - Does the post-condition of each action imply
  the disjunction of the guards of its outgoing
  edges?

2
Sample Checklist for Class Diagrams

• Completeness
• - Is every class contained in at least one class
  scope?
• - Is every interaction mapped to a root
  operation?
• - Are all classes in the signature of a root
  operation contained in the class scope of the
  corresponding interaction(s)?
• Correctness
• - Does the pre-condition of the interaction imply
  the pre-condition of the root operation?
• - Does the post-condition of the root operation
  imply the post-condition of the interaction?
• - If an edge e of an activity graph is traversed
  by a scenario, does its guard c(e) hold for the
  actual object constellation?
• - Is the class scope of the macro action a subset
  of the class scope of the referenced activity
  graph?
• Consistency
• - Are the interaction specifications compatible
  with the class scopes and the specifications of
  the root operations?
• - Does an interaction and a concrete object
  constellation allow different interaction
  sequences?
• - Is an operation a root operation for different
  interactions?
• - Does the post-condition of each non-final
  interaction imply the disjunction of its outgoing
  edge guards?
• - Does an object constellation violate an
  association multiplicity?
• - Are there usage anomalies in interaction
  sequences (create-delete, write-write,
  delete-read, ...)?
