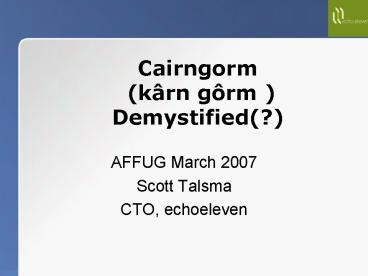

Cairngorm (kârn gôrm ) Demystified(?)

• AFFUG March 2007
• Scott Talsma
• CTO, echoeleven

2
Goals

• How to say it?
• Why should I use it?
• What is it?
• See some code

3
Assumptions

• Components
• Events and event handling (click, change, etc.)
• RemoteObjects (calling, handling results)
• ltmxScript /gt, importing classes, etc.

4
Pronunciation

• Cairngorm (kârn gôrm )
• n. yellowish-brown variety of quartz, especially
  found in Scottish Cairngorm mountain.

5
Why use it?

• if you don't get why you would need to use
  something like Cairngorm, then you probably
  aren't building applications that merit using it
  anway

6
Why use it?

• Cairngorm is not intended as something that we
  expect people to pick up the same time they are
  getting to grip with Flex.
• Multiple developers working on the project, and
  run the risk of them all solving the same problem
  in multiple different ways

7
Why use it?

• Unified approach to problems
• Inject complex functionality in a well understood
  manner
• promote, enable and encourage reuse (business
  objects, business services, etc.)

8
What is it?

• .swc file that gets compiled into app
• Collection of classes/interfaces against which we
  can compile

9
What is it?

• elegant collaboration and partitioning of design
  responsibilities
• "microarchitecture"
• provide structure and skeleton in a generic
  fashion
• A standard way of doing building a Flex app.

10
Diagram

• http//www.cairngormdocs.org/cairngormDiagram/cair
  ngorm2_rpc.swf

11
Breaking it down

• Model
• View
• Controller ServiceLocator
• Application Tier (server-side)

12
Model

• All client state data
• Anything retrieved from server
• Implements ModelLocator Cairngorm interface
• From the Cairngorm Docs
• The model locator in an application is a
  singleton that the application uses to store the
  client side model.
• Summary Model is a Singleton containing data.

13
Example
package com.echoeleven.model import
com.adobe.cairngorm.model.ModelLocator Bindab
le public class ApplicationModel implements
ModelLocator public var
useridString public var usernameString pub
lic var passwordString public var
configObject function ApplicationModel()
init() public function
init()void userid "" username
"" password "" config new
Object() config.userService
"components.UserService"
14
View

• UI
• .mxml files w/controls (text fields, combobox,
  datagrid, etc.)
• All data is pulled from model via a binding

15
Sample View
lt?xml version"1.0" encoding"utf-8"?gt ltmxVBox
xmlnsmx"http//www.adobe.com/2006/mxml"
creationComplete"updateButtonStatus( event
)"gt ltmxScriptgt lt!CDATA Bindable private
var appDataApplicationModel ApplicationModel.ge
tInstance() gt lt/mxScriptgt ltmxFormgt
ltmxFormHeading label"Login"/gt ltmxFormItem
label"User name"gt ltmxTextInput id"userName"
change"dataChange( event )" text"appData.userna
me" /gt lt/mxFormItemgt ltmxFormItem
label"Password"gt ltmxTextInput
displayAsPassword"true" id"password"
change"dataChange( event )" text"appData.passwo
rd" /gt lt/mxFormItemgt ltmxFormItemgt ltmxHB
ox width"100"gt ltmxButton id"loginBtn"
label"Login" click"login( event
)"/gt ltmxButton id"resetBtn" label"Reset"
click"reset( event )"/gt lt/mxHBoxgt lt/mxForm
Itemgt lt/mxFormgt lt/mxVBoxgt
16
Controller

• Allows communication between tiers of application
  via
• Events
• extend class
• com.adobe.cairngorm.control.CairngormEvent
• Commands
• implement interfaces
• com.adobe.cairngorm.commands.Command
• com.adobe.cairngorm.business.Responder (optional)
• Tie both together in Controller class

17
Events

• Events classes usually just a
• Collection of properties
• Constructor with params to populate those
  properties
• Used to pass data between layers of an application

18
Event Example

• package com.echoeleven.controller.event
• import com.adobe.cairngorm.control.CairngormEvent

• import com.echoeleven.controller.ApplicationContr
  oller
• public class LoginEvent extends CairngormEvent
• public var usernameString
• public var passwordString
• public function LoginEvent(usernameString,
  passwordString)
• super(ApplicationController.EVENT_LOGIN)
• this.username username
• this.password password

19
Command

• Service to Worker command pattern
• Must implement the Cairngorm Command interface
• If receiving data from server (e.g.
  RemoteObject), should also implement Responder
  Interface
• Command class must implement execute() method
• execute() usually takes an event argument as a
  parameter

20
Command Example

• package com.echoeleven.controller.command
• import com.echoeleven.model.ApplicationModel
• import com.echoeleven.controller.event.LoginDataC
  hangeEvent
• public class LoginDataChangeCommand implements
  Command
• public function execute(eventParamCairngormEven
  t)void
• var eventLoginDataChangeEvent eventParam as
  LoginDataChangeEvent
• var appDataApplicationModel
  ApplicationModel.getInstance()
• appData.username event.username
• appData.password event.password

21
Controller

• Tie Event and Command classes together in
  Controller class constructor
• addCommand( ApplicationController.EVENT_LOGIN,
  LoginCommand )
• Controller listens for event
• When event is dispatched, commands execute()
  method called (by controller)

22
ControllerBig Picture

• View event triggered (e.g. click event)
• Caught by private method in view (mxml file)
• View method creates instance of event (extending
  CairngormEvent)
• View method dispatches that event via
  CairngormEventDispatcher
• Controller catches CairngormEvent and executes
  associated Cairngorm Command
• private function btnClick( eventEvent )void
• var evtLoginEvent new LoginEvent(userName.text
  , password.text)
• CairngormEventDispatcher.getInstance().dispatchEv
  ent( evt )

23
Example

• Create LoginDataChangeEvent class
• Create LoginDataChangeCommand class
• Connect Event to Command in controller
• Catch the TextField.change event, and call local
  function dataChange()
• Create instance of LoginDataChangeEvent and
  dispatch it
• LoginDataChangeCommand.execute() automatically
  called
• execute() method modifies Model
• Change to model reflected in View through binding

24
Service Locator

• Singleton
• Abstracts data communication layer
• Defines which protocol (http, SOAP, AMF, etc.)
  and which endpoint params (which service, which
  channel, etc.)

ltcairngormServiceLocator xmlnsmx"http//ww
w.adobe.com/2006/mxml" xmlnscairngorm"com.a
dobe.cairngorm.business."gt ltmxRemoteObject i
d"userService" destination"ColdFusion" showBus
yCursor"true sourcecomponents.echoeleven.so
meCFC" result"event.token.resultHandler( event
)" fault"event.token.faultHandler( event
)"gt lt/mxRemoteObjectgt
lt/cairngormServiceLocatorgt
25
Business Delegate

• Who should handle the results of a server
  operation?
• Avoids attaching result/error routines to data
  services (e.g. RemoteObject)
• Allows Command to call remote object method, and
  handle the result and fault methods
• Multiple instances may exist

26
Business Delegate

• The Business Delegate typically fulfills its role
  in collaboration with the Service Locator it
  uses the Service Locator to locate and look up
  remote services, such as web services, remote
  Java objects, or HTTP services. Once located, the
  Business Delegate invokes these services on
  behalf of the class that has delegated
  responsibility to it for business logic
  invocation.

27
Command Side of Delegate

• public class LoginCommand implements Command,
  Responder
• private var appDataApplicationModel
  ApplicationModel.getInstance()
• public function execute(eventParamCairngormEvent
  )void
• var eventLoginEvent eventParam as
  LoginEvent
• var delegateUserServiceDelegate new
  UserServiceDelegate( this )
• delegate.authenticate( event.username,
  event.password )
• public function onResult(eventnull)void
• public function onFault(eventnull)void
• DebugMessage.write(event.fault, "fault")

28
Business Delegate

• public function UserServiceDelegate(
  callingCommandcom.adobe.cairngorm.business.Respon
  der )
• service ServiceLocator.getInstance().getService
  ("userService")
• responder callingCommand
• public function authenticate( usernameString,
  passwordString )void
• var callObject service.authenticate(username,
  password)
• call.resultHandler responder.onResult
• call.faultHandler responder.onFault

29
Hints

• Find a simple working example and use it as a
  code base
• Start with a small project

30
References

• Labs.adobe.com
• http//cairngormdocs.org/
• Read Chapter 20 of Developing Rich Clients with
  Macromedia Flex (http//www.theserverside.com/tt/
  articles/content/Flex/Flex_Chapter20.pdf)
