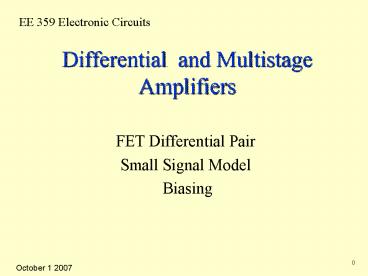

Differential and Multistage Amplifiers

1
Differential and Multistage Amplifiers

• FET Differential Pair
• Small Signal Model
• Biasing

2
Differential Amplifier
Differential amplifier consists of two matched
transistors which conduct the same current

3
Common Mode Input Voltage
4
Exercises 7.1, 7.2
5
Exercise 7.3

• V_DD and V_SS1.5 V, k_n(W/L)4mA/V2, V_t0.5V,
  I0.4mA, R_D2.5k Ohm

6
Diff. Amp. With Diff. Input

• vG20, vG1vid

VG1
7
Large Signal Operation of MOSFET Diff. Amplifier

• Nonlinear response to change in voltage
  differential

8
Transfer Characteristic of FETDiff. Pair

• Linear only for small input!
• Difference is limited to V_ov

9
Extending Linear Operation Range
10
Small Signal Model MOS Diff
11
Small Signal Analysis

• Input and output Impedances

12
(No Transcript)
13
Simplified Model
Cut the differential pair into 2
14
Mismatch of g_m
15
Offset Voltage to compensate
16
Active Loads

• Active load maintains bias current I
• Active load has high impedance

17
Active Load

• Active Load in Saturation
• Without any input

18
Active Load

• The current generated by differential input will
  only flow to the load

19
Active Load

• In practice, leakage from Drain to Source

20
Analysis of Small Signal
21
Frequency Response
22
Frequency Response
