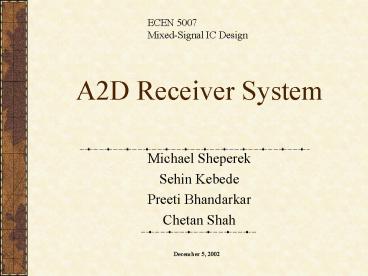

A2D Receiver System

1
A2D Receiver System
ECEN 5007 Mixed-Signal IC Design

• Michael Sheperek
• Sehin Kebede
• Preeti Bhandarkar
• Chetan Shah

December 5, 2002
2
System Block Diagram
A2D Receiver System
December 5, 2002
3
Functional Block Diagram
A2D Receiver System
December 5, 2002
4
Project Overview
A2D Receiver System
December 5, 2002

• Design a high-speed comparator
• Design a PLL for Random NRZ data capable of
  handling strings of ONEs and ZEROs
• Combine the PLL with a double-edge triggered
  D-flip flop to complete the Clock/Data Recovery
  circuit
• Convert the serial stream of data to a byte-wide
  data

5
System Schematic
A2D Receiver System
December 5, 2002
6
Use of Comparator
A2D Receiver System
December 5, 2002

• The comparator with a post sampler performs
  the task of 1-bit fast ADC,i.e, It samples the
  incoming waveform and outputs a 1-bit digital
  signal.
• The output of the analog front end supply the
  ADC (the Comparator)with a 500mVpp continues
  signal.
• The high-speed comparator compares this input
  with a reference signal and by doing that it
  converts the incoming signal to a rectangular
  pulses.

7
Comparator(Initial)
A2D Receiver System
December 5, 2002
8
Comparator(Final)
A2D Receiver System
December 5, 2002
9
Simulation Result(Gain Phase)
A2D Receiver System
December 5, 2002
Without Buffer
With Buffer
10
Simulation Result(Hysteresis)
A2D Receiver System
December 5, 2002
11
Simulation Result(Noise Reduction)
A2D Receiver System
December 5, 2002
Without Hysteresis
With Hysteresis
12
Simulation Result(Propagation Delay/Slew Rate)
A2D Receiver System
December 5, 2002
13
Simulation Result(Comparator Input Output)
A2D Receiver System
December 5, 2002
14
The Comparator Design
A2D Receiver System
December 5, 2002
15
Theory of PLL
A2D Receiver System
December 5, 2002

?(s)
Vcntrl(s)
H(s)
?
-
Zeros become poles of A(s)
F(s)
Poles become zeros of A(s)
In General A(s) Closed Loop Gain T(s) Loop
Gain H(s) Feed forward TF F(s) Feed back TF
16
Theory of PLL
A2D Receiver System
December 5, 2002

?(s)
Vcntrl(s)
Hcp_lp(s)
?
-
Fvco(s)
Where
phase detector and charge pump
Voltage controlled oscillator (model as an
integrator)
K1 FF constant (V/?) K2 FB constant (?/V)
17
Theory of PLL
A2D Receiver System
December 5, 2002
Where
18
Phase Frequency Detector
A2D Receiver System
December 5, 2002
19
Timing Waveform
A2D Receiver System
December 5, 2002
20
False Lock Problem
A2D Receiver System
December 5, 2002
21
False Lock-Timing Waveform
A2D Receiver System
December 5, 2002
22
Ideal Charge Pump LPF
A2D Receiver System
December 5, 2002
The Charge Pump is used to convert the digital
pulse up/down into a behaved voltage,
proportional to the up/down signals. The Loop
filter is used to control the rate of change of
the output voltage.
23
Charge-Pump Low Pass Filter
A2D Receiver System
December 5, 2002
24
Voltage-Controlled Oscillator
A2D Receiver System
December 5, 2002
25
Delay-Cell
A2D Receiver System
December 5, 2002
26
Why this VCO?
A2D Receiver System
December 5, 2002

• Achieves high rejection of supply and substrate
  noise
• Yields 50 duty cycle, an important requirement
  in timing applications
• Capacitive tuning
• Susceptible to noise
• Substantial variation in gain of VCO
• Min value of C exists at all times
• Resistive tuning
• Large, relatively uniform frequency variation
• Additional circuitry for constant gain swing

27
Diff-to-Diff
A2D Receiver System
December 5, 2002
28
Simulation Result(VCO)
A2D Receiver System
December 5, 2002
Without Diff-to-Diff
With Diff-to-Diff
29
D-Flip Flop
A2D Receiver System
December 5, 2002
30
Simulation Result(250MHz Preamble)
A2D Receiver System
December 5, 2002
31
Simulation Result(500MHz Preamble)
A2D Receiver System
December 5, 2002
32
Simulation Result(Random Data)
A2D Receiver System
December 5, 2002
33
Simulation Result(FM Data)
A2D Receiver System
December 5, 2002
34
PLLs Simulated Performance
A2D Receiver System
December 5, 2002
35
Serial to Parallel
A2D Receiver System
December 5, 2002
36
Simulation Result(Parallel Data)
A2D Receiver System
December 5, 2002
37
Workaround Strategies
A2D Receiver System
December 5, 2002

• Operate the system in the range such that the
  problem of harmonic and sub-harmonic frequency
  does not arise
• Use a different architecture for PFD
• Use an additional logic at the output of PFD such
  that the system is stable and still able to avoid
  the 1-1 short circuit stage of charge pump

38
Conclusion
A2D Receiver System
December 5, 2002

• High-speed Comparator (with hysteresis) was
  designed
• Few issues with propagation delay
• A PLL was designed for the given operating
  frequency range
• Few issues with false lock and stability
• Synthesizable double-edge triggered D-flip flop
  designed
• Serial to parallel conversion block included for
  completeness
• Work around strategies proposed
