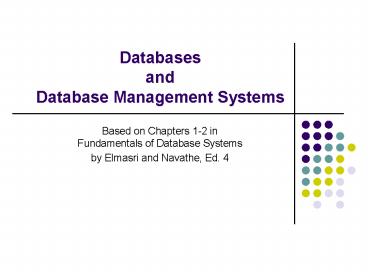

Title: Databases and Database Management Systems


1
Databases and Database Management Systems
  • Based on Chapters 1-2 in Fundamentals of
    Database Systems
  • by Elmasri and Navathe, Ed. 4

2
NOTES
  • 1 Basic Definitions
  • 2 Example of a Database
  • 3 Main Characteristics of Database Technology
  • 4 Additional Benefits of Database Technology
  • 5 When Not to Use a DBMS
  • 6 Data Models 6A. History of data Models
  • 7 Schemas versus Instances
  • 8 Three-Schema Architecture
  • 9 Data Independence
  • 10 DBMS Languages
  • 11 DBMS Interfaces
  • 12 DBMS Component Modules
    13 Database System Utilities
  • 14 Classification of DBMSs

3
Types of Databases and Database Applications
  • Numeric and Textual Databases
  • Multimedia Databases
  • Geographic Information Systems (GIS)
  • Data Warehouses
  • Real-time and Active Databases
  • A number of these databases and applications are
    described later in the book (see Chapters
    24,28,29)

4
1.Basic Definitions
  • Database
  • A collection of related data.
  • Data
  • Known facts that can be recorded and have an
    implicit meaning.

5
Basic Definitions
  • Mini-world
  • Some part of the real world about which data is
    stored in a database.
  • For example, student grades and transcripts at a
    university.

6
Basic Definitions
  • Database Management System (DBMS)
  • A software package/ system to facilitate the
    creation and maintenance of a computerized
    database.

7
Basic Definitions
  • Database System
  • The DBMS software together with the data itself.
  • Sometimes, the applications are also included.
  • Database System
  • Data DBMS (Program)

8
A simplified database system environment.
9
Typical DBMS Functionality (1/2)
  • Define a database
  • in terms of data types, structures and
    constraints
  • Construct or Load the Database on a secondary
    storage medium
  • Manipulating the database
  • querying, generating reports, insertions,
    deletions and modifications to its content

10
Typical DBMS Functionality (2/2)
  • Concurrent Processing and Sharing by a set of
    users and programs yet, keeping all data valid
    and consistent
  • Protection or Security measures to prevent
    unauthorized access
  • Active processing to take internal actions on
    data
  • Presentation and Visualization of data

11
2. Example of a Database(with a Conceptual Data
Model)
  • Mini-world for the example
  • Part of a UNIVERSITY environment.
  • Entities
  • Relationships

12
2. Example of a Database(with a Conceptual Data
Model)
  • Some mini-world entities
  • STUDENTs
  • COURSEs
  • SECTIONs (of COURSEs)
  • (academic) DEPARTMENTs
  • INSTRUCTORs

13
2. Example of a Database(with a Conceptual Data
Model)
  • Some mini-world relationships
  • SECTIONs are of specific COURSEs
  • STUDENTs take SECTIONs
  • COURSEs have prerequisite COURSEs
  • INSTRUCTORs teach SECTIONs
  • COURSEs are offered by DEPARTMENTs
  • STUDENTs major in DEPARTMENTs

14
NOTE
  • The above could be expressed in the
    ENTITY-RELATIONSHIP data model.

15
Example of a Database(with a Logical Data Model)
16
3. Main Characteristics of Database Technology
  • Self-contained nature of a database system
  • Insulation between programs and data
  • Data Abstraction
  • Support of multiple views of the data
  • Sharing of data and multiuser transaction
    processing

17
Self-contained nature of a database system
  • A DBMS catalog stores the description of the
    database.
  • The description is called meta-data.
  • This allows the DBMS software to work with
    different databases.

18
Insulation between programs and data
  • Called program-data independence.
  • Allows changing data storage structures and
    operations without having to change the DBMS
    access programs.

19
Data Abstraction
  • A data model is used to hide storage details and
    present the users with a conceptual view of the
    database.

20
Internal storage format for a STUDENT record
21
Support of multiple views of the data
  • Each user may see a different view of the
    database, which describes only the data of
    interest to that user.

22
The STUDENT TRANSCRIPT view.
23
University database
24
Sharing of data and multiuser transaction
processing
  • allowing a set of concurrent users to retrieve
    and to update the database.
  • Concurrency control within the DBMS guarantees
    that each transaction is correctly executed or
    completely aborted.
  • OLTP (Online Transaction Processing) is a major
    part of database applications.

25
4. Additional Benefits of Database Technology
  • Controlling redundancy in data storage and in
    development and maintenance efforts.
  • Sharing of data among multiple users.
  • Restricting unauthorized access to data.
  • Providing multiple interfaces to different
    classes of users.
  • Representing complex relationships among data.

26
Additional Benefits of Database Technology (Cont)
  • Enforcing integrity constraints on the database.
  • Providing backup and recovery services.
  • Potential for enforcing standards.
  • Flexibility to change data structures.
  • Reduced application development time.
  • Availability of up-to-date information.
  • Economies of scale.

27
Redundant storage of StudentName and CourseNumber
in GRADE_REPORT.
(a) Consistent data.
(b) Inconsistent record.
28
Historical Development of Database Technology
  • Early Database Applications
  • The Hierarchical and Network Models were
    introduced in mid 1960s and dominated during the
    seventies.
  • A bulk of the worldwide database processing still
    occurs using these models.

29
Historical Development of Database Technology
  • Relational Model based Systems
  • The model that was originally introduced in 1970
    was heavily researched and experimented with in
    IBM and the universities.
  • Relational DBMS Products emerged in the 1980s.

30
Historical Development of Database Technology
  • Object-oriented applications
  • OODBMSs were introduced in late 1980s and early
    1990s to cater to the need of complex data
    processing in CAD and other applications.
  • Their use has not taken off much.

31
Historical Development of Database Technology
  • Data on the Web and E-commerce Applications
  • Web contains data in HTML (Hypertext markup
    language) with links among pages.
  • This has given rise to a new set of applications
    and E-commerce is using new standards like XML
    (eXtended Markup Language).

32
Extending Database capabilities
  • New functionality is being added to DBMSs in the
    following areas
  • Scientific Applications
  • Image Storage and Management
  • Audio and Video data management
  • Data Mining
  • Spatial data management
  • Time Series and Historical Data Management

33
5 When not to use a DBMS
  • Main inhibitors (costs) of using a DBMS
  • When a DBMS may be unnecessary
  • When no DBMS may suffice

34
Main inhibitors (costs) of using a DBMS
  • High initial investment and possible need for
    additional hardware.
  • Overhead for providing generality, security,
    recovery, integrity, and concurrency control.

35
When a DBMS may be unnecessary
  • If the database and applications are simple, well
    defined, and not expected to change.
  • If there are stringent real-time requirements
    that may not be met because of DBMS overhead.
  • If access to data by multiple users is not
    required.

36
When no DBMS may suffice
  • If the database system is not able to handle the
    complexity of data because of modeling
    limitations
  • If the database users need special operations not
    supported by the DBMS.

37
6. Data Models
  • Data Model
  • A set of concepts to describe the structure of a
    database, and certain constraints that the
    database should obey.

38
6. Data Models
  • Data Model Operations
  • Operations for specifying database retrievals and
    updates by referring to the concepts of the data
    model.
  • Operations on the data model may include basic
    operations and user-defined operations

39
Categories of data models
  • Conceptual data models
  • (high-level, semantic)
  • Physical data models
  • (low-level, internal)
  • Logical (Implementation) data models
  • (record-oriented)

40
Conceptual data models
  • Provide concepts that are close to the way many
    users perceive data.
  • Also called entity-based or object-based data
    models.

41
Physical data models
  • Provide concepts that describe details of how
    data is stored in the computer.
  • storage structure
  • Access path

42
Implementation data models
  • Also called logical data model
  • Provide concepts that fall between the above two,
    balancing user views with some computer storage
    details.

43
6A. HISTORY OF DATA MODELS
  • Relational Model
  • Network Model
  • Hierarchical Data Model
  • Object-oriented Data Model(s
  • Object-Relational Models

44
Relational Model
  • proposed in 1970 by E.F. Codd (IBM), first
    commercial system in 1981-82.
  • Now in several commercial products
  • DB2,
  • ORACLE,
  • SQL Server,
  • SYBASE,
  • INFORMIX.

45
Object-Relational Models
  • Most Recent Trend.
  • Started with Informix Universal Server.
  • Exemplified in the latest versions of Oracle-10g,
    DB2, and SQL Server etc. systems.

46
7. Schemas versus Instances
  • Database Schema
  • The description of a database.
  • Includes
  • descriptions of the database structure and
  • the constraints that should hold on the database.
  • Schema Diagram
  • A diagrammatic display of (some aspects of) a
    database schema.

47
Schema diagram for University database
48
7. Schemas versus Instances
  • Database Instance
  • The actual data stored in a database at a
    particular moment in time .
  • Also called database state (or occurrence).

49
7. Schemas versus Instances
  • Database State
  • Refers to the content of a database at a moment
    in time.
  • Initial Database State
  • Refers to the database when it is loaded
  • Valid State
  • A state that satisfies the structure and
    constraints of the database.

50
7. Schemas versus Instances
  • Distinction
  • The database schema changes very infrequently.
  • The database state changes every time the
    database is updated.
  • Schema is also called intension, whereas state is
    called extension.

51
8. Three-Schema Architecture
  • Proposed to support DBMS characteristics of
  • Program-data independence.
  • Support of multiple views of the data.

52
8. Three-Schema Architecture
  • Defines DBMS schemas at three levels
  • Internal schema
  • Conceptual schema
  • External schemas

53
The three-schema architecture.
54
Internal schema
  • Internal schema at the internal level to describe
    data storage structures and access paths.
  • Typically uses a physical data model.

55
Conceptual schema
  • Conceptual schema at the conceptual level to
    describe the structure and constraints for the
    whole database.
  • Uses a conceptual or an implementation data
    model.

56
External schemas
  • External schemas at the external level to
    describe the various user views.
  • Usually uses the same data model as the
    conceptual level.

57
Three-Schema Architecture
  • Mappings among schema levels are also needed.
  • Programs refer to an external schema, and are
    mapped by the DBMS to the internal schema for
    execution.

58
9 Data Independence
  • Logical Data Independence
  • The capacity to change the conceptual schema
    without having to change the external schemas and
    their application programs.
  • Physical Data Independence
  • The capacity to change the internal schema
    without having to change the conceptual schema.

59
Data Independence
  • When a schema at a lower level is changed, only
    the mappings between this schema and higher-level
    schemas need to be changed in a DBMS that fully
    supports data independence.
  • The higher-level schemas themselves are
    unchanged.
  • Hence, the application programs need not be
    changed since the refer to the external schemas.

60
10. DBMS Languages
  • Data Definition Language (DDL)
  • Data Manipulation Language (DML)
  • Data Control Language (DCL)

61
Data Definition Language (DDL)
  • Used by the DBA and database designers to specify
    the conceptual schema of a database.
  • In many DBMSs, the DDL is also used to define
    internal and external schemas (views).
  • In some DBMSs, separate storage definition
    language (SDL) and view definition language (VDL)
    are used to define internal and external schemas.

62
Data Manipulation Language (DML)
  • Used to specify database retrievals and updates.
  • DML commands (data sublanguage) can be embedded
    in a general-purpose programming language (host
    language), such as C, COBOL, PL/1 or PASCAL.
  • Alternatively, stand-alone DML commands can be
    applied directly (query language).

63
DBMS Languages
  • High Level or Non-procedural Languages
  • e.g., SQL, are set-oriented and specify what
    data to retrieve than how to retrieve. Also
    called declarative languages.
  • Low Level or Procedural Languages
  • record-at-a-time they specify how to retrieve
    data and include constructs such as looping.

64
11. DBMS Interfaces
  • Stand-alone query language interfaces.
  • Programmer interfaces for embedding DML in
    programming languages
  • Pre-compiler Approach
  • Procedure (Subroutine) Call Approach
  • User-friendly interfaces
  • Web Browser as an interface
  • Parametric interfaces (e.g., bank tellers) using
    function keys.

65
DBMS Interfaces
  • Interfaces for the DBA
  • Creating accounts, granting authorizations
  • Setting system parameters
  • Changing schemas or access path

66
Component modules of a DBMS and their
interactions.
67
13. Database System Utilities
  • To perform certain functions such as
  • Loading data stored in files into a database.
  • Backing up the database periodically on tape.
  • Reorganizing database file structures.
  • Report generation utilities.
  • Performance monitoring utilities.
  • Other functions, such as sorting , user
    monitoring , data compression , etc.

68
Data dictionary / repository
  • Used to store schema descriptions and other
    information such as design decisions, application
    program descriptions, user information, usage
    standards, etc.
  • Active data dictionary is accessed by DBMS
    software and users/DBA.
  • Passive data dictionary is accessed by users/DBA
    only.

69
14. Classification of DBMSs
  • Based on data model
  • Other classifications

70
Based on the data model used
  • Traditional
  • Relational,
  • Network,
  • Hierarchical.
  • Emerging
  • Object-oriented,
  • Object-relational.

71
Other classifications
  • Single-user (typically used with micro-
    computers) vs. multi-user (most DBMSs).
  • Centralized (uses a single computer with one
    database) vs. distributed (uses multiple
    computers, multiple databases)
  • Distributed Database Systems have now come to be
    known as client server based database systems
    because they do not support a totally distributed
    environment, but rather a set of database servers
    supporting a set of clients.
Write a Comment
User Comments (0)
About PowerShow.com
