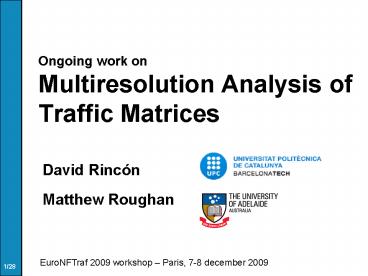

Ongoing work on Multiresolution Analysis of Traffic Matrices

1
Ongoing work onMultiresolution Analysis of
Traffic Matrices

• David Rincón
• Matthew Roughan

EuroNFTraf 2009 workshop Paris, 7-8 december
2009
2
Outline

• Introduction
• Seeking a sparse model for TMs
• Multi-Resolution Analysis on graphs with
  Diffusion Wavelets
• MRA of TMs preliminary results
• Conclusions and open issues

3
Example Abilene traffic matrix
4
Traffic matrices

• Basic input for network planning, dimensioning,
  traffic engineering, etc
• Direct inspection
• Netflow-like solutions
• Difficult to obtain experiment setting, router
  performance
• Indirect estimation Inference
• SNMP link traffic volumes (5 minutes)
• yAx
• Underconstrained problem need of models
• Gravity model Traffic exchanged between two
  nodes is proportional to the total traffic
  entering/exiting the nodes
• Prior regularization

5
Traffic matrices

• Open problems
• Need of good TM models
• Synthesis of TMs for planning / design of
  networks
• Traffic prediction anomaly detection
• Traffic engineering algorithms
• Traffic and topology are intertwined
• Hierarchical scales in the global Internet apply
  also to traffic
• How to reduce the dimensionality catch of the
  inference problem?

6
Context topology

• Spatial hierarchy

7
Our goal can we find a general model for TMs?

• Criterion the TM model should be sparse
• Sparsity energy concentrates in few coefficients
  (M ltlt N2)
• Tradeoff between predictive power and model
  fidelity
• Easier to attach physical meaning
• Could help with the underconstrained inference
  problem
• Multiresolution analysis (MRA)
• Classical MRA wavelet transforms observe the
  data at different time / space resolutions
• Wavelets (approximately) decorrelate input
  signals
• Energy concentrates in few coefficients
• Threshold the transform coefficients ? sparse
  representation (denoising, compression)
• Successfully applied in time series (1D) and
  images (2D)

8
Multi-Resolution Analysis

• Intuition to observe at different scales
• Approximations coarse representations of the
  original data

9
Wavelet transform example

• 2D wavelet decomposition of the image for j2
  levels
• Vertical/horizontal high/low frequency subbands

10
MRA on graphs?

• A TM is not an image
• Image uniform sampling or R2
• The TM is defined on a graph (manifold)
• Example swiss roll
• Available MRA techniques
• Graph wavelets (Crovella Kolaczyck, 2003)
• Sampled 2D wavelets
• Non-orthogonal, lack of fast algorithm
• Diffusion Wavelets (Maggioni Coifman, 2006)

11
Diffusion Wavelets (Coifman, Maggioni 2006)

• Diffusion operator
• A diffusion operator T learns the underlying
  geometry
• Tk represents the probability of a transition in
  k time steps
• Example (Coifman, Lafon 2006)
• 3 clusters, 300 random Gaussian-dist points, with

12
How to perform MRA on TMs?
Eigenspectrum of T (normalized)
Operator T (10x10 matrix)
W1
V1
W2
V2
?
Eigenvalues (low to high frequency)
13
Diffusion Wavelets and our goals

• Unidimensional functions of the vertices F(v1)
  can be projected onto the multi-resolution spaces
  defined by the DW.
• Network topology can be studied by defining a
  random- walk-like diffusion operator and
  representing the coarsened versions of the graph.
• But Traffic Matrices are 2D functions of the
  origin and destination vertices, and can also be
  functions of time TM(V1,V2,t)

14
2D Diffusion wavelets

• Extension of DW to 2D functions defined on a
  graph
• F(v1,v2)
• Construction of separable 2D bases by projecting
  twice into both directions
• Tensor product
• Similar to 2D DWT
• Orthonormal, invertible, energy conserving
  transform

Operator T
VW1
WW1
WV1
VV1
VW2
WW2
WV2
VV2
VW3
WW3
WV3
VV3
15
2D Diffusion wavelets

• Extension of DW to 2D functions defined on a
  graph

Operator T
VW1
WW1
WV1
VV1
VW2
WW2
WV2
VV2
16
MRA of Traffic Matrices

• More than 20000 TMs from operational networks
• Abilene (2004), granularity 5 mins
• GÉANT (2005), granularity 15 mins
• Acknowledgments Yin Zhang (UTexas), S. Uhlig
  (Delft),
• Adjacency operator
• A unweighted adjacency matrix
• Symmetrised version of the random walk same
  eigenvalues
• Precision e 10-7

17
2D Diffusion wavelets Abilene example
V0
12
V4
6
W1
V1
W5
V5
W2
V2
W6
V6
W3
V3
W7
V7
W4
V4
W8
V8
eigenvalues at each subspace
Wj WVj VWj WWj
18
2D Diffusion wavelets Abilene example
STTL
SNVA
DNVR
LOSA
KSCY
HSTN
IPLS
ATLA
CHIN
NYCM
WASH
ATLA-M5
19
2D Diffusion wavelets Abilene example
20
2D Diffusion wavelets Abilene example
DW coefficients Abilene 14th July 2004 (24 hours)
Time (5 min intervals)
Coefficient index (high to low freq)
21
2D Diffusion wavelets Abilene example

• How concentrated is the energy of the TM?
• Wavelet coefficients for the Abilene TM
• 12 x 12 144 coefficients

Coefficients high to low frequency
22
Compressibility of TMs
23
Rank signature
24
Rank signature anomaly detection?
25
Other operators

• Gravity operator
• G normalized gravity model (rank 1) from fan-out
  and fan-in probabilities
• Needs symmetrisation (undirected graph)
• Actual operator Max-eig-normalized T
  (non-stochastic)

26
Gravity operator
Gravity operator
Topology operator
Coefficients high to low frequency
27
Gravity operator
1.4 coeff ? 80
4.9 coeff ? 90
11 coeff ? 95
28
Conclusions and open issues

• Representation of TMs in the DW domain
• TMs in the DW domain seem to be sparse
  (compressible)
• Consistency along time
• Ongoing work
• Develop a sparse model for TMs
• Exploit DWs dimensionality reduction in the
  inference problem
• Exploring weighted / routing-related diffusion
  operators
• Introducing time correlations in the diffusion
  operator
• Diffusion wavelet packets best basis algorithms
  for compression
• DW analysis of network topologies

29
Time-based operators
30
Flow/traffic operators
31

• Thank you !
• Questions?

32
MRA of TMs Why?

• Applications of MRA in Signal Processing
• Denoising
• Keep the low-frequency components, discard the
  high-frequency details
• Compression
• Keep the best coefficients for highest perceptual
  quality
• Potential applications for TMs
• Denoising
• Compression express a TM with few
  coefficients
• Lower-dimension model of the TM, easier to
  predict/analyze
• Could this help with the inference problem?

33
Flow/traffic operators
Traffic operator
Flow operator
34
Géant
23 nodes (2005)
35
The tools Graph wavelets

• Graph wavelets for spatial traffic analysis
  (Crovella Kolaczyk 03)
• Exploit spatial correlation of traffic data
• Sampled 2D wavelets

36
The tools Graph wavelets

• Graph wavelets for spatial traffic analysis
  (Crovella Kolaczyk 03)
• Link analysis
• Definition of scale j j-hop neighbours

37
The tools Graph wavelets

• Graph wavelets for spatial traffic analysis
  (Crovella Kolaczyk 03)
• Anomaly detection in Abilene

38
Multi-Resolution Analysis

• Scaling functions averaging, low-frequency
  functions
• Wavelet functions differencing, high-frequency
  functions

39
Multi-Resolution Analysis (2D)

• Separable bases horizontal x vertical
• Example 2D scaling function

40
Diffusion wavelets

• Eigenvalues of the diffusion operator
• Every operator can be defined in terms of its
  eigenspectrum
• Eigenvalues ?i, eigenvectors vi
• 0 ?i 1
• Eigenvalues of Tk ?ik
• Amount of important eigenvalues vectors
  decreases with k
• Those under certain precision ? related to
  high-frequency detail
• Those over ? are related to low-frequency
  approximations
