Pointcuts and Analysis

1

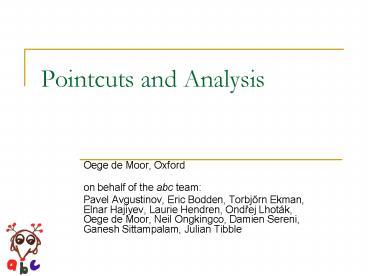

Pointcuts and Analysis

• Oege de Moor, Oxford
• on behalf of the abc team
• Pavel Avgustinov, Eric Bodden, Torbjorn Ekman,
  Elnar Hajiyev, Laurie Hendren, Ondrej Lhoták,
  Oege de Moor, Neil Ongkingco, Damien Sereni,
  Ganesh Sittampalam, Julian Tibble

2
Swing thread safety (Ramnivas Laddad)
Once a component is visible only the
event-dispatching thread can safely access or
modify the state of the realized component.
(but some methods are exempt)
3
Doing it by hand
interface Runnable void run()
asynchronous invocation EventQueue.invokeLater(R
unnable run)
synchronous invocation EventQueue.invokeAndWait(
Runnable run)
4
With an aspect
void around() routedMethods()
voidReturnValueCalls() !uiSyncMethodCalls()
Runnable worker new Runnable()
public void run()
proceed()
EventQueue.invokeLater(worker)
only once instead of scatteredover Swing client
program
5
Some of the pointcuts

• pointcut viewMethodCalls()
• call( javax..JComponent.(..))
• pointcut modelMethodCalls()
• call( javax..Model.(..))
• call( javax.swing.text.Document.(..)
  )
• pointcut uiMethodCalls()
• viewMethodCalls() modelMethodCalls()

• pointcut uiSyncMethodCalls()
• call( javax..JOptionPane.(..))

6
Nice example of aspects

• Clean solution to awkward problem
• Instead of polluting application code, describe
  policy in one place
• Pointcut language is concise and intuitive

7
QUIZ pointcuts are intuitive?
Given types with fully qualified
names a.b.c.SomeType a.b.c.SomeType.ANestedType

• In a.b.c.Aspect, which patterns have NO matches?
• SomeType
• ..SomeType
• a.b.c.
• SomeType.ANestedType
• SomeType.
• ANestedType
• Some.ANestedType
• a.b.c..ANestedType

(first prize free copy of abc second prize
free copy of ajc)
8
Rules for matching type patterns

• The pattern is matched against the
  fully-qualified name of the candidate type, and
  matches only if that fully-qualified name is
  lexically matched by the type pattern. imports
  etc are not taken into account
• If the pattern contains no wildcards at all it
  matches only the type that would result from
  resolving the exact same string using normal Java
  scoping rules.

Adrian Colyer Bug 141133.
9
This talk

• Semantics of static pointcuts
• Shadow labelling
• Pointcuts are relational queries
• Translating pointcuts to queries
• Queries beyond AspectJ
• Static call graph analysis
• Everything is a joinpoint
• Intercept any instruction
• Aspect interfaces
• Taming the (newly introduced) power

POPL 2007
speculative
10
Semantics of static pointcuts

• Walker et al. - formalise shadow matching via
  explicit labels
• - operational semantics for explicit labels

11
From static pointcuts to label sets (0)

• public class X
• void f1(int n)
• void f2(int n) f1(n)
• void f3(int n) f2(n)
• public static void
• main(String args)
• X x new X()
• x.f3(0)
• x.f2(1)

aspect A pointcut a (int n) call(
f(..)) args(n) cflowbelow(executio
n( f3(..))) before(int n) a(n)
System.out.println(thisJoinPoint "
n"n)
12
From static pointcuts to label sets (1)

• public class X
• void f1(int n) L1
• void f2(int n) L2 L3 f1(n)
• void f3(int n) L4 L5 f2(n)
• public static void
• main(String args)
• L6 X x L7 new X()
• L8 x.f3(0)
• L9 x.f2(1)

aspect A pointcut a (int n)
label(L3,L5,L8,L9) //call( f(..))
args(n) cflowbelow( label(L4)
//execution( f3(..)) ) before(int n) a(n)
System.out.println(thisJoinPoint "
n"n)
13
Pointcuts are queries (0)

• Store program as a set of primitive relations,
  e.g.
• methodDecl(MethodId,Name,Sig,DeclType,RetType)
• callShadow(ShadowId,Method,ReceiverType)
• executionShadow(ShadowId,Method)

(Naïve) query for pointcut call( f(..))
p(S) Ã 9 M method, N string
. callShadow(S, M, _), methodDecl(M, N, _,
_, _), regexpmatch(f., N).
14
Pointcuts are queries (1)

• Store program as a set of primitive relations,
  e.g.
• methodDecl(MethodId,Name,Sig,DeclType,RetType)
• callShadow(ShadowId,Method,ReceiverType)
• executionShadow(ShadowId,Method)

(Naïve) query for pointcut execution( f3(..))
p(S) Ã 9 M method, N string
. executionShadow(S, M), methodDecl(M, N,
_, _, _), regexpmatch(f3, N).
15
Overview of semantics

• Find shadows, store in database relations
• Take pointcuts, rewrite to queriesset of 90
  simple rewrite rules
• Run queries
• Results are instrumentation points

16
Query language Datalog

• Series of backward implications
• p(X1 t1, X2 t2, , Xn tn) Ã
• q1(Y1, .., Yk), , qm(Z1, .., Zj) .
• Conjunctions indicated by comma
• Disjunctions indicated by semi-colon
• Query itself is formula with free variables

17
Powered by Tarski (1902-1983)

• (subject to mild restrictions)
• least solution of implications
• all queries terminate
• all queries have a finite result
• NO surprises
• very deeply investigated in theory of
  databases

18
Datalog has two kinds of relations

• Primitivestored in database relational
  representation of program
• Rulesimplication rules written in program
  e.g. for testing transitive subtype relation

19
Example rule
hasSubtype(T type, T type) . hasSubtype(T
type, S type) Ã 9 U type .
hasSubtype(T, U), hasSubtype(U, S) .
hasSubtype is primitive ( stored in database)
20
Mapping pointcuts to queries

• Given pointcut pc
• Define querypcq(Context type, S shadow)
• which is true precisely when shadow Smatches
  pointcut pc declared in type Context
• Context is needed for name resolution, Quiz 1

21
Example call versus execution
class A void m() class B extends A
class C extends B void m()
pointcut c() call( B.m(..)) pointcut e()
execution( B.m(..))

QUIZ 2 Where does c() match? Where does e()
match?
(new A()).m() (new B()).m() (new
C()).m()
22
Query for c() call( B.m(..))
c(Context type, Shadow shadow) ? 9 M
method, Recv type, N method .
matchpat(Context, M, Recv) , overrides(N, M)
, callShadow(Shadow, N, Recv) .
reflexive relationoverrides(N,M)
23
Matching method patterns
matchpat(Context type, M method, Recv
type) ? ?T type, MD type .
simpleTypeLookup(Context, B , T),
hasSubtype(T, Recv), methodDecl(M, m , _,
MD, _), ( ( hasStrModifier(M, static),
MDT ) ( not(hasStrModifier(M,
static )), hasSubtype(MD, T) ) ) .
24
Query for e() execution( B.m(..))
e(Context type, Shadow shadow) ? ? M
method, Recv type, N method .
matchpat(Context, M, Recv), overrides(N,
M), hasChild(Recv, N),
executionShadow(Shadow,N) .
difference with call
25
Semantics of static AspectJ pointcuts
All static pointcuts covered Only 90 rewrite
rules Concrete syntax implementation with
Stratego
26
Flavour of rewrite rules (0)
aj2dl(pc1 pc2, C, S) ? aj2dl(pc1,C,S),
aj2dl(pc2,C,S) aj2dl(pc1 pc2,C,S) ?
aj2dl(pc1,C,S) aj2dl(pc2,C,S) aj2dl(not(pc),
C,S) ? not(aj2dl(pc,C,S))
27
Flavour of rewrite rules (1)

• fieldmembpat2dl(namepat..snamepat,C,R,X)
• ?
• Y packageOrType, Z type, P type .
• wcnamepat2dl(namepat,Y), hasChild(Y, Z),
• hasSubtype(P, Z), hasChild(P, X), field(X),
• snamepat2dl(snamepat, X),
• hasSubtype(Z, R) .

this is as complex as it gets
28
Implementation
relationaldatabase (M SQLServer)
AspectJ program
Matchedshadows
primitives
Shadow Grab (modified abc)
Strip fromsource
pointcuts
Datalog program
ProceduralSQL
Strategorewrites
CodeQuest compiler
29
It works!
30
Should all AspectJ users learn Datalog?
NO
But power users will learn it
31
Conclusions of pointcut semantics

• Datalog suitable for pinning down semantics
• Directly generating implementation from semantics
  is feasible
• Datalog at sweet spot between expressiveness and
  efficiency

32
Beyond AspectJ
33
No calls to UI methods from beans
declare error call( java.awt...(..))
within(Bean) do not call GUI methods from
Bean
only catches direct calls
34
Catching all errors
maycall(M method, N method)
à maycall(M,N) 9 K method . maycall(M,K),
maycall(K,N).
declare warning at M 9 T type
. bean(T), methodDecl(M,_,_,T,_,_), 9 N
method . maycall(M,N), guiMethod(N) may be
calling a GUI method from this method
35
Other applications

• Advise methods that may change the state of
  class C
• Find security flaws (PQL, Martin et al)
• Many more in LogicAJ papers

BUT we are limited by the joinpoint model of
AspectJ
36
Everything is a joinpoint
37
The 11 joinpoint kinds of AspectJ

• Method call
• Method execution
• Constructor call
• Constructor execution
• Static initializer execution
• Object pre-initialization
• Object initialization
• Field read
• Field write
• Handler execution
• Advice execution

Why are these the right choice?
38
Joinpoints Jimple instructions
Jimple
Java
int foo(int, int) Example this
int x, y, i0, i1 this
_at_thisExample x _at_parameter0 int
y _at_parameter1 int if x gt y goto
label0 i0 y - x return i0
label0 i1 x - y return
i1
int foo(int x, int y) if (xlty)
return (y-x) else return (x-y)
Jimple a typed, 3-address, stack-less
representation of bytecode
39
Advantages of Joinpoints Jimple

• Points-to analysis in Datalog Whaley et al,
• and based on that many more complexanalyses
  (like precise predicted cflow)
• General dataflow pointcuts Masuhara et al
• Jimple has been designed to make staticanalyses
  easy

40
Disadvantage of Jimple Joinpoints
complete loss of encapsulation
AspectJ does not have encapsulation, but now the
problem is even worse
41
Aspect Interfaces

• User control over visible joinpoints e.g.
  hide non-AspectJ joinpoints
• Datalog for semantics-based control e.g.
  only allow pure aspects to advise

42
Open modules
Open module specifieswhat can beadvised by
whichaspect
aspects
aspects
aspects
classes
aspects
43
An example open module
module FigureModule class Point,Figure adv
ertise call(Figure Figure.translate(int,int))
expose to MoveTrackAspect call(
Point.translate(int,int)) within(Figure)
classes that are affected
only external calls are advised
MoveTrackAspect may advisethe specified
joinpoints
44
Opening modules for debugging
module Debug open FigureModule expose to
debug. call( .(..))
another form of module inclusion constrains
included module
45
Datalog for semantics-based control
expose to ltaspect-querygt ltevent-querygt
Current abc aspect-query classname pattern
expression event-query pointcut
Using datalog queries, can express pureaspect(A)
As only side effect is writing to
System.err then expose to pureaspect(A) call(
mysys..(..))
46
Hiding non-AspectJ shadows (0)

• Predicate for each AspectJ shadowcallShadow(S,M
  ,R) setShadow(S,F,R)
• These are defined in terms of primitive relations
  that store Jimple instructions
• Define new predicate
• aspectj(S) ? (? M, R callShadow(S,M,R))
• (? F, R setShadow(S,F,R))

47
Hiding non-AspectJ joinpoints (1)
only expose AspectJ joinpoints from an existing
module
module AspectJVisibility constrain
existingModule expose(S) aspectjShadows(S)

48
Discussion points

• Expose Datalog to power users?
• via new syntax rewrite rules
• better Datalog syntax
• Whole program accessible via pointcuts?
• via AST
• via IR such as Jimple
• How do we recover encapsulation?
• Open modules
• Datalog to give semantic hiding conditions
