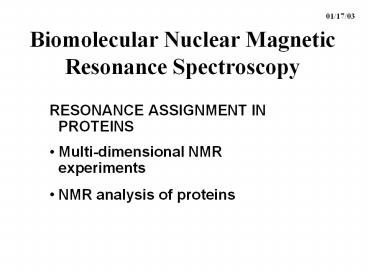

Biomolecular Nuclear Magnetic Resonance
Spectroscopy
01/17/03

• RESONANCE ASSIGNMENT IN PROTEINS
• Multi-dimensional NMR experiments
• NMR analysis of proteins

2
Proteins Have Too Many Signals! 1H NMR Spectrum
of Ubiquitin
500 resonances

• Resolve resonances by multi-dimensional
  experiments

3
The Pulse FT NMR Experiment
4
2D NMR Coupling is the Key
2D detect signals twice (before/after coupling)
90º pulse
Transfers between coupled spins
Same as 1D experiment
2D NMR Pulse Sequence
5
The 2D NMR Spectrum
Pulse Sequence
t1
t2
Spectrum
Before mixing
Coupled spins
After mixing
6
The Power of 2D NMRResolving Overlapping Signals
1D
2 signals overlapped
2D
2 cross peaks resolved
7
Higher Dimensional NMRBuilt on the 2D Principle
3D- detect signals 3 times
90º pulse
(t3)
Same as 1D experiment
3D NMR Pulse Sequence

• Experiments are composites ? acronyms are
  composites

8
Acronyms For Basic ExperimentsDiffer Only By The
Nature Of Mixing
Homonuclear
Heteronuclear
Scalar Coupling
COSY
HSQC
TOCSY
Hetero-TOCSY
HMQC
Multiple Quantum
Dipolar Coupling
NOESY
NOESY-HSQC
NOESY-HMQC
9
Proteins Have Too Many Signals! 1H NMR Spectrum
of Ubiquitin
500 resonances
10
Challenges For Determining Protein Structures
Using NMR

• Proteins have thousands of signals
• Assign the specific signal for each atom
• Thousands of interactions between atoms- also
  need to be assigned
• Need to transform representation from spectrum
  through interactions between atoms to spatial
  coordinates

11
NMR Spectrum to 3D Structure
12
Critical Features of Protein NMR Spectra

• The nuclei are not all mutually coupled
• Each amino acid gives rise to an independent NMR
  sub-spectrum, which is much simpler than the
  complete protein spectrum

13
Critical Features of Protein NMR Spectra

• The nuclei are not all mutually coupled
• Regions of the spectrum correspond to different
  parts of the amino acid
• Tertiary structure leads to increased dispersion
  of resonances

14
Regions of the 1H NMR Spectrum
What would the unfolded protein look like?
15
Solutions to the Challenges

1. Increase dimensionality of spectra to better
   resolve signals 1?2?3 ?4

16
Resolve Peaks By Multi-D NMR
A BONUS?regions in 2D spectra provide protein
fingerprints
If 2D cross peaks overlap? go to 3D
17
Solutions to the Challenges

• Increase dimensionality of spectra to better
  resolve signals 1?2?3 ?4
• Detect signals from heteronuclei (13C,15N)
• Better resolution of signals/chemical shifts not
  correlated between nuclei
• More information to identify signals
• Lower sensitivity to MW of protein

18
Double-Resonance ExperimentsIncreases
Resolution/Information Content
15N-1H HSQC
-15N - Ca- CO -15N - Ca
H
H
19
Large Scalar Couplings ? Less Sensitive to MW of
the Protein

• Superior to 1H homonuclear NMR H-H couplings
  lt20 Hz
• Mixing is faster so less time for signal to relax
