HND OODI Assignment 1

1

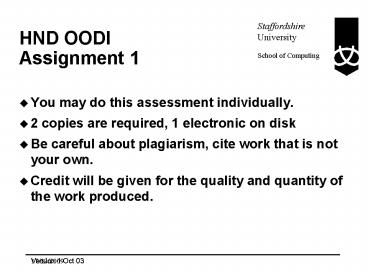

HND OODIAssignment 1

• You may do this assessment individually.
• 2 copies are required, 1 electronic on disk
• Be careful about plagiarism, cite work that is
  not your own.
• Credit will be given for the quality and quantity
  of the work produced.

2
HND OODIAssignment 1

• Doctors Surgery
• Outline
• A doctors surgery consists of five doctors a
  receptionist and a manager. They need an
  information system to help them to run the
  facility. The information system should enable
  appointments to be made and a track to be kept of
  diagnosis and treatment given to each patient.
  You have been asked by the manager of the surgery
  to produce a proposal for a new computerised
  system.
• Due in Week 12 (Wednesday 17th December 2003)

3
The current system

• The surgery registers patients, makes
  appointments, and records the important details
  of the appointments. These include the symptoms,
  diagnosis and treatment (including prescriptions)
  .
• Patients register with one doctor. Each doctor
  has a maximum number of patients registered to
  them.
• Patients may make appointments. These may be
  standard, emergency or home visits.
• When a patient is seen the doctor is able to see
  a medical history of the patient and then to
  record relevant details of the appointment.

4
Deliverables

• Models of the proposed system using Select
  Enterprise CASE tool
• These will be built as the course progresses
• UseCases - both diagrams and text describing the
  use cases
• Class Diagram(s)
• (however, you may if you wish submit separate
  class diagrams)
• Two State Diagrams for classes of your choice
• (see recommendation in the lecture)
• An Object Sequence Diagram(s) and/or
  Collaboration Diagram(s)
• A brief description of any assumptions made
• The whole document to be presented with header
  and contents pages
